How to design a Malaysian terrace house — solving the narrow footprint and the dark middle, the wet/dry kitchen split, styles that suit landed homes, and realistic 2026 budgets.
Most interior design content you will find online is written for condos or for detached houses with windows on four sides. A Malaysian terrace house is neither. The standard intermediate lot — 20 × 70 ft or 22 × 75 ft — shares both side walls with the neighbours, so every openable window sits at the front or the back of a deep, narrow floor plate. That single fact drives almost every good design decision: where walls come down, where the kitchen goes, how the staircase is treated, and why lighting design matters more here than in any other property type. It also means condo design ideas transplant badly — a terrace has more floor area than most condos (1,400–2,200 sq ft built-up for a double-storey) but distributes it as two or three long strips, so the design problem is circulation and light, not square footage. If you start from the shape instead of from a Pinterest board, the rest of this page follows logically.

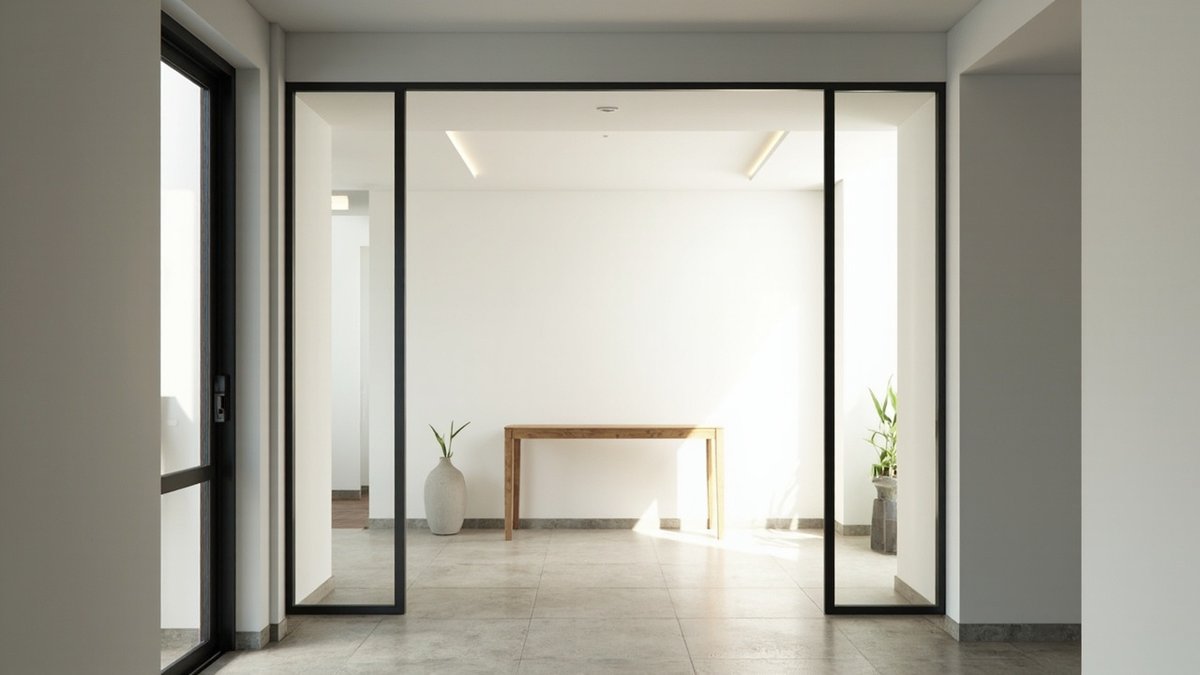

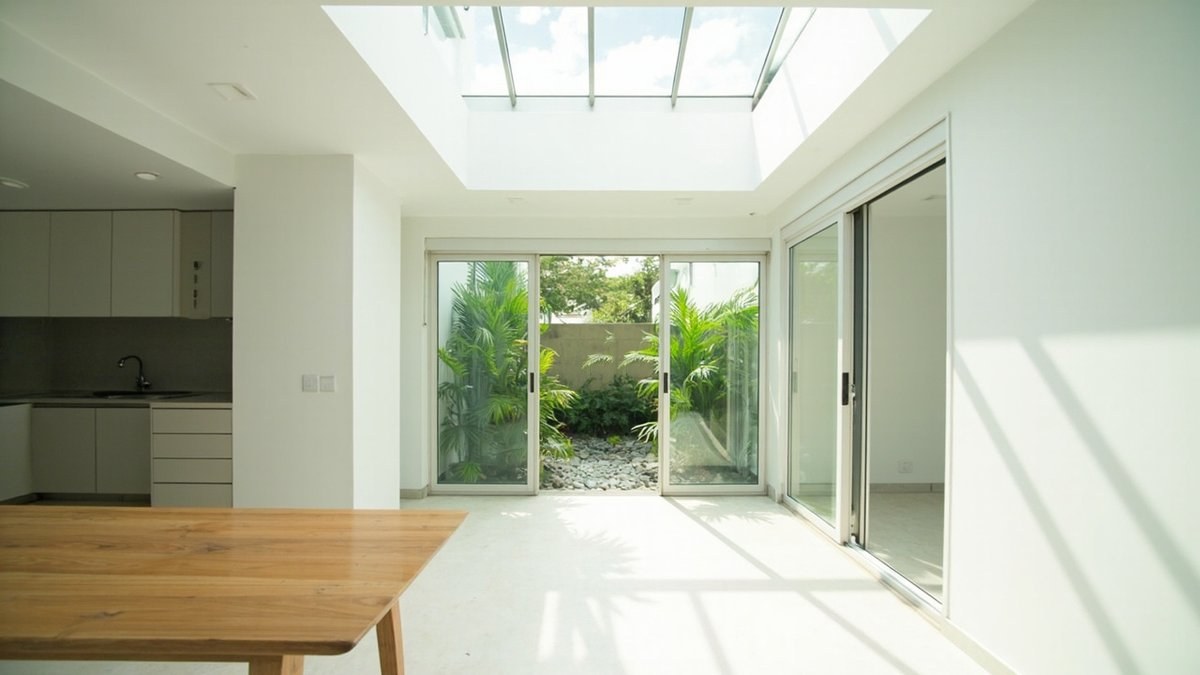

Walk into an untouched 1980s terrace at noon and the middle third of the ground floor is dark enough to need lights on. Designers attack this from several angles, usually in combination. The air well — if your terrace has one — is the biggest asset in the house: opened up, glazed over with a skylight, or planted as an internal courtyard, it pours daylight into exactly the zone that needs it. Where there is no air well, options include a skylight over the stairwell, replacing solid internal walls with glass partitions or half-height dividers, light-coloured floors and ceilings that bounce what daylight exists, and a deliberate artificial lighting plan — layered ambient, task and accent lighting rather than a single ceiling point per room. Our lighting design guide covers that layering in detail. The test of a good terrace designer is simple: ask what they plan to do about the middle of your house. If the answer is “downlights”, keep interviewing.

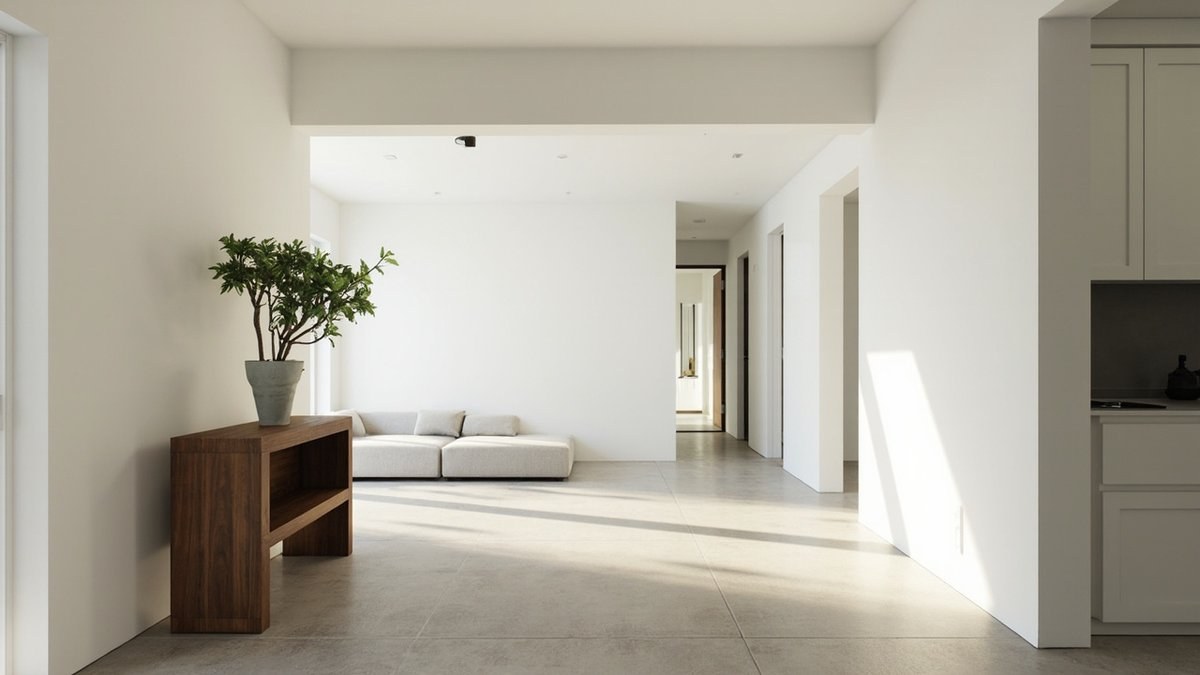

The single highest-impact move in most terrace projects is removing the wall (or walls) that chop the ground floor into a front hall, a middle room and a back kitchen. Merging living and dining into one continuous space lets front-door light travel deeper, makes a 20-ft-wide house feel dramatically wider, and creates the long sightline that photographs so well in renovated terraces. Two cautions. First, not every wall can go: some internal walls in older terraces are load-bearing, and hacking them needs an engineer's input — our wall hacking guide explains which walls are which and what proper hacking involves. Second, open plan needs discipline to work in a tropical climate: the more the ground floor becomes one space, the more the kitchen arrangement matters, which is the next section. Zoning with a feature wall, a change in flooring, or a half-height TV console keeps the openness without the “furniture floating in a corridor” effect.

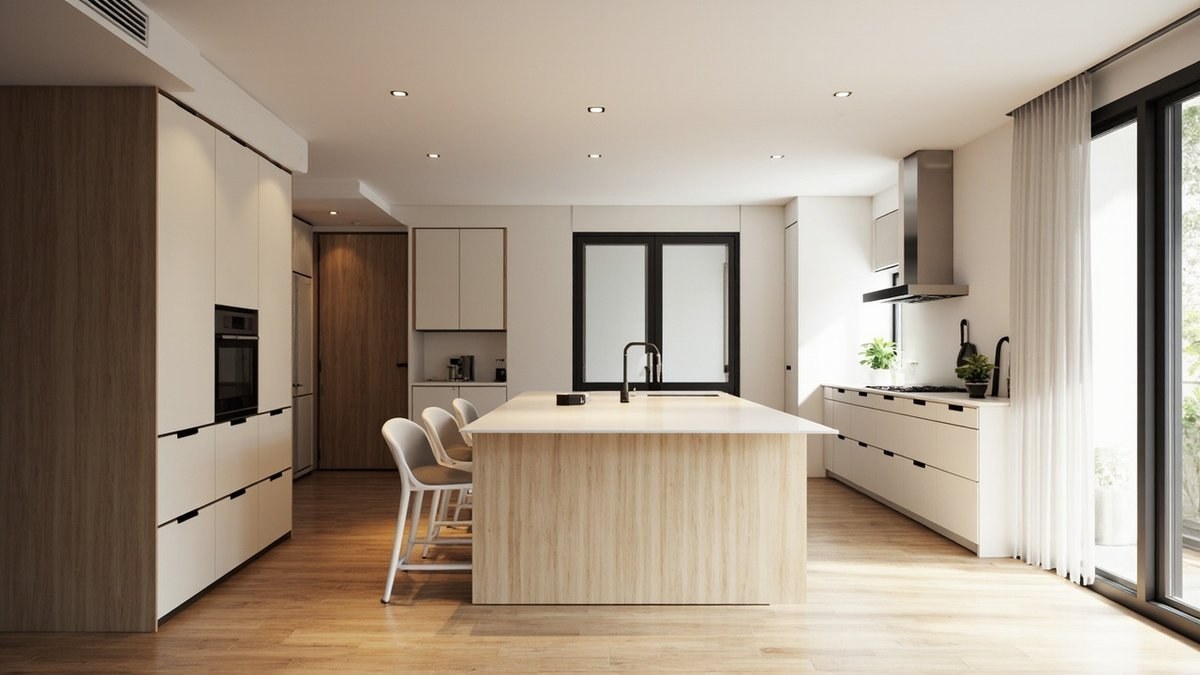

Malaysian cooking and open-plan living are only compatible because of the wet/dry kitchen split, and the terrace footprint suits it perfectly. The dry kitchen — island or peninsula counter, hob for light cooking, coffee corner — sits open to the dining area and carries the design language of the living space. The wet kitchen, where the serious frying and belacan happen, sits behind glass doors at the back of the house or in the rear extension, with its own powerful extraction and easy-wash surfaces. This split is also where a designer earns their fee on ventilation and grease control rather than pure looks. Layouts, costs and the full decision logic are in our wet vs dry kitchen guide; budget-wise, cabinetry is usually the biggest single carpentry line in a terrace project, so decisions here move the total more than any other room.

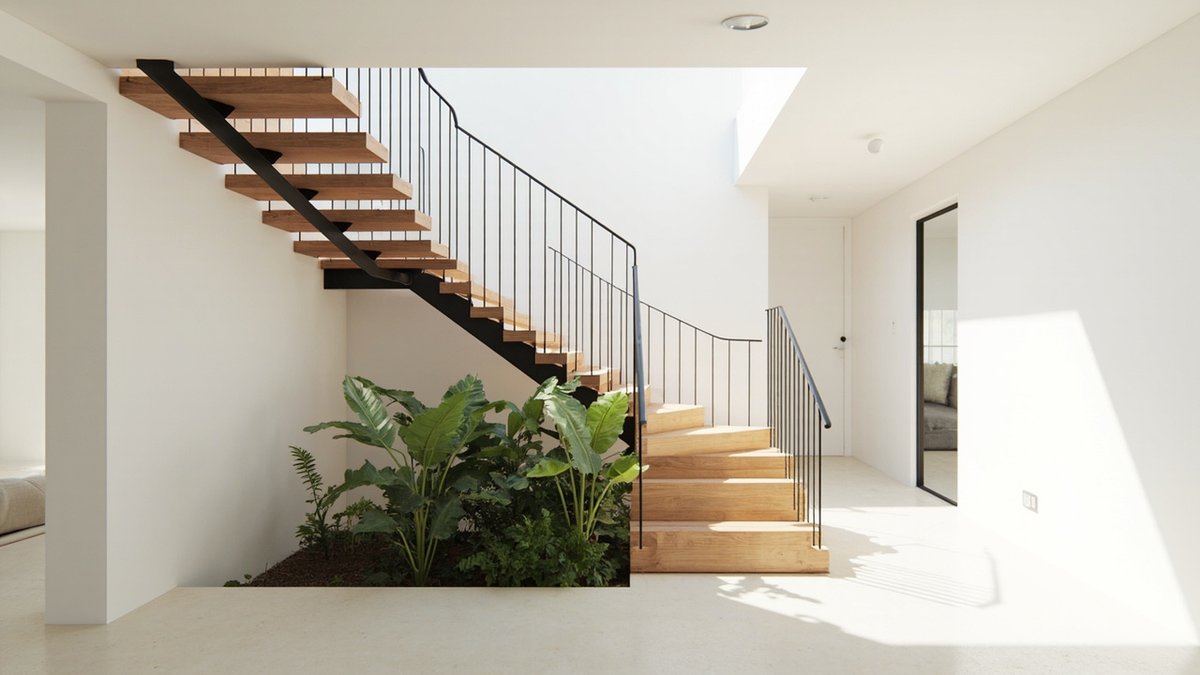

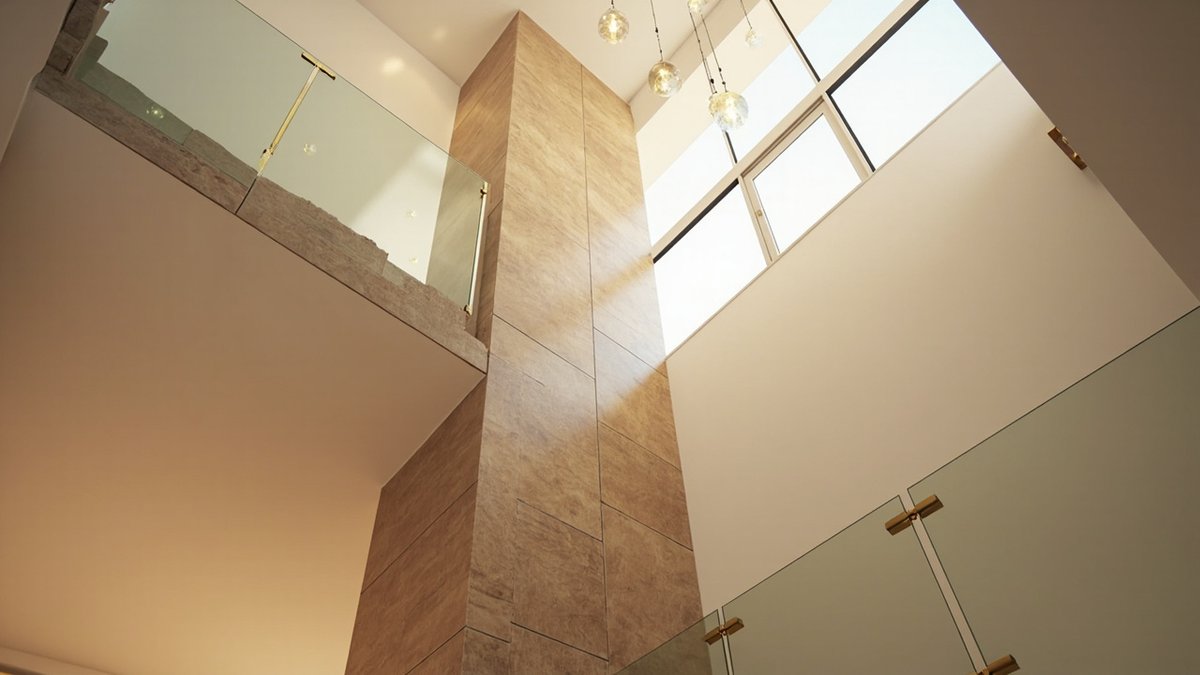

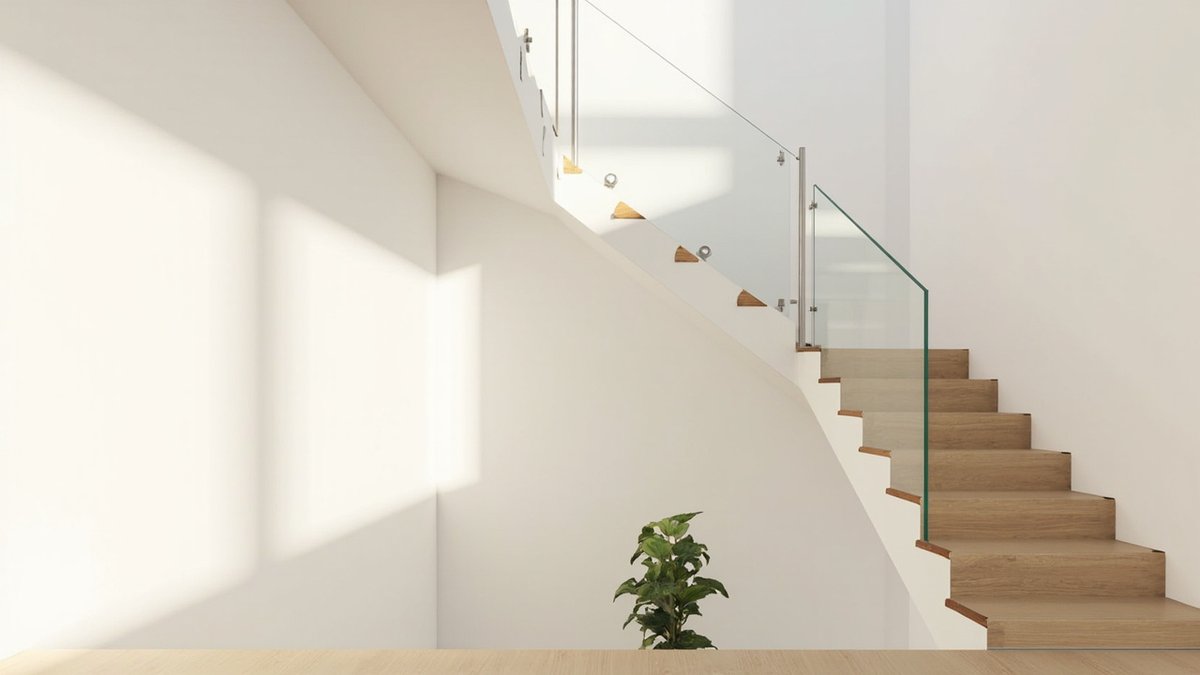

Every double-storey terrace has a staircase near its centre, and it is either dead space or the best feature in the house. Renovated terraces increasingly treat the stair and the air well beside it as one designed object: open risers or a slim steel stringer to let light through, a full-height feature wall or planting running up the void, pendant lights dropping through two storeys, and a skylight above turning the stairwell into a light shaft for both floors. Even on a modest budget, re-cladding treads, replacing a heavy masonry balustrade with glass or thin steel balusters, and lighting the stair properly transforms the middle of the house. Our staircase design guide covers materials and configurations. If the budget forces a choice, spend on the stair-and-airwell zone before spending on any single room — every person in the house passes through it dozens of times a day.

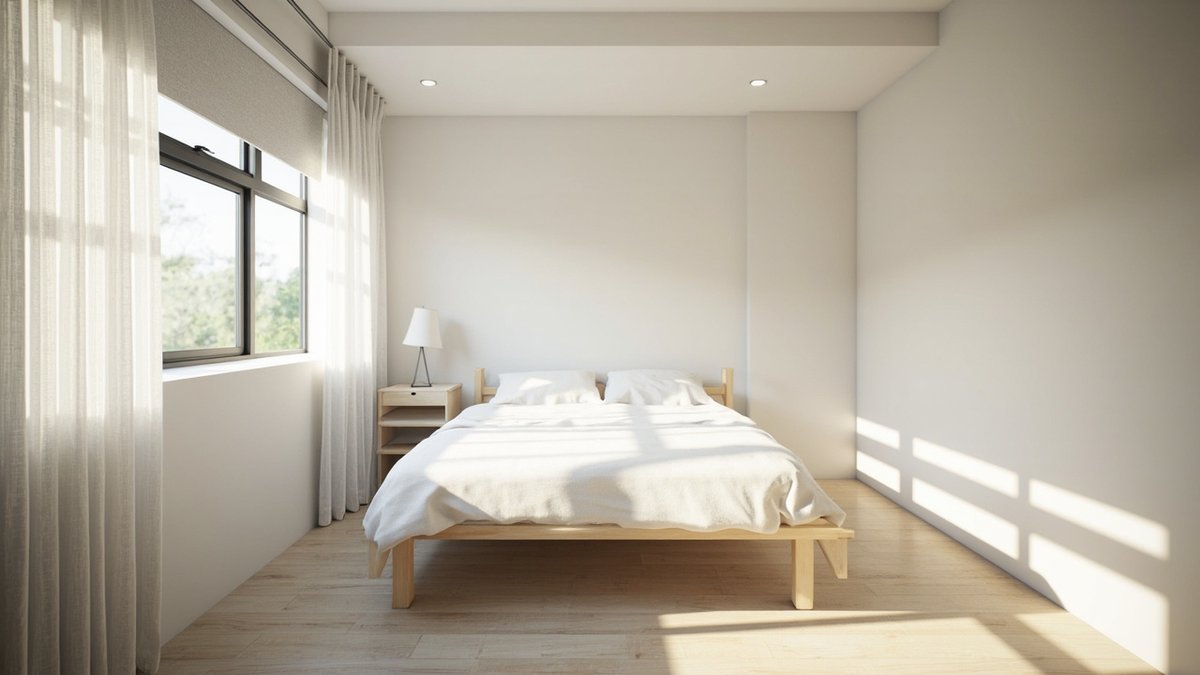

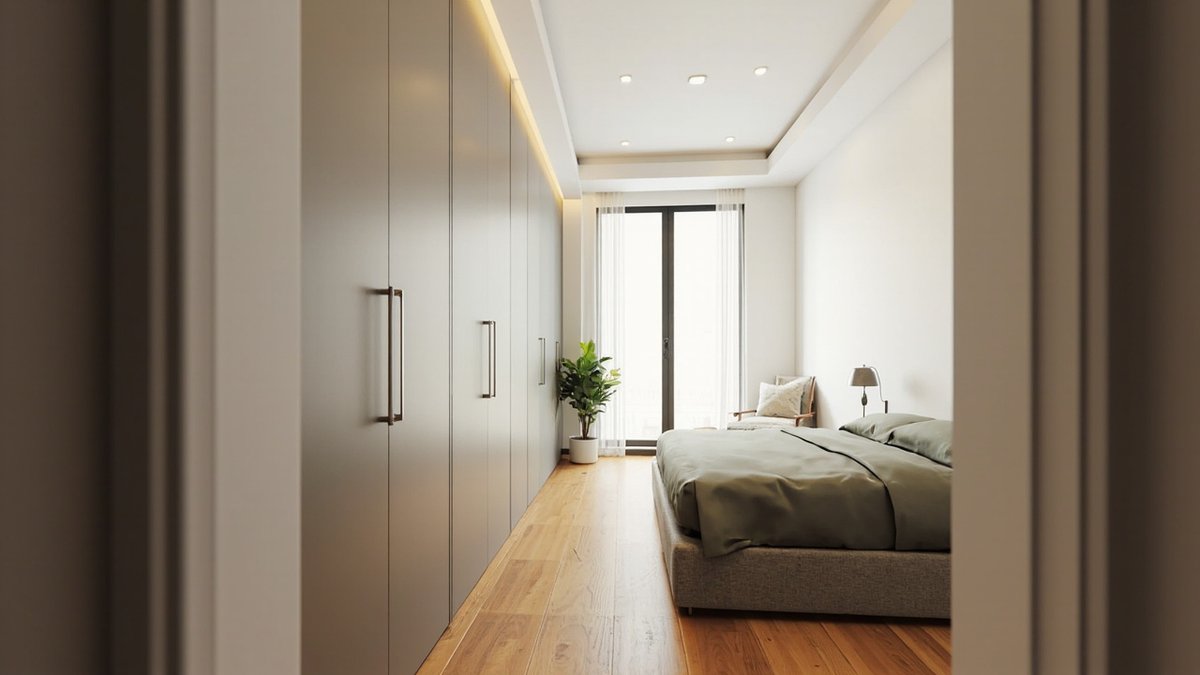

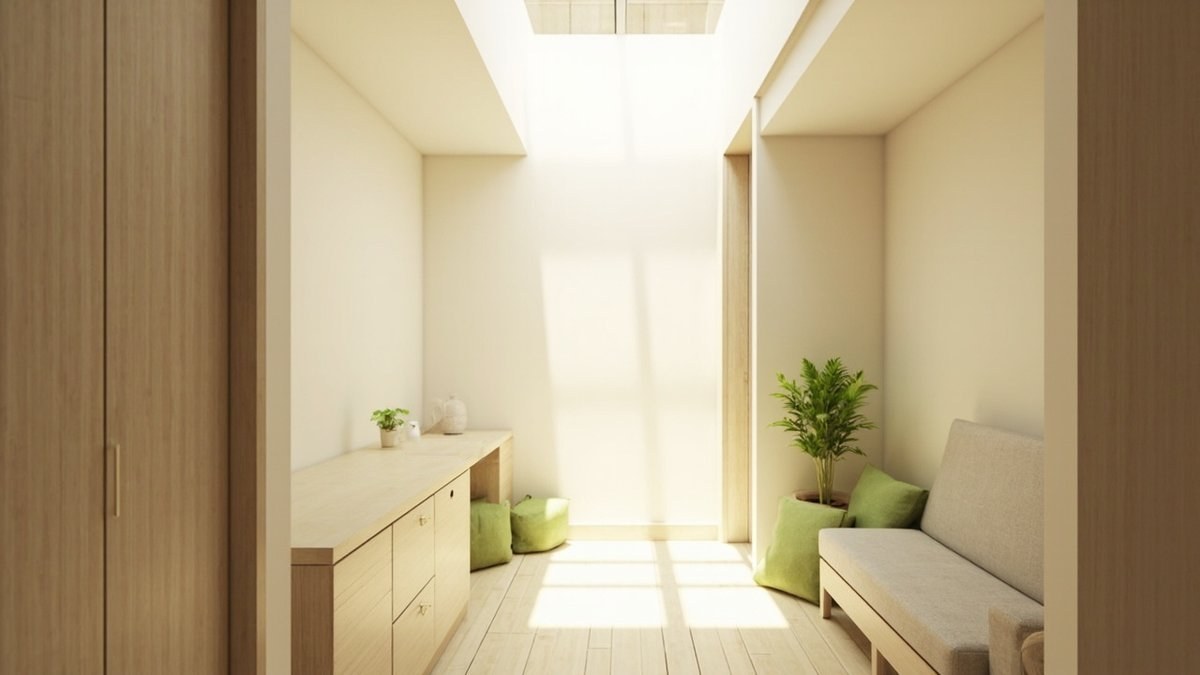

Upstairs, the terrace shape turns from enemy to friend: bedrooms sit at the naturally lit front and back, and the landing in between — often wasted as a corridor — makes an excellent family hall, study zone or reading corner. The master bedroom at the rear typically absorbs the most design attention: built-in wardrobes along the party wall (see our built-in wardrobe cost guide), sometimes a walk-in wardrobe carved from the old third bedroom, and an en-suite upgrade. Front rooms take the afternoon sun on west-facing rows, so window films, blackout blinds and insulation choices are design decisions, not afterthoughts. One terrace-specific tip: ceiling height upstairs is often generous under the roof — exposing or raising sections of ceiling, or adding a skylit void over the landing, is a relatively affordable move that makes the whole floor feel bigger than its footprint.
Any style can be forced into any house, but the terrace footprint and the Malaysian climate reward some directions more than others. The table below is a fair-odds summary; each style links to a full guide.
| Style | Why it works in a terrace | Watch out for |
|---|---|---|
| Minimalist | Clean lines and low visual clutter make narrow spaces read wider | Needs generous storage design or daily life defeats it |
| Japandi | Warm woods and low furniture suit long sightlines and family life | Light timber tones need humidity-appropriate materials |
| Scandinavian | White-and-wood palette maximises the limited daylight | Pure Scandi reads cold under tropical light — localise it |

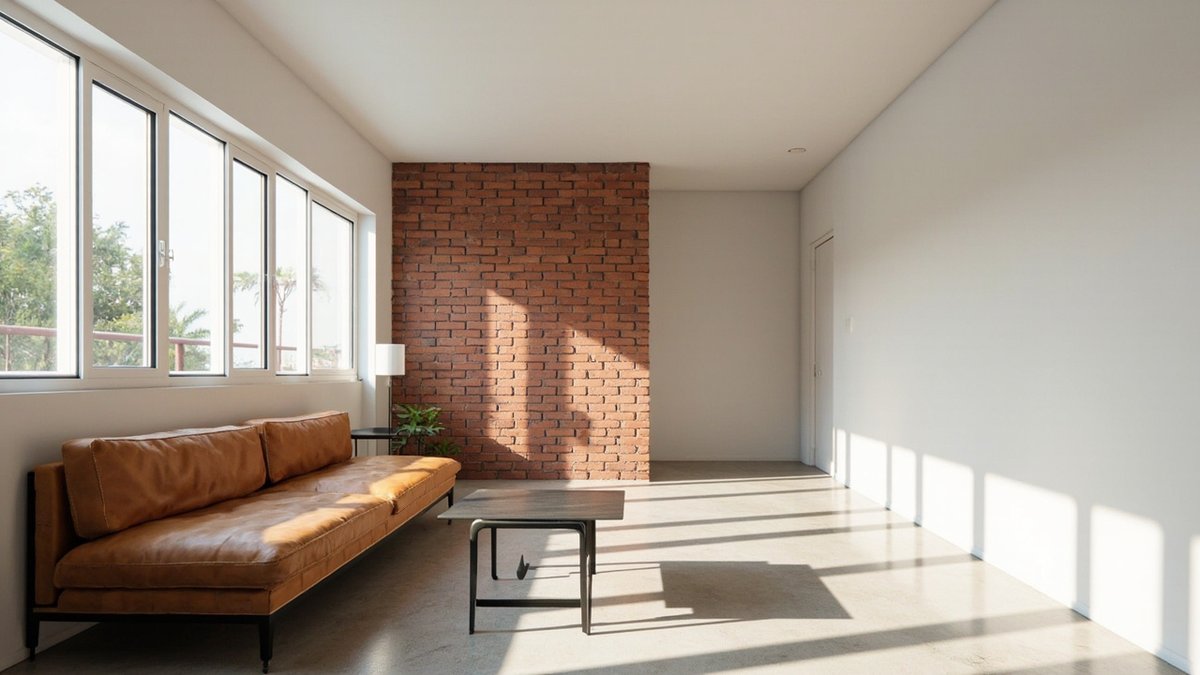

| Industrial | Exposed brick party walls and steel stairs are natural terrace moves | Dark palettes eat light — ration them to feature zones |
| Contemporary | The flexible default — ages well, resale-friendly | Easy to end up generic without a few committed moves |
| Luxury | Double-volume voids and bespoke carpentry shine in landed homes | Budget escalates fast; needs disciplined scope control |
Whichever direction you take, the localisation rules are constant: humidity-tolerant materials, serious ventilation, and finishes that survive Malaysian sun through front-facing glass.
Two numbers matter: the design fee and the build cost. Design-only fees in the Klang Valley run RM3–8 per sq ft of built-up area, or 8–15% of project value on larger jobs — so a 1,800 sq ft double-storey terrace costs roughly RM5,400–RM14,400 to have professionally designed before any work starts. Design-build firms fold that fee into the package. Build tiers look like this (indicative 2026, Klang Valley):
| Tier | Indicative budget | What it buys (double-storey terrace) |
|---|---|---|
| Refresh | RM20,000 – RM40,000 | Full repaint, lighting plan, curtains/blinds, loose furniture curation |
| Mid design-build | RM60,000 – RM120,000 | Kitchen cabinetry, built-ins for 2–3 rooms, flooring overlay, feature walls, plaster ceilings |
| Full interior | RM120,000 – RM250,000 | Whole-house carpentry, wet/dry kitchen, bathrooms, staircase works, full lighting design |
| Full + structural | RM250,000+ | All the above plus extension, air-well or layout restructuring |
The full fee-model comparison — per sq ft vs percentage vs package, and how to stop a “free design” costing you more — is in our interior design cost guide and packages guide.
This page is about design: layout, light, style, carpentry, finishes. If your terrace also needs rewiring, replumbing, roof work or structural repair — and most pre-1990s terraces do — that is renovation scope, priced and sequenced differently, and covered in our terrace house renovation guide. The practical order matters: infrastructure first, design second, because there is no point installing RM40,000 of carpentry against walls that need to be opened for wiring next year. For who to hire — a pure designer, a renovation contractor, or one design-build firm carrying both — see our interior designer vs contractor comparison. The short version for terrace owners: the older the house, the stronger the case for a design-build arrangement where one party is accountable for both the wiring inside the wall and the oak veneer on it.
Terrace design and terrace extension are joined at the hip: the classic back extension (kitchen + wet yard) and front car-porch roof are often what make the interior plan work at all. If an extension is on the cards, design the interior and the extension together, not sequentially — the position of the wet kitchen, the rear glass sliding doors, and the dining zone all depend on where the new back wall lands. Extensions carry their own costs and approval process (plans drawn, submitted to the local council, neighbour considerations on shared party walls) — budget figures and the process are in our house extension cost guide. A designer who sketches your ground floor without asking whether you intend to extend is designing the wrong house.
Landed owners escape strata management approvals, but not the law. Purely cosmetic interior work — paint, carpentry, flooring, lighting — generally needs no permit. The moment the project touches structure (hacking load-bearing walls, extending, altering the façade, raising the roof), local council (PBT) approval and proper plans come into play, and doing it without them creates problems that surface exactly when you try to sell or refinance. Gated-and-guarded communities add a layer: many residents' associations require renovation notice, working-hour limits and refundable deposits even for landed lots. The full picture — what needs a permit, what does not, and penalties — is in our renovation permit guide. A competent designer or design-build contractor flags the approval line before drawings are finalised, not after the hacking starts.
Terrace projects punish two hiring mistakes: hiring a condo-portfolio designer who has never dealt with load-bearing walls, party-wall neighbours or council submissions, and hiring on renders instead of built work. When you shortlist, ask specifically for completed landed projects — photographs of real terraces, not 3D visuals — and walk through how they handled light in the middle of those houses. Fee structures, contracts, payment milestones and the red flags that end a conversation are covered step by step in our guide to choosing an interior designer, and the broader landscape of what interior design covers in Malaysia is in the interior design pillar guide. Twenty minutes of structured vetting is cheap insurance on a six-figure project.
