Plaster Ceiling Design
in Malaysia (2026): L-Box, Cove & Flat

The design vocabulary

Every plaster ceiling design you have screenshotted is built from five elements. The flat base is the plain skimmed ceiling everything else sits on. A cove (often called an L-box in Malaysia) is a perimeter drop with a hidden channel that washes light up or across the ceiling. An island ceiling is a floating panel — usually over the living area or bed — with a shadow gap or light channel around it. A bulkhead is a practical box that hides beams, aircond trunking or piping and, done well, reads as part of the design rather than a lump. And cornice is the moulded profile where ceiling meets wall — the oldest trick in the book and still the cheapest per ringgit of visual upgrade. Combinations of these five cover essentially every Malaysian condo and terrace ceiling; once you can name the parts, quotes stop being mysterious because each element prices separately, as the table below shows.

Plaster ceiling design ideas: 11 concept designs

Eleven plaster ceiling designs built from the five elements below: cove and L-box lighting, island and layered ceilings, cornice profiles and practical bulkheads. Each card is an illustrative concept render; filter by element or by room, tap an image to enlarge it, and open the details for the indicative price band from this page.

StyleAllCove & L-boxIsland & layeredCorniceBulkhead & boxing

RoomAllLiving roomDiningBedroomMaster bedroomKitchenBathroom

11 designs shown

These are illustrative concept designs created to show the options. They are not completed ClickBina projects. Prices are the indicative per-element bands from the pricing table on this page (LED strips and downlights are priced separately). We build and install plaster ceilings. WhatsApp us your job details (room size, ceiling height and the design you like) for a quote.

More galleries: browse all design ideas by area of the house, from cabinets and kitchens to porches and grilles.

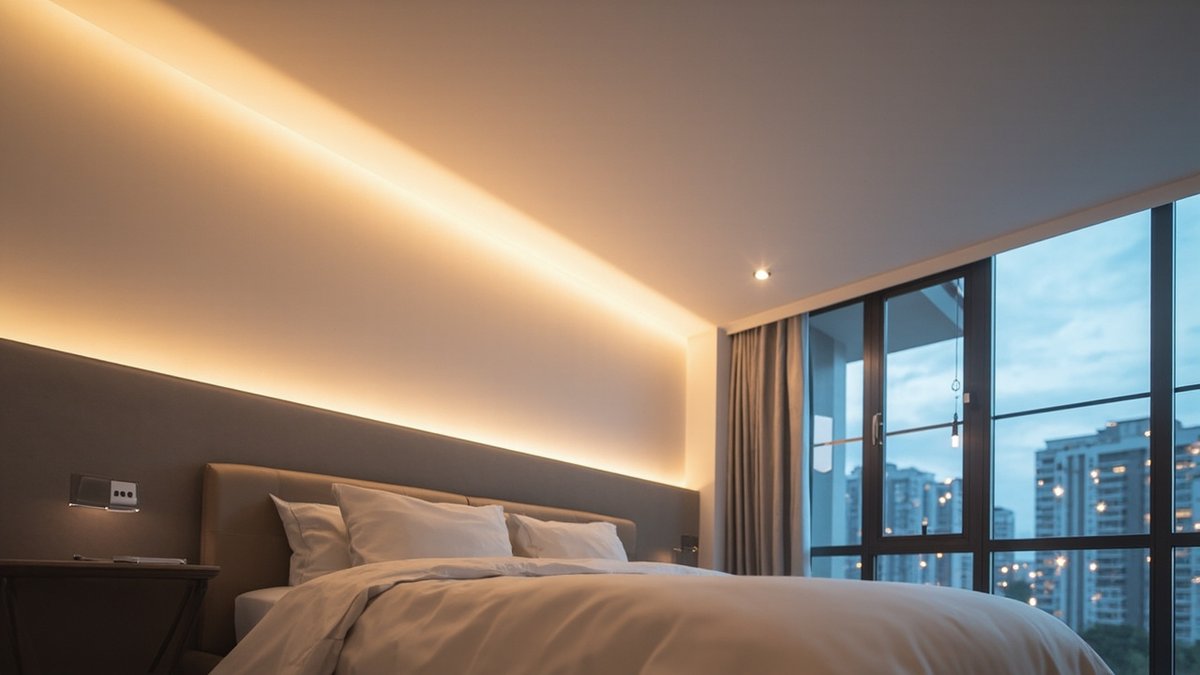

Cove & L-box lighting — how the glow works

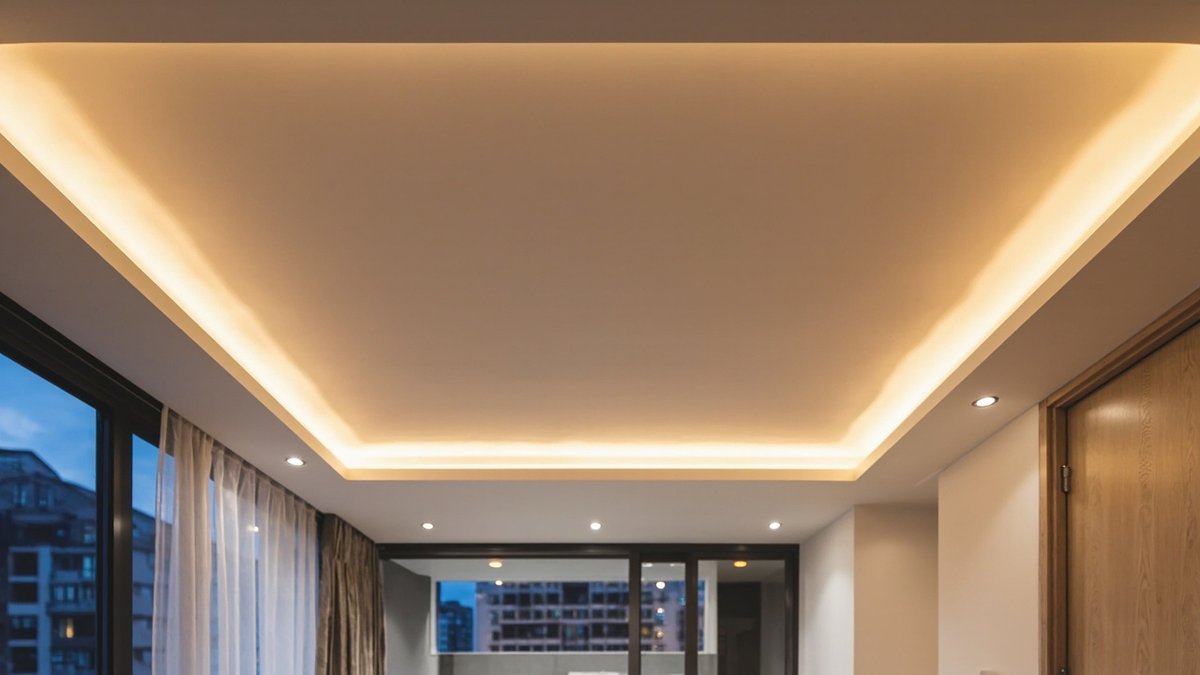

The signature Malaysian look — a warm ribbon of light floating above the room — is a perimeter L-box: a gypsum drop of 100–250mm holding an LED strip in a channel that faces up or sideways, so you see the glow, never the source. Three details separate a good cove from a disappointing one. First, the throw distance: the strip needs 50–100mm clearance from the back wall of the channel, or the light shows as a harsh line instead of a wash. Second, continuity: cheap installs chain short strips with visible dark joints at the corners — insist on corner continuity and one driver per run where possible. Third, colour temperature: 2700–3000K warm white for living rooms and bedrooms; anything cooler turns the cosy glow clinical — our lighting design guide covers the full colour-temperature logic. The classic “plaster ceiling light” recipe is cove glow for atmosphere plus a grid of recessed downlights for actual task light: the cove flatters the room, the downlights let you read in it.

L-box vs cove vs box ceiling: what the names mean

Malaysian contractors use these words loosely, and two quotes can describe the same ceiling with different names. On this page, as in most Klang Valley quotes, the L-box is the gypsum drop itself: a vertical face plus a horizontal soffit, which is the “L” you see in a section drawing. The cove is the hidden light channel built into that drop. So “L-box with cove light” is the full package, and an L-box without the channel is simply a plain box drop, often carrying downlights in its soffit. A box ceiling or “plaster box” is the general name for any boxed-down section, whether a perimeter L-box or a box round a beam. Some contractors also say “U-box”; the term is not used consistently, so ask for a section sketch before you compare prices.

Reading an L-box section or detail drawing: the dimensions to check are the drop (typically 100–250mm), the clearance between the LED strip and the back wall of the channel (50–100mm, or the light shows as a hard line), and where the downlights sit in the soffit. If your quote has no section sketch, ask for one; it is the cheapest way to make sure the cove you are paying for is the one you saw in the photo.

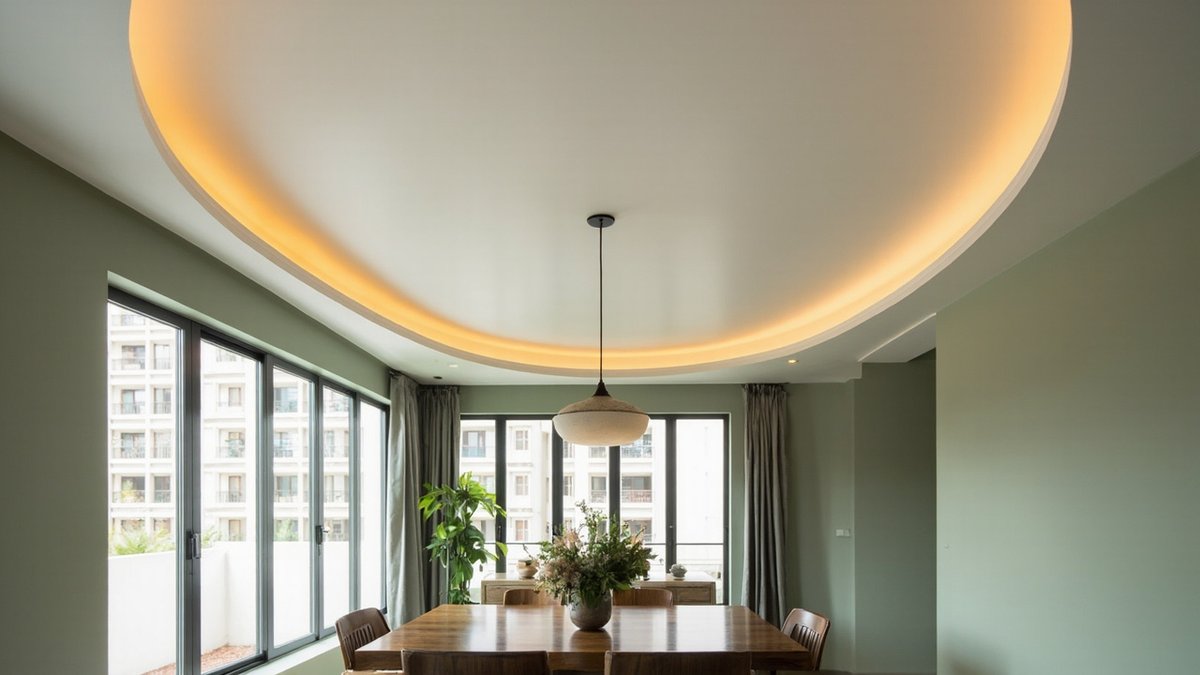

Floating (island) & layered ceilings

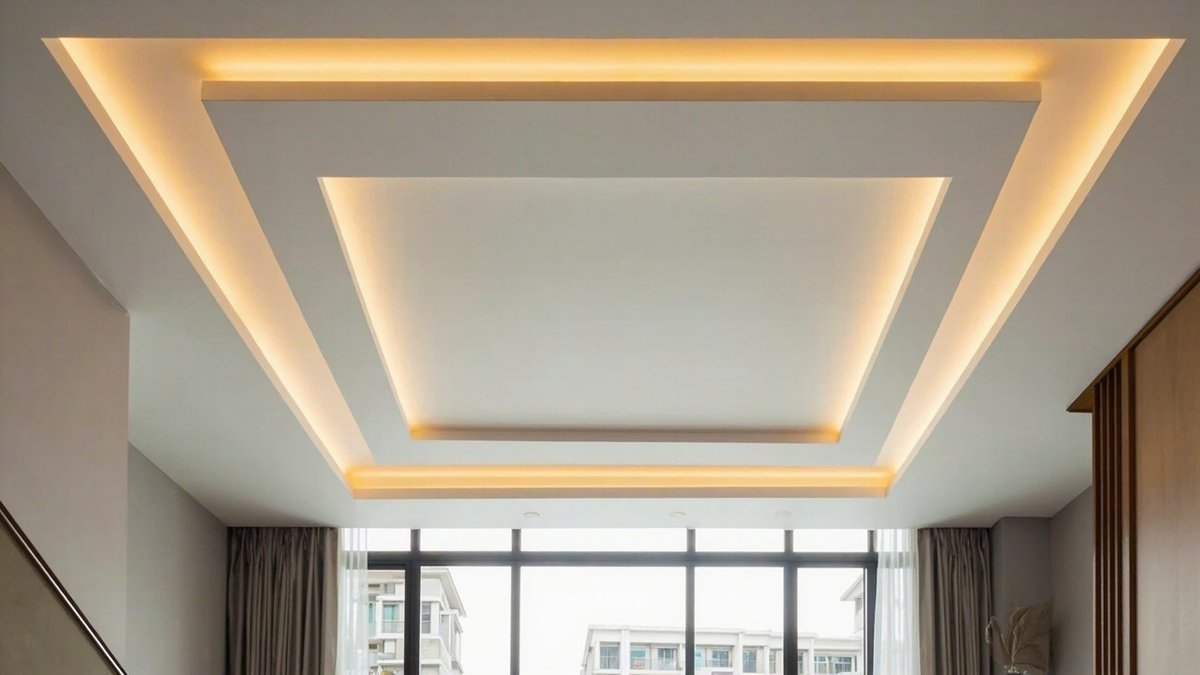

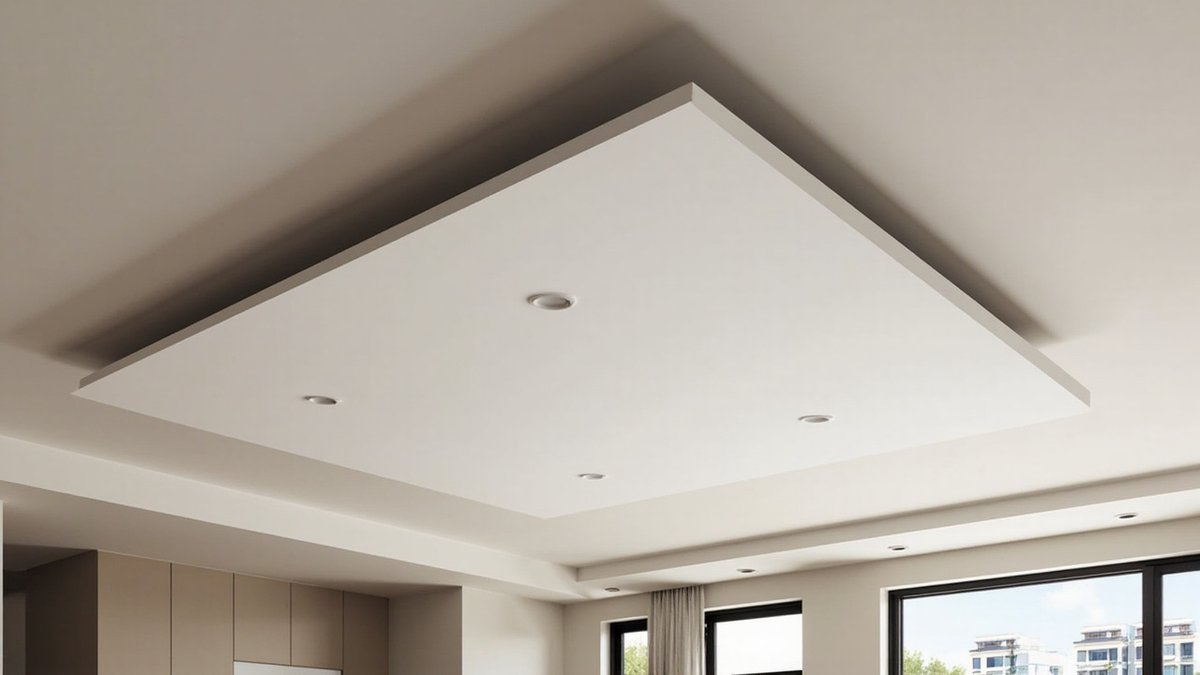

An island ceiling — what most people searching call a floating plaster ceiling — floats a lower panel — rectangle, oval or a custom shape — beneath the base ceiling, ringed by a shadow gap or a light channel. It does three jobs at once: it zones an open-plan space (the island sits over the sofa cluster or dining table and visually gathers it), it gives downlights and a fan a clean home, and it hides wiring runs. Layered designs stack the ideas — a perimeter cove plus a central island, sometimes with a second step — and this is where budgets climb fastest, because every additional tier multiplies framing, boarding, skim edges and lighting runs. The honest rule: one strong idea per room. A living room with a clean island and warm cove reads more expensive than one with three fighting tiers — and costs less to build.

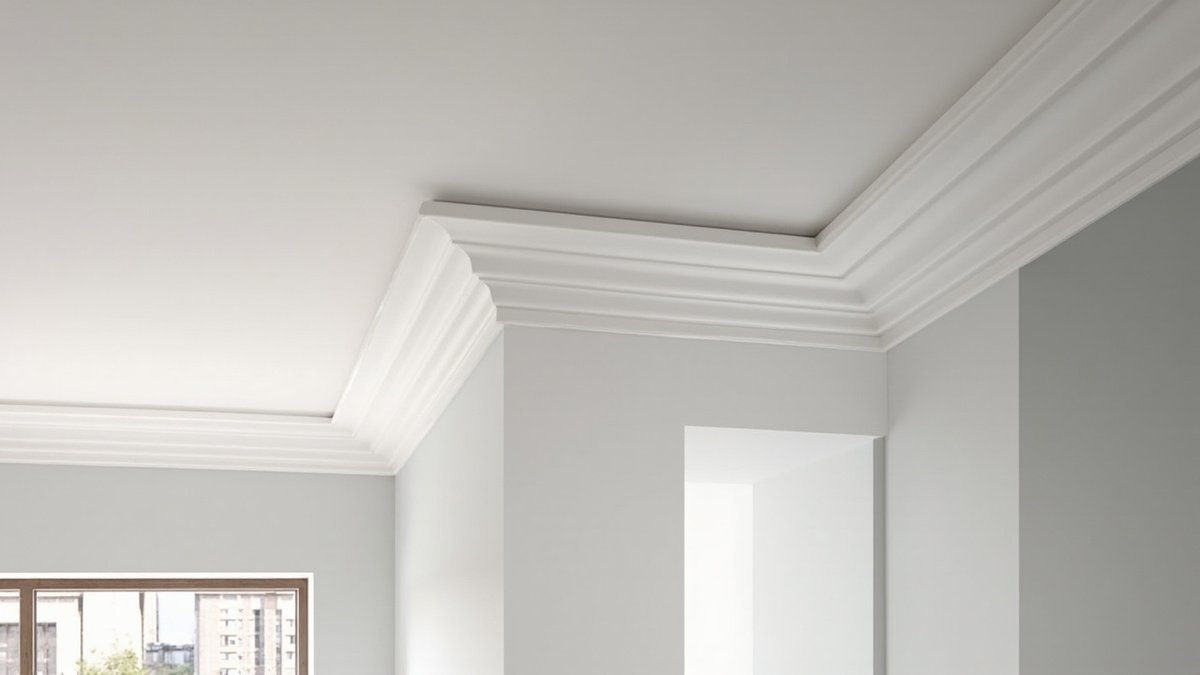

Cornice profiles

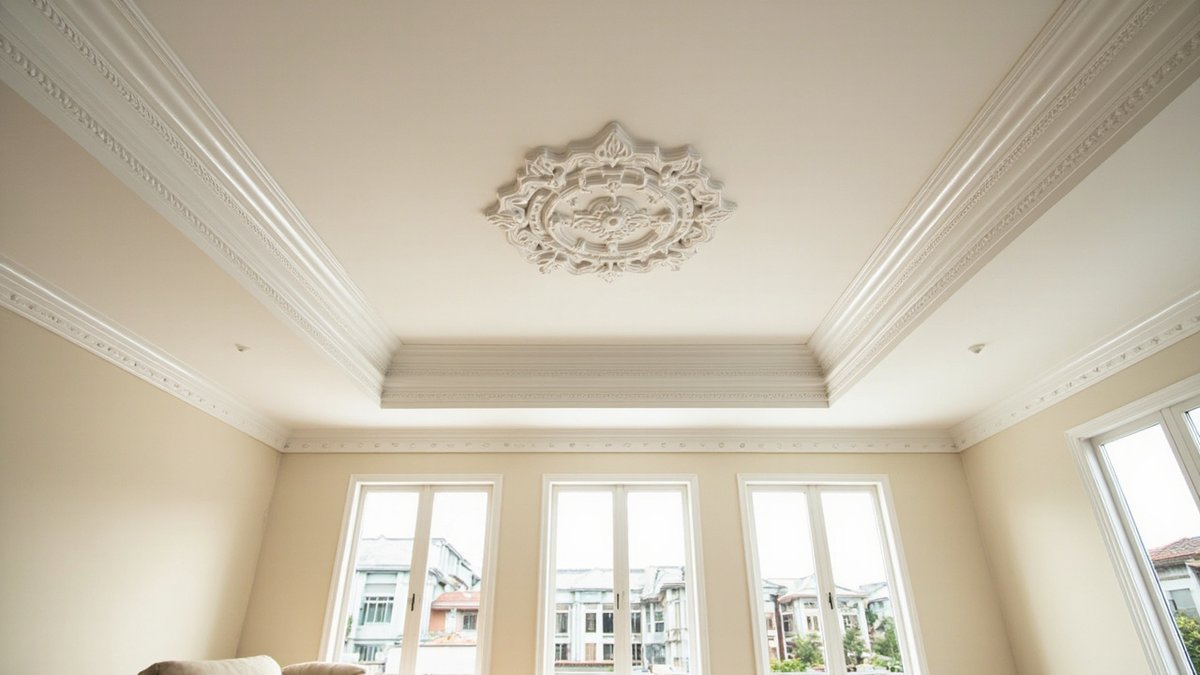

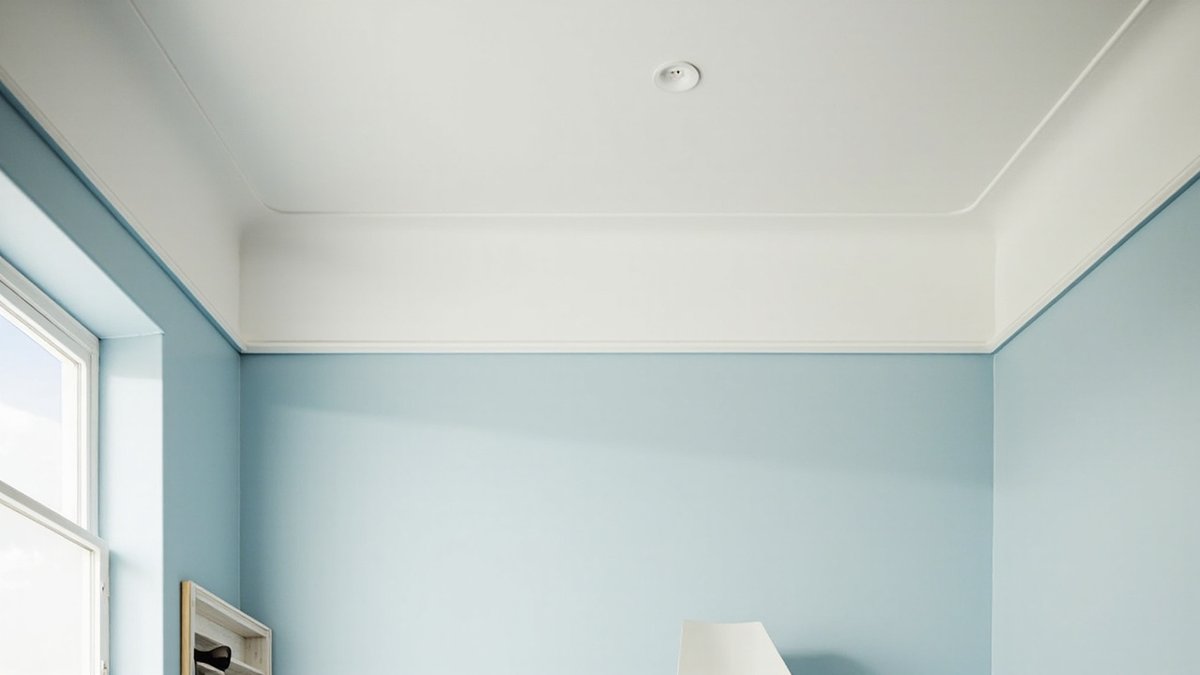

Cornice — the profiled moulding at the wall-ceiling junction — is the highest-leverage item in the catalogue: a whole terrace house can be re-corniced in a day or three and the rooms immediately look finished. The choices run from a plain 4-inch gypsum cove (clean, modern, cheap), through profiled gypsum with steps and curves, to ornate fibrous-plaster casts with classical detail for high ceilings and formal rooms. Scale matters more than style: low ceilings want slim profiles (75–100mm), high ceilings can carry deep ornate ones without feeling heavy. Prices run RM4–RM25 per linear ft depending on profile — plain gypsum at the bottom of the band, ornate casts at the top — and the full profile-by-profile breakdown, including removal of old cornice, lives in our plaster cornice cost guide (indicative 2026, Klang Valley). The modern alternative is the shadow gap: no moulding at all, just a crisp recessed line — beautiful when the plastering is perfect, unforgiving when it is not.

Bulkheads & practical boxing

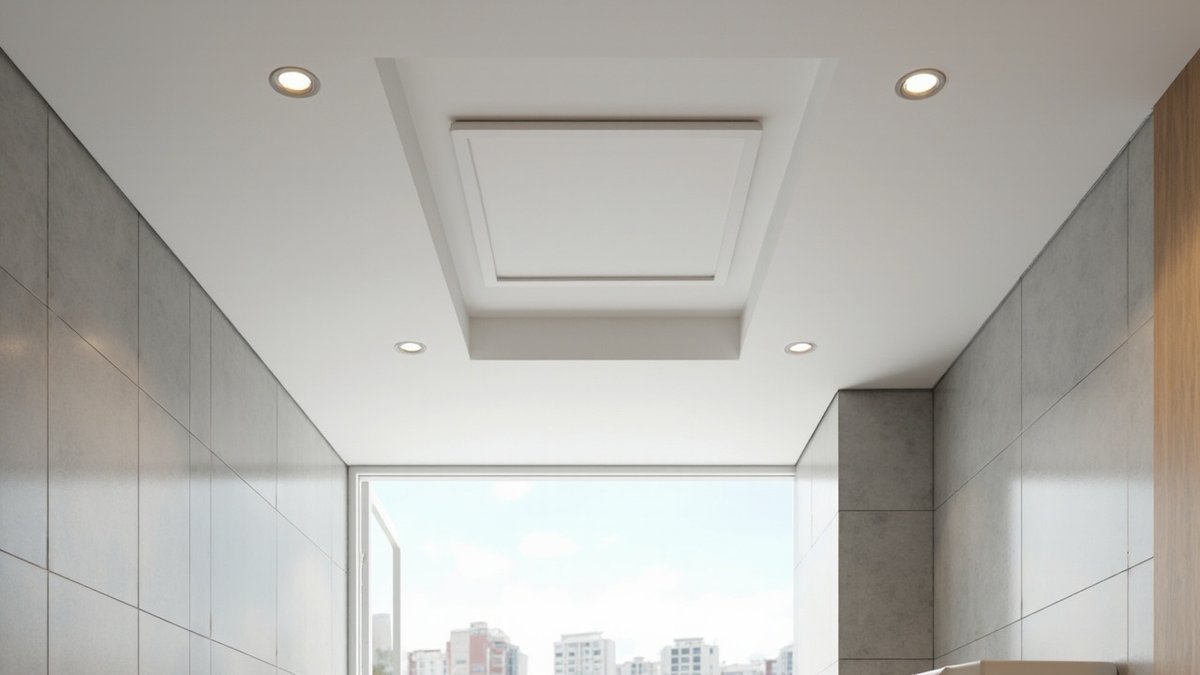

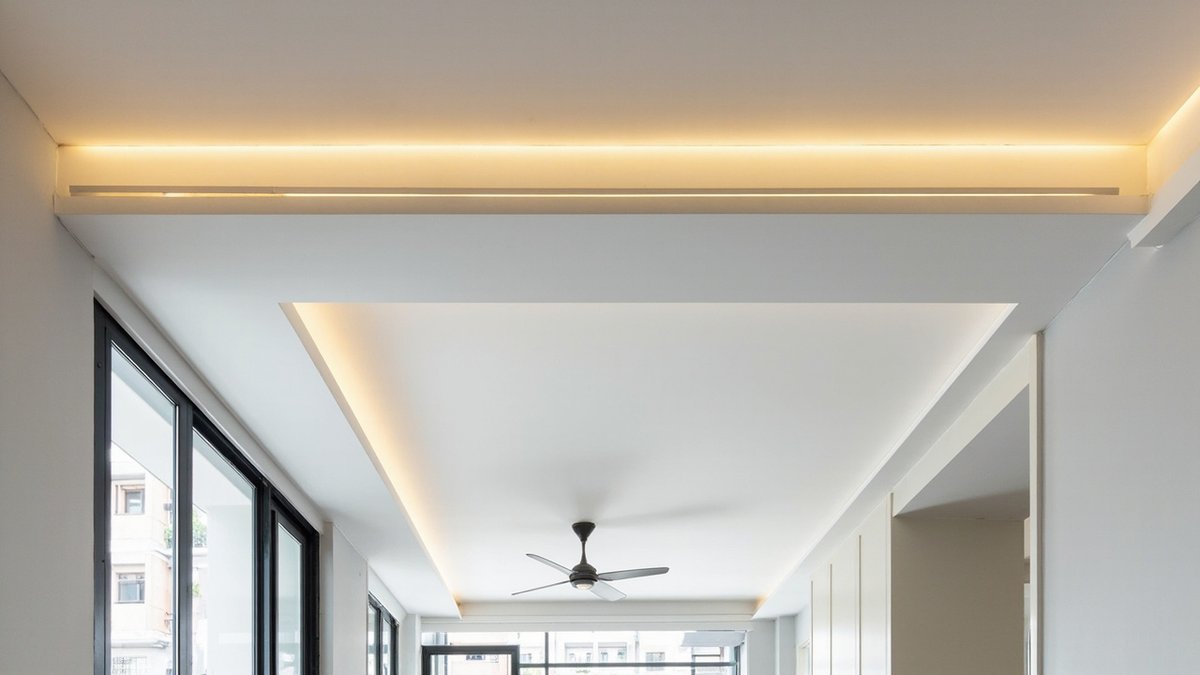

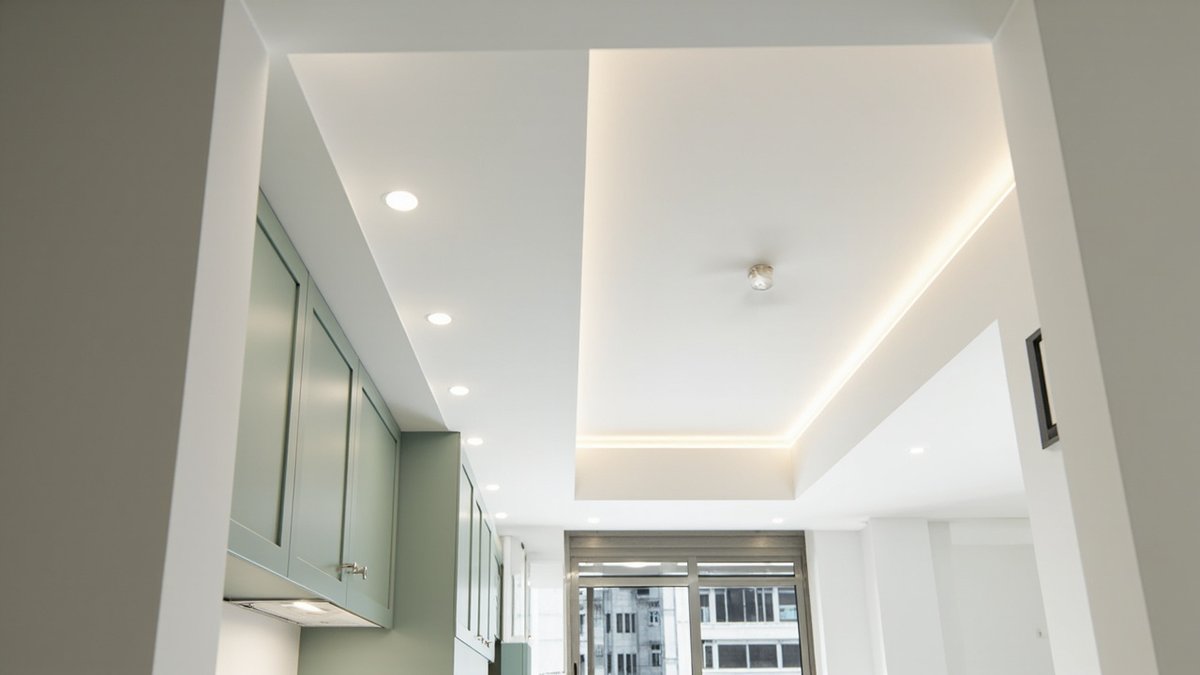

Most Malaysian ceilings need at least one box they did not ask for: a structural beam across the living room, aircond trunking to a bedroom fan coil, or soil pipes under a bathroom slab. The design skill is turning necessity into intent. A beam box extended into a full-width band with a light channel looks designed; the same box left as a lonely lump looks like a mistake. Kitchen bulkheads above cabinets close the dust trap and take downlights over the worktop. Bathroom bulkheads drop the ceiling to hide pipes — specify moisture-resistant board there, always. One warning from the repair side of our work: never box in a valve, junction box or fan-coil unit without an access panel — cutting a hatch into a finished ceiling later is a repair job you can avoid for the price of a panel (our ceiling repair guide sees this weekly).

Per-design indicative pricing

Bands below are installed prices including framing, boarding, skim and standard finishing (indicative 2026, Klang Valley); LED strips and downlights price separately. Full cost mechanics are in the plaster ceiling cost guide.

Room-by-room design guide

Condo note: check your ceiling height before falling in love with a design — a 100mm cove under a 2.6m slab still leaves comfortable headroom; the same cove under 2.4m starts to press.

Pairing designs with lighting

The ceiling is really a lighting instrument, and the design should be drawn around the lighting plan rather than the other way round. The working recipe for Malaysian homes: cove or L-box strips for ambient glow (2700–3000K, dimmable if the budget allows), recessed downlights on separate switching for task light, and a pendant or fan where the room's function wants one. Decide fan positions first — fans need independent support to the slab installed before boarding (see our ceiling fan installation guide) — then downlight positions off the furniture plan, not a blind grid. Wire coves on their own switch: the whole point of a cove is using it instead of the downlights in the evening. Colour temperature, layering and switching logic get the full treatment in our lighting design guide.

Designing for your ceiling height

Height is the constraint that should veto ideas early. Below 2.5m (many older condos): keep the base flat, use slim cornice or a shadow gap, and steal the cove effect with a single dropped band along one wall instead of a full perimeter. At 2.6–2.8m (most newer condos and terraces): the standard cove + island combinations all work — keep drops to 100–150mm. Above 2.8m (double-volume areas, older landed homes): deeper drops, layered islands and ornate cornice finally have room to breathe, and a too-small design will look lost — scale up. If your ceiling feels low, remember paint is a design tool too: a cove washing light up visually lifts a ceiling more effectively than any moulding.

The legal floor: UBBL minimum room heights

Malaysia's Uniform Building By-Laws 1984 (by-law 44) set minimum room heights in homes: 2.5 m for living rooms and bedrooms, 2.25 m for kitchens, and 2 m for bathrooms, toilets, porches, balconies and garages; for sloping ceilings these are average heights and no part of a room may be under 2 m. In shophouses, ground-floor rooms need at least 3 m and upper floors 2.5 m (2.55 m where the upper floor is deeper than 10.5 m). UBBL does not say how room height is measured where there is a false ceiling, so if a false ceiling or bulkhead would bring a room near these figures, confirm with your local council or architect.

So before you choose a drop: if an L-box, cove or bulkhead would bring a room near 2.5 m (living room or bedroom), 2.25 m (kitchen) or 2 m (bathroom), confirm with your local council or architect first. Manufacturers limit how far each system can drop. CSR Gyprock's guide, for example, limits direct-fix clip ceilings to a 200 mm drop — deeper drops need a suspended system — and says bulkheads require independent support.

Design mistakes to avoid

The five we repair or repaint most often: over-tiering (three stacked layers in a 10ft room — pick one idea); cool-white strips in living coves (6500K turns a RM5,000 design into an office corridor); boxing in services with no access panel (the plumber's opening never heals invisibly); blind downlight grids ignoring the furniture (light lands on walkways, not the sofa or worktop); and skipping the raking-light check at handover, which is when wavy skim is still the contractor's problem rather than yours. Every one of these is cheaper to avoid on paper than to fix in gypsum — which is why we always start from a sketch, not a start date. For what those fixes cost when it is too late, see our ceiling repair price guide.

Why ClickBina

We design and build plaster ceilings across the Klang Valley with our own crews — coves, L-boxes, islands, cornices and the wiring and LED work inside them — on fixed itemised quotes. Send a photo of your room and a screenshot of any design you like on WhatsApp; we reply with what it would look like in your space, what it costs as a fixed price, and honest advice if your ceiling height wants a different idea. If you are comparing contractors first, our plaster ceiling contractor guide tells you how to vet everyone — including us.

Sources & methodology

How we estimated prices: where this guide gives renovation or service price ranges, those RM figures are typical Klang Valley market ranges for 2026, compiled from contractor quotations and supplier price lists. They are not official or fixed rates — the final price depends on your site, so confirm it on site before you commit. Statutory fees, fines, tax rates and tribunal limits come from the law or official body concerned, not from market quotes.
