Factory Box Gutter Overflow
Liner Repair, Re-Falling or Full Replacement

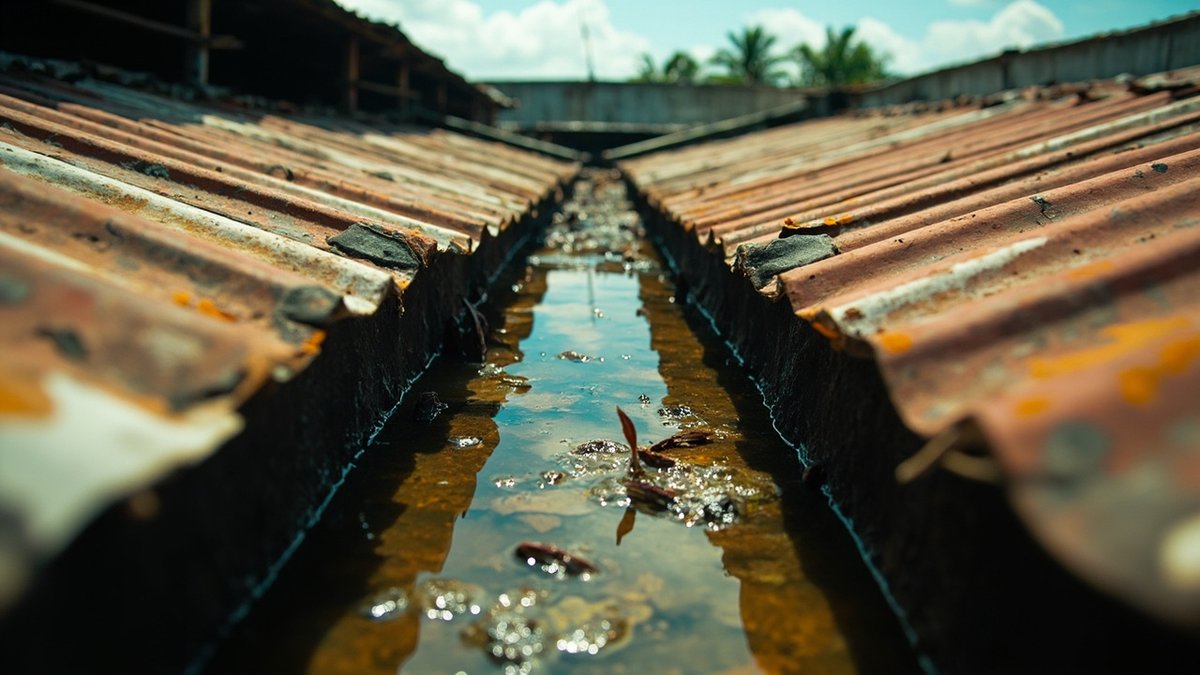

What a box gutter is and why it is different

A box gutter is a rectangular channel formed within the roof rather than hung off its edge — between two roof planes that fall towards each other, along a parapet, or in the valley between two adjoining factory bays. On a warehouse or a factory it is usually a wide steel channel sitting on the purlins, with the roof sheets lapping into it on both sides and outlets dropping through to downpipes.

The critical consequence is where the water goes when things go wrong. An eaves gutter that overflows spills down the outside of the building and stains a wall. A box gutter that overflows spills inside the building — over its inner upstand, under the roof sheets, and straight onto whatever is below: production lines, racking, finished goods, electrical panels. That is why a box gutter problem in a factory is an operations problem rather than a maintenance one, and why it deserves a different level of attention from the same problem on a house. For the domestic and eaves-gutter version of this subject, our gutter and downpipe repair guide is the right starting point, and gutter types covers the profiles.

How factory box gutters actually fail

• Blocked outlets. The single most common cause. Leaves, bird nests, roof grit, plastic film, packaging strapping and general site debris collect at the outlet, which is the narrowest point in the whole system. The gutter then works in light rain and floods in a storm, which is exactly why the problem seems intermittent and gets dismissed.
• Too few or too small outlets for the catchment. A long run of factory roof draining into two undersized outlets was adequate on paper and is not adequate in a Klang Valley storm. No amount of cleaning fixes an outlet that was never big enough.
• No fall, or lost fall. A gutter laid dead flat, or one that has sagged between supports over the years, ponds instead of flowing. Ponded water finds every pinhole and every joint, and it sits on the steel permanently.
• Corroded sole and upstands. Standing water plus roof grit plus condensation on the underside gives you rust from both faces. It starts at the low points and at the cut edges where the sheet was trimmed on site.
• Failed joints. Long gutters are made of lengths joined by laps, rivets, welds or sealed butt straps. Thermal movement over a long steel run works those joints loose, and the sealant in them hardens and lets go.
• Roof sheet interface. Where the roof sheets lap into the gutter, water can be drawn back up under the sheet by capillary action, especially on a low pitch, or be blown up by wind. That shows up as a leak just inboard of the gutter line rather than in the gutter itself — a sheeting problem rather than a gutter one, covered in warehouse metal roof sheeting repair and, for smaller roofs, metal roof leak repair.
• No emergency overflow. The one that turns an inconvenience into a flood. If the only way out of the gutter is the outlets, then a blocked outlet has nowhere to send the water except over the inner edge, into the building.
• A step or upper roof discharging into it. Where a higher roof plane dumps into a lower box gutter, the concentrated flow can splash straight over the far upstand in heavy rain even when the gutter itself is fine.

Undersizing, ponding and the missing overflow

Three of the failures above are structural rather than maintenance, and they are worth separating out because they change what you should buy.

Undersizing shows itself by overflowing along the whole run, or at the far end from the outlets, during heavy rain, while draining normally afterwards. Cleaning will not help; the answer is more outlet capacity, larger outlets, or a larger gutter section. Adding tapered or sumped outlets — where the gutter sole is dished down into a wider throat at the outlet — often buys a large improvement without rebuilding the gutter, because a flat-bottomed hole in a gutter sole discharges far less than its diameter suggests.

Ponding shows itself as standing water and a tidemark of silt after the roof has dried. It is a fall and support problem: brackets, bearers or the purlin line have to be adjusted so the sole runs downhill to the outlets. Lining a ponding gutter without correcting the fall gives you a watertight pond rather than a working gutter, and the water still sits on the new membrane permanently.

The missing overflow is the cheapest thing on this page and the most valuable. An emergency overflow is a slot, scupper or spout through the outer face of the gutter, set above the normal running water level but below the inner upstand, so that if an outlet chokes the water discharges harmlessly outside the building instead of over the inside edge. On an internal box gutter over a production area it is the single detail that decides whether a blocked outlet is a mess on the ground outside or a stopped production line.

Symptom to likely cause

Diagnosing it in the right order

1. Get someone on the roof during rain, safely. Nothing else is as informative. Is water going down the outlets or standing? Is it overflowing at one point or along the whole run?
2. Otherwise, read the silt. After the roof dries, standing water and a silt tidemark tell you where the gutter ponds and how deep it gets.
3. Check the outlets by hand. Blocked, undersized, flat-bottomed, or sumped and clear? This one check resolves a large share of cases.
4. Look for an overflow. If there is none, that is a finding in its own right regardless of what else you fix.
5. Map the leak points from inside. Mark them on a plan and compare with the gutter run above. Leaks strung along the whole line mean overflow; a single repeating point means a joint or a hole.
6. Ask when it started. A leak that appeared after a re-roof, an extension, a new mezzanine or new rooftop plant usually has a cause in that work — more catchment, a changed fall, or debris left in the gutter.
7. Only then decide between repair, liner and replacement.

Liner repair or replacement?

There are four honest options and they are not interchangeable.

1. Clean and clear. Remove debris and silt, clear and flush every outlet, fit outlet guards that do not themselves restrict flow. Always the first step, and sometimes the whole answer.
2. Correct fall and support. Re-bracket or re-bear the run so the sole falls to the outlets, and re-form or sump the outlets so they actually discharge. This is the step people skip and the reason liners fail early.
3. Line the gutter. A seamless liquid membrane, reinforced with fabric at the laps, joints and corners, taken up both upstands and dressed properly into the outlets, turning a leaking assembly of steel lengths into one continuous waterproof channel. This is the right answer for a gutter that is the correct size and still structurally sound but leaks at its joints or has surface corrosion and pinholes.
4. Replace the gutter. New sections, a larger profile, more or bigger outlets, an emergency overflow, and a corrected roof sheet interface. This is the honest answer when the sole is perforated over long stretches, the supports are corroded, or the gutter is simply too small for the roof it drains.

The decision test is not a number, it is three questions. Is the gutter big enough for its catchment? Does it fall to its outlets? Is the steel still sound enough to carry a membrane — that is, is it firm underfoot with no perforation over any length? Three yeses point at a liner. Any no points at correcting that thing first, and if the answer to the first question is no, a liner is the wrong purchase entirely.

What a liner will not fix

Liners are sold well and it is worth being clear about their limits. A liner does not add capacity — a gutter that overflows because it is undersized will overflow just as reliably once lined. A liner does not create fall; laid over a ponding gutter it gives you a waterproof pond, and permanent standing water is hard on every coating system. A liner does not create an overflow, so a blocked outlet still floods the building. A liner cannot bridge a hole in a sole that is no longer sound — the substrate has to carry it. And a liner does not fix water that is being drawn back up under the roof sheets by capillary action, because that water never enters the gutter channel at all. If a quote proposes a liner without mentioning outlets, falls and overflow, ask why.

Used within its limits, though, a lined gutter is an excellent outcome for a factory: it is applied without cutting the roof open, it needs no hot work if a cold-applied system is chosen, and it can usually be done bay by bay around production. Where a sheet system is preferred instead, torch-on membrane covers how that is laid and what it needs from the substrate.

What box gutter work costs

Cleaning and outlet work are small; lining and replacement are priced by area and by access (market estimate 2026, indicative Klang Valley except where marked as ours):

Liner work is measured on the developed girth of the gutter, not on its plan length — that is, up one upstand, across the sole and up the other side. A 30 m run with a girth of about 1.2 m is therefore roughly 390 square feet of membrane, which at the liquid PU band is about RM3,900 – RM7,020 and at the torch-on band about RM3,120 – RM5,850 (market estimate 2026, indicative Klang Valley), before access, preparation and outlet work. Use that as a sanity check on a quote, not as a quotation: on a live factory, access, edge protection and working around production frequently cost more than the membrane. Gutter replacement and new outlet or overflow formation are quoted per project after a roof inspection, because they depend on the profile, the purlin arrangement and where the water can be taken to. For the roof either side of the gutter, see factory and warehouse roof waterproofing.

What a proper quote must itemise

What to ask before you sign

• “Is this gutter big enough for the roof it drains?” If the answer is that it does not matter because you are lining it, that is the wrong answer.
• “Does it pond? Where?” Ask for photographs of standing water and the silt line.
• “Are you correcting the fall, or lining over it?”
• “Is there an emergency overflow, and are you adding one?”
• “How far under the roof sheets does the liner go?”
• “Does your system need a flame?” Establish it before the day, not on the day.
• “How will you protect what is under the gutter?”
• “Will you ponding-test it before handover, and for how long?”

Access, production and wet weather

Three constraints dominate the programme on a factory roof and all three belong in the quote rather than in a conversation on the day.

Access and safety. A box gutter is walked, not viewed, and the roof sheets either side of it will not necessarily carry a person between purlins. That means crawl boards, harness anchor points and edge protection, plus a means of getting materials up. On a tall building a mobile platform may be needed at the gable ends. None of this is optional and all of it costs money.

Production continuity. Clearing a gutter drops silt and debris through every gap in the sheeting onto whatever is below. Grinding and preparation do the same with rust and dust. Where the area below is a production line, a store of finished goods or food handling, the work has to be phased, sheeted below, or moved to a shutdown, and that is a scheduling decision to make before the quote is accepted.

Weather. Liquid membranes need a dry, clean, prepared substrate and an uninterrupted cure window, and a gutter is the last part of a roof to dry. In the monsoon the practical pattern is early starts, short bays completed and closed within the day, and temporary covering over prepared but uncoated sections. Anyone willing to coat a wet gutter is selling you a repeat visit.

What happens if you leave it

Box gutter problems compound faster than most roof problems because the water never leaves. Standing water and silt corrode the sole from above while condensation works on it from below, so a gutter that has pinholes this year has perforation next year. The purlins and bearers under the gutter get wet every time it rains and start to corrode at the fixings, which is what turns a lining job into a replacement job. Meanwhile the overflow itself is doing the damage that costs real money: wet stock, corroded racking, water near electrical panels, wet floors in circulation areas, and production stopped during exactly the storms when nobody wants to be dealing with it. The cheap interventions here — clearing outlets, adding an overflow — are worth doing on their own even if the full repair has to wait for a budget cycle.

Testing the repair: the ponding test

A gutter is one of the few parts of a roof that can be tested properly, because it is a channel that can be filled. Insist on it.

1. Ponding test. Plug the outlets, fill the gutter with water to just below the level of the overflow, and leave it. Agree the duration in writing beforehand — a full working day is a reasonable minimum, and overnight is better. Inspect from underneath throughout and mark any drip.
2. Then a flow test. Unplug and run a hose into the top end of the run. Watch that the water travels the whole length without ponding, and that each outlet takes it away freely.
3. Check the overflow works. With an outlet deliberately plugged, confirm that water discharges through the overflow to the outside and not over the inner upstand.
4. Photograph everything. Before, during preparation, at the reinforced details, and at the test. On a factory roof nobody goes back up to look, so the photographs are the record.
5. Verify at the first storm. Have someone check the marked leak points inside during the first heavy rain after handover.

Maintenance interval

Box gutters should be cleared at least twice a year, and specifically before the year-end monsoon. On sites with trees nearby, heavy airborne dust, or plastic film and packaging in use, quarterly is more realistic. The visit should clear all debris and silt, flush and rod every outlet, check the overflow is clear, look for standing water once the flushing water has drained, and photograph the whole run. That last point matters: a dated photographic record of the gutter each year is what turns “it has always been like that” into an evidenced trend, and it is the cheapest asset-management tool a factory roof has. Gutter cleaning covers the routine version of that visit.
