The terrace-house leak map — tiled main roof, back-extension flat roof, car porch slab, party walls and bathrooms — with 2026 Klang Valley costs and a fixed quote.
The terrace house is Malaysia’s most common home, and its leaks follow a pattern so consistent that an experienced contractor can almost draw the map blind: a tiled main roof over the original structure, a concrete flat roof over the back extension, a car porch slab at the front, party walls shared with both neighbours, and bathrooms stacked above bedrooms. Each element fails in its own way and on its own schedule, which is why an older terrace rarely has just one leak — it has a sequence of them as each layer of waterproofing ages past its working life. The map below is the starting point we use on every terrace-house inspection in the Klang Valley, and the rest of this guide walks it from the roof down.
| Location | Typical symptom | Usual cause |
|---|---|---|
| Back-extension flat roof | Stains over kitchen or back rooms | Expired membrane, ponding, blocked outlet |
| Tiled main roof | Drips only during heavy rain | Cracked or slipped tiles, degraded underlayment |
| Car porch slab | Drips onto the car, stained soffit | Slab cracks, screed that has lost its fall |
| Party wall | Damp patches on upstairs walls | Neighbour’s roof junction or wall capping seepage |
| Upstairs bathroom | Stains on the ceiling below | Original waterproofing layer past its lifespan |
| Extension joint | Vertical damp line where old meets new | Structural joint opened by differential settlement |

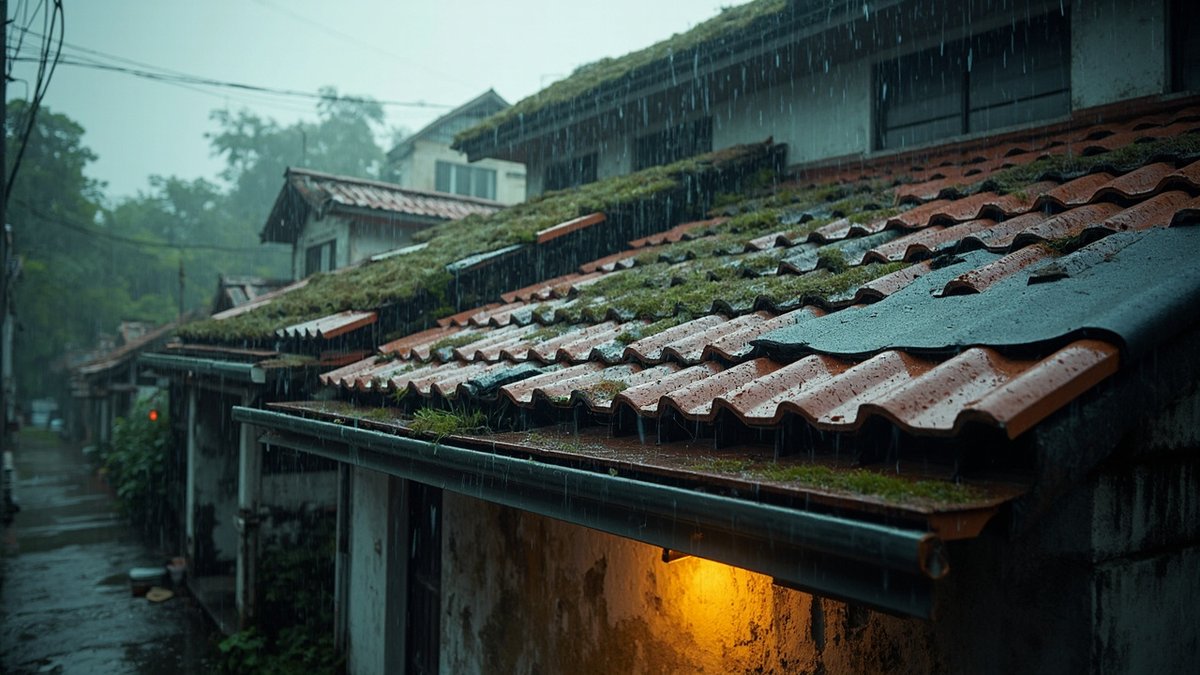

The pitched, tiled roof over the original structure is the most weather-resistant part of a terrace house, but it is not maintenance-free. Concrete tiles crack and slip, the mortar at ridges and hips loosens, valley flashings corrode, and the underlayment beneath the tiles turns brittle after two decades of tropical heat. Most main-roof leaks show themselves only during heavy or wind-driven rain, and the water tracks along trusses before dripping far from the actual entry point, which makes them hard to trace from inside the house. Repairs to a tiled roof typically run RM500–RM3,000 (indicative 2026, Klang Valley) depending on access and the number of failure points — our roof tile leak repair guide and roof leaks during heavy rain guide cover the diagnosis in detail.
Almost every Klang Valley terrace has been extended at the back — usually a kitchen or utility extension roofed with a concrete flat slab. This flat roof is the number-one leak source we find on terrace houses, for three reasons. First, it was often built by a renovation contractor to a lighter specification than the original house. Second, whatever waterproofing membrane was applied — and on many older extensions nothing was — has a working life of only 10–15 years. Third, flat concrete ponds water instead of shedding it, so every weakness gets soaked for hours after each storm. Blocked rainwater outlets, cracked screeds and blistered coatings finish the job. Re-waterproofing an extension flat roof costs about RM8–RM20 per sq ft (indicative 2026, Klang Valley) depending on the system — the full comparison is in our flat roof waterproofing guide.
Even a well-built extension eventually leaks along the line where it meets the original house. The extension stands on its own foundation, poured decades after the original one, so the two structures settle at slightly different rates — and the joint between them opens by a few millimetres. On the roof, that joint is exactly where the extension’s flat slab meets the original back wall, and a rigid mortar fillet with a smear of sealant will crack within a year or two of movement. The correct repair is a proper flashing detail: the membrane turned up the original wall, mechanically terminated and counter-flashed, with a flexible joint that can absorb ongoing movement. Any quote that proposes only running sealant along the joint is a repair you will be paying for again next monsoon.
The car porch slab is a concrete flat roof that lives the hardest life on the property: baked by direct afternoon sun with no shade, and often doubling as an upstairs laundry deck or balcony. Thermal cycling opens hairline cracks, the thin screed loses its fall so water sits in puddles, and moisture eventually reaches the steel reinforcement — which is why older porch soffits show rust staining and spalling concrete, not just drips. Waterproofing a car porch slab typically costs RM1,200–RM4,000 (indicative 2026, Klang Valley) depending on the area and whether the screed needs re-laying to fall. Our car porch roof leak guide walks through the diagnosis and the repair options.
Terrace living means two shared party walls, and water does not respect property boundaries. The common patterns: the neighbour’s roof-to-party-wall junction leaks and appears as a damp patch on your upstairs wall; the exposed party-wall capping above the roofline cracks and feeds water down between the two houses; or a neighbour’s bathroom backs onto your bedroom wall. The awkward part is that the failure point usually sits on their side, so diplomacy matters as much as workmanship. What works in practice: document the damp with dated photos and a moisture-meter reading, invite the neighbour over to see it from your side, propose a joint inspection from both properties, and offer to split the cost where the repair protects both houses — wall capping is the classic example. Our wall waterproofing guide covers the repair systems once access is agreed.
Upstairs bathrooms are the classic internal leak. The original waterproofing layer under the tiles has a design life of 10–15 years, so in any terrace older than 20 years it has already failed — the stain on the ceiling below simply announces it. There are two repair routes: a non-hacking re-waterproofing using penetrating or surface-applied systems over the existing tiles at RM1,500–RM3,500 per bathroom, or hacking off the tiles and rebuilding the membrane properly at RM4,500–RM9,000 (indicative 2026, Klang Valley). The kitchen extension adds its own wet-area risks where new plumbing and floor traps meet the old structure at the extension joint. Our bathroom waterproofing cost guide compares both routes and explains when each is the right call.
Few owners fix everything at once, and not every leak deserves money this year. Rank the work by what the water is damaging: anything sitting over wiring, lighting points or structural timber outranks cosmetic staining. This is the order we recommend for a typical ageing terrace.
| Area | Priority | Why |
|---|---|---|
| Back-extension flat roof | 1 — urgent | Highest failure rate; water sits over the kitchen and its wiring |
| Upstairs bathrooms | 2 — urgent | Leaks continuously, not just when it rains; rots ceilings near lighting points |
| Extension joint | 3 — with the flat roof | Best fixed in the same mobilisation as the extension roof |
| Tiled main roof | 4 — before monsoon | Intermittent, but each storm enlarges the damage |
| Party wall seepage | 5 — start talks now | Slow damage, but neighbour coordination takes time anyway |
| Car porch slab | 6 — plan | Damages finishes and the car before it damages the structure |
The Klang Valley’s heaviest rain arrives with the year-end monsoon surge, roughly November through early March, and waterproofing contractors book out quickly once ceilings start staining. Prepare in the drier months instead: clear gutters, downpipes and the flat-roof rainwater outlets (a blocked outlet turns an extension roof into a swimming pool), scan the main roof for slipped or cracked tiles, walk the upstairs ceilings with a torch after the first big storm of the season, and re-check any past repair. There is a workmanship reason too — membranes and coatings need dry substrates and proper curing time, so waterproofing applied in dry weather simply lasts longer than the same product rushed on between storms.
The table gathers the planning figures for the common terrace-house scopes. Every house differs, so treat these as budgeting ranges, not quotes.
| Scope | Indicative cost (2026, Klang Valley) | Notes |
|---|---|---|
| Bathroom re-waterproof (non-hacking) | RM1,500 – RM3,500 per bathroom | Over existing tiles; fastest and cleanest route |
| Bathroom re-waterproof (hack & rebuild) | RM4,500 – RM9,000 per bathroom | New membrane and tiles; the permanent fix |
| Extension / flat roof waterproofing | RM8 – RM20 per sq ft | System-dependent; includes surface preparation |
| Car porch slab | RM1,200 – RM4,000 | More if the screed must be re-laid to fall |
| Tiled roof repairs | RM500 – RM3,000 | Tile, flashing and ridge work |
| Rising damp DPC injection | RM80 – RM150 per metre | Ground-floor walls with tide marks |
Our waterproofing cost guide breaks down every scope in more detail. If your terrace is past the 30-year mark, read the old house waterproofing guide — at that age the whole envelope is due, not just one element. And if ground-floor walls show tide marks and salt bands, start with the rising damp guide.
ClickBina waterproofs terrace houses across the Klang Valley every week — extension flat roofs, car porch slabs, bathrooms, party walls and roof repairs — with itemised fixed quotes, workmanship warranties and WhatsApp replies within the hour. Send us photos of the stain or leak and your house’s age for a same-day ballpark and an honest view on what needs fixing now versus what can wait. Moving up to a larger landed home? See our bungalow & semi-D waterproofing guide for how the job changes at scale.
