Prices below are indicative Klang Valley ranges for planning. Actual cost depends on linear metres, material grade and access — get a free quote on WhatsApp.
How much does gutter installation cost in Malaysia?
Gutter installation pricing depends on the material, profile size, total linear metres, number of outlets and downpipes, and how accessible the roofline is. Here are 2026 indicative ranges for the Klang Valley:
| Scope | Indicative total cost | Notes |
|---|
| Single-storey terrace or link house | RM800 – RM2,500 | ~40–80 linear m, uPVC or aluminium |
| Double-storey terrace or link house | RM1,500 – RM4,500 | ~60–120 linear m; front & rear eave lines |
| Semi-D or bungalow | RM3,000 – RM8,000 | Larger footprint; custom box gutter possible |
| Full replacement (like-for-like) | RM1,200 – RM5,000 | Remove old, supply & install new |
Gutter installation cost by type
The gutter profile and material have the biggest impact on cost per linear metre:
| Type | Cost / linear metre | Typical use | Lifespan |
|---|

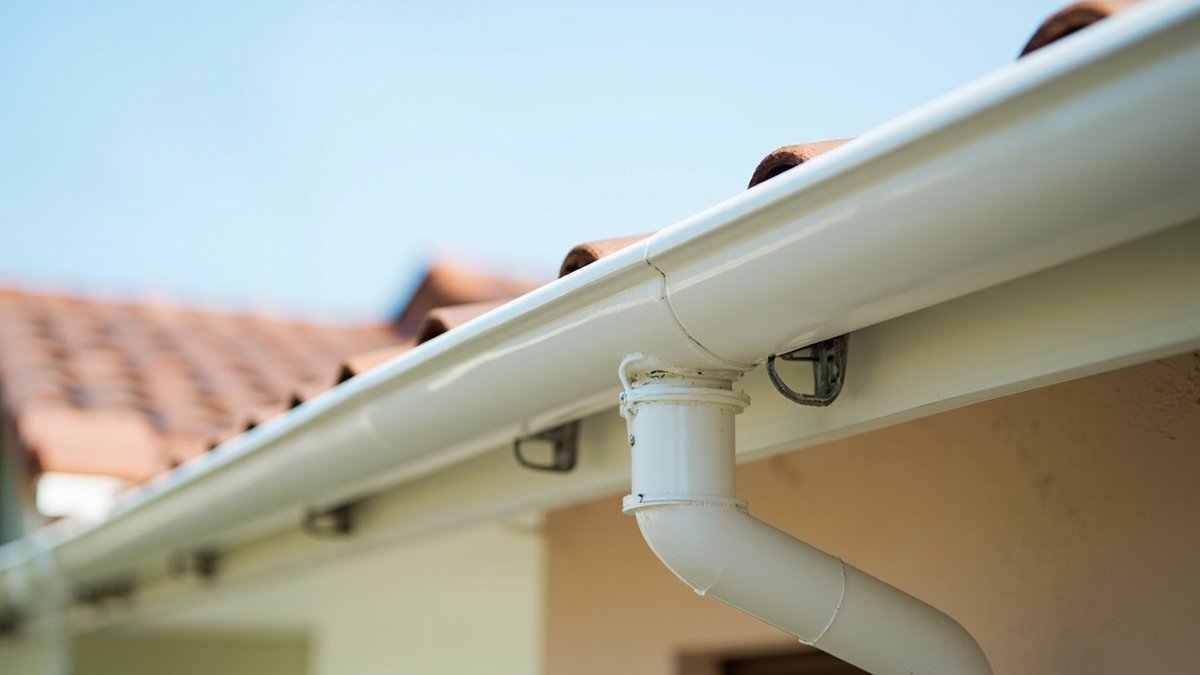

| uPVC half-round or K-profile | RM15 – RM25 | Budget terrace, link house | 10–15 years |

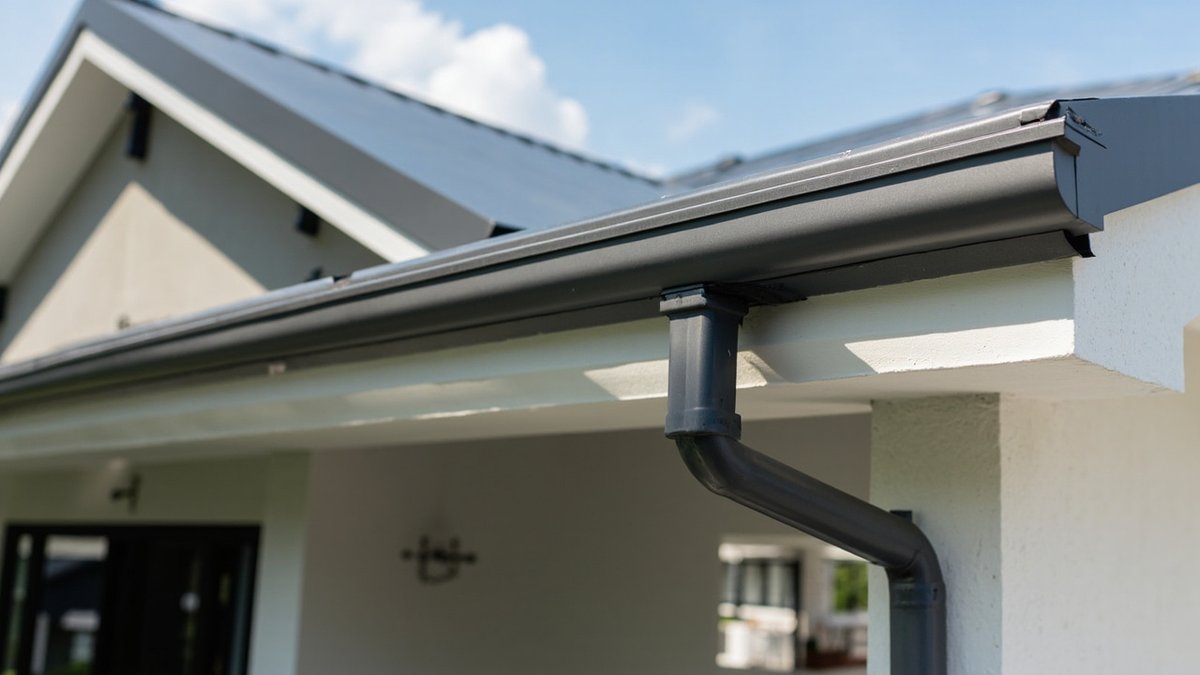

| Aluminium box gutter | RM30 – RM50 | Mid-range terrace, semi-D | 20–30 years |

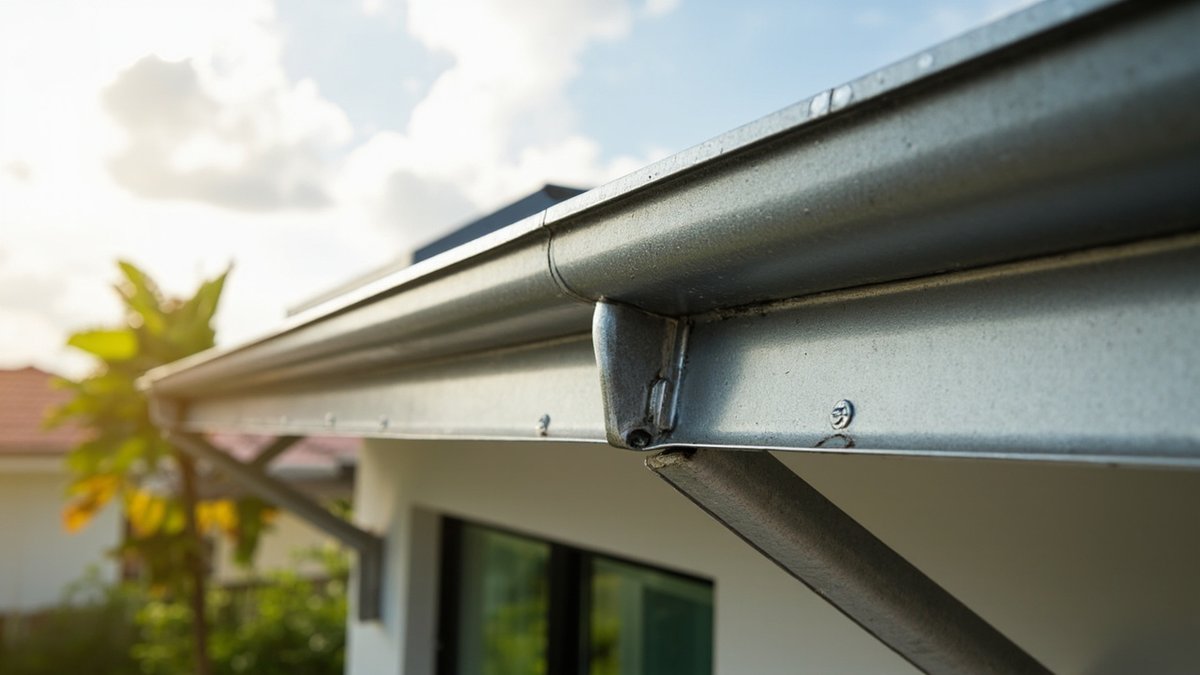

| Galvanised steel box gutter | RM25 – RM40 | Light industrial, shophouse | 15–20 years |

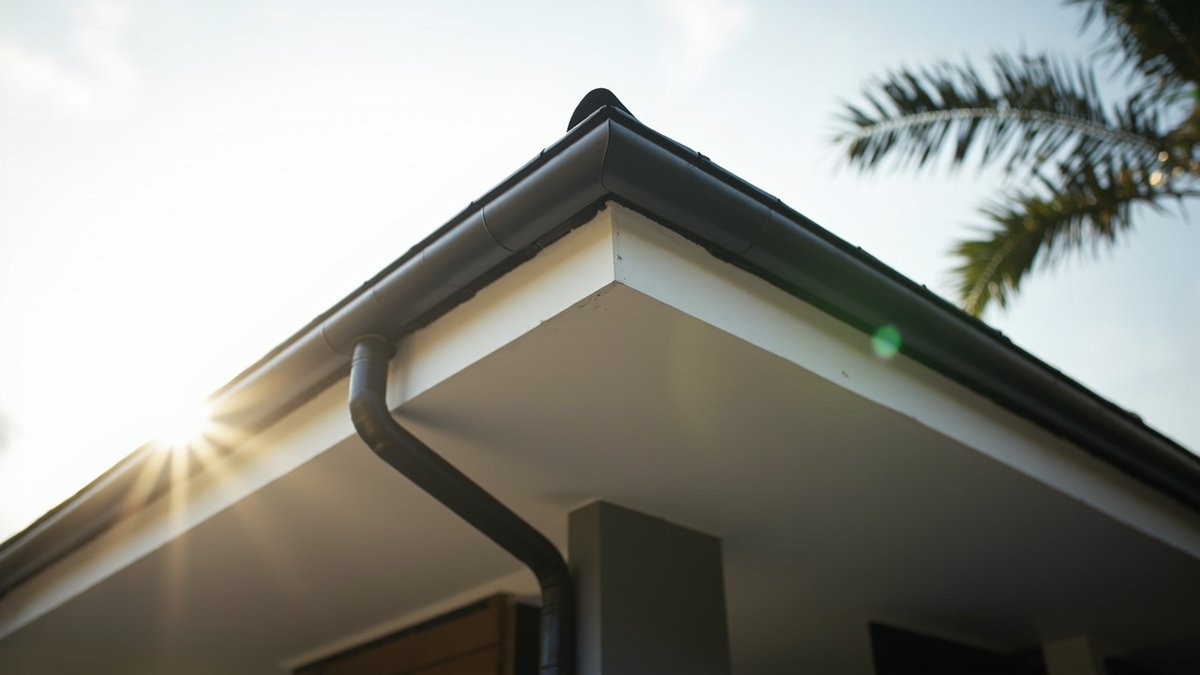

| Concealed / built-in gutter | RM50 – RM80+ | Premium homes, custom roof design | 20+ years if waterproofed properly |

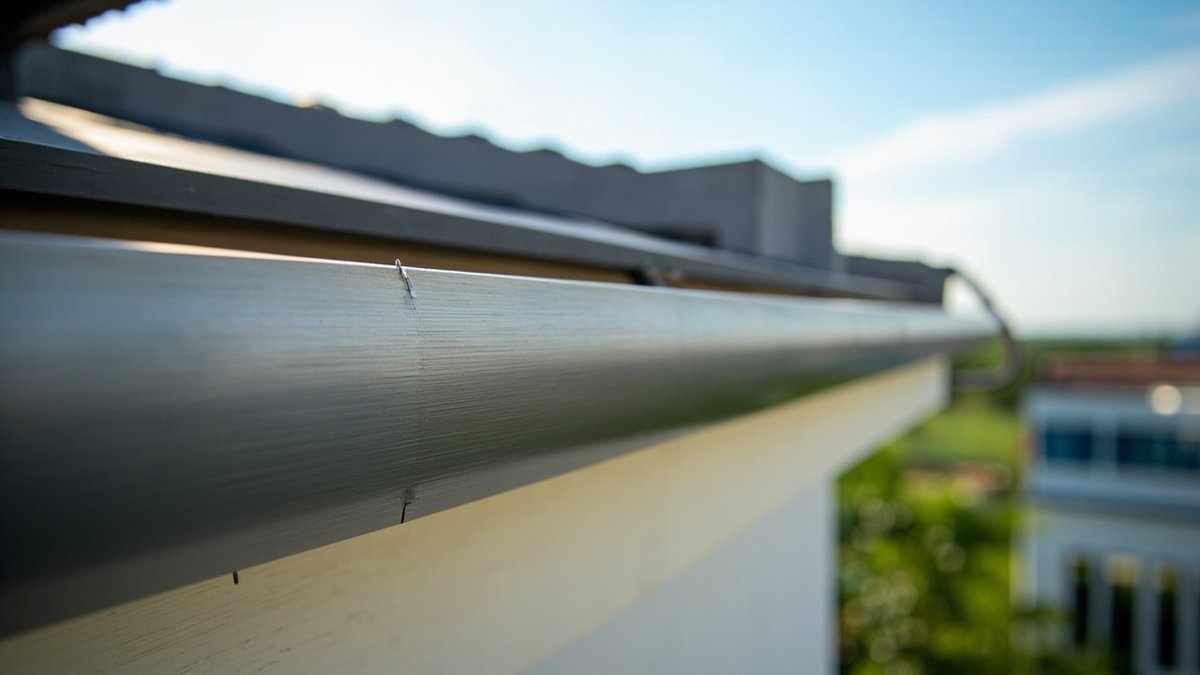

| Stainless steel gutter | RM60 – RM120 | High-end residential, heritage buildings | 40+ years |
Downpipes add RM20–RM60 per pipe run depending on height and material. Outlets, brackets, stop-ends and corner pieces are usually included in the per-metre rate.
Gutter material comparison for Malaysian conditions
Malaysia’s monsoon rainfall, UV intensity and high humidity make material selection more critical than in temperate climates. Here is how the main options compare for local conditions:
| Material | UV resistance | Corrosion resistance | Cost | Maintenance | Best for |
|---|
| uPVC | Moderate — yellows and becomes brittle in 10–15 years of direct sun | Excellent | Lowest | Annual clean | Budget, shaded eaves |
| Aluminium | Good with painted finish | Excellent | Mid-range | Annual clean; re-paint after 10 years | Best all-round for KL |
| Galvanised steel | Good | Fair — rusts at cut edges within 10–15 years | Mid-range | Inspect joints and cut ends annually | Industrial / shophouse |
| Stainless steel | Excellent | Excellent | Highest | Minimal | High-end residential, long-hold assets |
Correct sizing for Malaysian rainfall intensity
This is the single most important technical decision. Malaysia experiences one of the highest rainfall intensities in the world — Kuala Lumpur averages 2,600 mm of rain per year with peak intensities during the north-east monsoon (October–February) and the inter-monsoon months (April–May). A gutter sized for European or Australian conditions will overflow during a typical KL thunderstorm.
- Minimum gutter width: 125 mm (5 in) K-profile or 100 mm box gutter for a single-storey residential roof in KL. In practice, many contractors specify 150 mm for double-storey homes.
- Downpipe frequency: no more than 6–8 metres between downpipes; ideally 4–5 metres for large roof pitches facing prevailing rain direction.
- Gradient: minimum 1:600 fall toward the outlet; in practice, 1:400 is more reliable in tropical conditions to prevent silting.
- Outlet sizing: a 75 mm round outlet can handle approximately 40 litres/minute; a 100 mm outlet handles ~70 L/min. Match to the calculated roof area and rainfall intensity for your location.
An undersized gutter does not just overflow — it backs up under the fascia and saturates the roof timbers, causing exactly the rot and leak damage it was meant to prevent.
Why gutters fail in Malaysia
- Blocked outlets and downpipes. Fallen leaves, palm seeds and debris from large tropical trees block outlets within weeks if a guard is not fitted. A blocked gutter during monsoon overflows directly into the fascia and soffit.
- Undersized profile. A 75 mm uPVC half-round gutter will simply overflow in a moderate KL downpour if it is serving more than about 15 sq m of roof area per outlet.
- UV embrittlement. uPVC gutters on sun-exposed elevations become brittle and crack from UV degradation, typically within 10–15 years in Malaysian conditions.
- Bracket corrosion. Steel brackets holding up the gutter rust and lose grip, causing the gutter to sag and pond water at low points.
- Joint sealant failure. Push-fit joints rely on rubber gaskets that harden over time; lap joints sealed with silicone degrade in 5–8 years of UV exposure.
Worked example: a double-storey Klang Valley terrace house
An illustrative installation cost for a typical 22 × 70 ft double-storey terrace house in Shah Alam or Petaling Jaya — planning guide only.
| Item | Quantity | Indicative cost |
|---|
| 150 mm aluminium box gutter — front eave | 8 m | RM400 |
| 150 mm aluminium box gutter — rear eave | 8 m | RM400 |
| 150 mm aluminium box gutter — side valleys (2) | 20 m | RM1,000 |
| 100 mm round downpipes (4 runs, 2-storey) | 4 × 6 m | RM800 |
| Outlets, stop-ends, brackets, corners | 1 set | RM300 |
| Labour & access (scaffolding/ladder) | — | RM600 |
| Total | — | ~RM3,500 |
The same house with uPVC instead of aluminium could come in at RM1,800–RM2,200. A semi-D with more complex roofline geometry (hips, valleys, oversailing eaves) could reach RM5,000–RM7,000 in aluminium.
What affects gutter installation cost the most?
- Total linear metres. The most direct cost driver — the longer the eave run, the more material and labour required.
- Material choice. Aluminium costs roughly double uPVC per metre but lasts twice as long; the 15–20 year lifecycle cost is comparable.
- Height and access. A single-storey job can be done from a step-ladder; a double-storey rear elevation may require scaffolding or a mobile tower, adding RM300–RM800 to the job.
- Number of outlets and downpipes. Each downpipe run adds cost; a proper design spaces them every 4–6 metres which increases the pipe count but prevents overflow.
- Concealed vs exposed gutter. A built-in or concealed gutter requires structural integration with the fascia and waterproofing, adding significantly to cost.
How to choose a gutter installation contractor in Malaysia
- Get a quote that specifies material grade, profile width and bracket spacing — not just a per-metre rate.
- Confirm the contractor will specify the correct outlet frequency and gradient for your roof area and local rainfall intensity.
- Ask for photos of completed terrace or semi-D gutter jobs — particularly the downpipe termination and soil drain connection.
- Confirm the quote includes debris disposal of old gutter material if it is a replacement job.
- Insist on a minimum 12-month workmanship warranty covering joint leaks and bracket failure.
Gutter maintenance and cleaning in Malaysia
Even correctly installed gutters require regular maintenance in Malaysia’s high-leaf-fall tropical environment:
- Clean at least twice a year — before the north-east monsoon (September) and after (March). Houses near large trees may need quarterly cleaning.
- Fit gutter guards or leaf screens at installation time to reduce cleaning frequency — mesh guards add RM8–RM15/m but significantly reduce blockage risk.
- Check joints and outlets after every major storm season for sealant cracking or bracket movement.
- Clear downpipe outlets at ground level and confirm they discharge away from the foundation, not toward it.
A blocked gutter contributes directly to roof leaks and fascia rot. See our roof repair cost guide → for what damage costs to fix.
Common gutter installation mistakes to avoid
- Undersizing for Malaysian rainfall. The most expensive mistake — an overflow-prone gutter causes the exact water damage it was meant to prevent.
- Too few downpipes. Long gutter runs without enough outlets overflow in the middle of the run during heavy rain.
- Incorrect gradient or reverse fall. A flat or back-graded gutter ponds water, accelerating joint failure and mosquito breeding.
- Not connecting downpipes to a proper drain. Downpipes discharging onto bare soil beside the foundation cause long-term settlement and dampness.
- Choosing uPVC for full sun exposure elevations on a long-hold property — UV embrittlement will require replacement in 10–12 years.
Planning a full roof or exterior upgrade? See our renovation cost guide → and the waterproofing cost guide →.
How long does gutter installation take?
A typical Klang Valley terrace house gutter installation takes one day for a single-storey home and one to two days for a double-storey home. Complex rooflines with multiple valleys, hips and concealed gutters may take 3–5 days. Custom fabrication of non-standard profiles may add a lead time of 3–7 days before site installation.
Sources & official references
- Malaysian Meteorological Department (MetMalaysia) — rainfall intensity and monsoon data: met.gov.my
- Uniform Building By-Laws 1984 (UBBL) — rainwater disposal and drainage requirements for buildings (By-Law 102).
- MS 1064 Pt 1 — Guide to Modular Coordination (roof drainage design parameters).
- Construction Industry Development Board Malaysia (CIDB): cidb.gov.my
