Real Klang Valley price ranges for converting a roof space into a usable room — covering structural checks, insulation, flooring and approval requirements.
Prices below are indicative Klang Valley ranges for guidance. Your actual cost depends on roof structure, span and intended use — get an exact quote on WhatsApp.
Converting a roof space in a Klang Valley terrace or semi-detached house depends on three core factors: whether the existing roof structure can carry live loads without additional steel, how much headroom is available, and the intended end-use (storage vs habitable room). Here are 2026 indicative tiers:
| Tier | Scope | Indicative cost (KL) |
|---|---|---|
| Storage attic | Timber boarding, hatch or pull-down ladder, basic ventilation | RM15,000 – RM25,000 |
| Home office / hobby room | Structural check, plywood decking, insulation, lighting, fixed staircase, one A/C point | RM30,000 – RM45,000 |
| Full habitable bedroom | Structural reinforcement, rigid insulation, drylining, en-suite, fire-rated staircase, council approval | RM45,000 – RM70,000+ |
| Conversion type | Typical headroom needed | PE endorsement needed? | Indicative cost |
|---|---|---|---|

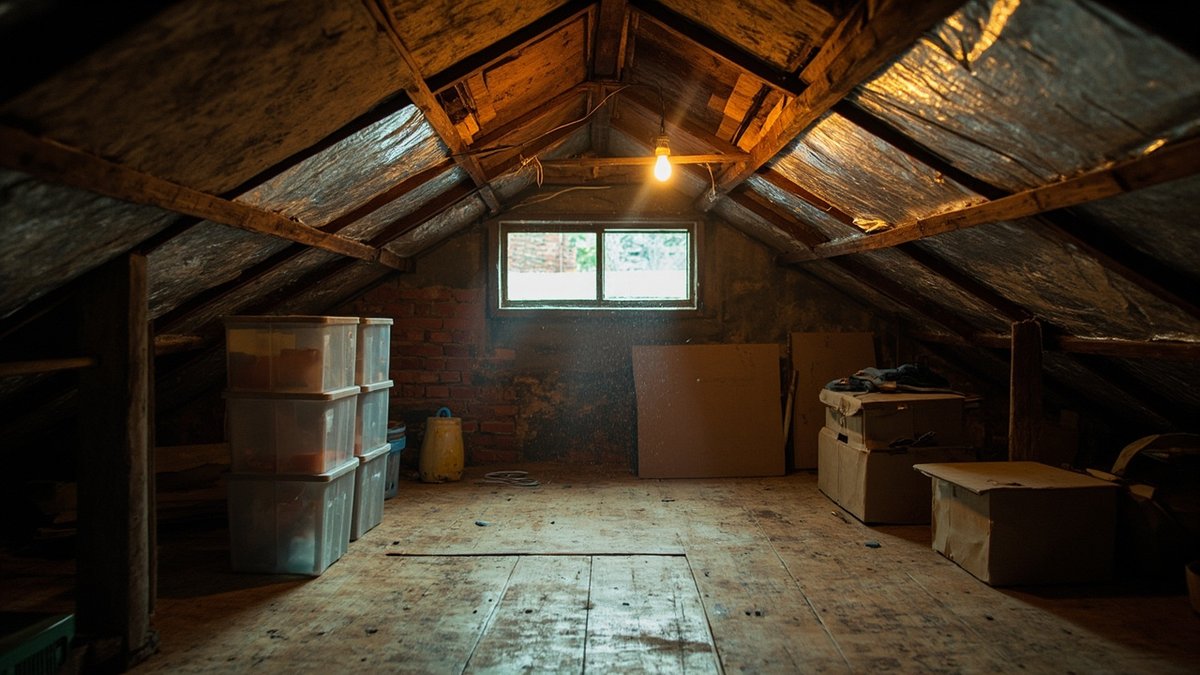

| Storage / attic boarding | ≥ 1.0 m at ridge | Usually not required | RM15,000 – RM25,000 |

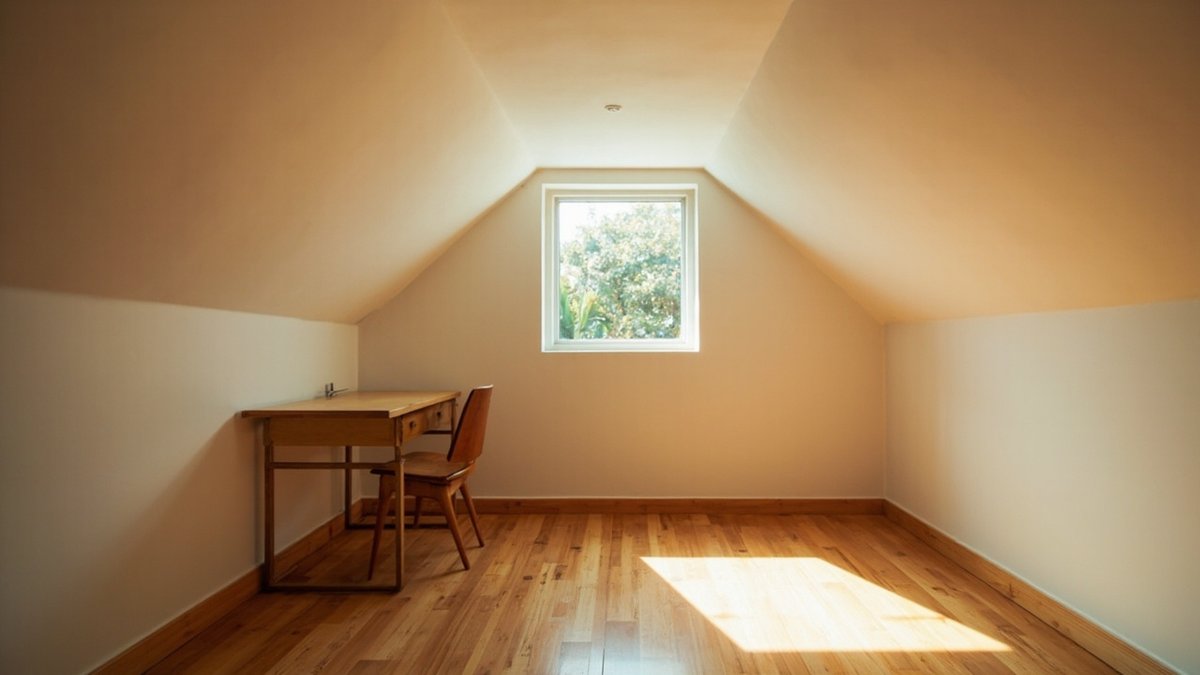

| Study / home office | ≥ 2.0 m at usable area | Recommended for floor loading | RM28,000 – RM40,000 |

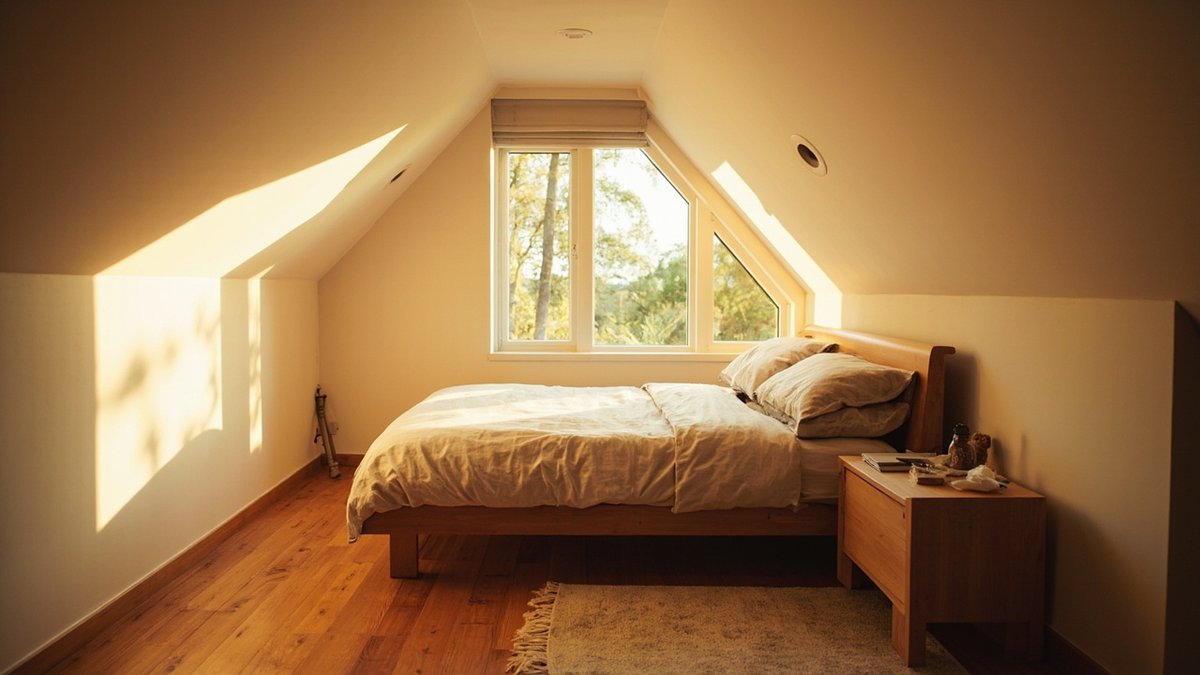

| Bedroom (with dormer) | ≥ 2.0 m + dormer for light | Required (structural + roof alteration) | RM40,000 – RM65,000 |

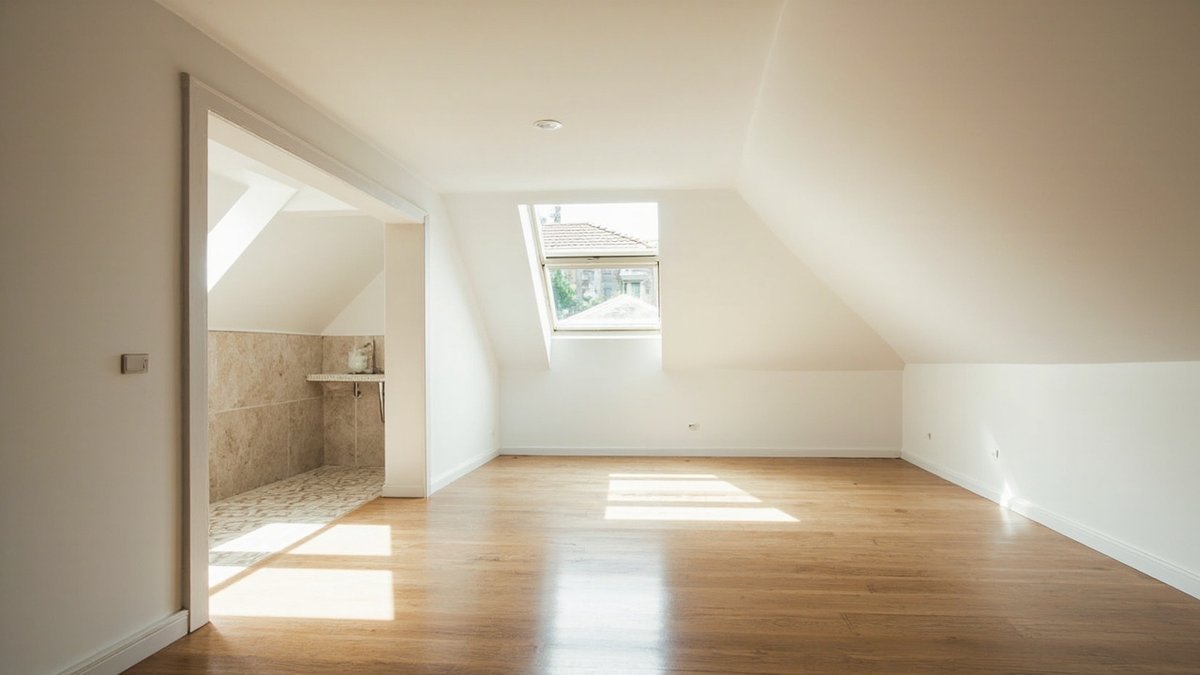

| En-suite bedroom | ≥ 2.0 m + wet room space | Required (structural + plumbing) | RM55,000 – RM80,000+ |
Understanding the component costs helps you identify where the budget goes and where you can make trade-offs:
| Item | Typical share | Notes |
|---|---|---|
| Structural assessment & PE fee | 5–10% | PE (Professional Engineer) endorsement for floor loading changes |
| Floor structure & decking | 15–25% | Timber joists, plywood deck or steel strengthening where needed |
| Insulation (roof & walls) | 10–20% | Critical for thermal comfort in Malaysia’s climate |
| Staircase (fixed) | 10–20% | Space-saver stair vs full conventional stair |
| Wall & ceiling lining | 10–15% | Drylining, skim, paint or timber cladding |
| Electrical, lighting & A/C | 10–15% | New circuit from DB; A/C compressor placement |
| Windows / dormers / skylights | 5–15% | Natural light and ventilation; skylight is cheaper than dormer |
| Labour & contingency | 10–15% | Always allow contingency for hidden roof structure surprises |
The choice of flooring, insulation and lining materials significantly affects both cost and liveability:
| Component | Budget option | Mid-range | Premium |
|---|---|---|---|
| Flooring | 12 mm plywood decking (RM8–12/sq ft) | Vinyl plank over ply (RM15–22/sq ft) | Engineered timber (RM30–50/sq ft) |
| Insulation | Foil-backed bubble wrap (low-cost, partial) | 50 mm glasswool batt (effective) | 75 mm rigid polyisocyanurate board (best) |
| Wall & ceiling lining | Painted plywood | 9 mm plasterboard, skim & paint | 12.5 mm fire-rated board with coving |
| Staircase | Space-saver (alternating tread) — RM4,000–8,000 | Straight timber stair — RM8,000–15,000 | Helical steel/timber stair — RM18,000–35,000 |
This is the step that most homeowners underestimate. A Malaysian terrace roof is typically designed to carry only dead load (roof tiles, timbers) — not the additional live load of people, furniture and a floor slab. Before any conversion beyond simple boarding:
Skipping the PE endorsement and proceeding without structural assessment is a serious safety risk — an overloaded roof structure can lead to progressive failure. It also creates issues when you try to sell or refinance the property.
Whether a Malaysian local authority (PBT) requires a building plan submission for an attic conversion depends on scope:
Undertaking structural work without approval exposes you to an enforcement order, demolition notice and fines under the UBBL. Always confirm approval requirements with your local authority before works start.
Malaysia’s equatorial climate means roof spaces can reach 50–60 °C on a sunny afternoon. Without proper insulation, a converted attic room will be unbearably hot and any A/C unit will run continuously at high cost. The right approach:
An illustrative mid-range budget for converting the attic of a standard 22×75 ft terrace house in the Klang Valley into a study/home office — a planning guide, not a quote:
| Item | Indicative cost | Notes |
|---|---|---|
| PE structural assessment | RM2,500 | BEM-registered PE, loading calc + endorsement |
| Floor structure (joist strengthening + 18 mm ply decking) | RM6,000 | ~200 sq ft usable area |
| Roof pitch insulation (50 mm glasswool batt + foil) | RM8,000 | Full pitch on both sides |
| Drylining (9 mm plasterboard + skim + paint) | RM4,500 | Sloping walls and knee-wall areas |
| Vinyl plank flooring | RM3,000 | ~200 sq ft |
| Space-saver staircase (timber, powder-coated rail) | RM5,500 | Including hatch closing mechanism |
| Electrical: 4 LED downlights + 2 power points + A/C prep | RM3,500 | New circuit from main DB |
| Roof skylight (600×900 mm, fixed) | RM3,500 | Natural light; waterproofed flashing |
| Contingency (10%) | RM3,600 | Hidden timberwork, fascia repair |
| Total | ~RM40,100 |
A storage-only version (no insulation, pull-down ladder, no finishes) would cost roughly RM15,000–RM20,000. Adding a full en-suite bathroom, dormer window and fire-rated staircase for a habitable bedroom would push the budget to RM55,000–RM75,000+.
