Prices below are indicative Klang Valley ranges for planning guidance. Your actual cost depends on partition height, board type, insulation and openings — get an exact quote on WhatsApp.
How much does a gypsum partition cost in Malaysia?
Gypsum board partitions (also called plasterboard or drywall partitions) are the most widely used lightweight partition system in Malaysian residential and commercial renovations. They are faster to install than brick, easier to modify, and offer good fire and sound ratings when specified correctly. Indicative 2026 Klang Valley rates by scope:
| Partition type | Rate (per sq ft supply & install) | Typical total (10 ft × 10 ft wall) |
|---|
| Single-skin standard gypsum | RM15 – RM22 | RM1,500 – RM2,200 |
| Single-skin moisture-resistant (MR) | RM22 – RM30 | RM2,200 – RM3,000 |
| Double-skin with insulation (sound) | RM28 – RM38 | RM2,800 – RM3,800 |
| Double-skin fire-rated (FR) board | RM35 – RM55 | RM3,500 – RM5,500 |
These rates are for supply-and-install (metal stud frame, gypsum boards, jointing compound and skim finish). They exclude painting — add RM3–RM6/sq ft for two coats of emulsion.
Gypsum partition cost by type
Gypsum partition systems vary based on performance requirements. Choosing the right type for your application avoids costly over-specification or under-performance:
| Board type | Board thickness | Supply & install rate | Best for |
|---|

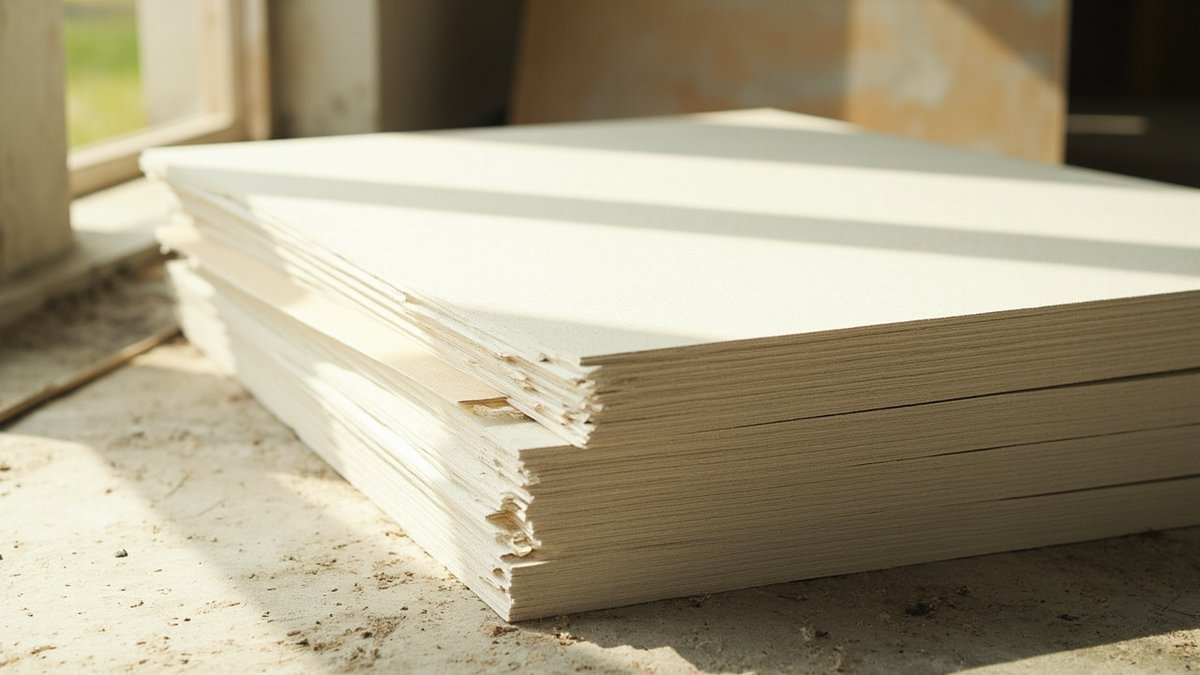

| Standard gypsum (ivory board) | 9.5 mm or 12.5 mm | RM15 – RM22/sq ft | Dry internal partitions, living areas, bedrooms |

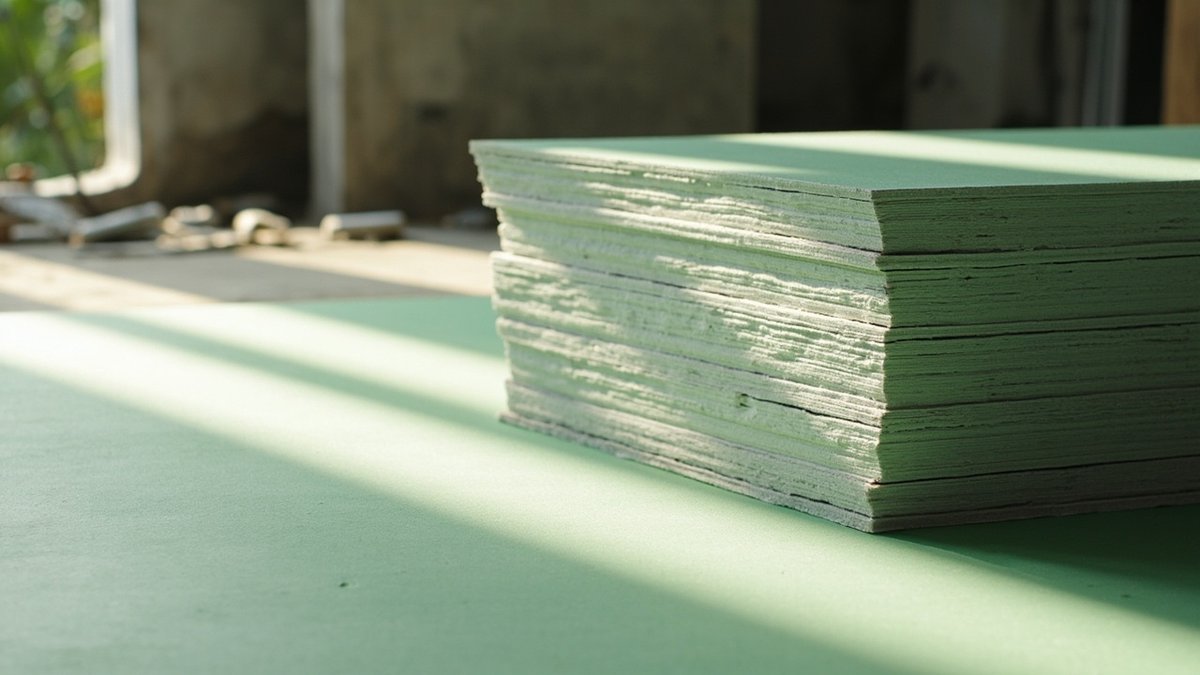

| Moisture-resistant / green board (MR) | 12.5 mm | RM22 – RM30/sq ft | Bathrooms, kitchens, laundry areas |

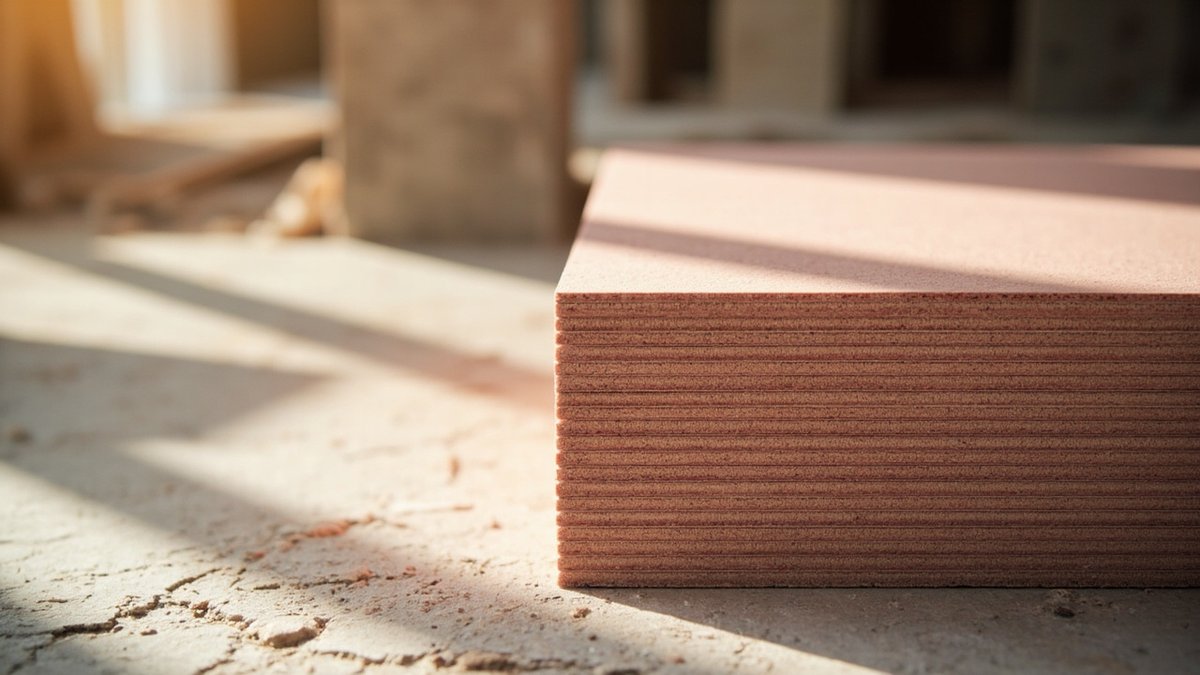

| Fire-rated (FR) board | 12.5 mm or 15 mm | RM35 – RM55/sq ft | Commercial spaces, server rooms, fire-rated walls |

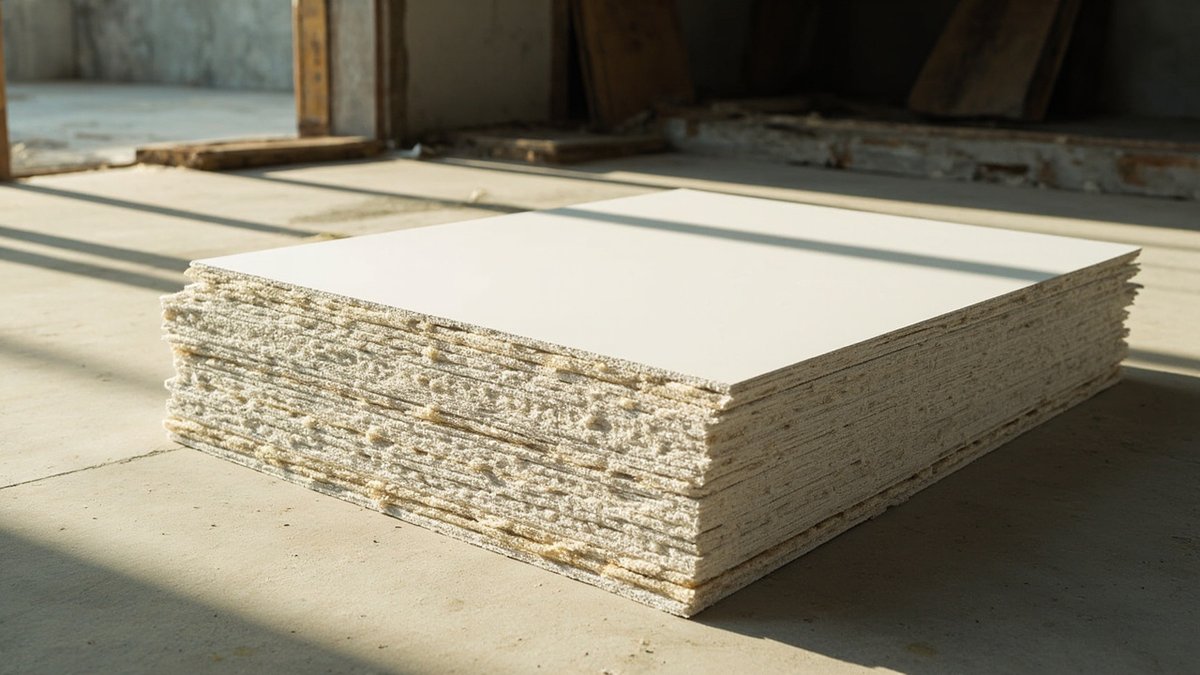

| Impact-resistant board | 12.5 mm reinforced | RM28 – RM45/sq ft | Corridors, high-traffic areas |

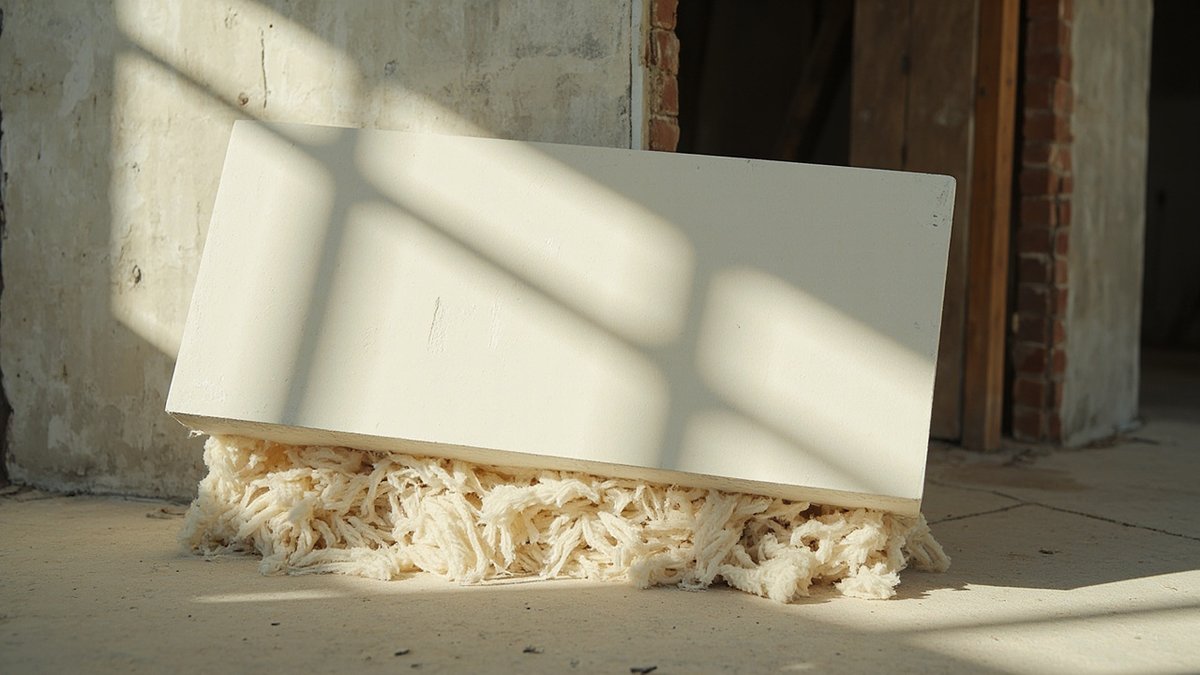

| Acoustic / soundproof gypsum | 12.5 mm + insulation | RM30 – RM50/sq ft | Home theatre, bedroom privacy, office meeting rooms |
Cost per square foot breakdown
Understanding what makes up the per-sq-ft rate helps you compare quotes accurately and spot what might be missing:
| Cost component | Indicative cost (per sq ft) | Notes |
|---|
| Metal stud frame (C-channel, track) | RM3.50 – RM6.00 | 75 mm or 100 mm stud depending on height |
| Gypsum board (both sides) | RM5.00 – RM12.00 | Two boards per wall section; board type determines cost |
| Acoustic / mineral wool insulation | RM2.00 – RM5.00 | Required only for sound-rated partitions |
| Jointing compound & tape | RM1.00 – RM2.00 | For seamless joints and screw holes |
| Skim finish plaster coat | RM2.50 – RM4.50 | Smooth ready-to-paint surface |
| Labour (installation) | RM5.00 – RM10.00 | Framing, boarding, jointing, skim |
Gypsum board type comparison
| Property | Standard gypsum | MR (moisture-resistant) | FR (fire-rated) | Acoustic |
|---|
| Water exposure | Poor — must not get wet | Good for damp areas | Moderate | Poor to moderate |
| Fire rating | 30 min (basic) | 30 min | 60–120 min | 30–60 min |
| Sound reduction | Low (Rw ~33 dB single) | Low (same) | Moderate | High (Rw ~45–55 dB) |
| Relative cost | Base (1×) | ~1.4× | ~2× | ~1.8× |
| Paintable | Yes | Yes | Yes | Yes |
Gypsum partition vs brick partition
Homeowners often ask whether to use a gypsum board or a traditional brick partition. Here is a direct comparison:
- Cost: Gypsum partitions are generally cheaper per sq ft than brick (RM15–RM38 vs RM30–RM60+ for brick with plaster both sides), especially on taller walls.
- Speed: Gypsum installs in hours; brick requires laying, curing, plastering and drying — typically 5–10 days per wall.
- Weight: Gypsum partitions are significantly lighter — an important factor in high-rise condos with limited slab load capacity.
- Modification: Gypsum walls are easy to cut, move or remove. Brick partitions require hacking and generate substantial debris.
- Sound insulation: A double-skin gypsum partition with insulation can match or exceed brick’s acoustic performance.
- Wet areas: Moisture-resistant (MR) gypsum board handles bathrooms and kitchens. Standard gypsum must not be used in wet areas.
For most Klang Valley residential renovations, gypsum partitions are the preferred choice for speed, cost and flexibility. Brick is retained mainly where structural mass, heavy fixing points or long-term robustness in wet areas is needed. For more on partition wall costs generally, see our partition wall cost guide →.
What affects gypsum partition cost the most?
- Board type. Upgrading from standard to MR board adds roughly RM7–RM10/sq ft; to fire-rated board RM18–RM30/sq ft.
- Wall height. Standard 10 ft (3 m) ceilings are costed into most rates. Non-standard heights (double-volume, atrium) require custom framing and increase labour cost by 20–40%.
- Door and window openings. Each door opening in the partition adds RM400–RM900 for framing, lintel and finishing depending on door size.
- Acoustic insulation. Adding mineral wool insulation within the stud cavity adds RM2–RM5/sq ft but dramatically improves sound performance.
- Stud spacing. Closer stud spacing (400 mm vs 600 mm) uses more steel but provides a firmer, more impact-resistant wall — worth specifying in high-traffic corridors.
Worked example: adding a bedroom partition in a KL condo
An illustrative budget for adding a single bedroom partition wall in a typical Klang Valley condo (10 ft wide × 9 ft high = 90 sq ft), MR board, no door. A planning guide, not a quote:
| Item | Indicative cost | Notes |
|---|
| MR gypsum partition (supply & install, 90 sq ft) | RM2,250 | @ RM25/sq ft average |
| Acoustic insulation in cavity | RM360 | @ RM4/sq ft |
| Skim coat (both sides, 180 sq ft) | RM540 | @ RM3/sq ft |
| Door opening framing (if added) | RM600 | Per door; optional |
| Paint (2 coats both sides, 180 sq ft) | RM900 | @ RM5/sq ft emulsion |
| Total (no door) | ~RM4,050 | |
| Total (with door frame) | ~RM4,650 | |
A standard gypsum board without insulation for the same wall would cost approximately RM2,800–RM3,200 painted. A fire-rated double-skin version would cost RM5,500–RM8,000.
Common uses of gypsum partitions in Malaysian homes
- Room subdivision: Dividing a large room into two bedrooms; creating a study nook or prayer room in an open-plan layout.
- False wall / TV feature wall: Creating a recessed TV alcove or a layered feature wall with concealed wiring.
- Bathroom partition: Using MR gypsum board as a lightweight wet-area wall in a new bathroom; note that tiling adhesion requires proper MR board and the correct adhesive.
- Office partition: Separating workstations, creating a meeting room, or boxing off a server/store room within a commercial fit-out.
- Ceiling boxing: Building a soffit to conceal pipework, wiring or aircon ducting — a very common use in Malaysian renovations.
What gypsum partition installation involves
- Layout marking: Mark wall, floor and ceiling positions; confirm door and switch locations before framing starts.

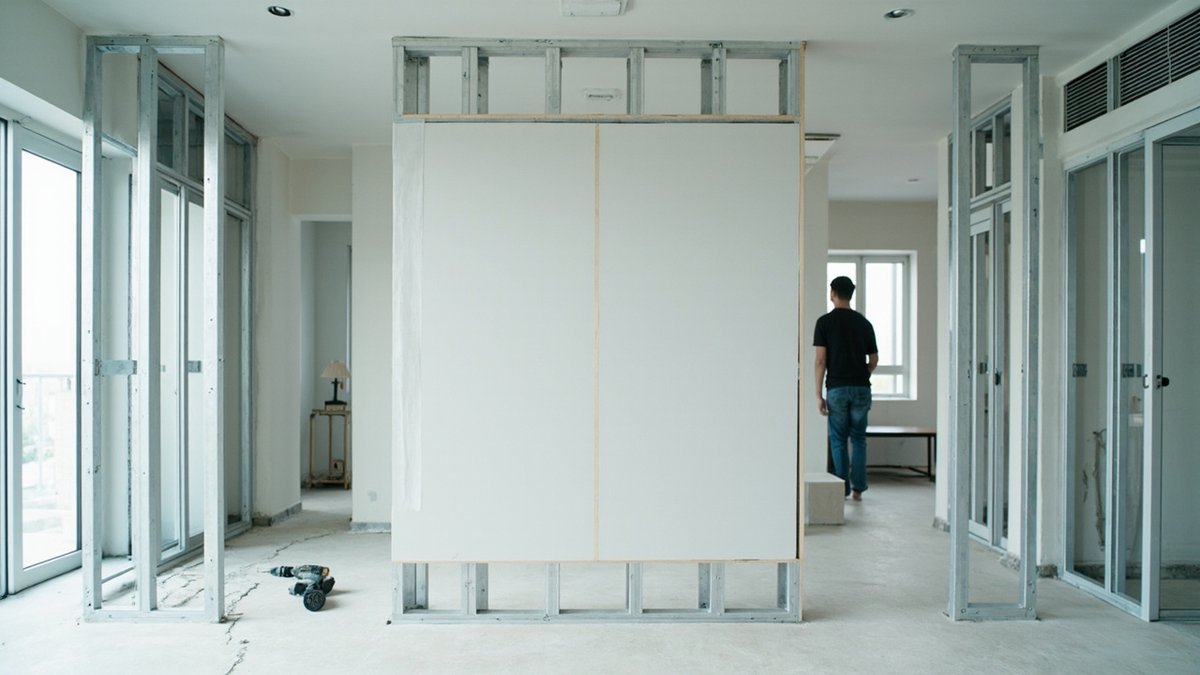

- Track and stud framing: Fix floor and ceiling tracks; install vertical C-channel studs at 400–600 mm spacing.
- Services first: Run electrical conduits, telephone and data cables, and any plumbing within the cavity before boarding.
- First face boarding: Fix gypsum boards to one side of the frame; tape and joint seams.
- Insulation: Insert acoustic or thermal insulation batts if specified.
- Second face boarding: Board the opposite side; tape, joint and apply skim coat.
- Finishing: Sand smooth; prime ready for painting. Fit architraves, skirting and door frame if applicable.
How to save without cutting corners
- Use standard gypsum board in dry internal partitions — there is no benefit to MR board in a living room or bedroom.
- Run all electrical conduits during the build, not after — retrofitting cables in a closed gypsum wall requires cutting, patching and repainting.
- Bundle with other works. If you are already doing a renovation, adding a partition wall shares the contractor’s mobilisation and debris haulage cost.
Planning a wider renovation? See our full house renovation cost guide → or our glass partition cost guide → for transparent dividers.
Mistakes to avoid with gypsum partitions
- Using standard gypsum board in bathrooms or kitchens — it absorbs moisture, weakens and collapses tile adhesive within 1–3 years. Always specify MR (green) board for wet areas.
- Skipping electrical conduit during boarding — adding switches, sockets or light points after the wall is closed means cutting it open again.
- Inadequate stud spacing for heavy fixings. A standard 600 mm stud spacing does not support heavy shelving, TV mounts or kitchen cabinets. Specify 400 mm stud spacing or blocking where heavy items will hang.
- Not checking condo management rules. Most strata condos require submission of a renovation plan and management approval before hacking or partition works begin. Fines apply for unapproved works.
How to choose a contractor for your gypsum partition
- Get an itemised quote showing board type, stud specification, insulation, jointing and skim coat separately.
- Confirm the contractor specifies the correct board type for the location (standard vs MR vs FR).
- Check that electrical conduit provision is included in their scope if the wall will carry switches or sockets.
- Ask for stud spacing and board thickness to be confirmed in writing — cutting corners on spec is common in very low-priced quotes.
⚠️ All prices are indicative 2026 Klang Valley ranges. For a fixed, itemised gypsum partition quote,
WhatsApp ClickBina.
Sources & official references
- CIDB Malaysia — cidb.gov.my
- Uniform Building By-Laws 1984 (UBBL) — fire separation and partition wall standards
- MS 1064 Part 1–16 — guide on design and construction works; fire-rated partition requirements
- BOMBA (Fire and Rescue Department Malaysia) — fire-rated partition requirements for commercial buildings
