What an ACP or aluminium awning actually is

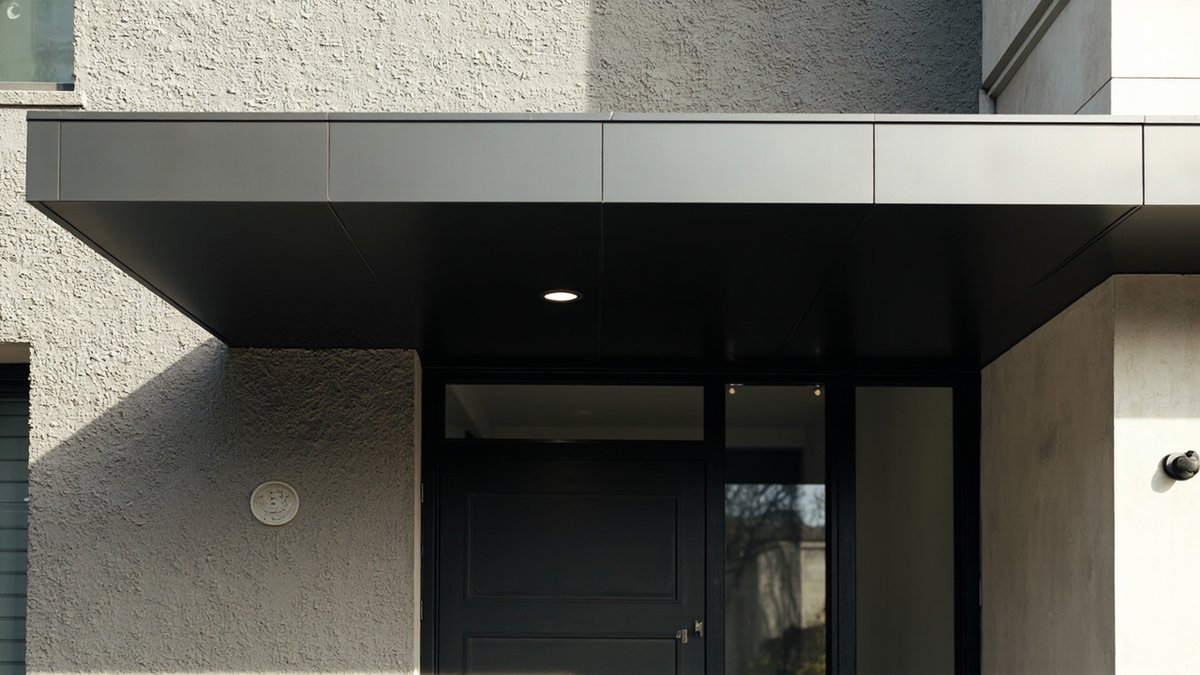

In Malaysia “awning ACP” usually describes the clean, box-shaped canopy over a main door, a side wall or a car porch: a slim frame with crisp edges, a flat-looking top and a smooth panelled underside, sometimes with a downlight. It reads as one solid block, which is the look people want. Underneath that finish there are three separate parts, and each one decides how long the awning lasts:

Our ACP cladding guide explains why: ACP is a sandwich of two thin aluminium skins and a core, designed as a rain screen on walls and fascias. It is not designed to be walked on, to span as a roof deck, or to shed water down a slope on lapped joints.

What should go on top

The top cover is the part you cannot see from the street and the part that matters most. Ask your installer to name it in writing:

• Profiled metal sheet (metal deck or longspan): the common, economical choice, laid to the maker's minimum fall and hidden behind the ACP fascia.
• Insulated sandwich panel: quieter in rain and cooler underneath, at a higher cost.
• Polycarbonate: if you want daylight through the middle with a solid ACP edge.
• An ACP sheet sealed with silicone as the roof: the version to refuse. The first failed sealant bead becomes a leak, and a flat top ponds.

Whatever the cover, it needs a slight fall to a gutter hidden behind the fascia, and that gutter needs an outlet and a downpipe. A canopy that looks dead flat from the street should still fall on top.

Aluminium or steel frame?

Our powder-coated aluminium guide covers how the finish on aluminium sections holds up in Malaysian sun and rain.

Pros and cons of an ACP canopy

Where ACP awnings leak

1. The wall joint. The top edge meets the wall and every drop of rain passes it. It needs a flashing or wall channel, not a smear of sealant; our awning wall-joint guide covers the fix.
2. A flat top. Water sits, finds a joint and drips through the soffit.
3. The hidden gutter. Leaves block it and nobody can see it; water overflows behind the fascia.
4. Panel joints. Sealed ACP joints age in the sun; once they open, water gets behind the band.
5. Downlight holes. A light fitted through the soffit under a leaking top fills with water first.

How an ACP awning is priced

ClickBina does not publish a per-metre ACP awning rate, because the cover, frame, ACP area, posts and access vary so much. These published figures are reference points for the parts (indicative 2026, Klang Valley):

Read the RM2,500 line for what it is: one fascia band and gutter on one car porch in the car porch guide's example, not a figure to scale up. A canopy over a main door is a small job; a full car porch canopy with posts, a hidden gutter and a large ACP soffit is a much larger one.

What the quotation should list

1. Frame material and section size: aluminium or galvanised steel, and the finish.
2. The top cover by name, its fall, and where the water goes (gutter, outlet, downpipe).
3. The ACP panel: maker and product, core type, panel thickness and colour reference.
4. Wall fixings and anchors, and the flashing at the wall.
5. Posts and footings, if any.
6. Any downlight, and who provides the power point.
7. Access for upper-floor work and removal of any old awning.

The ACP cladding guide makes the same point about the panel: if the core and the product are not named, you cannot compare two quotes. For a small house canopy you do not need a facade-grade specification, but you do need to know what you are buying.

Approvals and good practice

• Condos and strata: management approval first; many buildings control anything fixed to the facade.
• Landed: a small canopy within your lot is usually minor work; anything over the boundary or a walkway needs the council.
• Rain noise: a metal top under ACP drums in a storm; an insulated panel or foil reduces it, as our noisy awning guide explains.
• Upper floors: elevated working platforms add RM500–RM1,500 to labour on the awning guide's figures.

Upkeep

Wash the ACP face with water and a mild cleaner, never abrasives or strong solvents that damage the coating. Clear the hidden gutter before the monsoon, and inspect the sealant joints and the wall flashing once a year. Renew sealant before it splits, not after the soffit stains.

How ClickBina can help

WhatsApp us your job details for a quote: where the canopy goes, the rough width and projection, the wall it fixes to, and the look you want. ClickBina is an experienced KL & Selangor contractor that coordinates the frame, roof cover, ACP finish, gutter and flashing as one itemised job. We reply within the hour, and the price agreed is a flat price with no hidden charges. If you want a downlight in the soffit, mention it in your job details, because it needs a power point.

Sources & methodology

• ClickBina ACP cladding guide — what ACP is, why it is not a roof covering, panel core and quotation items.
• ClickBina awning cost guide — metal and louvre awning rates, posts, upper-floor access, aluminium density note.
• ClickBina PU sandwich panel guide — metal longspan material and labour rates.
• ClickBina car porch cost guide — ACP fascia and box gutter worked-example line.
• ClickBina awning design gallery — flat ACP canopy design notes.

How we estimated prices: every RM figure on this page is quoted unchanged from the ClickBina guides named above; they are indicative Klang Valley ranges for 2026. No ACP awning rate is published, so none is printed.
