How folding-arm awnings work, crank or motor, which fabric, when to roll it in, and when to replace the fabric instead of the awning.
📍 We serve KL, Selangor & Putrajaya.

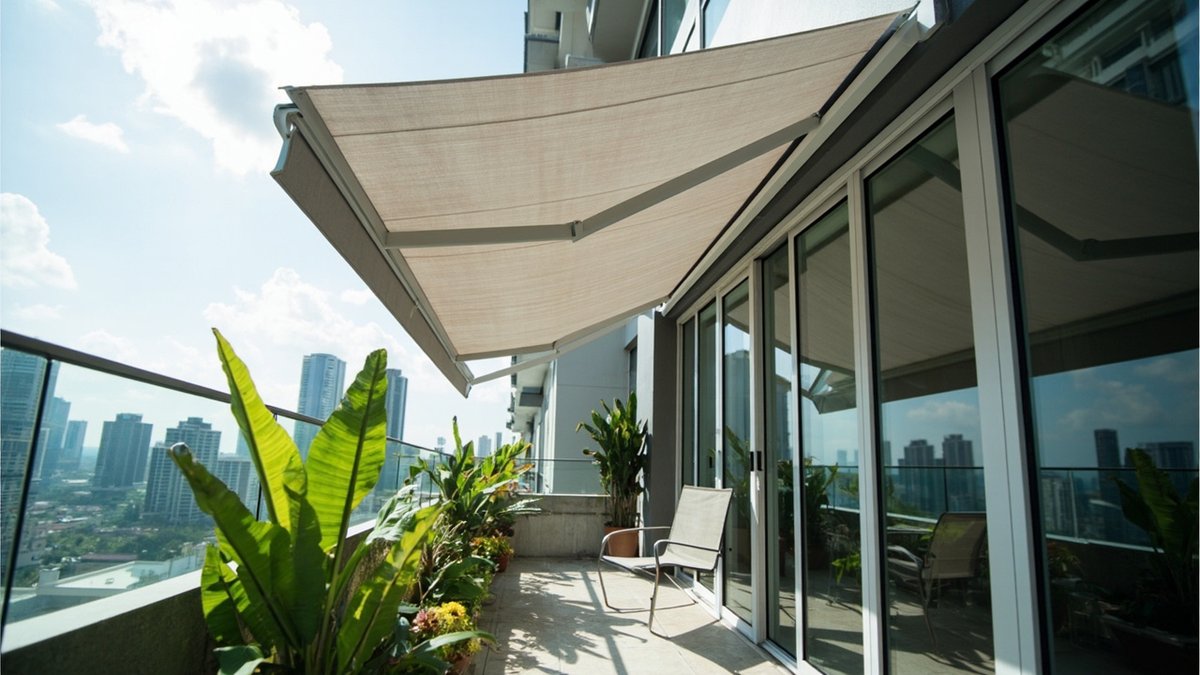

A retractable awning is a fabric cover on folding arms that rolls out from the wall for shade and back into a roller when you do not need it, either by hand crank or by a motor hidden in the roller tube. It suits balconies, patios, shopfronts and windows where you want sun some of the time. ClickBina's awning guide puts a retractable canvas or fabric awning at RM400 – RM900 per metre run installed, with fabric typically replaced every 5–8 years at RM400–RM1,200 for a standard width; a motorised version is quoted on site (indicative 2026, Klang Valley). Roll it in for storms and strong wind: it is shade, not a permanent rain roof.
Wikipedia's article on awnings describes the common modern type, the lateral arm or folding arm awning, as two, three or four tension arms and a top tube carried on a torsion bar that fixes into wall, soffit, fascia or roof brackets, which spread the load into the structure. As the fabric unrolls, the tension arms straighten and hold it out taut; as it rolls back, the arms fold flat against the wall. Because there are no posts, the space underneath stays clear.
| Type | How it works | Where it suits |
|---|---|---|
| Folding arm (open) | Roller and fabric fixed to the wall with nothing covering them when closed | Covered balconies and shopfronts under an overhang |
| Folding arm with cassette | The fabric rolls into a closed box that protects it when retracted | Exposed walls where the closed fabric would otherwise sit in the rain |
| Drop arm | Roller at the top and side arms that swing down and out | Shading a single window |
| Retractable patio cover | Fabric on guide rails, designed to be waterproof | Patios that need rain cover as well as shade |
The difference between open and cassette matters in Malaysia: Wikipedia notes that early awnings left part of the fabric exposed when retracted, and that moisture pooling in the folds sped up deterioration. A cassette or a position under an overhang keeps the rolled fabric dry. Our awning design gallery shows a cassette folding-arm awning over a balcony door.
| Manual (hand crank) | Motorised | |
|---|---|---|
| Operation | A crank handle turns a gear on the roller | Motor inside the roller tube, run by remote or wall switch |
| Price | The base price per metre run (see the cost section) | Quoted on site: motor, controls and power point added to the manual price |
| Daily use | Fine for an awning you open now and then | Easier for wide awnings or ones you open and close every day |
| Extras | None | Can take a wind sensor that retracts it automatically |
| What can fail | Crank gear, handle, arm springs | Motor, remote, switch, and the same arms and springs |
Wikipedia notes that motors now usually sit inside the roller tube with a built-in receiver, and that newer designs add a wind sensor for automatic retraction in high wind. Any motorised awning needs an electrical point at the motor, so plan where the power comes from before the brackets go up. WhatsApp us your job details for a quote on the awning, and mention that it needs a power point.
The fabric is the part you see, and the part that wears out. Wikipedia describes solution-dyed acrylic as the most common fabric for folding arm awnings, citing its weight, stable dimensions and strong UV filtering and resistance, with grades for water repellence, and notes that cotton canvas was replaced by acrylic and polyester fabrics from the 1960s. In practice you will be offered:
ClickBina's awning guide gives canvas and fabric covers a light transmission of 10–40% and good heat insulation, which is why they feel cooler underneath than clear polycarbonate or glass. Darker colours give deeper shade; lighter colours show stains sooner.
Retractable awnings are shade first. Wikipedia describes lateral arm awnings as water-resistant rather than waterproof, and contrasts them with retractable patio cover systems that are designed to keep rain out. That has three practical rules:
If you need a cover that stays out in the rain, a fixed awning is the better tool; our polycarbonate roofing guide covers the most common one.
These are ClickBina's published figures (indicative 2026, Klang Valley), quoted unchanged from the awning cost guide:
| Item | Indicative price | Notes |
|---|---|---|
| Retractable canvas or fabric awning, installed | RM400 – RM900 per metre run | Up to 4 m projection |
| Replacement fabric, standard width | RM400–RM1,200 | Typically every 5–8 years |
| Motorised retractable fabric awning | Quoted on site | Motor, remote or wall switch and a power point added to the manual price |
| Elevated working platform for upper-floor installs | RM500–RM1,500 added to labour | Second-storey and higher walls |
WhatsApp us your job details for a quote — we reply within the hour. A site visit is free. We serve KL, Selangor & Putrajaya.
💬 WhatsApp for a quoteThe same guide gives a retractable fabric awning a life of 5–10 years on the fabric, against much longer for the frame, which is why the fabric is the running cost to budget for.
| Problem | Likely cause | Usual fix |
|---|---|---|
| Fabric sags or ponds when open | Fabric stretched, or arm springs weakened | Re-tension or replace arms; new fabric if stretched |
| Black spots and a musty smell | Rolled up wet; mildew in the folds | Clean with brush and mild soap; dry fully before rolling |
| Fabric faded, brittle or torn at the hem | Sun exposure at the end of its life | Replace the fabric on the existing frame |
| Crank slips or will not turn | Worn gear or crank handle | Service or replace the gearbox |
| Brackets loose, awning droops at the wall | Anchors pulling out of brick or render | Re-fix into sound wall with the right anchors |
| Motor does not respond | Remote, switch, power supply or the motor itself | Check the power and remote first; WhatsApp us your job details for a quote |
A frame in good condition rarely needs replacing; most old awnings are brought back with new fabric and a mechanism service. The awning guide recommends servicing the retractable mechanism once a year.
WhatsApp us your job details for a quote: where the awning goes, the rough width and how far it should project, the wall it fixes to, and whether you want manual or motorised operation. For an old awning, tell us what it is doing. ClickBina is an experienced KL & Selangor contractor; we reply within the hour, and the price agreed is a flat price with no hidden charges.
How we estimated prices: every RM figure on this page is quoted unchanged from the ClickBina awning cost guide; they are indicative Klang Valley ranges for 2026.
