The awning-to-wall junction is where nearly every awning leak starts — here is why a bead of sealant keeps letting go, what a proper flashing detail looks like, and what a repair quote has to itemise.

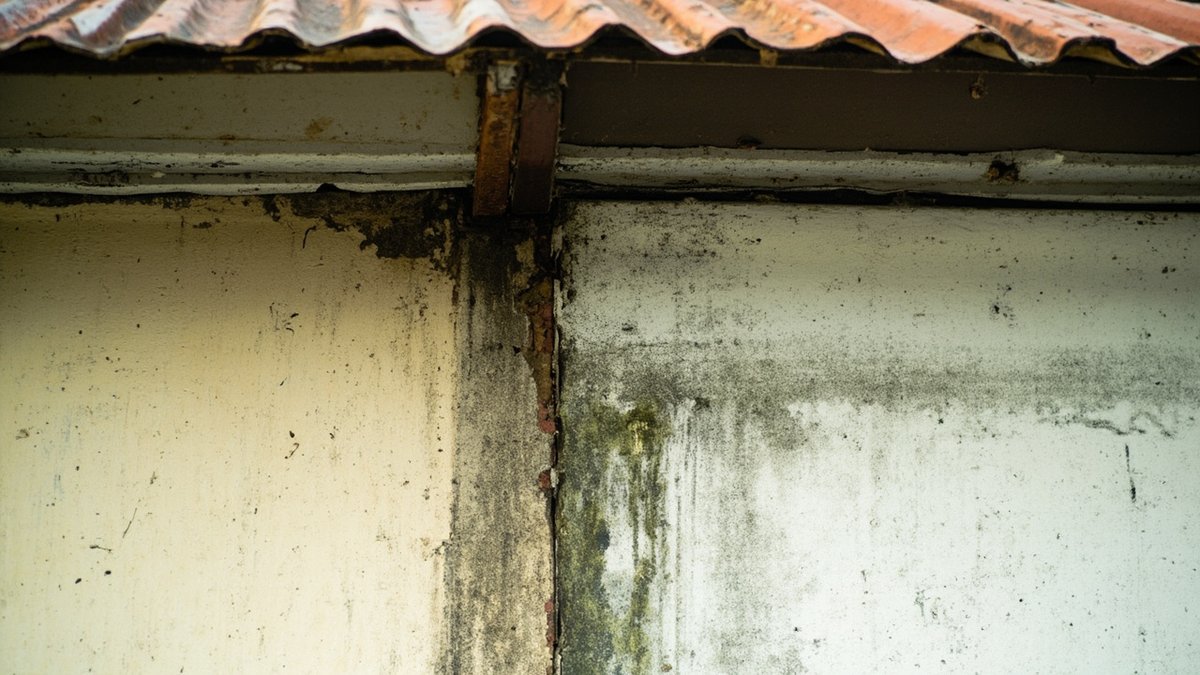

An awning is two separate pieces of building stuck together: a sloping roof made of polycarbonate, metal sheet, glass or aluminium louvre, and a masonry wall that was never designed to have anything attached to it. The junction where the two meet is the highest point of the awning, which means every drop of rain that lands on the sheet passes it, and it is also the point where the wall face is interrupted by fixings. It is the hardest-working joint on the whole structure and it is where the great majority of “my awning is leaking” calls actually originate.
There are only two ways to close that junction, and they work on completely different principles. The first is to run a bead of sealant in the gap between the top edge of the awning sheet and the wall render — a face seal, where the sealant itself is the only thing between the rain and the inside. The second is to fit a flashing: an L-shaped or Z-shaped metal strip whose upper leg is turned into a chase cut in the wall (or tucked behind the render or under a course), and whose lower leg laps down over the top of the awning sheet. A flashing works by overlap and gravity. Water running down the wall meets the metal, is thrown clear onto the awning, and runs away. Sealant is then used only to close the top edge where the metal enters the wall — a joint that is protected from the sun and from most of the water. If you understand only one thing from this page, make it that difference.
Sealant-only junctions do not fail because the installer used a bad product. They fail because the detail asks the sealant to do something it cannot do for long. Five things stack up:
This is also why the usual response — adding another bead over the failed one — buys months rather than years. The new bead is now bonded to old, hardened sealant instead of to the wall, which is a weaker joint than the one that just failed.
A junction that lasts has a metal upstand doing the work. In practice that means a chase cut into the wall above the awning line, the top leg of the flashing turned into that chase, the chase made good and pointed so the sealant sits in a protected slot rather than on an exposed face, and the lower leg dressed down over the awning sheet by enough of an overlap that wind cannot push water back up under it. Where the awning is corrugated or trapezoidal, the flashing needs to follow the profile at the bottom edge, or be closed with profile fillers, otherwise every corrugation is an open channel straight to the wall.
Two more details separate a job that lasts from one that does not. Every fixing through the flashing is a new hole through the water line, so fixings belong high on the vertical leg where they are sheltered, sealed, and never in the bottom of a corrugation. And the flashing must be one continuous run with proper lapped joints stepping down the direction of flow — a butt joint sealed with a smear is simply a new sealant-only junction hidden inside a metal one.
Before anyone quotes, match what you actually see against the usual causes:
| What you see | Most likely cause | First thing to check |
|---|---|---|
| Water runs down the inside face of the wall, directly under the awning line, during rain | Junction seal or flashing has failed | Look along the whole junction from a ladder for a visible gap, split bead or lifted metal |
| Drips only when rain is driven at the wall by wind, never in still rain | Overlap too short, or fixings in the wrong place, so wind pushes water back up | Which direction the rain was coming from; the length of the lap over the sheet |
| Drips continue for hours after the rain stops | The wall itself is saturated and releasing water — not a junction failure | The wall above the awning: cracked render, failed coating, an open joint higher up |
| Water appears mid-span, away from the wall | Sheet joint, fixing hole or a split in the sheet | The sheet laps and every screw with a washer |
| Water pours over the front or side edge of the awning | Drainage: no gutter, an undersized one, or a blocked outlet | The gutter and downpipe, in rain |
| Fine droplets on the underside of the sheet, no rain at all | Condensation on a cold sheet, usually overnight or early morning | Whether it appears on dry nights and clears by mid-morning |
| Rust streaks and a brown stain on the wall below the junction | Corroding flashing or fixings, letting go from the metal side | The condition and gauge of the existing flashing |
Send us a photo of the job on WhatsApp — we reply with an instant quote.
💬 Get Your Instant QuoteWork down this list rather than starting with the most expensive possibility.
Gutter and downpipe overflow. An awning with a gutter along its front edge can look exactly like a junction leak, because overflowing water sheets back along the underside of the sheet and drips near the wall. The tell is timing and intensity: overflow performs only during heavy rain and stops within a minute of the rain easing, while a junction failure leaks in moderate rain too. Watch the gutter itself in a storm — if water is going over the edge instead of down the pipe, fix the drainage before you touch the junction. Our gutter and downpipe repair guide covers that fix, and gutter cleaning covers the cheapest version of it.
External wall seepage arriving at the awning line. A wall that is absorbing water through cracked render or failed paint higher up will release it wherever the water finds a horizontal interruption — and the awning junction is exactly such an interruption. This one leaks slowly, keeps going long after the rain, and usually shows damp patches on the wall above the awning as well as below it. Sealing the junction will not touch it. That is a wall coating job: see external wall seepage and, on a strata building, facade waterproofing.
A third, less common one worth ruling out: condensation on the underside of a metal or polycarbonate awning over a drying yard or wet area. It appears on dry nights, is fine rather than running, and clears as the sheet warms. Condensation vs water seepage separates the two properly.
Junction work is a small job priced by length, access and how much of the existing detail has to come off first (market estimate 2026, indicative Klang Valley except where marked as ours):
| Work | Indicative price | What it covers |
|---|---|---|
| Leak detection & assessment | RM300 – RM800 per visit | ClickBina price — assessment before we quote a fix; waived if you proceed with the repair |
| Tiled / metal roof repairs | RM500 – RM3,000 per job | market estimate — junction, flashing and spot repairs, before any full recoat |
| Acrylic roof coating | RM4 – RM10 per sq ft | market estimate — if the wall face above the awning also needs a coating |
| Flexible two-part membrane | RM8 – RM14 per sq ft | market estimate — where the wall above moves or has hairline cracking |
A sealant-only re-do sits at the very bottom of the repair band and is honest work when the existing flashing is sound and only the top-edge seal has gone. Cutting a chase, forming and fitting a new flashing along a longer run, and making the wall good afterwards sits higher. If the wall above the junction is the real source, the coating rows are the relevant number and the job is priced by area rather than by length — on a wall face of about 100 square feet that is RM400 – RM1,000 for an acrylic coating or RM800 – RM1,400 for a flexible two-part system (market estimate 2026, indicative Klang Valley). For the awning structure itself rather than its junction, see awning cost.
A one-line quote saying “repair awning leak” is not comparable with anything. Ask for these lines:
| Line item | Why it matters |
|---|---|
| Length of junction treated, in metres | The whole run, or only the visibly failed part — this is the single biggest scope difference between two quotes |
| Flashing or sealant-only | Decides whether you are buying a repair or a delay |
| Chase cut and made good | A flashing tucked into a chase behaves very differently from one surface-fixed to the render |
| Flashing material, gauge and girth | Girth is how far it reaches up the wall and down the sheet; too little of either is why laps fail |
| Fixing type, spacing and sealing | Every fixing is a hole through the water line |
| Sealant type and joint preparation | Whether the old bead is cut out and the surface cleaned back, or the new bead goes over the old one |
| Profile fillers at corrugations | On a profiled sheet, the closure at each corrugation is where wind-driven water gets in |
| Removal and refitting of the awning sheet, if needed | Some flashing details cannot be formed without lifting the top row of sheeting |
| Access: ladder, tower or scaffold | On a double-storey wall this can be a larger line than the materials |
| Making good: render patching and repainting | A cut chase leaves a scar; agree who closes it |
| Waste removal and protection of the area below | Grinding a chase produces a great deal of dust over a car porch or drying yard |
Two practical constraints decide when this work can actually happen. The first is access: most awning junctions sit at first-floor level over a car porch, a drying yard or a side lane, so the working platform matters. A ladder is enough for a short run of resealing; forming and fixing a continuous flashing along a long run needs a tower or light scaffold, both because of the reach and because the installer needs both hands and a straight line of sight along the run.
The second is weather. Sealants and coatings need a dry, clean substrate and an uninterrupted cure window; applying either to damp render is the most common reason a fresh repair fails within weeks. In the monsoon months that usually means an early start, a tarpaulin over the working section, and a willingness to stop when the afternoon cell arrives. A contractor who offers to seal a soaking junction in the middle of a wet week is telling you something about the repair you are buying.
A leaking junction rarely stays a cosmetic problem. Water tracking down the inside of the wall lifts paint, then blisters the render, then feeds mould along the skirting line — the sequence set out in our wall damp and mould treatment guide. Where the awning frame is bolted into the wall, persistent wetting corrodes the fixings and the frame at exactly the point carrying the load. And on a car porch the water lands on whatever is parked under it. The junction itself also gets harder to repair over time: once the chase area is spalled and the render around the fixings has blown, the repair grows from a length of flashing into masonry make-good as well.
Do not accept “wait for rain” as the test. A hose test takes twenty minutes and settles it:
An awning junction is not a fit-and-forget detail. Once a year, before the year-end monsoon, look along the run from a ladder for a split or lifted bead, rust streaks from the flashing or fixings, and debris piled against the junction where the sheet meets the wall — leaf litter holds water against the joint and is a common accelerator on awnings under trees. Clear the awning gutter at the same visit. A five-minute annual look is what keeps a resealing job from becoming a re-flashing job.
ClickBina repairs awning and roof junctions across Kuala Lumpur and Selangor as part of a waterproofing team rather than as a handyman call, which matters here because the fix usually crosses trades — metalwork for the flashing, masonry for the chase, coating for the wall above, and drainage if the gutter is the real culprit. We inspect before we quote, tell you plainly whether you need a flashing or only a reseal, itemise the junction length, the flashing girth and the access on the quote, and hose-test the repair with you before we leave. Send us a photo of the junction on WhatsApp for a fixed quote, or start at our waterproofing services overview.
