Rooftop Terrace Waterproofing
in Malaysia (2026)

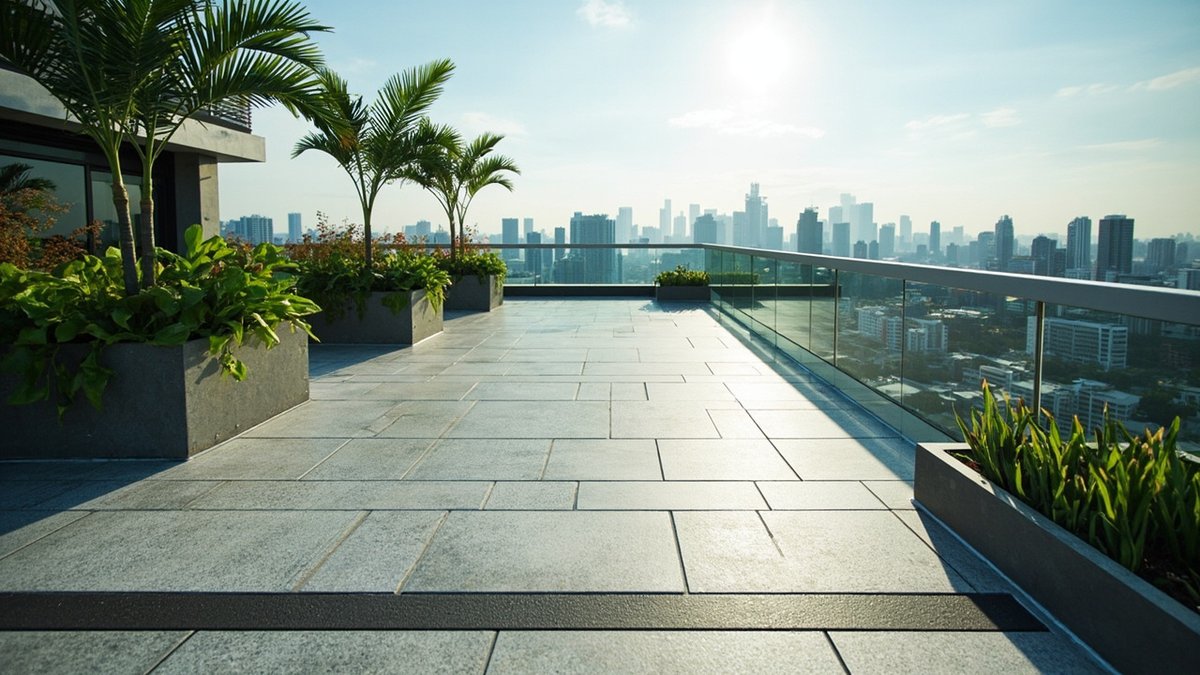

What makes a rooftop terrace different

A rooftop terrace, roof garden or condo sky terrace is structurally a flat roof — but functionally it is an outdoor room. Where a plain flat roof only has to shed rain and survive the sun, a terrace membrane also has to live under furniture legs, foot traffic, barbecue trolleys, planter boxes and whatever gets dragged across it at the next family gathering. That combination is why terraces leak more often than the bare flat roofs next to them, and why the fix is engineered differently. Our flat roof waterproofing guide covers the exposed-roof fundamentals, and the balcony waterproofing guide covers the small cantilevered cousin — this guide covers the full walk-on rooftop, where the stakes and the build-up are bigger.

Traffic, planters & furniture over a membrane

Waterproofing membranes are built to resist water, not point loads. A chair leg concentrates a person’s weight onto a few square centimetres; a dragged table scores the surface; a heavy planter sits on the same spot for years, holding moisture against the membrane around the clock and slowly breaking down coatings that rely on drying out between storms. Add UV exposure — Malaysian rooftop temperatures swing from 30°C-plus surface heat to sudden storm-cooling, flexing the membrane daily — and an exposed coating on a lived-on terrace can fail in a fraction of its rated life. The engineering answer is simple: do not live on the membrane. Put it under protection, and let a sacrificial layer take the traffic.

Protected membrane systems

A protected membrane system buries the waterproofing under the finishes so the membrane never meets a chair leg. The build-up runs in layers, each with one job.

Pedestal pavers deserve a mention for larger terraces: because each paver lifts out, the membrane stays inspectable and a future repair does not mean demolition. Tiled screeds look more finished; pedestal systems are more serviceable. Both beat an exposed coating under furniture.

Choosing the membrane

Under a protected build-up, three families of membrane do the work. Torch-applied and self-adhesive sheet systems — covered in our flexible waterproofing membrane guide — give factory-controlled thickness and are the traditional choice under screeds. Liquid-applied membranes cure into a seamless skin, which makes them the practical pick on terraces crowded with penetrations, upstands and odd corners. Flexible cementitious coatings bond well to concrete and take screed directly, suiting smaller terraces and budget-conscious jobs. On a lived-on rooftop the honest answer is that detailing beats product choice: a mid-range membrane with proper upturns, reinforced corners and protected laps will outlast a premium product installed carelessly.

Drainage falls, outlets & scuppers

Klang Valley storms can drop intense rain in under an hour, and a terrace with poor drainage turns into a shallow swimming pool sitting on your membrane. The screed must fall consistently at around 1:80–1:100 toward the rainwater outlets, with no back-falls trapping ponds against upstands. Every terrace needs at least two escape routes for water — primary outlets plus overflow scuppers through the parapet — so a single blocked drain during a storm cannot flood the terrace above door-threshold height. Outlets need leaf guards, and the door threshold from the house onto the terrace needs a proper kerb-and-flashing detail, because storm water finds sliding-door tracks with unerring accuracy. Ponding that lingers more than 48 hours after rain is the clearest sign the falls were never right.

Planter boxes & roof gardens

Planters are the terrace membrane’s most patient enemy: permanently damp soil, fertiliser chemistry, and roots that follow moisture into any seam or crack. The rule is isolation — never plant directly against the terrace membrane. Built-in planter boxes should be waterproofed as their own independent tubs, with a root-resistant liner, a drainage layer and their own outlet, so a planter failure stays a planter problem. Movable planters belong on feet or pedestals that keep the base off the floor, letting the finish dry beneath them. For full roof gardens with lawns and soil beds, a purpose-made root-barrier membrane and a drainage-cell layer under the soil are non-negotiable — repairing a membrane under two tonnes of landscaping is a project nobody enjoys pricing.

Condo sky terraces: who owns, who pays

In condos and stratified landed developments, the waterproofing question is legal before it is technical. Sky terraces and roof decks attached to penthouse or upper units are frequently common property with exclusive-use rights — meaning the management (JMB/MC) may own the structure and its waterproofing even though only you can use the space. Who pays for re-waterproofing then depends on the strata plan, the by-laws and how the leak arose, and any works usually need management approval before a contractor touches the roof. Before accepting a repair bill — or a neighbour’s claim that your terrace ruined their ceiling — check the strata plan and put the question to the management in writing. The ownership logic mirrors external walls, which we cover in our external wall seepage guide; document everything, because leak liability disputes are won on paper.

Re-waterproofing an existing terrace

Here is the expensive truth about protected systems: the protection that shields the membrane also buries it. Re-waterproofing a tiled terrace means lifting the tiles and screed — noisy, slow, and generating tonnes of debris that must come down through the building — before the new membrane can even start. That is why terrace re-waterproofing costs meaningfully more per square foot than recoating a bare flat roof, and why it pays to exhaust diagnosis first: sometimes the real culprit is a failed upstand, a door threshold or a blocked outlet that can be repaired locally. Where the membrane has broadly failed, a full lift-and-redo is the honest fix. A liquid overlay applied over existing tiles can serve as an interim measure for a budget-constrained year or two, but on a trafficked terrace an exposed overlay is living on borrowed time — treat it as a bridge, not a destination.

Rooftop terrace waterproofing cost in Malaysia (2026)

Ranges move with terrace size, access (crane or lift-and-carry), parapet and upstand lengths, and finish choice. For how terrace numbers compare with plain roofs, see our roof waterproofing cost guide.

Maintenance & early warnings

A protected terrace system should serve 10–15 years or more, but only if the drainage keeps working. Clear outlets and scupper guards quarterly and before monsoon peaks; keep planters off the floor and their drainage running; re-seal the door threshold and any movement joints when the sealant ages; and watch the two early-warning zones — the ceiling directly below the terrace, and the external wall line just under it. Hairline stains, bubbling paint below, or tiles that sound hollow and drummy underfoot are all signals worth a photo to a contractor long before they are worth a lawsuit from downstairs. An annual half-hour inspection is the cheapest waterproofing product on the market.
