Torch-on membrane waterproofing in Malaysia — why APP bitumen sheets dominate exposed flat roofs, the details that decide whether it lasts 15 years or fails in two, and a fixed quote from a Klang Valley specialist.

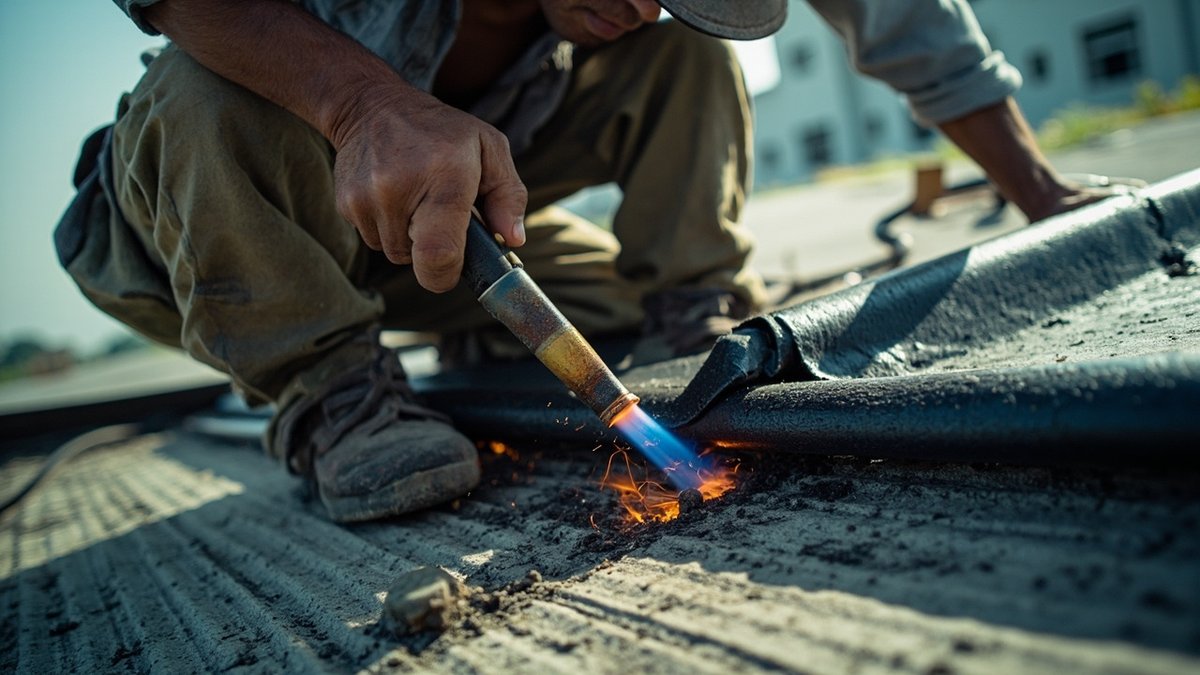

Torch-on membrane — also called torch-down, torched membrane or membran bakar — is a factory-made waterproofing sheet of bitumen modified with APP (atactic polypropylene) plastic, reinforced with a polyester or fibreglass core, and supplied in rolls typically one metre wide and 3mm or 4mm thick. On site, the underside of the roll is melted with an LPG torch as it is unrolled, fusing the sheet onto a primed concrete surface. Because the membrane itself is manufactured under factory control, its thickness and quality are consistent by default — the workmanship variables are the welding of the laps and the finishing of edges and penetrations. It is the workhorse of Malaysian flat-roof waterproofing, and when someone tells you a roof was “membraned”, this is almost always the system they mean.
Malaysia is one of the harshest environments a flat roof can face: equatorial UV all year round, over 2,500mm of annual rain arriving in violent bursts, and daily heat-and-cool cycles that work every joint in the slab. Torch-on suits this abuse. At 3–4mm it is several times thicker than most liquid coatings, it tolerates the light foot traffic of aircon technicians and tank services, it bridges hairline slab cracks, and its factory-controlled thickness removes the single biggest site variable in waterproofing. It is also economical at scale, and every experienced roofing crew in the Klang Valley knows how to install it, which keeps prices honest. That is why the exposed RC flat roofs on shoplots, terrace-house extensions, condo facilities decks and factories are overwhelmingly torch-on — see our flat roof waterproofing guide for the wider system picture.
Torch-on is priced per square foot, supply-and-apply, and the specification — thickness, finish and how much preparation the roof needs — moves the number. Use these benchmarks to sanity-check quotes (indicative 2026, Klang Valley); our roof waterproofing cost guide covers the full market context.
| Specification | Indicative price (per sq ft) | Notes |
|---|---|---|
| 3mm plain finish, single layer | RM8 – RM10 | Budget spec; should be protected by screed or a coating |
| 4mm plain finish, single layer | RM9 – RM12 | Common mid spec where a topping or coating follows |
| 4mm granule (mineral) finish | RM10 – RM15 | UV-armoured top surface for fully exposed roofs |
| Full RC flat roof system (prep, fillets, membrane, detailing) | RM8 – RM20 | Depends on crack repairs, upstand length and outlet count |
Small roofs carry a minimum job charge — mobilisation, gas and a two-man crew cost the same whether the roof is 200 or 2,000 sq ft — so a small balcony or awning slab can price above these per-foot rates. The per-square-foot logic across every system is unpacked in our cost per square foot guide.
A membrane is only as good as the system built around it. A proper torch-on job starts with surface preparation: clearing debris and ponding water, grinding off loose screed, and repairing cracks and honeycombing so the membrane lands on sound concrete. A bitumen primer follows, soaking into the slab so the melted bitumen has something to grip. Cement angle fillets are formed where the floor meets parapet walls, because no membrane can bend through a sharp 90-degree corner without stress. The rolls are then torch-welded down with side laps of 75–100mm and end laps of around 150mm, staggered so that four sheet corners never meet at one point. Finally the membrane is dressed up parapet walls at least 300mm as an upstand, terminated into a groove or under a flashing, and properly collared around every pipe and rainwater outlet.
Torch-on rolls come with two top surfaces, and the choice matters more than most owners realise. Granule (mineral) finish carries a factory-bonded layer of slate chips — typically grey or green — that shields the bitumen from UV, which is what ages an exposed membrane fastest. If the membrane will be the final, exposed surface of the roof, specify granule. Plain (sand) finish has no mineral armour and is the right choice when the membrane will be covered — under a protective screed, under floor tiles on a trafficked deck, or when a reflective acrylic roof coating will be applied over it for UV protection plus heat reduction. The wrong pairing is common and expensive: plain-finish membrane left permanently exposed to Malaysian sun will craze and crack years before a granule sheet would.
Field-area failures are rare — a 4mm factory sheet does not simply wear through in a decade. Torch-on fails at the details, which is exactly where installer skill lives.
| Detail | How it fails | What good work looks like |
|---|---|---|
| Laps (sheet joints) | Under-heated welds leave capillary paths between sheets | A clean bead of bitumen bleed-out visible along every lap edge |
| Upstands | Dressed too short, or the top edge peels off the parapet | Minimum 300mm rise, mechanically terminated and sealed |
| Pipes & rainwater outlets | Membrane cut roughly around pipes and smeared with mastic | Proper collars, membrane dressed into the outlet throat |
| Corners & wall-floor joints | Membrane bridges a sharp corner and cracks under movement | Cement angle fillets formed before the membrane goes down |
| Blisters | Torching over damp or unprimed concrete traps vapour | Dry, primed substrate; any blister cut out and patch-welded |
When a torched roof leaks within its first five years, the cause is almost always on this list — and the stain often appears indoors far from the failed detail, because water travels along the slab before it finds a way down. That is why chasing ceiling stains rarely works; our guide to roof leaks during heavy rain covers how the source is actually traced.
A properly installed torch-on system lasts 10–15 years exposed in the Malaysian climate — granule finish and disciplined detailing push you toward the upper end, bare plain finish toward the lower. It is not maintenance-free. Have the roof looked at yearly, keep outlets clear so water never ponds against laps and upstands, and repair early: a lifted lap or a small blister is a cheap torch-patch today and a saturated slab by the next monsoon. As the granules shed and the surface dulls with age, a reflective acrylic overcoat can buy several more years before replacement. At true end of life the decision is stripping and re-torching versus overlaying a new layer — and the right answer depends on how much water the old system has trapped underneath.
Torch-on’s open flame is its one real limitation. Hot works are the wrong answer — or outright prohibited — in several situations: occupied buildings, where a stray flame near roofing felt, timber or building services is an unacceptable fire risk; timber and plywood decks, which must never meet a torch; metal roofs, which need coating-based systems instead (see our metal roof leak repair guide); roofs congested with gas piping, tanks or M&E plant; and strata or mall properties whose management bans hot works or requires a hot-work permit and fire watch. In those cases the alternatives are self-adhesive bitumen membranes — the same sheet logic without the flame — or a seamless liquid system. Our sheet vs liquid membrane comparison walks through that decision properly.
The realistic alternative on an RC flat roof is a liquid-applied polyurethane membrane at RM10–RM18 per sq ft. The trade is simple: torch-on gives you factory-guaranteed thickness with site-made joints, while liquid PU gives you a seamless skin with site-made thickness. On a big, open, simple roof, torch-on’s speed, toughness and price usually win. On a congested roof — pipes, plant, aircon stands, awkward shapes — every obstruction is a detailing risk for sheet work, and a liquid membrane simply flows around the obstacles as one joint-free layer. Occupied buildings and flame-restricted sites also tilt the choice toward liquid. Plenty of good roofs use both: torch-on across the open field, liquid detailing at the congested corners.
Get the specification in writing: membrane brand and thickness (3mm vs 4mm matters), finish, primer, lap widths, upstand height and how the outlets will be detailed. A quote that just says “supply and apply membrane” leaves every one of those decisions to the installer’s mood on the day. Ask how the substrate will be prepared, confirm hot-work precautions (a fire extinguisher on the roof is the bare minimum), and insist on a written workmanship warranty for a full roof. Verify CIDB and SSM registration before paying a deposit — our guide to choosing a waterproofing contractor covers the red flags in depth.
ClickBina supplies and installs torch-on membrane systems across the Klang Valley — full surface preparation, primer, angle fillets, 4mm membrane welded and detailed properly at every lap, upstand and outlet — with an itemised fixed quote, a written workmanship warranty and WhatsApp replies within the hour. And if torch-on is the wrong system for your roof, we will tell you so and quote the right one instead. Send us photos of the roof and its approximate size for a same-day ballpark.
