Rising damp in older Malaysian houses — the tide-mark signs, ruling out misdiagnosis, the injection-cream DPC retrofit and an honest treatment quote from a Klang Valley contractor.
Rising damp is ground moisture climbing up through a wall the way tea climbs a biscuit. Brick, mortar and plaster are full of fine pores, and when the base of a wall sits in contact with damp ground, capillary action draws water upward through those pores — no leak, no rain, just physics working around the clock. The water carries dissolved ground salts with it, and as it evaporates from the wall surface it leaves those salts behind, concentrating them in a band where the rise runs out of energy — typically 0.5–1.2 m above the floor. That salt band is what makes rising damp uniquely stubborn: the salts are hygroscopic, meaning they pull moisture out of humid Malaysian air on their own, so the wall stays damp even after the ground supply is cut. That is why a real rising-damp job has two halves — a new damp barrier, and dealing with the salt-poisoned plaster.

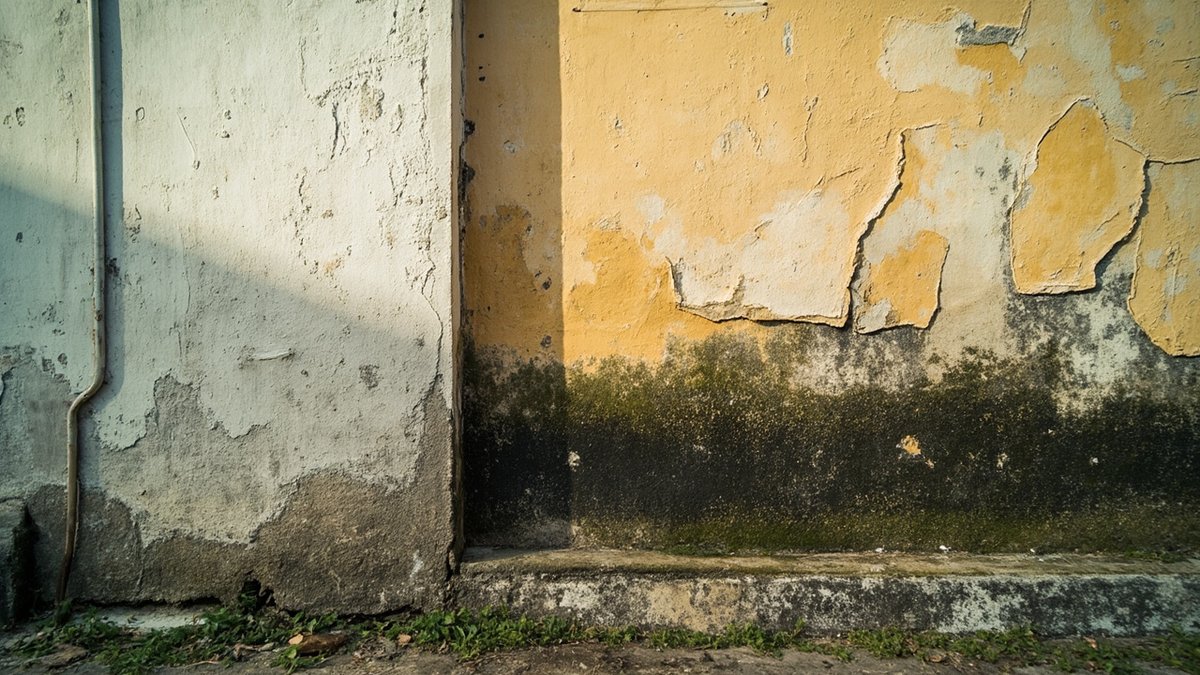

The signature is the tide mark: a horizontal stain line running along the lower wall at a fairly even height, usually between knee and chest level, with damp, darkened plaster below it and a sound wall above. Around and below the line you will typically find peeling or bubbling paint, plaster that sounds hollow when tapped or crumbles at the skirting, rotting or lifting skirting boards, a musty smell at floor level, and fluffy white salt crystals blooming on the surface — the efflorescence our white powder on walls guide covers in detail. Two features distinguish it from everything else: the damp band is continuous along the wall rather than patchy, and it always starts at the floor and fades with height. Damp that starts a metre up with a dry skirting is not rising damp, whatever a salesman says.
Modern construction blocks rising damp with a damp-proof course (DPC) — an impermeable layer, usually a plastic membrane, built into the wall base just above ground level so ground moisture physically cannot climb past it. Older Malaysian landed houses are a different story: many pre-1990s terraces, kampung-era brick houses and early link houses were built with no effective DPC at all, with a thin bitumen layer that has embrittled and cracked over the decades, or with a DPC bridged by later works — a raised porch slab, added render, or garden beds piled against the wall, any of which give moisture a detour around the barrier. Renovations that raise external ground or floor levels above the original DPC line are a classic Malaysian trigger: the wall was fine for forty years, then a new driveway or planter box quietly bridged the barrier and the tide mark appeared two wet seasons later.
Here is the uncomfortable industry truth: much of what gets sold as “rising damp” is something cheaper wearing its costume. Injecting a DPC into a wall whose real problem is a leaking pipe fixes nothing and costs plenty, so rule out the imposters before any drilling starts.
| Condition | How it presents | How it differs from rising damp |
|---|---|---|
| Rising damp | Continuous tide mark 0.5–1.2 m, salts, damp skirting | — (the real thing) |
| Rain splash-back | Damp low on exterior face near paving | Outside face only, below ~0.3 m, dries after rain stops |
| Concealed pipe leak | One persistent patch, any height | Localised, not a continuous band; ignores weather |
| Exterior wall seepage | Patches on rain-facing walls after storms | Any height, follows weather, not tied to the floor line |
| Condensation | Thin mould film, corners & cold surfaces | Surface moisture, no tide mark, no salt band |
A persistent low patch near a bathroom wall deserves a pressure test before a DPC quote — our concealed pipe leak detection guide explains how hidden pipe weeps are traced without hacking. Rain-driven patches higher up the wall belong to our external wall seepage guide instead.
Confirmation is a pattern of evidence, not a single beep of a moisture meter. A proper survey checks that the damp band is continuous and floor-anchored on the affected walls, takes moisture-meter profile readings up the wall — rising damp reads wettest at the skirting and drier with every step up, while a leak reads wettest at its point of origin — looks for the salt band and hygroscopic staining, checks both faces of the wall where accessible, and eliminates plumbing by testing with the water supply isolated. Ground levels outside get inspected too, because a bridged DPC changes the fix entirely: if a planter box or raised paving is feeding the wall, lowering the ground level can be most of the cure. Insist on seeing this reasoning in any diagnosis; “the meter beeped at the skirting” is not a survey, and a meter cannot tell capillary moisture from salt contamination.
Since the original DPC cannot be rebuilt without dismantling the wall, the modern retrofit installs a chemical one in place. The crew drills a line of holes into a mortar course low on the wall — typically 12 mm holes at 100–120 mm spacing — and injects a silicone-based DPC cream along the full length. Over the following days the cream diffuses through the damp masonry and cures into a water-repellent barrier within the wall itself, closing the capillary paths the moisture has been climbing. Market pricing runs RM80–RM150 per metre of wall treated (indicative 2026, Klang Valley), the work is low-mess — a line of filled drill holes is the only trace — and a typical terrace-house wall is injected in a day. Cream systems have largely replaced old pressure-injection fluids because they spread reliably in saturated walls and do not need pumping equipment. The barrier stops new moisture rising; it does not dry the wall by itself, which is where the next two sections come in.
Skipping this step is the classic false economy. The old plaster on a rising-damp wall is contaminated with years of accumulated ground salts, and those salts keep drinking moisture from humid air forever — so even with a perfect new DPC below, salt-laden plaster stays damp and the stains return through fresh paint. The proper finish is to hack off the contaminated plaster to about a metre high — roughly 300 mm past the visible damp — and replaster with a salt-resistant render system: a sand-cement base mixed with a salt inhibitor or waterproofing additive that locks residual salts in the wall, finished smooth once cured. On thick or double-brick walls, budget patience as well as money; the replastered zone should only be sealed and painted after the wall has genuinely dried. Done together, injection plus salt-resistant replastering is what turns a rising-damp treatment from a recurring subscription into a one-time repair.
Here is the part of the sales pitch that usually goes missing: after the DPC goes in, the wall dries at its own pace, and that pace is slow. A masonry wall releases stored moisture at very roughly a month per 25 mm of thickness — so a 115 mm single-brick wall needs several months, and a 230 mm double-brick party wall can take the better part of a year to reach equilibrium. Nothing useful accelerates this much; fans and ventilation help at the margins, but the physics is the physics. Practical implications: leave the wall breathable while it dries (bare render or a porous primer, not gloss or vinyl coatings that trap moisture), schedule the final decoration months after the injection rather than days, and treat any contractor promising a bone-dry wall in a fortnight with suspicion. A written scope that sequences injection, replastering, drying period and final repaint is the mark of a contractor who has done this before.
Pricing is transparent once the job is broken into its parts. Indicative 2026 Klang Valley ranges:
| Item | Indicative cost | Notes |
|---|---|---|
| DPC injection cream | RM80 – RM150 / metre of wall | Drill, inject & make good the holes |
| Hack & salt-resistant replaster | Per-wall pricing; scales with length & height | To ~1 m high, both faces where needed |
| Treatment & repaint, per wall | RM800 – RM3,000 | Injection + replaster + sealer + repaint, typical wall |
| Repaint only, after drying | See painting guide | Final decoration months later, once dry |
A typical single affected wall in a Klang Valley terrace — say 4–6 metres of injection plus replastering and repainting — lands comfortably inside the RM800–RM3,000 band; multiple walls scale roughly per metre. For the decoration stage, our painting cost guide covers repaint pricing, and if the survey finds the problem is actually facade seepage, the money belongs in the wall waterproofing scope instead.
Three popular “solutions” reliably backfire. Waterproof or gloss paint over the damp zone traps the moisture in the wall and drives it higher — the tide mark simply climbs above the new paint and the film blisters off, a failure mode our bubbling & peeling paint guide shows in detail. Tiling over the damp band does the same behind tiles, where the damage stays invisible until the adhesive lets go. And dense cement render applied without a DPC just pushes the evaporation zone — and the salt band — further up the wall. The pattern behind all three: sealing the surface without stopping the source relocates the problem instead of solving it. If mould has taken hold on the damp zone in the meantime, treat it as part of the proper sequence in our damp & mould treatment guide rather than as a separate cosmetic job.
ClickBina treats rising damp in Klang Valley landed homes with a diagnosis-first approach: we rule out pipe leaks, splash-back and seepage before recommending a DPC, then quote the injection, salt-resistant replastering and repaint as an itemised package with an honest drying timeline — and we will tell you plainly if your “rising damp” is actually a RM300 plumbing repair. WhatsApp photos of the wall, tell us the house’s age, and we will give you a same-day read on whether it looks like the real thing.
