Sheet vs liquid waterproofing membrane in Malaysia — torch-on and self-adhesive against PU, acrylic and cementitious across cost, lifespan, seams, repair and downtime, with clear scenario picks.

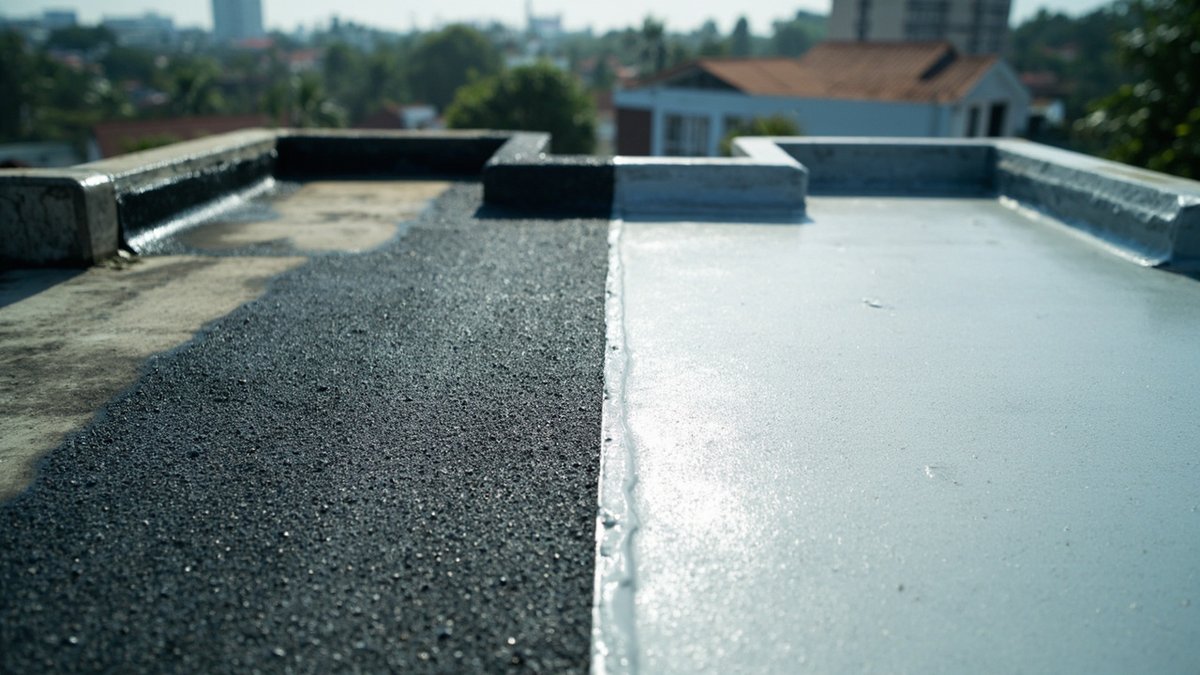

Every waterproofing membrane on the Malaysian market belongs to one of two families. Sheet membranes arrive as factory-made rolls — torch-on bitumen welded down with a flame, or self-adhesive sheets peeled and stuck — giving you guaranteed thickness with site-made joints. Liquid membranes arrive in pails — polyurethane, acrylic or cementitious — and are rolled or sprayed into a seamless skin, giving you no joints but site-made thickness. That single trade — factory thickness with joints, versus seamless with applicator-controlled thickness — drives almost every practical difference between them. Both families sit inside a bigger system of preparation, primers, fillets and detailing covered in our flat roof waterproofing guide, and both are on the menu in our waterproofing services overview.
The dominant sheet system in Malaysia is torch-on membrane: APP-modified bitumen rolls, 3–4mm thick, heat-welded to a primed slab. It is thick, tough, tolerant of foot traffic and proven over decades of Klang Valley monsoons — the default for exposed RC flat roofs. Its close cousin is the self-adhesive bitumen sheet, which trades the flame for a peel-and-stick backing: safer on occupied buildings and flame-banned sites, though its bond strength and lap security depend even more on clean, primed, dry surfaces. Both descend from the same bituminous waterproofing tradition, and both share one anatomy: a strong factory-made field with hand-made joints at every lap, upstand, pipe and outlet — which is precisely where sheet systems fail when they fail.
The liquid family spans three main chemistries. Polyurethane — the premium exposed-roof option covered in our liquid membrane guide — cures into an elastic, fully bonded skin that shrugs off slab movement. Acrylic is the budget member: a reflective, UV-stable coating that refreshes an aging but sound roof and cools the rooms below, with honest limits under ponding water — see the acrylic roof coating guide. Cementitious systems — rigid or flexible — are the wet-area workhorses under bathroom and balcony tiles rather than exposed-roof finishes; our cementitious waterproofing guide covers them. All three share the family traits: seamless, shape-agnostic coverage, no flame, and total dependence on surface preparation and applied thickness.
Here is the comparison across everything that actually matters on site (indicative 2026, Klang Valley).
| Criterion | Sheet (torch-on / self-adhesive) | Liquid (PU / acrylic / cementitious) |
|---|---|---|
| Cost per sq ft | RM8 – RM15 | RM4 – RM10 (acrylic) / RM10 – RM18 (PU) |
| Lifespan | 10 – 15 years | 5 – 8 (acrylic) / 10 – 12 years (PU) |
| Thickness control | Factory-guaranteed 3–4mm | Applicator-controlled, 1–2mm — needs discipline |
| Seams | Laps every metre — the classic failure point | None — one monolithic layer |
| Complex shapes & pipes | Every penetration is a hand-made detail | Flows around obstacles easily |
| Repairability | Torch-patching needs skill and a flame | Clean, recoat, done |
| Foot traffic | Robust, takes maintenance traffic well | Needs a topcoat or screed if trafficked |
| Fire / site rules | Torch-on needs hot-work clearance | No flame; low-odour options for occupied sites |
| Weather during install | Tolerant once welded | Uncured coats vulnerable to rain |
| Best home | Big, open, simple exposed roofs | Congested roofs, wet areas, occupied buildings |
On a like-for-like exposed roof, the families overlap: torch-on at RM8–RM15 per sq ft against liquid PU at RM10–RM18, with a full RC flat roof system landing anywhere in RM8–RM20 once preparation and detailing are counted (indicative 2026, Klang Valley). Acrylic’s RM4–RM10 looks like the bargain, but it is a shorter-cycle coating for sound roofs, not an equivalent membrane — comparing it against 4mm torch-on is comparing a service to a rebuild. The real cost difference shows up at the edges: sheet pricing climbs on fiddly, congested roofs where detailing hours explode, while liquid pricing climbs on large open fields where sheet crews simply out-pace rollers. Benchmarks for every system sit in our waterproofing cost guide and roof waterproofing cost guide.
Ask any leak-repair crew where old sheet roofs fail and the answer is the same: at the joints. Laps are welded or stuck by a human on a hot roof, and one under-heated metre out of a hundred is enough. Worse, many sheet systems are only partially bonded to the slab, so water entering one failed lap can travel sideways underneath the membrane and surface indoors far from the breach — which is why tracing a sheet-roof leak can take longer than fixing it. A fully bonded liquid membrane has no laps at all and cannot channel water laterally, so defects are rarer to create and far easier to find. The counterweight: a seamless skin is only as thick as the applicator made it, and a thin seamless membrane is worse than a well-welded thick one.
A useful site rule: count the penetrations. Every soil stack, aircon stand, tank leg, conduit and outlet is a hand-cut, hand-sealed detail for a sheet crew — and each one carries a small failure probability that multiplies across the roof. On an open slab with four outlets, sheet detailing is trivial. On a congested rooftop with plant, piping and twenty penetrations, the arithmetic flips decisively toward liquid, which treats a pipe collar as just more area to coat. Upstands and parapets tell the same story: dressing and terminating sheet up a wall is skilled work, while liquid simply continues up the surface. This is why hybrid jobs are common and sensible — sheet across the open field, liquid at the congested zones and details.
Over a 15-year life, every roof gets damaged — a dropped tool, a new pipe bracket, a cracked upstand. Repairing torch-on means a crew with a torch, matching membrane and the skill to weld a patch that does not itself become the next leak; competent, but not casual. Repairing a liquid system is closer to maintenance painting: clean the area, abrade, recoat — and the recoat cycle doubles as life extension, renewing the whole surface at year 7–10 for a fraction of replacement cost. Inspection differs too: defects hide under granule surfaces on sheet roofs, while blisters and wear telegraph visibly on a smooth liquid finish. If ongoing upkeep will be informal, liquid’s forgiving repair story is worth real money.
Torch-on is fast to install and walkable almost immediately — but it brings an open flame, so occupied buildings, timber structures, and strata or mall properties with hot-work bans push it off the table; a hot-work permit and fire watch are the minimum anywhere sensitive. Self-adhesive sheet is the flame-free compromise within the sheet family. Liquid systems need no flame and suit occupied sites, but they trade speed for cure time: each coat must dry within its window, an afternoon storm can destroy an uncured coat, and trafficked areas stay off-limits until full cure. On a tight programme with a stable forecast, sheet wins the calendar; in an occupied condo with a strict management office, liquid usually wins the approval.
Match the system to the situation, not the salesman’s stock (indicative 2026, Klang Valley).
| Scenario | Recommended system | Why |
|---|---|---|
| Big, open, exposed RC flat roof | Torch-on, granule finish | Factory thickness, speed and toughness at RM8–RM15/sq ft |
| Congested roof — pipes, plant, odd shapes | Liquid PU | Seamless coverage deletes dozens of hand-made details |
| Occupied building / hot works banned | Liquid PU or self-adhesive sheet | No flame; low disruption below |
| Bathrooms, balconies & wet areas under tiles | Flexible cementitious | Bonds to concrete, takes screed and tiles directly |
| Aging but sound roof, tight budget | Acrylic coating | RM4–RM10/sq ft refresh plus reflective cooling |
| Active leak through the slab, no access above | PU injection | Seals the water path from below — a repair, not a membrane |
The last row matters: injection and membranes solve different problems, and the difference is explained in our injection vs membrane guide. For crack-prone structures needing extra movement capacity, see the flexible membrane guide.
