Stains hugging the ceiling edge of a top-floor room — how parapets leak, why it mimics a roof leak, and the coping, turn-up and coating repairs that fix it.
A parapet is the low wall that continues above the roof line around the edge of a flat roof — on landed homes with concrete flat roofs, shoplots, and the roof decks above top-floor condo and townhouse units. It exists for safety, for architecture and to hide roof services, but structurally it is the most weather-beaten masonry on the building: unlike a normal wall protected on one side by the house, a parapet is exposed on three surfaces — the outside face, the inside face and the flat top — and it bakes, soaks and cools through every Malaysian day. That exposure is why parapets crack, and why the room directly below the roof edge is so often the first to stain. If you own a top-floor unit or a flat-roofed house in the Klang Valley, the parapet deserves as much attention as the roof itself.
Water gets into a parapet through a handful of well-known paths, and most leaking parapets have more than one open at once.
| Leak path | Why it happens | Fix |
|---|---|---|
| Cracked coping (the top cap) | The flat top takes full sun and rain; cracks and open joints let water straight into the wall core | Repair, re-slope and seal — or fit a metal capping |
| Wall–roof junction | The roof membrane stops short of the wall or its turn-up has debonded | Re-do the membrane turn-up and corner detailing |
| Failed flashing or capping | Metal flashing rusts or lifts; old sealant beads perish in UV | Replace flashing and re-seal terminations |
| Cracked render on the faces | Thermal movement opens hairline cracks that wick wind-driven rain | Rake out, patch and elastomeric-coat the faces |
| Fixings through the parapet | Awning, antenna and clothesline bolts breach the coping and render | Remove or re-seal every penetration properly |
Once inside, water travels down the wall core by gravity and emerges where the parapet meets the ceiling slab — which is why the evidence appears indoors at the roof edge rather than outside where the water actually entered.

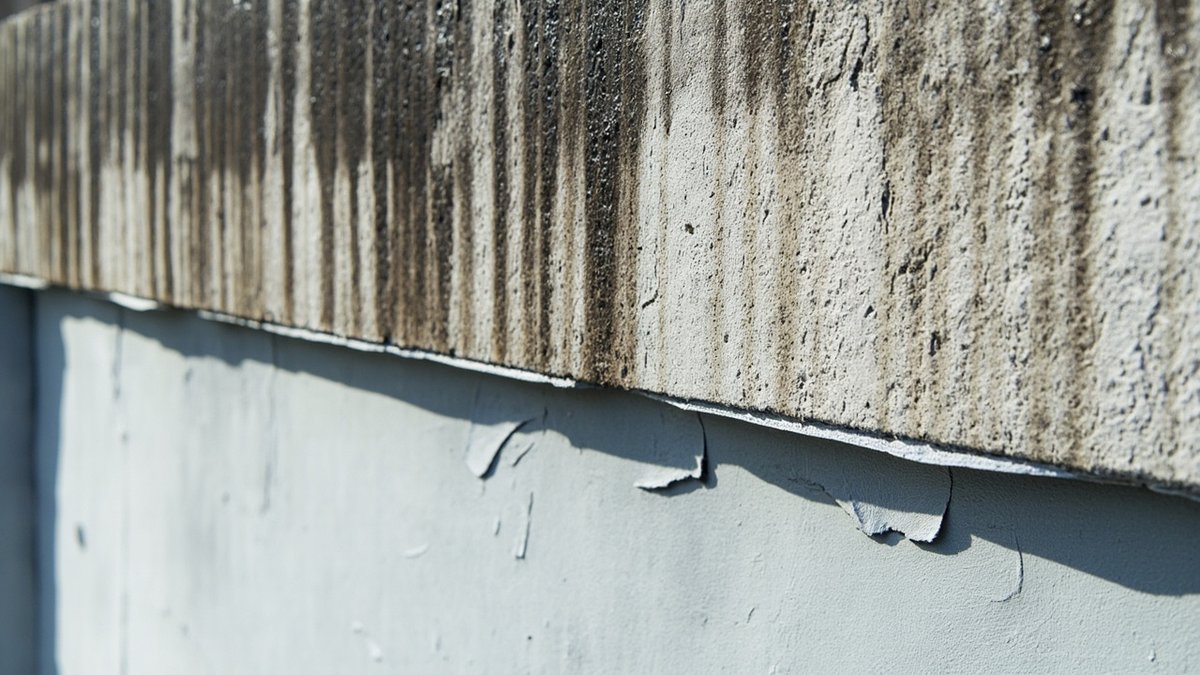

Parapet leaks have a signature: stains, damp patches and peeling paint that hug the ceiling line along the edges of top-floor rooms, tracking the perimeter rather than blooming mid-ceiling. You may also see a damp band across the top of the wall just below the ceiling, hairline crack maps on the external face, and white salt deposits — efflorescence, covered in our white powder on walls guide — along the same edge line. Timing is a clue too: parapet leaks tend to appear after prolonged or wind-driven rain rather than instantly in every shower, because the water has to soak through the wall core before it shows. If the stain follows the room’s perimeter, think parapet before roof.
This is the most common misdiagnosis in flat-roof leak repair, and it wastes real money: the owner calls a roofer, the roof field gets re-coated, and the stain comes back with the next monsoon because the water was never entering through the roof at all. A few clues separate the two.
| Clue | Points to the parapet | Points to the roof |
|---|---|---|
| Stain location | Hugs the ceiling edges and corners | Random patches mid-ceiling |
| Timing | After long or wind-driven rain | During almost any rain |
| Roof inspection | Membrane field looks sound | Ponding, blisters or cracks in the field |
| Outside evidence | Cracked coping, stained parapet faces | Damaged membrane, blocked outlets |
A hose test settles it: wetting the parapet alone (roof kept dry) and waiting reproduces a parapet leak. Both systems are covered in our flat roof waterproofing guide, and any competent inspection should examine roof and parapet as one assembly — they share the junction, and they fail together.
Most parapet repairs are modest jobs by waterproofing standards. The ranges below are a planning guide (indicative 2026, Klang Valley).
| Work item | Indicative price | Notes |
|---|---|---|
| Coping crack repair & re-sealing | RM500 – RM1,000 | Rake out, patch, re-slope and seal the top cap |
| Membrane turn-up & junction re-detailing | RM800 – RM1,500 | Per typical roof edge run; includes corner details |
| Elastomeric coating to parapet faces | RM4 – RM8 / sq ft | Both faces plus the coping underside |
| Metal capping supply & install | RM60 – RM120 / metre | The most durable answer for a cracking coping |
| Full parapet leak package | RM500 – RM2,500 | Typical all-in range for a landed home or top-floor unit |
Where the roof membrane itself is also at end-of-life, budget for the roof and parapet together — our waterproofing cost guide covers the full-roof numbers so you can see both scopes side by side.
The coping — the cap along the top of the parapet — is the first line of defence, and the flat top is where most parapets fail first. A proper repair rakes out every crack and open joint, patches with polymer-modified mortar, re-forms the top with a slight slope so rain sheds instead of sitting, and seals joints with a UV-stable PU sealant rather than cheap silicone that chalks within a year or two. Where the coping is extensively cracked, a folded metal capping over the top is the durable answer: it sheds water completely, moves with the heat, and ends the annual crack-chasing cycle. Drip grooves under the capping edges keep runoff off the faces below, which also keeps the facade cleaner.
Where the flat roof meets the parapet, the roof membrane must not simply stop at the wall — it has to turn up the parapet face by at least 150 mm, ideally 300 mm, and terminate properly into a groove or under a flashing so water cannot get behind it. This turn-up is the most failure-prone detail on any flat roof: thermal movement peels it, poor workmanship leaves corners unbonded, and once it opens, every storm feeds the wall core directly. The repair re-dresses the junction with liquid-applied membrane or torch-on strips, reinforces the corners, and re-seals the termination. It is detail work, not area work — which is why it is priced by the run and why cut-price roof re-coats that ignore the turn-up so often change nothing. The same junction logic applies on rooftop terraces, where planter boxes built against the parapet double the risk — see our planter box guide for that combination.
Once the coping and turn-up are sound, an elastomeric coating over both parapet faces closes the remaining path: the hairline render cracks that wick wind-driven rain. Elastomeric coatings are high-build, flexible paints that stretch across cracks as the wall moves through its daily heat cycle, and they stay waterproof where ordinary emulsion simply shrinks and splits. At RM4–RM8 per sq ft they are an economical finish for the whole parapet band, and the same system protects exposed gable ends and feature walls — our wall waterproofing guide covers the wider family. Choose a light colour: it reflects heat, which reduces the very thermal movement that cracks the render in the first place.
Parapets reward ten minutes of attention twice a year. Before and after the year-end monsoon, walk the roof and check the coping for new cracks or open joints, press-test old sealant beads, confirm the flashing is tight, and clear roof outlets so storm water never ponds against the parapet base — standing water at the junction is how a small turn-up defect becomes a soaked wall. Watch what gets bolted to the parapet, too: every awning bracket, aerial and clothesline anchor is a potential leak path unless it is sealed properly. Persistent damp on external faces below the parapet often reads as general wall seepage — our external wall seepage guide explains how the two connect. Re-coat the elastomeric finish every five to seven years and the parapet becomes a non-event.
Choose a contractor who inspects the roof and parapet as one system and can show you the actual entry point, not one who quotes a roof re-coat over the phone. A proper diagnosis includes walking the coping, checking the turn-up, and where the answer is unclear, a staged hose test to reproduce the leak before any repair is priced. Expect an itemised quote separating coping work, junction detailing and coatings, plus a written warranty of three to five years. Our waterproofing contractor guide lists the credentials and red flags that apply across every leak repair trade.
