Wall waterproofing in Malaysia — damp patches, bubbling paint and efflorescence diagnosed and fixed from the correct side, with honest 2026 prices from a Klang Valley contractor.
A damp wall announces itself in a few recognisable ways, and each symptom points to a different cause. Reading the wall correctly is the first step — treating the wrong cause is how Malaysians end up repainting the same wall every year.
| Symptom | What it usually means |
|---|---|
| Damp patch that darkens during or after rain | Rain-driven seepage through the external wall or a crack above |
| Paint bubbling, blistering or flaking | Moisture pushing through from behind the paint film |
| Efflorescence (white powdery salt deposits) | Water migrating through the masonry, dissolving and carrying salts |
| Black mould spots in corners and behind furniture | Condensation or persistent damp with poor airflow |
| Damp band low on a ground-floor wall | Rising damp or an external ground level bridging the wall |
| Constant damp on a wall backing a bathroom | Failed bathroom waterproofing or a concealed pipe leak |
Take photos over a week of mixed weather. A patch that responds to rain is an outside problem; one that ignores the weather is an inside one. That single observation changes the entire scope and price of the fix.
In the Klang Valley the overwhelming cause is rain-driven seepage: our storms hit external walls almost horizontally, and hairline cracks in aging render, porous brickwork, cracked parapets and failed joint sealants let water track inward until it surfaces as a damp patch inside. The other regulars are a leaking concealed pipe inside the wall, a failed wet-area membrane on the other side, gutter or roof overflows sheeting down one wall, and — less commonly in Malaysia than the paint tins suggest — true rising damp from the ground. Each cause has a different correct fix, which is why a proper contractor diagnoses with a moisture meter and a hose test before quoting, rather than proposing the same coating for every wall.
The golden rule of wall waterproofing: stop water on the side it enters. Rain seepage through an external wall must be sealed from the outside — coating the inside face just traps water within the masonry, where it builds up, migrates and pops the paint somewhere else. Interior-source problems (pipes, bathrooms, condensation) are fixed at the source, not by coating the visible damp. For the specific case of rainwater tracking through an external wall — the most common damp complaint in Malaysian terrace houses and condos — our dedicated external wall water seepage guide covers diagnosis, hose testing and repair sequence in detail.
Paint is a decoration, not a waterproofing system. When you paint over a damp patch, moisture vapour keeps arriving from behind, pressure builds under the new film, and within months it blisters, bubbles and peels — usually taking the filler with it. Dissolved salts crystallise as they dry, pushing off even “waterproof” paints from the inside. The correct sequence is fix the source, let the wall dry (which can take weeks for saturated masonry), neutralise or brush off salts, then repaint with an appropriate sealer and topcoat. Any quote that starts with paint and skips the source is a quote for doing the job twice. Skim coats and gypsum boards over damp walls fail the same way, just more expensively.

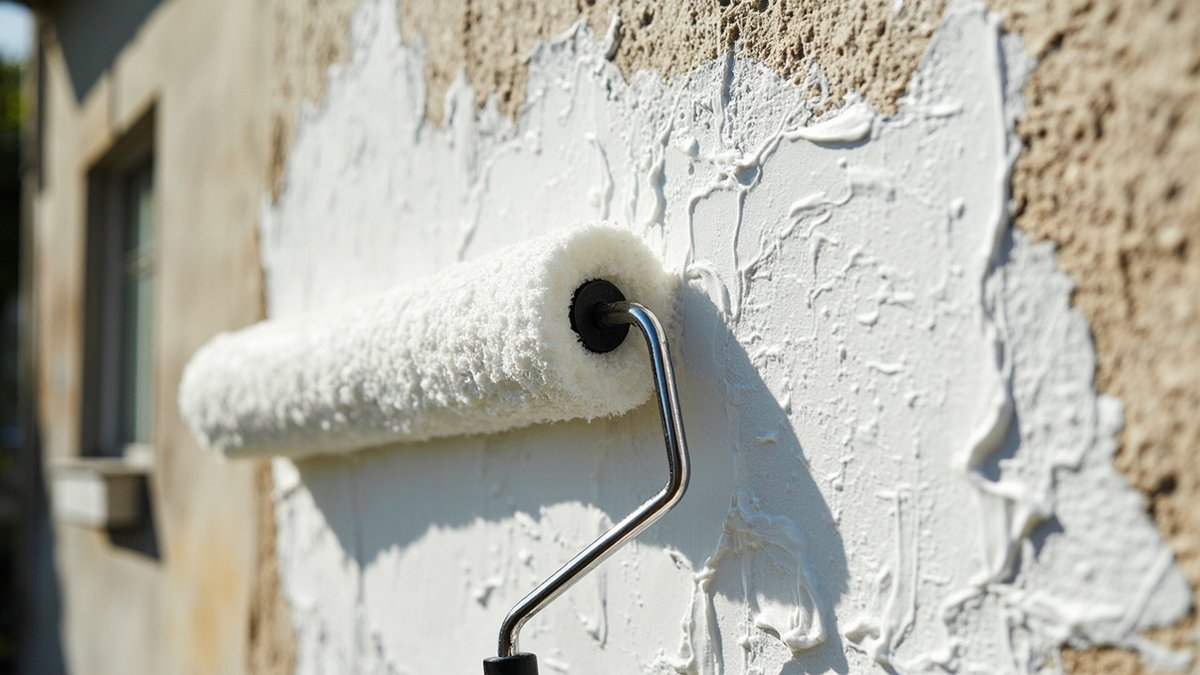

For rain-facing walls, gable ends and parapets, the workhorse is an elastomeric acrylic coating: a flexible, UV-stable paint-on membrane that bridges hairline cracks and moves with the wall through Malaysia’s daily heat cycles. The proper job sequence is to rake out and seal visible cracks with a flexible sealant, make good spalled render, then apply two full coats of elastomeric coating over a primed, cleaned surface. On landed homes the wall itself is straightforward; on high walls and condo facades, access — scaffolding, boom lift or rope access — often costs as much as the coating, which is why external repairs in strata buildings are usually a management-office matter. Coverage, coat count and crack preparation are what separate a five-year fix from a one-year one.
Legitimate interior-side fixes exist — they are just cause-specific. A leaking concealed pipe is traced and repaired, then the wall is dried and made good. A damp wall backing a wet area is fixed by re-waterproofing the wet area itself — see our bathroom waterproofing guide for that side of the wall. Basement, lift-pit and earth-retaining walls can be treated from the negative side with cementitious crystalline slurries designed for that duty. Condensation mould responds to ventilation and airflow, not coatings. What does not work is the generic “waterproof paint” applied over an active leak — that is redecorating, not repairing.
| System | Indicative price (2026, Klang Valley) | Where it belongs |
|---|---|---|
| Elastomeric acrylic coating (exterior) | RM6 – RM12 / sq ft supply & apply | Rain-facing walls, gable ends, parapets; bridges hairline cracks |
| Cementitious slurry / crystalline (interior negative side) | RM6 – RM10 / sq ft supply & apply | Retaining walls, basements, lift pits |
| Flexible PU / hybrid membrane | RM10 – RM18 / sq ft supply & apply | Wet-area walls and junctions before tiling |
| Crack raking & flexible sealant repair | Priced per job with coating works | Always precedes coating; sealing cracks alone is a short-term fix |
Access adds real money on anything above a ladder’s reach — budget for scaffolding or rope access on double-storey gable ends and above. Per-square-foot logic across all waterproofing trades is unpacked in our waterproofing cost per square foot guide.
A permanently damp bedroom or hallway wall that backs onto a bathroom is almost never a “wall problem” — it is a bathroom problem wearing the wall as a symptom. Failed upstands at the wall-to-floor junction, cracked grout in the shower zone or a leaking concealed pipe let water into the shared wall, and it surfaces on the dry side as bubbling paint and efflorescence. Coating the bedroom side traps the moisture and moves the damage. The fix is on the wet side: re-seal, regrout or re-waterproof the bathroom. Budget numbers for that work are in our bathroom waterproofing cost guide — and if the drip has already reached the ceiling below, PU injection (ClickBina: RM650 flat per bathroom ceiling) stops it without hacking.
Because walls vary so much in area and access, quotes are built from the per-square-foot system price plus preparation and access. As planning arithmetic (indicative 2026, Klang Valley): a 150 sq ft bedroom wall treated internally after a source repair might run RM900–RM2,700 in coating terms; a terrace-house gable end of 300–500 sq ft with crack repair and two elastomeric coats commonly lands around RM2,000–RM6,000 depending on condition and access; scaffolding for high walls is extra. Diagnosis, crack preparation and coat count are where cheap quotes quietly cut corners. For how wall works price against roofs, bathrooms and balconies, see the master waterproofing cost guide.
A wall specialist should diagnose before pricing: moisture-meter readings, a look at the opposite side of the wall, a hose test if rain seepage is suspected, and a written statement of the cause. The quote should name the coating system, the number of coats and the crack-repair scope, and carry a workmanship warranty. Walk away from anyone proposing interior “waterproof paint” over an undiagnosed damp patch. Our waterproofing services guide maps which trade handles which problem, so you brief the right specialist the first time.
ClickBina diagnoses before quoting and prices flat and in writing — no expandable line items once the crew arrives. If your damp wall is really a bathroom leak, we will say so and quote the actual fix (PU injection at RM650 flat per bathroom ceiling with a 6-Month No-Leak Warranty, or a scoped re-waterproof); if it is rain seepage, we quote the crack repair and elastomeric system with coat counts stated. We cover the whole Klang Valley and reply on WhatsApp within the hour — send photos of the wall, inside and out, for an honest first read.
