Balcony waterproofing in Malaysia — tile-on-tile traps, upstands, drainage falls, planter boxes and the condo who-pays question, with honest 2026 Klang Valley prices.
A balcony is the hardest-working waterproofed surface in a Malaysian home: fully exposed to monsoon downpours and direct sun, cycling through expansion and contraction every single day, with a large number of joints and penetrations packed into a small slab. The leak shows up either on the balcony ceiling of the unit below, or — sneakier — as a damp wall or floor edge inside your own living room or bedroom where water tracks under the door threshold. The failure points are remarkably consistent.
| Failure point | What goes wrong |
|---|---|
| Tile joints & cracked grout | UV and thermal cycling crack joints faster than indoors; water saturates the screed |
| Wall & parapet upstands | Membrane stops at floor level instead of turning up; water wicks sideways into walls |
| Floor trap / rainwater outlet | Membrane not dressed into the outlet; debris blockage causes flooding |
| Sliding-door threshold | Outside floor level too high; driving rain and ponded water cross into the room |
| Planter boxes | Permanently wet soil against the slab; roots puncture membranes |
| Slab & parapet cracks | Structural movement opens hairline paths straight through |
The most common bad “fix” we see: the balcony leaks, so someone lays a new layer of tiles over the old one, sometimes with a skim of “waterproof” slurry between. It looks new for a while — and solves nothing, because the failed membrane is still failed underneath both layers. Worse, the second layer adds dead load to a cantilevered slab, raises the floor level toward or above the door threshold (inviting water into the house), and traps moisture between the tile beds where it migrates and stains the ceiling below in new places. When the leak returns, both layers must be hacked off — you pay for demolition twice. If a contractor proposes tile-on-tile for a leaking balcony, that is your cue to get another opinion.
A balcony membrane is only as good as its edges. Good practice turns the membrane up every wall and parapet at least 150mm above finished floor level — and up to 300mm at the door — so that ponded water during a storm sits inside a waterproof tray rather than against bare plaster. Plenty of original-build balconies in Malaysia got little or no upstand, which is why the first symptom is often not a drip below but a damp band on the bedroom or living-room wall beside the balcony. If that is your symptom, our wall waterproofing guide explains the wall side of the problem — but the lasting cure is re-doing the balcony membrane with proper upstands, not coating the wall.

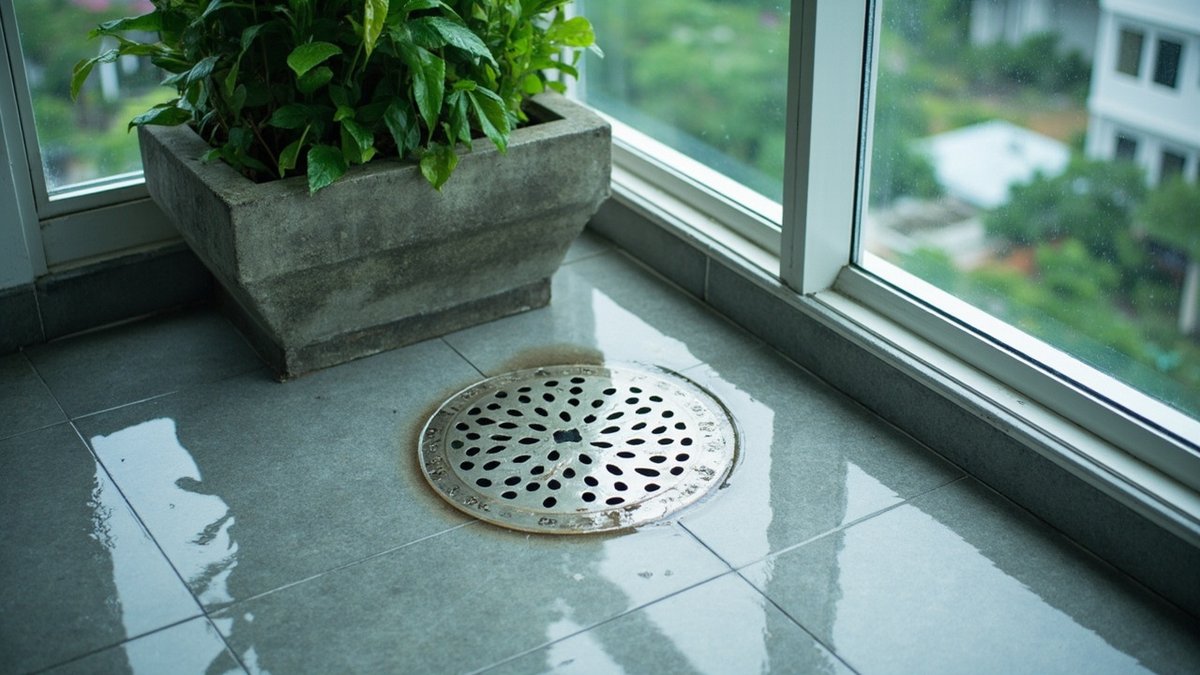

Water should reach the outlet within minutes of rain stopping. Balcony screeds are supposed to fall gently toward the floor trap or rainwater spout — in practice many are laid dead flat or even fall toward the door, so water ponds in corners and against thresholds after every storm. Standing water is the membrane’s enemy: it finds every pinhole given hours instead of minutes. During a re-waterproof, the screed is re-laid to proper falls and the membrane is dressed into the outlet itself — the most commonly botched detail on the slab. Between renovations, the cheapest balcony maintenance in existence is clearing leaves and dirt off the floor trap so the water can actually leave.
Built-in planter boxes are a beautiful idea with an appalling leak record. They hold permanently damp soil against the structure, their internal render cracks, and plant roots are genuinely capable of puncturing membranes in search of water. A planter that shares a wall with your living room is a slow leak with a countdown timer. The proper treatment is a dedicated planter membrane (root-resistant grade), a drainage layer with functioning weepholes so the soil drains instead of swamps, and waterproofing carried over the planter walls. The pragmatic alternative many owners choose during a re-waterproof: decommission the built-in planter, waterproof it as part of the deck, and switch to freestanding pots — all of the greenery, none of the liability.
The sliding-door threshold is the balcony’s border crossing, and it fails when the levels are wrong: the outside finished floor should sit a proper step below the internal floor, with a hob or drop the membrane can turn up against. Tile-on-tile layers and flat falls erode that margin until one heavy storm with a slightly blocked outlet sends water over the track and into the laminate flooring. Retrofit fixes, in ascending order of effort: keep the outlet clear and re-seal the track ends; add a slot drain across the threshold; rebuild the hob and re-level the falls during a full re-waterproof. If your living-room floor swells after storms, the threshold — not the roof — is the usual suspect.
An exposed deck needs a system that tolerates UV and daily thermal movement, or one that hides under protective layers. All prices indicative 2026, Klang Valley.
| System | Indicative price | Best for |
|---|---|---|
| Flexible cementitious membrane under new tiles | RM6 – RM10 / sq ft supply & apply | Standard re-tile jobs; protected by screed and tiles |
| Liquid PU membrane, exposed grade | RM10 – RM18 / sq ft supply & apply | Seamless, self-flashing around outlets and upstands; can be left exposed with topcoat |
| Acrylic deck coating | RM4 – RM10 / sq ft supply & apply | Light-duty refresh on sound substrates; maintenance protection, not a failed-membrane cure |
| Torch-on membrane under screed | RM8 – RM15 / sq ft supply & apply | Large decks and roof terraces; robust when detailed well |
For big roof terraces the calculus shifts toward the heavier systems — our flat roof waterproofing guide compares them in depth. Whichever system goes down, a 24–48 hour ponding test before tiling or handover is standard practice and should be in the quote.
In a condo, a leaking balcony is a legal question as well as a technical one. Depending on your development’s plans and by-laws, the balcony slab and its waterproofing may be your responsibility, the JMB/MC’s, or split between you — and the neighbour below whose ceiling is staining will not wait for the philosophy. The practical sequence: document everything with dated photos, notify the management office in writing early, and get the leak inspected before positions harden. Malaysia’s strata framework has a defined process for inter-floor leakage certificates and cost allocation, which we walk through in our inter-floor leakage guide. External facade seepage that mimics a balcony leak is usually the management’s scope — our external wall seepage guide covers telling them apart.
| Scenario | Indicative cost (2026, Klang Valley) |
|---|---|
| Small condo balcony — strip, re-membrane, retile | RM1,200 – RM2,500 |
| Larger balcony or terrace deck with falls re-laid | RM2,500 – RM4,000+ |
| Planter box re-membrane with drainage & weepholes | Add several hundred ringgit per planter |
| Membrane element alone | RM6 – RM18 / sq ft supply & apply |
The spread is driven by deck size, how many layers must be hacked off (tile-on-tile jobs cost more to undo), upstand and threshold rebuilding, and outlet details. The line-by-line version lives in our balcony waterproofing cost guide, and the master waterproofing cost guide shows how balcony work prices against bathrooms and roofs.
A balcony specialist should talk about upstand heights, falls and outlet dressing before talking about brands. Ask for an itemised quote naming the system and coats, confirmation that the old finishes come off (no tile-on-tile), the ponding test in writing, stage photos, and a workmanship warranty. In a condo, check they will handle management-office permits and protection of common corridors. Our waterproofing contractor guide has the full vetting checklist and the red flags that predict a two-year callback.
ClickBina re-waterproofs balconies across the Klang Valley with fixed itemised quotes — strip-off, membrane with proper upstands, falls to the outlet, ponding test, retile — and no quiet extras once work starts. If the urgent problem is the drip on your neighbour’s ceiling, our PU injection is RM650 flat per ceiling with a 6-Month No-Leak Warranty to stop the water while the deck repair is planned. WhatsApp us photos of the balcony and the stain below, and we will tell you which failure point you are looking at and what the honest fix costs.
