Liquid waterproofing membrane in Malaysia — seamless PU systems for complex roofs, the thickness discipline that decides whether they last, and a fixed quote from a Klang Valley specialist.
A liquid waterproofing membrane is applied as a paint-like fluid — by roller, brush or airless spray, in two or three coats — and cures into a continuous elastomeric skin bonded directly to the roof. The most common system in Malaysia is polyurethane (PU), often called PU coating or liquid rubber, prized for its elasticity and its ability to stretch across hairline cracks as the slab moves. Unlike sheet systems, there are no rolls, no joints and no flame: the membrane is literally built in place, following every pipe, corner, upstand and odd angle of the roof as a single monolithic layer. The finished film is typically 1.2–2mm thick — thinner than a torch-on sheet, but with no laps anywhere for water to exploit.
“Liquid membrane” is a family, not one product, and the chemistry sets both the price and the performance ceiling. The table below maps the common options in the Malaysian market (indicative 2026, Klang Valley).
| System | Indicative price (per sq ft) | Character |
|---|---|---|
| Polyurethane (PU) | RM10 – RM18 | Most elastic and durable; the default for exposed roofs; 10–12 yr life |
| Acrylic | RM4 – RM10 | Budget refresh with reflective cooling; 5–8 yr life; weak under ponding |
| PU-acrylic hybrid | RM8 – RM14 | Middle ground — better elasticity than acrylic at a softer price than pure PU |
| Cementitious (flexible) | RM6 – RM12 | Wet areas, tanks and tiled-over surfaces rather than exposed roofs |
For an exposed RC roof, PU is the benchmark. Acrylic is a different tool for a different job — see our acrylic roof coating guide — while cementitious systems belong mainly in bathrooms, balconies and tanks.
Pricing is per square foot, supply-and-apply, and it moves with the system, the number of coats and how much detailing the roof needs (indicative 2026, Klang Valley).
| Scope | Indicative price (per sq ft) | Notes |
|---|---|---|
| Exposed RC roof, PU 2-coat system | RM10 – RM14 | Primer plus two body coats to spec thickness |
| Heavy-duty PU with mesh reinforcement | RM12 – RM18 | Fibre mesh at cracks, joints and full upstands |
| Balcony / rooftop terrace system | RM10 – RM16 | Detail-heavy small areas; minimum charge applies |
Small, detail-heavy areas such as balconies price at the top of the range or above it — our balcony waterproofing guide and rooftop terrace guide cover those cases, and the wider maths lives in our cost per square foot guide.

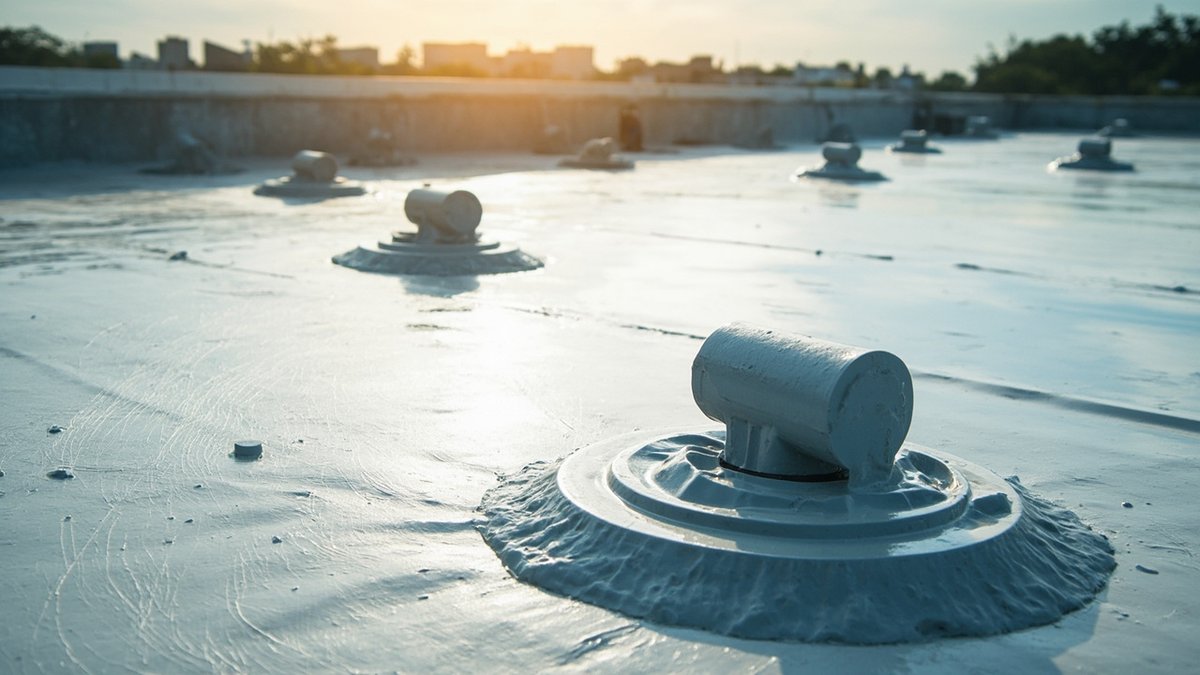

Every sheet membrane leaks at its details before it leaks anywhere else, because the details are where a factory product meets site workmanship: laps between rolls, collars around pipes, terminations at walls. A roof crowded with soil stacks, aircon stands, water tanks, cable trays and plant turns sheet installation into dozens of hand-made joints, each one a future suspect. A liquid membrane deletes that entire category of risk — it flows around a pipe as easily as across open slab, turning the hardest details of sheet work into the easiest parts of the job. Full bonding adds a second, underrated advantage: because the membrane is glued to the slab across its whole area, water from any future puncture cannot travel sideways underneath it, so a leak shows up close to its cause instead of twenty feet away — which makes diagnosis and repair dramatically simpler.
Here is the honest trade-off: a torch-on sheet’s thickness was fixed in a factory; a liquid membrane’s thickness is decided by the applicator that morning. The specified dry-film thickness — typically 1.2–2mm for an exposed PU roof system — is only reached if the crew applies the right volume of material per square metre, checked coat by coat with a wet-film gauge. Thin it with solvent, stretch a pail further than the datasheet allows, or skip the third coat, and the roof looks identical on handover day but carries half the membrane — a failure that stays invisible until the second or third monsoon season. This is why liquid systems reward contractor discipline more than any other method: insist on the named product, the datasheet coverage rate, and coats in contrasting colours so missed areas show.
A proper liquid job runs in sequence. Preparation first: the roof is cleaned or pressure-washed, loose screed ground off, cracks routed and repaired, and the slab left genuinely dry — liquid membranes bond poorly to damp, dusty concrete. A primer follows to seal the surface. Detail work comes before the field: cracks, wall-floor joints, upstands and pipe collars get a reinforcing coat with fibre mesh bedded in, because these are the movement points. Then two or three body coats go on at right angles to each other, each within the recoat window of the previous one. Malaysian weather is the scheduling enemy — an afternoon storm on an uncured coat can wash it off entirely — so good applicators work to the forecast, start early, and never gamble a fresh coat against a black sky.
A properly specified PU system lasts 10–12 years exposed. Its quiet economic advantage is the recoat cycle: because the membrane is liquid-applied, a single refresher coat at year 7–10 — after cleaning and an adhesion check — renews the wearing surface at a fraction of the original cost, without stripping anything. Managed this way, a liquid roof can be kept sound almost indefinitely for less than the cost of periodic full replacement, which is exactly how large commercial buildings run their roofs. Compare that with an aged sheet system, where the end of life usually means stripping or overlaying the whole roof.
Liquid membranes are not a universal answer. They need a sound, dry substrate and a dry weather window — on a roof that never quite dries out, adhesion suffers. Long-term ponding water is a hard test: quality PU tolerates it far better than acrylic, but no coating loves a permanent puddle, so falls and outlets should be corrected first — our flat roof waterproofing guide covers drainage as part of the system. Heavily trafficked decks need a protective topcoat or screed. And the market is full of cheap “waterproof paint” sold as membrane — a thin decorative coat is not a 1.5mm engineered system, however similar the tins look. For highly crack-prone structures, a high-elongation flexible membrane is the variant to specify.
Price ranges overlap — torch-on at RM8–RM15, liquid PU at RM10–RM18 per sq ft — so the decision is really about the roof, not the wallet. Big, open, simple slab with long straight runs: torch-on is fast, thick and proven. Congested roof, awkward shapes, many penetrations, or a building where open flame is banned: liquid wins, because seamless coverage removes exactly the risks that congestion multiplies. Occupied homes and offices below tilt liquid too — no flame, less disruption. The full trade-off across every criterion, including self-adhesive sheets and cementitious systems, is laid out in our sheet vs liquid membrane comparison.
Because thickness is in the applicator’s hands, the quote must pin it down: the named product and datasheet, the specified dry-film thickness, the number of coats, the coverage rate per pail, primer, and mesh reinforcement at details — in writing. Ask how thickness will be verified and whether coats will be in contrasting colours. A vague line like “apply PU waterproofing x2 coats” tells you nothing about how much membrane you are actually buying. Check CIDB and SSM registration, and insist on a written workmanship warranty. Our guides to choosing a waterproofing contractor and waterproofing costs show what a serious quotation looks like.
ClickBina installs liquid PU membrane systems across the Klang Valley — full preparation, primer, mesh-reinforced detailing and body coats applied to the datasheet, not to a margin target — with an itemised fixed quote naming the product, thickness and coat count, a written workmanship warranty and WhatsApp replies within the hour. Send photos of your roof, balcony or terrace and its approximate size for a same-day ballpark, and if a sheet system suits your roof better, we will say so.
