Submersible sump pumps for basements, lift pits and flood-prone landed homes — pump types, sizing by HP and head, real 2026 install and maintenance costs, and why pumps and waterproofing work as one system.
A sump pump sits in a pit at the lowest point of a structure and does one job: move water uphill to a drain before it becomes a flood. Groundwater seeping through a basement wall, rain blowing into a lift pit, a car porch that sits below road level, a burst pipe at 2am — the pit collects it, a float switch senses the rising level, and the pump pushes it out through a discharge pipe. In Malaysia the machine matters more than most owners realise, because our failure mode is not a slow trickle but a monsoon cell dropping 100mm of rain in two hours. Waterproofing keeps water out of the structure; the sump pump deals with the water that arrives anyway. The two are partners, not alternatives — a point we return to at the end of this guide.
Four situations account for nearly every sump pit in the Klang Valley. Basements in bungalows and commercial buildings: any habitable space below ground sits in the water table's reach, and a pit-and-pump is standard equipment alongside basement waterproofing. Lift pits: the deepest point of every high-rise collects seepage and washdown water, and a stuck lift over a flooded pit is a five-figure repair — our lift pit waterproofing guide covers the JMB side. Landed homes below road level: older neighbourhoods where the road has been resurfaced upward for decades leave car porches and living floors lower than the drains that are supposed to serve them; when the municipal drain backs up, water flows in, not out. Underground utility spaces: TNB rooms, pump rooms, storage cellars and basement carparks. If your property has ever taken water in a storm, the question is not whether you need a pump — it is what size.
A submersible pump sits inside the pit, underwater, sealed motor and all — quiet, out of sight, able to pass some solids, and safe in a deep pit. A pedestal pump stands on a column with the motor above water — cheaper and easy to service, but noisier, exposed, and unsuited to the debris-laden storm water Malaysian pits actually collect. For virtually every residential and building application here, submersible is the right call, which is why “submersible sump pump” is the term everyone searches. The submersible's one honest weakness — the motor lives in the water, so a failed seal kills it — is managed by buying a quality unit and servicing it, not by choosing the worse architecture.
“Drainage pump” is a family, not a model. Matching the pump to the water is most of the specification (indicative 2026, Klang Valley).
| Type | Handles | Typical use | Indicative unit price |
|---|---|---|---|
| Clean-water drainage pump | Rain / seepage, minimal solids | Lift pits, basement seepage, water transfer | RM250 – RM900 |
| Trash / semi-vortex pump | Storm water with sand, leaves, grit | Car porch pits, garden sumps, site dewatering | RM700 – RM2,500 |
| Sewage / cutter pump | Waste water with soft solids | Basement toilets, grey-water lift stations | RM1,200 – RM4,500 |
| Automatic (built-in float) | As per class, self-starting | Unattended pits — the default for homes | +RM100 – RM300 over manual |
The classic mistake is a clean-water pump in a storm pit: the first monsoon washes grit into the impeller and the “new” pump seizes exactly when it is needed. If the pit takes surface runoff, buy the trash-rated unit.
Three numbers size a pump: flow rate (litres per minute it must move), total head (the vertical lift from pit bottom to discharge point, plus pipe friction), and the horsepower that delivers both. Undersize and the pit overflows in a storm; grossly oversize and the pump short-cycles — starting and stopping every few seconds — which burns out motors and switches. Rules of thumb for the Klang Valley (indicative 2026, Klang Valley):
| Application | Typical size | Indicative flow | Notes |
|---|---|---|---|
| Lift pit / small basement seepage | 0.25 – 0.5 HP | 100 – 200 L/min | Clean-water class, auto float |
| Landed home storm pit / car porch | 0.5 – 1 HP | 200 – 350 L/min | Trash-rated; monsoon is the design case |
| Large basement / commercial pit | 1 – 2 HP, often duty + standby pair | 350 – 700 L/min | Twin pumps with alternator panel |
| Basement toilet / grey water | 0.5 – 1 HP cutter | 150 – 300 L/min | Sewage-rated, sealed pit |
Head matters as much as flow: a pump rated 300 L/min at 1m lift may deliver half that at 6m. Check the manufacturer's flow-vs-head curve at your lift height, not the headline number on the box.
Budget in three layers (indicative 2026, Klang Valley). The pump unit: RM250–RM800 for household drainage pumps from local and value brands, RM900–RM2,500 for branded submersibles of the Tsurumi and Grundfos class in the 0.5–1 HP range, and RM1,200–RM4,500 for sewage and cutter units. The installation: professional install with discharge piping, check valve, dedicated wiring and float setup is marketed from around RM800 and runs to RM2,500 depending on pipe run and electrical work. The pit, if you do not have one: hacking, casting and waterproofing a new sump pit runs RM1,500–RM4,000 depending on depth and access. A complete new landed-home setup — pit, branded pump, auto float, wiring, discharge — therefore lands around RM3,000–RM7,000, against tens of thousands for one flooded renovation claim. Get every layer itemised in writing, the same discipline as any waterproofing quotation.
The pump is only as reliable as the switch that wakes it. Tethered floats are cheap and common but snag on pit walls and debris; vertical floats and electronic level sensors cost a little more and jam far less — specify them in narrow pits. Add a high-water alarm (a second float that triggers a buzzer or a phone alert) so you learn about a failed pump from a beep, not a flooded floor. And think about power: the storm that floods your pit is the same storm that drops the grid. Options in rising order of cost — a manual generator changeover, a battery-backup pump beside the mains unit, or for critical basements a twin-pump duty/standby set on an auto-alternating panel. For a home, alarm plus a plan beats hoping; for a building, standby capacity is simply the standard.

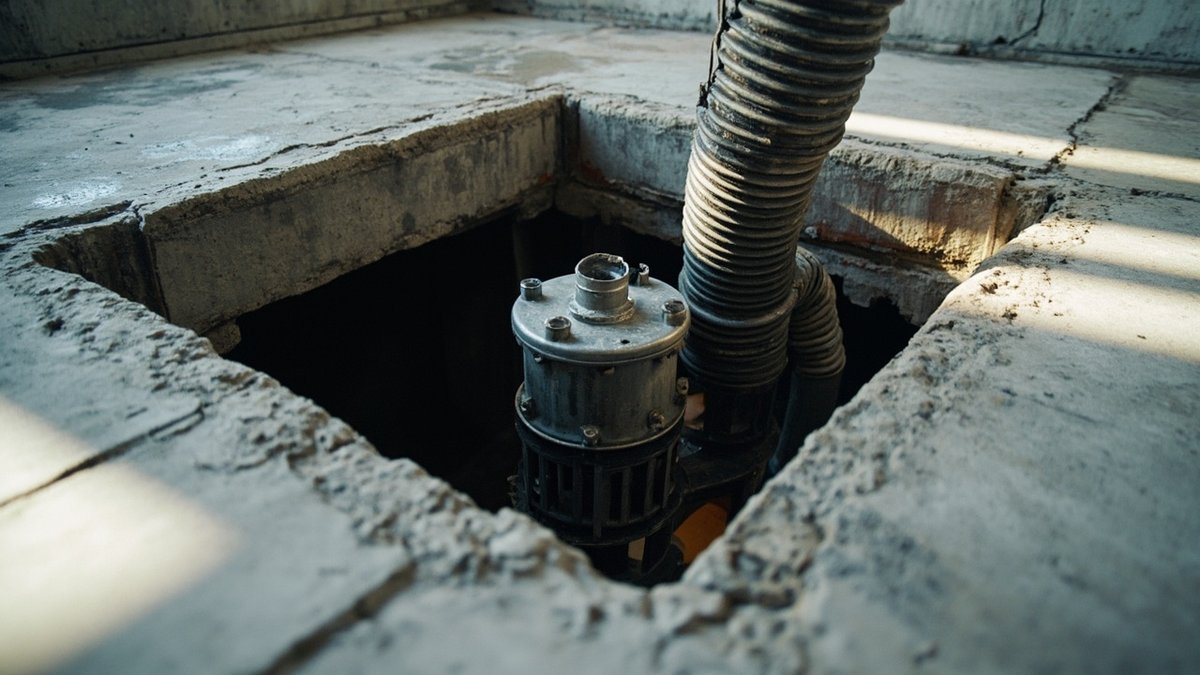

A competent installer sizes before selling: measure the pit (or specify one — roughly 450–600mm across and deep enough for the float's travel), establish the lift height and discharge route, and only then name a pump. The discharge line gets a check valve so pumped water cannot fall back and re-trigger the pump in an endless loop, a union for easy pump removal, and a route to a legal discharge point — a surface drain, not a neighbour's boundary. Wiring is a dedicated circuit with an RCD/ELCB, never a garden extension cord into a wet pit. The pump sits on a hard base or paver — not pit-bottom silt — and the whole system is commissioned with a bucket test: fill the pit, watch the float trigger, time the drawdown, check the valve holds. Insist on that test happening in front of you, and on the pit being cleaned of construction debris before handover; screed crumbs are the number-one killer of new pumps.
Sump pumps fail silently — they sit unused for months, then must work perfectly for two hours. The fix is a boring schedule. Quarterly (DIY, five minutes): lift the pit cover, remove debris, pour in a pail of water and watch the pump trigger, run and stop. Twice yearly (before each monsoon peak): a proper service — strip and clean the intake screen and impeller, check the float travel, exercise the check valve, inspect the cable and seal — RM150–RM350 per visit from a pump or M&E contractor (indicative 2026, Klang Valley). Every 5–8 years: budget replacement of a hard-working residential unit; motors and seals age even when idle. Buildings should log lift-pit and basement pump tests monthly — a task JMBs routinely discover was nobody's job only after the lift floods, which is why it belongs in the planned-maintenance calendar alongside scheduled roof maintenance.
Flash floods have rewritten the risk map for Malaysian homeowners — areas that stayed dry for thirty years have taken water in the last few, and insurers have noticed. If your street has flooded, or your home sits below road level in a valley neighbourhood, a sump system moves from nice-to-have to first line of defence: a pit at the lowest entry point, a trash-rated pump sized for cloudburst intensity (not drizzle), a high-water alarm, and a backup power plan. Pair it with flood barriers at doorways and non-return valves on ground-floor drainage so the municipal drain cannot siphon backwards into your home. None of this stops a river; all of it turns the common case — an hour of overwhelmed drains — from a ruined ground floor into a stressful evening. Check your fire and perils policy for flood cover while you are at it; many Malaysian home policies carry flood as an optional add-on, not a default.
A pump without waterproofing runs constantly, chasing water that should never have entered — and every litre it lifts carries dissolved salts through your concrete, feeding spalling and rust. Waterproofing without a pump gambles that the membrane wins every storm forever. Dry basements and lift pits are engineered as a system: waterproofing (injection, crystalline coats, membranes) handles the standing pressure, drainage relieves the water table, and the sump pump evacuates whatever arrives anyway. If your pump already runs daily in dry weather, that is not a pump problem — it is a seepage diagnosis waiting to happen, and treating the source is almost always cheaper than pumping it for a decade. Start with our waterproofing cost guide to see what the fix side of the system costs.
