Damp, stained retaining wall on a hillside lot — why it seeps, the fixes that work from the accessible face, and honest advice on when to call an engineer.

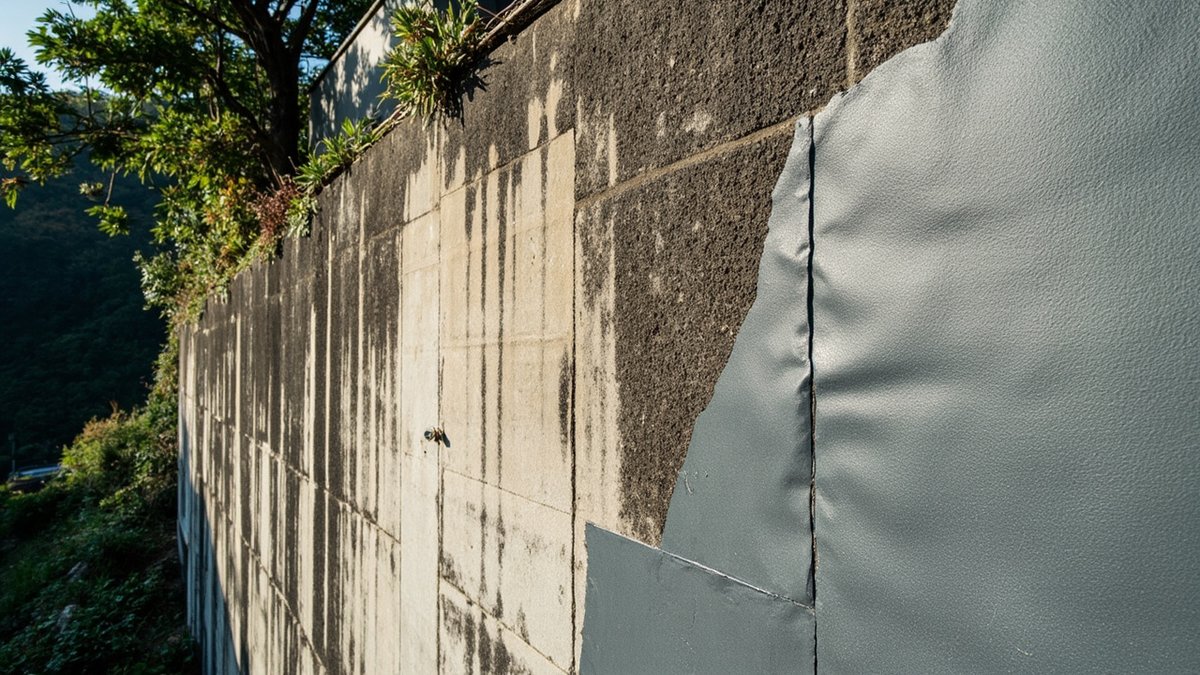

A retaining wall holds back earth so a sloped site can carry a flat platform — a driveway, a garden terrace, or the house itself. Hillside neighbourhoods across the Klang Valley, from Ampang and Ukay Heights to Damansara Heights, Bukit Tunku and the older ridge-line estates, are full of them. Unlike a normal house wall, one face of a retaining wall is permanently buried against soil, and every Malaysian downpour saturates that soil. The wall is not designed to work as a dam: it is designed to hold back earth while letting water escape through weep holes and subsoil drainage. When those escape routes fail, water sits against the buried face under pressure, works into every pore and hairline crack, and shows up on the visible face as damp patches, staining and flaking paint.
Almost every damp retaining wall we inspect comes down to the same short list of causes — and none of them are fixed by simply repainting the wall.
| Cause | What happens | First fix |
|---|---|---|
| No back-face membrane | Most older walls were never waterproofed on the buried side, so soil moisture migrates straight through the concrete or blockwork | Negative-side treatment from the accessible face |
| Blocked weep holes | Soil fines, roots and debris clog the relief holes, so water backs up behind the wall | Rod, flush or re-drill the weep holes |
| Hydrostatic pressure | Saturated soil pushes water through the wall after every storm | Restore drainage; crystalline treatment or injection |
| Failed subsoil drainage | The perforated pipe behind the wall silts up over the years | Interception drains and drainage works |
| Cracks & honeycombing | Water finds concentrated paths and runs or drips visibly | PU injection to seal the active paths |
In practice several causes act together. A wall with no back-face membrane and blocked weep holes, met by a week of monsoon rain, is the classic Klang Valley combination — and it explains why the damp returns every wet season no matter how many times the wall is repainted.
Damp patches that darken during and after rain, then take days to dry, are the earliest sign. Watch also for white powdery deposits — efflorescence, the salts carried through the wall by moisture, covered in our white powder on walls guide — along with green or black algae streaks below weep holes that no longer flow, blistering or peeling paint, and a persistently musty smell in any room built against the wall. Water still pooling at the base of the wall long after the rain has stopped suggests the subsoil drain is no longer doing its job. If the damp surface is actually an external wall of the house rather than a garden retaining wall, our external wall seepage guide covers that situation in detail.
Most retaining wall treatments price by the treated area, with injection and drainage work added by scope. The ranges below are a planning guide (indicative 2026, Klang Valley).
| Work item | Indicative price | Notes |
|---|---|---|
| Crystalline slurry treatment (2 coats) | RM8 – RM15 / sq ft | Penetrates and seals capillaries; the strongest answer to pressure from behind |
| Cementitious coating (2 coats) | RM6 – RM10 / sq ft | Budget option for mild, diffuse damp on rendered walls |
| PU injection at active leak points | RM80–RM250 per point | Pressure-grouts running cracks, joints and honeycombing |
| Weep-hole clearing / new relief holes | RM300 – RM800 per wall | Rodding, flushing, drilling and filter mesh |
| Elastomeric protective top-coat | RM4 – RM8 / sq ft | Optional finish; bridges hairline cracks and tidies the face |
A typical garden retaining wall on a landed lot lands between roughly RM1,500 and RM6,000 all-in, depending on length, height and condition. Our waterproofing cost guide shows how these figures sit within the wider market.
Here is the honest engineering problem: the side that should have been waterproofed — the buried, soil-facing positive side — is unreachable without excavating the slope, which is disruptive, expensive and often unsafe on a hillside lot. Retrofit work therefore treats the accessible negative face with systems designed to resist pressure from behind. Crystalline waterproofing is the standout: applied as a slurry, it reacts with moisture inside the concrete and grows needle-like crystals that block the capillaries, so the damp in the wall actually feeds the cure. Cementitious coatings suit milder, diffuse damp, while PU injection seals concentrated paths — running cracks, cold joints and honeycombed patches — by pumping expanding resin into the wall under pressure. A bituminous membrane remains the right answer on the soil side, but realistically only during original construction or a full rebuild. The same negative-side logic applies below ground — our basement waterproofing guide covers it.
Those little pipes or gaps near the base of the wall are its pressure-relief valves. When they flow, water behind the wall escapes harmlessly. When they clog with soil fines, roots and render droppings, pressure builds and the wall itself becomes the drainage path. The single worst thing an owner can do is seal the weep holes because the trickle “looks like a leak” — that turns the wall into a dam and drives water through it faster. Maintenance is simple: rod and flush the holes once a year before the year-end monsoon, fit a geotextile or mesh filter to slow re-clogging, and where a long wall has too few outlets, have additional relief holes drilled at regular spacing. A stain below a weep hole means it is working; a bone-dry weep hole on a wet wall means it is not.
Waterproofing treats the symptom; drainage removes the cause. Walk the top of the wall during heavy rain and watch where the water actually goes. Roof downpipes discharging onto the slope behind a retaining wall are one of the most common culprits we find in hillside homes — redirect them into a proper drain. A surface interception drain along the top of the wall stops runoff soaking straight down the back face, and garden beds or lawns that fall towards the wall should be regraded away from it. Where the original subsoil (agricultural) pipe has silted up, the options run from flushing it out to laying a new perforated drain line. Irrigation is a quiet offender too: an automatic sprinkler soaking a bed directly above a retaining wall keeps the soil behind it permanently saturated, whatever the weather is doing.
Damp and staining on their own are a waterproofing problem. Movement is not — and this is where you deserve straight talk rather than a sales pitch. Waterproofing will not fix a structurally distressed wall, and no coating should ever be used to hide the evidence.
| Sign | Reading | Action |
|---|---|---|
| Damp patches, stains, efflorescence, algae | Water migration — cosmetic and treatable | Waterproofing plus drainage works |
| Hairline vertical shrinkage cracks | Common and usually benign | Monitor; seal during treatment |
| Horizontal or stepped cracks that widen | Possible pressure or foundation movement | Consult a Professional Engineer first |
| Bulging, leaning or rotation | Structural distress | Engineer assessment before any other work |
| Soil settlement or new gaps above the wall | Material may be washing out from behind | Engineer assessment — urgent if worsening |
If we see movement indicators on site, we will tell you to engage a Professional Engineer before spending a single ringgit on waterproofing. A failing retaining wall on a hillside lot is a safety issue, not a cosmetic one, and an honest contractor says so.
A wall that has been treated and drained stays healthy on a modest routine. Before each year-end monsoon, flush the weep holes, clear the interception drain along the top, and check that downpipes and irrigation still discharge where they should. Re-apply the elastomeric top-coat every five to seven years so hairline cracks stay bridged, and keep an eye on any new landscaping above the wall — a new planter bed, a row of trees or fresh irrigation changes the water and root load the wall carries. One more thing to distinguish: damp at the base of house walls near ground level is often rising damp rather than retaining-wall seepage — our rising damp guide explains how to tell them apart.
Look for a specialist who talks about drainage before coatings. A good contractor asks to see the wall during or just after rain, checks whether the weep holes flow, and quotes an itemised scope — treated area, injection points, drainage works — rather than a single “seal the wall” lump sum. Expect a written warranty of three to five years on the treated area, and treat a willingness to refer you to an engineer when movement is suspected as the best honesty test in the trade. Our guide to choosing a waterproofing contractor has the full checklist, and our waterproofing services guide shows where retaining walls sit in the wider trade.
