Flooded lift pits in Malaysia — why pits leak, the PU injection plus crystalline standard fix, lift-contractor coordination, JMB procurement and RM2,000–RM8,000 per-pit pricing from a Klang Valley contractor.
The lift pit is usually the single lowest point of concrete in the entire building — a small box sunk one to two metres below the lowest floor, at the bottom of the lift shaft. That position makes it a water magnet. Groundwater in the surrounding soil sits against the pit walls and base year-round, and after heavy rain the local water table rises and pushes harder. Water enters through the same paths as any below-grade structure: the construction joint between the pit base and walls (the kicker), shrinkage cracks, tie-bolt holes and pipe or conduit penetrations. In buildings with basements, the pit sits even deeper than the basement slab, so it floods first and dries last. None of this is unusual — wet lift pits are one of the most common defects in Malaysian strata buildings — but it is also one of the most fixable.
You can never excavate around a lift pit — it sits under the shaft, under the building, surrounded by foundations. So the repair is by definition negative-side: applied from inside the pit, against the direction the water is pushing. That rules out surface paints and ordinary coatings, which hydrostatic pressure simply peels off, and rules in the two systems built for this situation — polyurethane injection, which seals the joints and cracks water travels through, and crystalline treatment, which turns the pit’s own concrete into the barrier. The physics is identical to a leaking basement, just concentrated in a few square metres; our basement waterproofing guide explains hydrostatic pressure in detail, and the injection vs membrane guide covers why injection wins below grade.
A wet pit is not just damp concrete. The pit houses the lift’s buffers, the travelling-cable loop, safety switches and often the pit light and stop switch — electrical and mechanical equipment that standing water corrodes and can short. Lift technicians are required to enter the pit for routine servicing, and no competent technician will work in a flooded pit, so persistent water can stall mandatory maintenance and inspections. Corroded buffers and rusted steel raise genuine safety findings, and a lift taken out of service in a high-rise means queues, complaints and — for management — pressure that arrives daily until it is fixed. That is why experienced building managers treat pit water as a priority defect: the waterproofing cost is modest, while the cost of a stopped lift, a failed inspection or damaged lift equipment is not.
Most owners never see their lift pit — the signs surface through the people who do. The lift maintenance contractor’s service report noting water, rust or a tripped pit pump is the usual first alert; take it seriously rather than filing it. Other tells: a musty or stagnant smell in the lift car or lobby of the lowest floor, tide marks and rust staining visible on the pit walls when the car is parked high, the pit sump pump running frequently or found burnt out, corrosion blooming on the buffers and steelwork, and — in the worst cases — the lift shut down after water reached equipment. A pit that is dry in dry weather but wet after every storm is the classic groundwater signature, and it will not improve on its own; the paths only widen with time.
| Symptom | Likely cause | Typical response |
|---|---|---|
| Water after heavy rain, dry otherwise | Groundwater through kicker joint & cracks | PU injection of joints, then crystalline treatment |
| Constant standing water | High water table or persistent path; pump failed | Injection + crystalline; service or replace sump pump |
| Rust on buffers & steelwork | Long-running damp or repeated flooding | Waterproof pit; lift contractor treats or replaces steel |
| Water entering at pipe/conduit penetrations | Failed seals around penetrations | Inject and reseal each penetration |

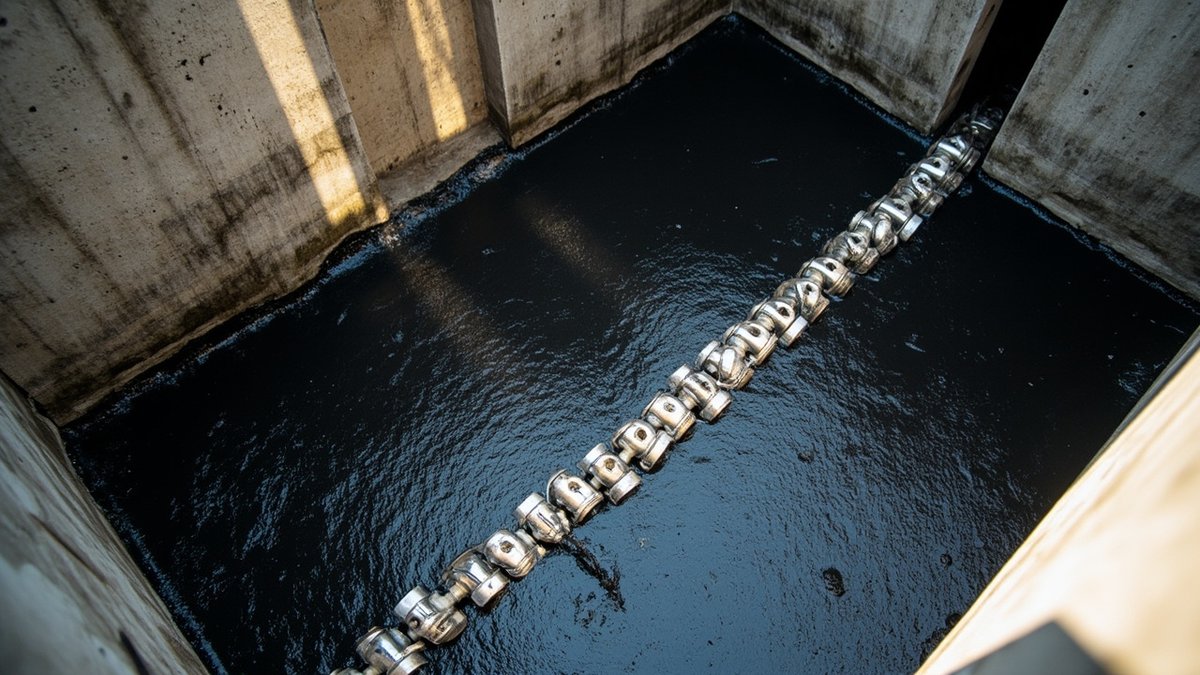

The industry-standard lift pit repair has two stages. First, stop the moving water: packers are drilled along the kicker joint, cracks and penetrations, and polyurethane resin is injected under pressure; it reacts with the water, expands and seals each path — PU works on live, weeping leaks, which is exactly the condition inside a wet pit (the wider market prices this at RM80–RM250 per point — see our PU injection guide). Second, seal the whole box for the long term: a crystalline slurry over the pit base and walls grows crystals into the concrete’s capillaries, blocking future paths and self-healing new hairline cracks (RM8–RM15 per sq ft — see the crystalline guide). Injection alone fixes today’s leaks; the crystalline coat is what stops next year’s. A pit is small, so doing both properly costs little more than doing one.
Many pits include a small sump recess with a submersible pump that ejects incoming water automatically. Keep it — but understand what it is for. The pump is a contingency device for exceptional water: a burst pipe in the shaft, fire-fighting water, a once-a-decade storm. It is not a waterproofing strategy. A pump that runs every week is a meter showing how much groundwater the pit is admitting, and every cycle is wear on a unit that will eventually fail — usually during the biggest storm, which is precisely when the pit floods and the lift goes down. The right posture: waterproof the pit so the pump almost never runs, then keep the pump maintained (float switch free, discharge line clear, tested on the lift contractor’s schedule) as genuine insurance.
Lift pit waterproofing is a coordination job, because nobody enters a pit casually. The lift maintenance contractor must attend to take the lift out of service, park the car safely at a high floor, isolate power and supervise safe access to the pit — and return to restore service afterwards. Waterproofing works themselves typically take one to two days per pit: injection on day one, crystalline application after, with cure time before the pit is handed back. A good waterproofing contractor schedules directly with the lift company so the JMB is not stuck as messenger, and times the works midweek and mid-morning to minimise resident impact. If the building has multiple lifts, pits are done one at a time so a lift is always running — and doing all pits in one mobilisation is meaningfully cheaper than calling the team back twice.
Because a pit is a small, defined box, most contractors quote a per-pit package rather than pure per-square-foot rates. The figures below are indicative 2026, Klang Valley planning ranges.
| Scope | Indicative price | Notes |
|---|---|---|
| Light scope (few injection points + crystalline) | RM2,000 – RM4,000 / pit | Seasonal seepage, sound concrete, easy access |
| Standard scope (kicker joint + cracks + full treatment) | RM4,000 – RM6,000 / pit | The typical strata-building wet pit |
| Heavy scope (persistent water, repairs, pump works) | RM6,000 – RM8,000+ / pit | High water table, spall repairs, sump pump replacement |
| Multiple pits, one mobilisation | Discounted per pit | Shared setup & lift-contractor coordination |
Set against the cost of a corroded buffer set, a failed inspection or weeks of lift complaints, pit waterproofing is one of the highest-value line items in a building’s maintenance budget.
For a JMB or MC putting pit works through the approval process: get the lift contractor’s latest service report naming the water issue (it anchors the paperwork); obtain itemised quotes that state the injection method and resin, the crystalline system, the number of pits, who coordinates the lift shutdown, and the warranty period on the waterproofing; and confirm the contractor carries insurance for works inside the shaft. Beware quotes that offer only to “paint the pit” — surface coatings fail under negative-side pressure and the money is wasted. Our waterproofing quotation guide shows what a proper itemised quote looks like line by line, and the contractor selection guide covers vetting. Pits also pair naturally with the building’s other below-grade defects — a seeping retaining wall or leaking RC water tank can share the same mobilisation.
Developers and builders can design the problem out for a fraction of the repair cost. The essentials: cast the pit with a waterstop (PVC or hydrophilic strip) in the base–wall kicker joint — the joint that causes most pit leaks; use a crystalline admixture in the pit concrete or apply crystalline treatment before handover; detail and seal every pipe and conduit penetration properly; cure the concrete patiently to minimise shrinkage cracking; and flood-test the pit before the lift installer takes possession, because fixing a leak found at testing costs a tenth of fixing one found after the buffers are in. Specifying this in the M&E and structural packages costs almost nothing at construction stage — and saves the eventual JMB the entire contents of this guide.
