Expansion Joint Leak Repair
Why Rigid Patching Always Fails (2026)

What an expansion joint is and why a building needs one

An expansion joint — a movement joint, in the wider sense — is a gap built into a structure on purpose. Concrete and steel expand when they heat and contract when they cool, long slabs shrink as they cure, and separate parts of a building settle at different rates. A large podium slab baking under Klang Valley sun and then hit by an afternoon downpour goes through that cycle every day it does not rain and twice on the days it does. Without somewhere to absorb the movement, the structure relieves the stress itself, by cracking wherever it is weakest.

So the joint is not a defect and it is not a construction gap someone forgot to fill. It is the designed weak point that protects everything else, and that single fact governs every sensible repair. A joint has to stay a joint. Any repair that removes its ability to open and close has not fixed the leak; it has moved the crack somewhere less convenient and bought a few dry weeks. This is the same logic that governs concrete waterproofing generally: work with how the material behaves rather than against it.

Where the joints are in a podium, car park or condo block

People rarely go looking for a movement joint until it leaks, and then cannot find it because it is buried under a screed, a tile bed or a coat of paint. In a typical Malaysian mixed-use or condominium block they run in predictable places:

• Across a large podium deck or car-park slab, dividing it into bays — usually a straight line running the full width, often lining up with a change in paving pattern or a metal cover strip.
• Where the podium meets the tower, separating a low, wide structure from a tall, heavy one that settles and moves differently.
• Between blocks or wings of the same development, running vertically up the facade and continuing down through the basement.
• At ramps and transitions, where a sloping deck meets a level one.
• Through basement walls and slabs, where the joint is under permanent water pressure from outside rather than intermittent rainfall. Our basement waterproofing guide covers what changes when water is pushing rather than falling.
• Around planters, pools and roof structures sitting on a podium, where a movement joint often runs close to a waterproofing upstand and the two details have to be resolved together.

The tell from below is usually a straight-line stain: a drip or an efflorescence trail on a soffit that follows a dead-straight path across a car-park ceiling rather than spreading in a blot. Straight and long means a joint or a construction line; irregular and blotchy usually means something else.

How a movement joint actually leaks

Joints leak in a small number of recognisable ways, and identifying which one you have decides the repair.

• Adhesion failure. The sealant has let go of one side of the joint and is hanging off the other. You see a clean line down one arris and the sealant is still intact. Almost always a preparation problem: dirty, damp or unprimed concrete.
• Cohesion failure. The sealant has split down its own middle. That is a material at the end of its useful life or a sealant that was never rated for the movement being asked of it.
• No backer rod. Sealant applied deep into the gap with nothing behind it bonds on three sides instead of two and tears itself apart as the joint opens. This is one of the most common causes of a joint that was “just resealed” and leaked again within months.
• Arris damage. The concrete edges of the joint have spalled or crumbled, usually from vehicle traffic, so there is no sound surface left for a sealant to bond to. The concrete has to be repaired before any sealant goes near it.
• Buried under a finish. Someone screeded, tiled or coated straight over the joint. The finish cracks along the joint line, water enters through the crack and then travels sideways under the finish, so the leak below appears metres from where it got in.
• Debris packed in the gap. Grit, leaf litter and building rubble in an open joint stop it closing. The joint then works against solid material every hot afternoon and spalls its own edges.

Where the joint has been leaking long enough to reach the reinforcement below, you get rust staining and eventually concrete spalling on the soffit — a structural repair rather than a waterproofing one. Our spalling concrete ceiling repair guide covers what that job involves and why it should not be painted over.

Why rigid patching always fails

The single most common repair on a leaking movement joint in Malaysia is also the one that cannot work: fill it with mortar, cementitious slurry, tile grout or a rigid patching compound, coat over the top, and hand it back. It stops the drip for a while, which is exactly what makes it so popular. Then the slab heats, the joint tries to close, the rigid plug has nowhere to go, and it cracks — usually along one edge, sometimes straight down the middle, sometimes taking a strip of concrete arris with it.

If you take one thing from this page: a quotation that says “patch and seal the expansion joint” without naming a backer, a sealant grade or a bridging system is a quotation to do the top four rows of that table.

Joint leak, crack leak or penetration leak?

These three get confused constantly, and each has a different repair, so it is worth ten minutes with a torch before anyone quotes.

Where it genuinely is not obvious — and on a large deck it often is not, because water travels sideways before it drops — a detection visit settles it before you spend on the wrong repair. ClickBina prices that at RM300 – RM800 per visit, waived if you proceed with the repair.

The three repair families

Everything sensible falls into three families, and larger jobs combine them.

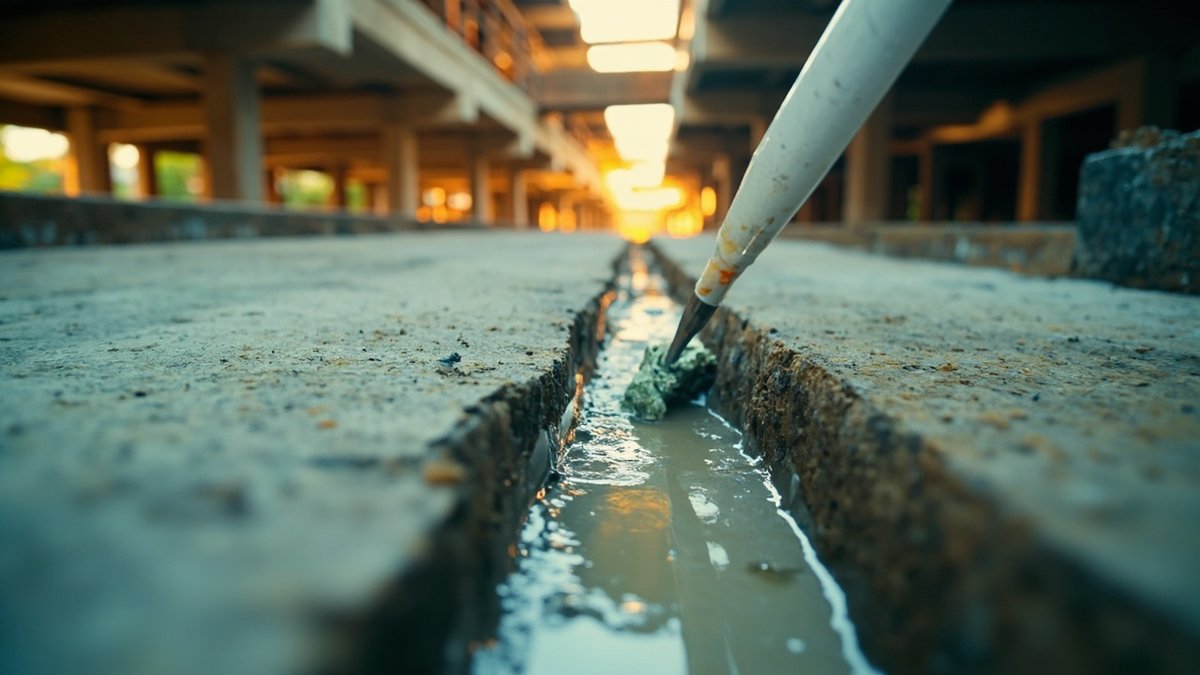

• Prepared joint with backer rod and flexible sealant. Old material cut out, arrises made good, joint cleaned and primed, a compressible backer rod set at the correct depth so the sealant bonds on two sides only, then a movement-rated sealant tooled into place. Right for clean, sound joints of modest width in areas that are not heavily trafficked. It is the cheapest option that actually works, and the one most often botched by leaving out the backer rod.
• Bonded strip or bandage membrane. A flexible strip is bonded to the concrete each side of the joint with a deliberate unbonded loop over the gap itself, so the loop takes up the movement rather than the adhesive. It tolerates a rougher substrate and greater movement than a sealant bead, and it ties directly into the surrounding deck membrane, which makes it the usual answer where a joint runs through a waterproofed podium.
• Mechanical joint cover with a sub-gutter. A proprietary metal or composite cover spans the joint and slides as it moves, with a flexible gutter beneath to catch and drain anything that gets past. It is the durable answer where vehicles cross the joint, where the gap is wide, or where movement is too great for a sealed detail — and the one that survives forklifts and reversing cars.

PU injection has a place here too, but a narrow one: it is a way to stop water that is actively running through a joint or an adjacent crack so that a proper detail can be built in the dry, not a substitute for the detail. Our PU injection waterproofing guide explains where injection is the right tool and where it is a stopgap.

Sizing the repair to the movement, not to the gap

The question a specifier asks is not “how wide is the gap” but “how much does this gap change”. A sealant has a movement capability — the percentage of its installed width it can stretch and compress and still recover — and the joint’s expected movement has to sit inside it. That is why the installed sealant depth relative to its width matters, why the backer rod position is a specification and not a convenience, and why a wide joint on a long exposed deck may be beyond any sealed bead and belong in the cover-plate family instead.

Three practical consequences for a client reading a quote. First, ask what movement the sealant is rated for and how that was matched to the joint — not just the product name. Second, resist the instinct to make the joint narrower with a bit of mortar each side; a narrower joint asks a higher percentage movement of the sealant and fails sooner. Third, ask what happens at the ends: joints do not stop at a wall, they turn up it, and a repair that stops neatly at the upstand and leaves the vertical leg untreated will leak at exactly that point. Terminations, corners and intersections are where joint repairs fail, and they belong on the drawing.

Preparing the joint — the step that gets skipped

Most joint repairs fail on preparation rather than on product. The sequence that holds: cut out and remove every trace of the old sealant and any mortar packed into the gap along the whole length; clean the joint faces back to sound concrete; cut out and reinstate spalled or crumbling arrises so there is a square, solid edge to bond to; dry the joint faces; prime them if the system calls for it; install the backer rod at a consistent depth; then seal, tool and finish. Where the joint runs into an upstand, kerb or wall, the same preparation continues up the vertical leg.

Two conditions ruin this work and both are common here. Water still running through the joint means nothing will bond — the leak has to be stopped or diverted first, which is where injection genuinely earns its place. And a joint that is wet from an afternoon storm is not ready in the morning; concrete holds moisture in the pore structure long after the surface looks dry. Programme joint work into a dry spell, agree in writing who carries the cost of weather delay, and be suspicious of a contractor willing to seal a joint the same afternoon it rained.

What a joint repair quote must itemise

A joint quote should be readable as a bill of quantities, because that is the only way to compare two of them. Insist that it states: the total linear metres of joint, broken down by location and by width; the cut-out and removal of existing material as a separate item; arris and concrete repair as a provisional item with a rate, since the extent is not knowable until the joint is opened; the backer rod type and size; the sealant or bridging system by grade and its stated movement capability; primer where required; treatment of terminations, corners and upstand legs, itemised individually rather than assumed; tie-in to the adjacent deck membrane; and reinstatement of anything removed to get access — paving, kerbs, cover plates, line marking.

Then the commercial lines: how weather delay is handled, what testing is carried out at completion and who witnesses it, and what the warranty document actually covers, what voids it and who honours it if the contractor is not around. Get those in writing before the deposit rather than after the first storm — our waterproofing quotation and questions to ask a waterproofing contractor guides set out the full checklist, and waterproofing warranty covers what a warranty document should say.

Working over an occupied car park or shop

Joint repairs are almost always over somebody’s head. In a condominium the joint runs above parking bays that residents use daily; in a mixed-use block it runs above a shop or a lobby. That makes phasing part of the technical scope, not an afterthought.

What to agree before work starts: the joint is repaired in continuous sections so no length is left open overnight in the wet season; each section’s bays are cleared and cordoned with notice given in advance, and residents are told where to park instead; protection is placed below where hot work, grinding or cutting is happening; dust and noise from concrete cutting are scheduled into agreed hours; and any temporary covering is genuinely watertight rather than a sheet of plastic weighted with bricks. Building committees running this kind of work as a common-property project will find the tender and communication side covered in our JMB common area waterproofing guide.

Testing and sign-off after the repair

A joint repair should not be accepted on the basis that it looks tidy. Build the test into the contract:

• Visual inspection along the whole length with the person who is going to sign it off, before any covering, paving or line marking is reinstated. Look for consistent sealant profile, a properly tooled surface, no gaps at terminations, and no sealant applied over dirt.
• A hose or flood test on the repaired section, run long enough for water to find a path, with somebody stationed underneath watching the soffit. Agree the duration in writing beforehand so it is not negotiated on the day.
• A rain watch. Keep the section under observation through the first heavy storm after completion and log the result. This is the test that matters most in Malaysia and it costs nothing but attention.
• Photographic record of the joint after cut-out, after arris repair, after the backer rod is installed and after sealing — the four stages nobody can inspect once the joint is finished. Make the photographs a deliverable.

How joint work is priced

Joint repair is quoted per linear metre after somebody has opened a section and seen what is inside, because the two big variables — how much arris repair is needed and whether the joint has been buried under a finish — are invisible until then. Beware a per-metre rate quoted from a photograph; it will carry an exclusion for exactly the work that turns out to be needed. Expect a fixed rate for the sealing itself plus provisional quantities for concrete repair and for the removal and reinstatement of finishes.

Two related figures do have published bands, and they set the context around the joint (market estimate 2026, indicative Klang Valley):

Read the last row as the warning it is. Cementitious systems are perfectly good on a sound slab and completely wrong across a moving joint; the joint detail is a separate line item in every honest quotation. Membrane choice for the surrounding deck is covered in flexible waterproofing membrane and the whole-deck picture in podium deck waterproofing.

What to inspect, and the triggers that mean act now

Movement joints are consumable details. They are designed to be inspected and periodically renewed, and a building that treats them that way spends a fraction of what a building that waits for the ceiling to stain spends. Put a joint walk into the same routine that clears the roof outlets before the monsoon, and record what you see with dates and photographs so changes are visible.

Act rather than monitor when you see: sealant lifting from one face; a split running down the middle of the bead; the joint packed with grit or rubble; concrete arrises chipping or crumbling under traffic; a cover plate loose, missing screws or rattling under vehicles; a new straight-line stain on the soffit below; or rust staining and flaking concrete under the joint line, which means water has been reaching the reinforcement and the job is now structural as well as watertight. Facade joints follow the same logic on the vertical — see building facade waterproofing — and the parapet upstand where a deck joint terminates is covered in parapet wall leak repair.
