Marking a warehouse or factory floor? Plan the layout and the legend before the first line goes down.

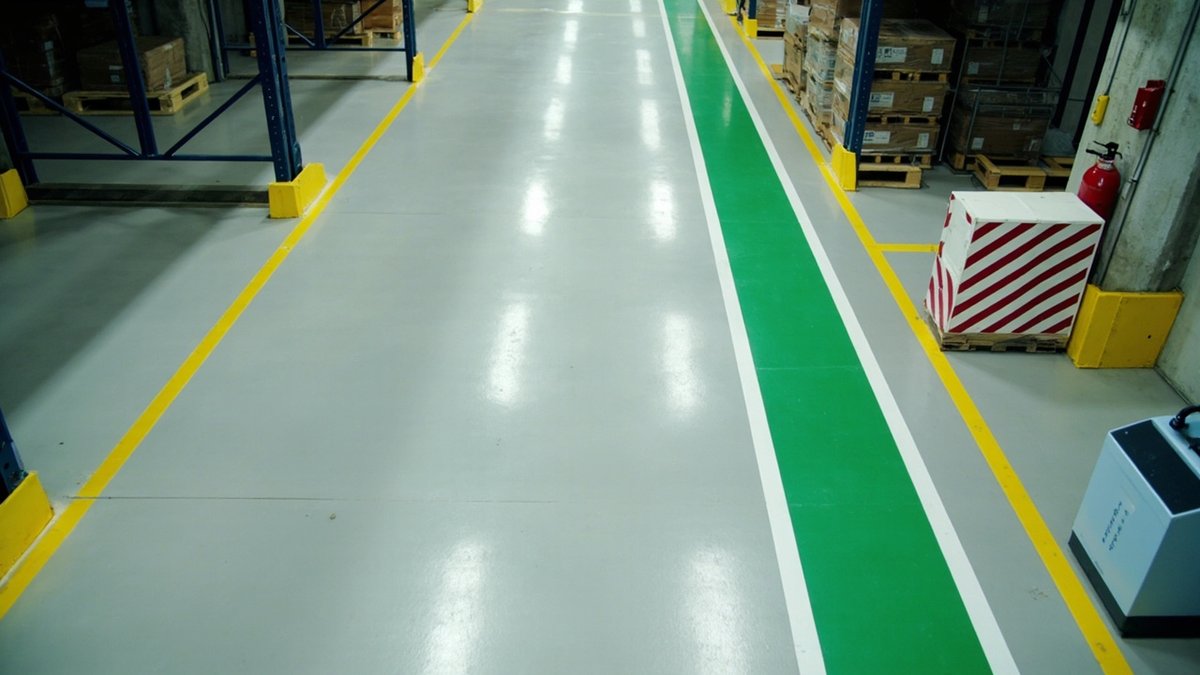

Warehouse floor marking works when it follows a layout plan: truck aisles, pedestrian walkways and crossings, keep-clear zones at exits and fire equipment, loading and charging areas, with one colour legend used everywhere. Prepare the floor properly, use a marking system that bonds to the floor or its coating, back the lines with signs, mirrors and bollards, and phase the work around operations. Line marking is quoted per site; a basic epoxy coating underneath is RM6 – RM10 per sq ft on ClickBina's guides. A site visit is RM150, waived if you go ahead.
In a warehouse, forklifts, pallet trucks and people share the same floor. Markings tell everyone where vehicles run, where people walk, where stock may and may not be put down, and what must be kept clear. ClickBina's warehouse racking guide lists marked pedestrian routes separated from truck routes, cross aisles and a marshalling area at the doors as part of a layout that can actually be worked safely.
Good marking also keeps the place tidy. When every pallet position, work bench and bin has a marked home, it is obvious when something is out of place, which is the idea behind 5S workplace organisation.
Draw the layout first, on a plan of the real floor, with the people who run the warehouse. The racking guide says the aisle a truck needs comes from the truck maker's data sheet, not from a website table, so start from the trucks you actually use. Then mark on the plan:
Record the existing lines before anything is removed; ClickBina's car park line marking guide calls this the step most often skipped. If racking is going in, the racking guide puts floor coating and line marking before the installation.
| Element | Purpose | What to check |
|---|---|---|
| Aisle lines | Keep trucks and stock in their lanes | Widths match the trucks in use |
| Pedestrian walkways | Separate people from vehicles | Continuous from door to work area |
| Pedestrian crossings | Show where people cross truck routes | Clear sight lines at each crossing |
| Keep-clear hatching | Exits, fire equipment, electrical panels | Nothing stored inside the hatch |
| Loading and staging zones | Where goods wait at the doors | Zone size suits a full load |
| Charging and parking areas | Where trucks park and charge | Away from walkways and exits |
| Column and racking-end stripes | Make obstructions visible | Corners where trucks turn |
| Work and bin zones | A marked home for benches and bins | Matches how the team really works |
The colours matter less than using them the same way across the whole site. Write a simple legend, for example one colour for aisles, one for walkways, one for hazards and keep-clear zones, and one for storage positions, post it at the entrances and include it in staff induction. If your company, landlord or a key customer already uses a colour standard, follow it rather than inventing a new one. Changing colours later means grinding off the old lines.
The car park guide is clear that markings fail when they are painted over dirt, oil or loose old paint. Preparation means sweeping and washing, degreasing, removing flaking old lines, and repairing cracks, spalled patches and broken joints first. On a sealed or coated floor, the marking must be compatible with the coating. ClickBina's factory floor repair guide explains why repairs come before any coating: repair first, coat second.
Where the whole floor is being coated, the lines are usually laid as part of the coating job. ClickBina's epoxy floor cost guide covers the coating systems, and its commercial floor comparison compares epoxy with PU screed and tiles.
Markings work with signs and physical devices, not instead of them. The car park guide pairs markings with consistent signs, convex mirrors at blind corners and bollards protecting pedestrians. In a warehouse that usually means speed and pedestrian signs at the doors, mirrors at blind aisle ends, barriers along walkways beside busy routes, and protectors on racking ends, which the racking guide notes take the worst of the impacts. For the workplace safety rules that apply to your site, check the current guidance from the Department of Occupational Safety and Health (DOSH) or your safety officer.
Most warehouses cannot stop. The car park guide describes the usual approach, which carries over: work zone by zone, at night or at weekends, with cones and barriers around wet paint, and reopen each zone only when the paint has dried enough for traffic. Drying time depends on the system and the weather, so build it into the programme, and move stock out of each zone beforehand.
Markings do not wear evenly. Turning points, dock entrances and the busiest aisles go first. Walk the floor regularly and touch up the worst areas before they become unreadable, keep the layout drawing and the paint system on record so touch-ups match, and clean oil spills promptly. Plan a full re-mark when most lines have worn, or when the layout changes.
| Item | Indicative price | Source guide |
|---|---|---|
| Basic epoxy coating (primer + two coats) | RM6 – RM10 per sq ft | Epoxy floor cost guide |
| Self-levelling epoxy | RM10 – RM18 per sq ft | Epoxy floor cost guide |
| Basic industrial epoxy, 5,000 sq ft warehouse floor | RM30,000 – RM55,000 | Epoxy floor cost guide |
| Structural epoxy injection for a crack | RM150 – RM400 per point | Factory floor repair guide |
WhatsApp us your job details for a quote — we reply within the hour.
💬 WhatsApp for a quoteNo ClickBina guide publishes a rate for line marking itself; it is quoted per site from the quantities: lengths of lines, number of symbols and crossings, hatched areas and signs. These are ClickBina's published indicative Klang Valley ranges for 2026.
ClickBina handles commercial renovation and fit-out works and coordinates the trades, including floor repair, coating and marking. WhatsApp us your job details for a quote:
We reply within the hour, the price we agree is a flat price with no hidden charges, and a site visit is RM150, waived if you go ahead.
Methodology: every RM figure is quoted unchanged from the ClickBina guides named above (indicative 2026, Klang Valley). No line-marking rate is published, so none is given.
