Which fixed system protects which risk, and the building work that makes it work.
A fixed fire suppression system detects a fire and discharges an agent automatically through its own pipes and nozzles: water for sprinklers, a wet chemical over a commercial kitchen line, a clean-agent or inert gas in a server room or archive, or foam where fuels are stored. Gas systems only work in a room that holds the gas, so the walls, ceiling voids, doors and cable holes are part of the job. The system itself is specialist work; ClickBina coordinates the specialist and prepares the room during a fit-out. A site visit is RM150, waived if you go ahead.
A portable extinguisher needs a person. A fixed system does not: it has its own detection, its own store of agent, pipework and nozzles aimed at the risk, and it discharges automatically, usually with a manual release as well. Wikipedia's gaseous fire suppression entry lists the parts of a gas system as the agent, storage containers, release valves, detectors, the detection and control wiring, delivery pipes and discharge nozzles. The same pattern, with different agents, runs through every type below.
| System | Agent | Typical use | Watch out for |
|---|---|---|---|
| Sprinklers | Water, released head by head as heat bursts a bulb | Offices, malls, hotels, warehouses | Heads covered by new ceilings, racking or signage |
| Kitchen hood system | Wet chemical sprayed onto the cooking line | Restaurant and hotel kitchens | Hood, fryer or range moved without the system being redesigned |
| Clean-agent gas | Halocarbon agents that absorb heat | Server rooms, comms rooms, archives, control rooms | A room that leaks gas through gaps and voids |
| Inert gas / CO2 | Gas that lowers the oxygen in the room | Electrical rooms, archives, unoccupied plant rooms | Suffocation risk for anyone still inside |
| Foam | Foam blanket over burning liquid | Fuel and chemical stores, large enclosed spaces | Choosing the wrong foam for the liquid stored |
| Water mist | Very fine water spray | Some machinery and special rooms | Specialist design for each room |
The encyclopedia's fire suppression system entry groups them the same way: sprinkler systems, gaseous agents, chemical agent systems and foam, each chosen for a particular hazard. Portable extinguishers are the first-response layer on top of all of them; the extinguisher types guide covers those.
In most office towers and malls the sprinklers belong to the building. Each head opens on its own when its glass bulb bursts from heat, so only the heads over the fire discharge. For a tenant the rules are about not breaking coverage: new ceilings mean heads are relocated to the new ceiling by the building's sprinkler contractor, partitions and tall shelving must not block the spray, and nothing is ever hung from sprinkler pipes. Warehouses have their own questions about storage height and racking, covered in the warehouse sprinkler upgrade guide.
Cooking oil fires spread fast and water makes them worse, so commercial kitchens often have a wet chemical system built into the exhaust hood over the cooking line. The encyclopedia's fire classification entry describes these hood systems as releasing the agent onto the stove tops automatically through a fusible link, or manually from a pull station. The kitchen exhaust and ducting guide explains how the hood, the grease duct and the suppression system are planned together, and the restaurant fit-out cost guide explains why this line is priced separately by the fire specialist.
The practical rule for owners: the nozzles are aimed at specific appliances. Swapping a wok range for a fryer, adding a burner or moving the line means the specialist must check the nozzle layout again.

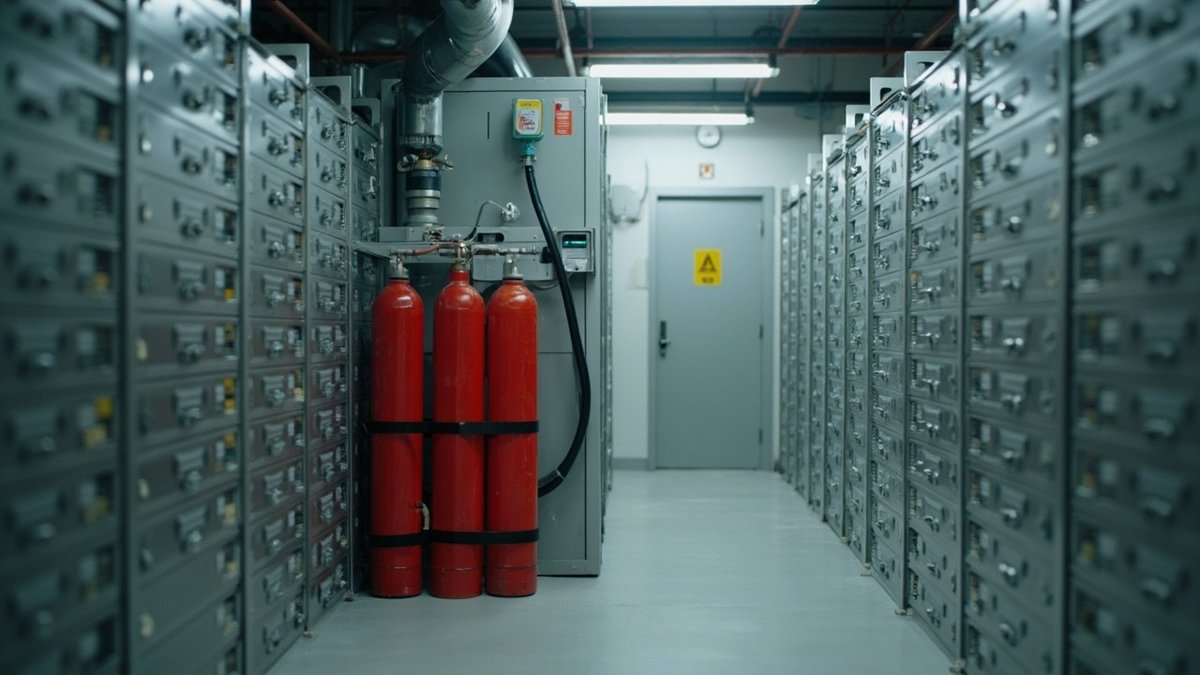

Where water would do more damage than the fire, rooms are protected by gas. The gaseous suppression entry describes two families: agents that remove heat, such as FM-200 and Novec 1230, and inert gases such as argon, nitrogen and their blends, or CO2, which lower the oxygen in the room. Most room systems work by total flooding, filling the whole space to a concentration that puts the fire out, and are triggered by detection in the room or by a manual release. The server room fit-out guide covers the rest of that room: cooling, power, cable management and access control.
Inert gas and CO2 systems protect equipment by lowering oxygen, which is also what makes them dangerous to people. The same source explains that such systems are fitted with a warning alarm before discharge, an evacuation period, and an abort switch that pauses the countdown while it is held, and it records fatal accidents where these safeguards were missing or bypassed. Owners should make sure warning signs are on every door, staff know what the pre-discharge alarm sounds like, and nobody props the door open or disables the system for maintenance without the specialist.
This is the part of a gas system that is really fit-out work. A total flooding system only works if the room holds the gas long enough, which is why the encyclopedia describes room integrity testing as required with gas suppression: the room is pressurised to check the gas will not escape too fast.
| Room item | Why it matters |
|---|---|
| Walls built full height to the slab | Gas escapes over a partition that stops at the false ceiling |
| Sealed cable, pipe and duct holes | Every open penetration is a leak path |
| Self-closing, well-fitted doors | A door that stays ajar lets the gas out |
| Ceiling and raised-floor voids included | Voids are part of the protected volume or must be sealed off |
| Pressure relief vent where the specialist specifies | Discharge pressure can damage walls and glazing |
| Ventilation dampers that close on alarm | Air handling would otherwise blow the gas away |
Sequencing matters: the partitions, sealing and doors go in first, the specialist installs and tests, and any later cable or duct added through the wall must be sealed again. ClickBina's office renovation and fit-out service builds and seals the room to the specialist's requirements before the system goes in.
Foam cools a fire and coats the fuel so oxygen cannot reach it. Wikipedia's firefighting foam entry separates low-expansion foams that spread fast over large areas, and high-expansion foams suited to enclosed spaces such as hangars that must be filled quickly, and notes that alcohol-resistant foams exist for fuels and solvents that break ordinary foam down. The right foam depends on the liquid stored, which is why foam systems are designed around a list of the chemicals on site.
Fixed systems are designed, installed and serviced by specialist fire firms, and in Malaysia that work is done by Bomba-registered firms. The commercial renovation permit guide notes that for F&B premises, kitchen fire suppression is one of the items that needs Bomba review. After any discharge the agent must be refilled and the system reset before the room is back in use, and service records belong in the same fire safety file as the alarm and extinguisher records; the fire alarm system guide explains how the suppression release is usually tied into the building's alarm.
ClickBina handles commercial renovation and fit-out works and coordinates the trades. Fixed suppression systems are specialist work, so ClickBina coordinates the licensed specialist and prepares the space around the system: full-height walls, sealed penetrations, doors, ceilings and the kitchen layout. WhatsApp us your job details for a quote: the premises, which room or kitchen is being protected, and its size. ClickBina is an experienced KL & Selangor contractor; we reply within the hour, the price we agree is a flat price with no hidden charges, and a site visit is RM150, waived if you go ahead.
Methodology: this guide explains system types and the building work around them. It gives no system prices; the specialist prices the system after a design.
