What a commercial kitchen exhaust system is

Walk into any busy restaurant, cafe or cloud kitchen and the thing keeping the space from turning into a smoke-filled sauna is the exhaust system — the stainless canopy over the wok range, the ducting disappearing into the ceiling, and the fan on the roof or rear wall doing the actual pulling. A commercial kitchen exhaust system is an engineered air path: it captures the heat, smoke, steam and grease-laden vapour rising off the cooking line, draws it through filters and a duct, and discharges it safely outside. It is not the same thing as a domestic cooker hood scaled up, and it is not the same thing as your air-conditioning. It also should not be confused with the grease trap under your sink — that device intercepts grease in your wastewater, while the exhaust system handles grease in your air. Both are F&B essentials, and both need regular cleaning, but they are completely separate systems solving completely different problems. Get the exhaust right and the kitchen is cooler, safer and complaint-free; get it wrong and every other problem in the outlet gets louder.

Why proper kitchen exhaust matters

Four things make commercial kitchen exhaust non-negotiable, and every one of them costs real money when it is neglected. Heat and comfort: a wok or fryer line throws off enormous heat, and without extraction the kitchen becomes unbearable, staff slow down, and your air-conditioning fights a losing battle it was never sized for. Smoke and steam: uncontrolled, they set off alarms, fog up the dining area, and coat every surface in a greasy film. Grease-fire risk: this is the serious one — the vapour that escapes the filters condenses inside the ducting as a sticky, flammable layer, and a build-up of that grease is exactly what turns a small flare-up on the range into a duct fire that travels through the building. Smell and nuisance: cooking odour discharged badly — at head height, next to a neighbour's window, or into a shared strata airwell — is one of the most common triggers for complaints to the JMB, the neighbours upstairs, or the local council, and those complaints can put your renewal or your goodwill at risk. A properly designed system quietly handles all four at once.

The parts of the system & their job

People say “kitchen exhaust” and picture a fan, but the fan is only one link in a chain — and the chain is only as good as its weakest part. Here is the whole system and what each piece actually does:

The last row matters: a fully compliant commercial kitchen usually includes an automatic fire-suppression system over the cooking line, but that is a specialist, Bomba-registered fire trade — not something a ventilation or renovation contractor installs or certifies. ClickBina builds and installs the exhaust and ducting (with the access panels a cleaner needs) and coordinates around the fire specialist; we do not supply or certify the suppression system itself.

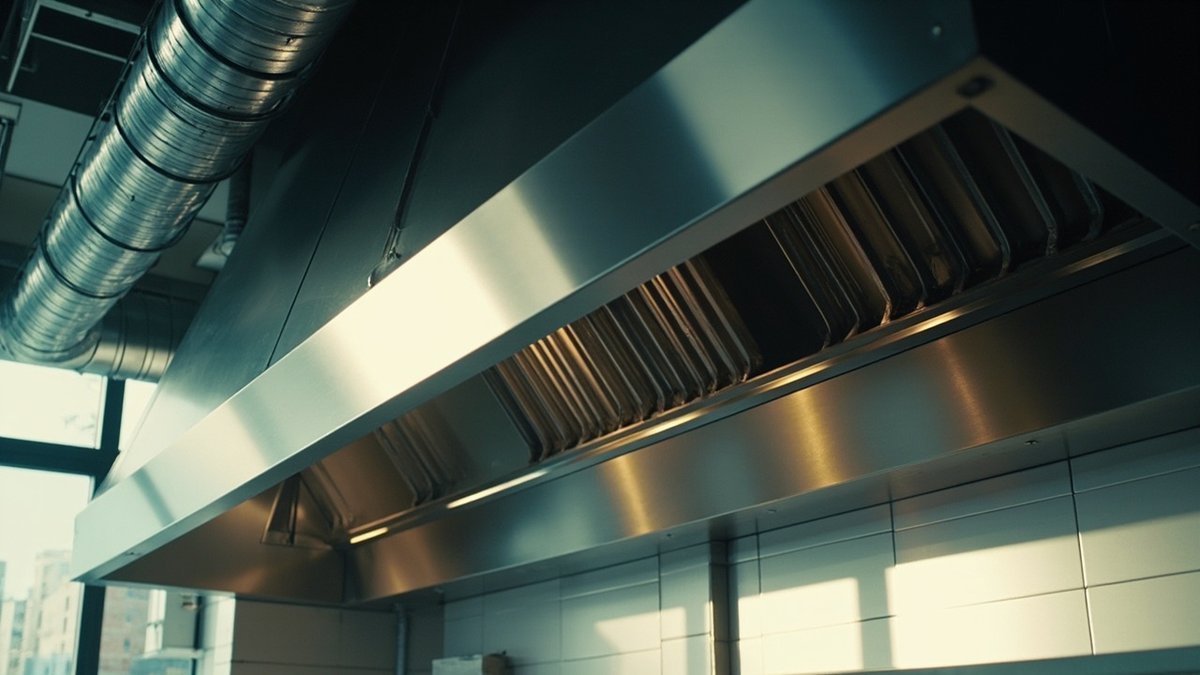

The hood, canopy & grease filters

The hood is where capture succeeds or fails. It has to be the right type for the cooking — a high-heat, high-smoke Chinese wok range needs a deeper, higher-extraction canopy than a sandwich griddle — and it has to physically overhang the cooking line far enough to catch the plume before it rolls out into the room. Too small or mounted too high, and smoke escapes around the edges no matter how strong the fan. Inside the hood sit the baffle grease filters: angled stainless steel blades that spin the air and fling grease droplets out before they reach the duct. These are the workhorses of grease control, and they are designed to be pulled out and washed regularly — in a busy kitchen, often. The cheap mesh filters some outlets use clog fast and let far more grease through to the duct, which is a false economy: every gram of grease the filter misses ends up as a flammable coating you pay to clean out later. Stainless steel is the standard material for the canopy because it takes the heat, resists corrosion from the grease and cleaning chemicals, and wipes down to hygienic condition, which the health inspector will look for.

Ducting: material & sizing

The ducting is the part most owners never see and most cost-cutters compromise, and it is where a system quietly goes wrong. Two decisions define it: material and size. On material, the common choice is between galvanised steel and stainless steel. Galvanised (mild steel with a zinc coating) is cheaper and widely used for general exhaust ducting; stainless steel costs more but resists grease, heat and corrosion far better and is easier to keep clean, which is why heavier grease-duty kitchens and any run that will be hard to access often justify it. Whatever the metal, a grease-carrying duct should be built with sealed, welded or properly sealed joints so grease and condensate cannot leak out into the ceiling void — a leaking grease duct above a false ceiling is both a mess and a fire hazard. On sizing, the duct cross-section has to match the fan and the required airflow: too small and it throttles extraction and roars; too large and the air slows down so much that grease drops out and settles instead of being carried through. The run should also be kept as short and as straight as the building allows, because every bend adds resistance and every horizontal stretch is somewhere grease can pool. This is engineering, not guesswork, which is why it belongs in the restaurant fit-out plan from day one rather than being squeezed in after the kitchen layout is fixed.

Grease duct, access panels & fire risk

This section is the whole reason a kitchen exhaust duct is treated differently from ordinary ventilation. No filter is perfect, so over weeks and months a film of grease builds up on the inside walls of the duct — and that film is flammable. A flare-up on the range, a fryer that runs too hot, or a stray flame can ignite it, and once a grease-lined duct catches, the fire can run the length of the duct and into the structure of the building. That is not a scare story; it is the single most common cause of serious commercial-kitchen fires, and it is entirely preventable with two things: cleanable ducting and a cleaning schedule. Cleanable means the duct is built with access panels — sealed, removable openings at every bend and along every long horizontal run — so a cleaner can physically reach and scrape or degrease the inside surface. A duct with no access panels cannot be properly cleaned; the grease simply accumulates out of sight until it is a genuine hazard. When ClickBina builds an exhaust duct, we design the access panels in from the start, because a duct you cannot clean is a duct that will eventually catch fire. Alongside the ducting, a compliant kitchen carries an automatic fire-suppression system over the cooking line — but as noted above, that suppression system is installed and certified by a licensed Bomba-registered fire contractor, not by us; our job is the ductwork it protects and the coordination around it.

The exhaust fan & external discharge

The fan is the engine, and matching it to the system is what makes the difference between a kitchen that breathes and one that struggles. A commercial exhaust fan — typically a centrifugal or in-line type rated for grease-laden air — has to move enough volume to clear the plume the hood is catching, against the resistance of the duct run. Under-size it and smoke escapes the hood and lingers; over-size it and you pull conditioned air and money straight out of the building while making a racket. Just as important as the fan is where the air comes out. The discharge point has to send the exhaust somewhere it will not cause a problem: up and away from people, clear of your own and your neighbours' windows and fresh-air intakes, and high enough that the smell disperses rather than settling at street level. In a shoplot, that usually means a run up to roof level; in a strata or mall unit, it means tying into the building's designated exhaust route, which the management or building owner controls. Discharging cooking fumes lazily — out the back wall at head height, or into a shared airwell — is the fastest way to turn the unit next door or the floor above into a source of building-management complaints that follow you at licence-renewal time.

Fresh-air (make-up air) intake

Here is the part budget installs skip and then cannot understand why the exhaust “does not work.” Every cubic metre of air the fan pulls out has to be replaced by air coming in from somewhere — that replacement is called make-up air (or fresh-air intake). If a kitchen is sealed up tight and a powerful fan is extracting hard with no planned intake, the space goes into negative pressure: the fan starves, extraction collapses, doors become hard to open, and smoke that should be leaving instead hangs in the kitchen. A balanced system brings in fresh air — through a dedicated intake fan, louvres, or a properly sized opening — to match what is being removed. In the Klang Valley's climate that intake air is warm and humid, so how and where it is introduced matters for staff comfort too. Getting the extract-and-intake balance right is exactly the kind of thing that separates a designed ventilation system from a fan bolted to a duct, and it is a core reason to treat kitchen exhaust as an M&E discipline within your cafe or kitchen fit-out rather than an afterthought.

Exhaust, licensing & F&B compliance

Kitchen ventilation is not just good practice — it is tied to your ability to operate legally. To run a food premises in Malaysia you need a business/food-premises licence from the local council (DBKL in Kuala Lumpur, MBPJ, MBSA and the other municipal councils across Selangor), and adequate kitchen ventilation and the safe discharge of cooking fumes are part of what those authorities and the health department look for when they assess and inspect a food premises. On the fire-safety side, the fire authority (Bomba) is concerned with grease-duct fire risk and the fire-suppression provision over the cooking line, which is why that suppression system must come from a registered specialist. We keep these references general on purpose: the exact requirements vary by council, by the size and type of premises, and by whether you are in a standalone shoplot, a mall, or a strata building, and they change over time — so the right move is always to confirm the current requirements with your specific local council and, for a strata unit, with the building management, before you finalise the kitchen. What is universally true is that a proper, cleanable, well-discharged exhaust system is what keeps you on the right side of all of them. For the broader permitting picture around commercial kitchen works, our commercial renovation permit guide covers where fit-out approvals fit in.

Kitchen exhaust & ducting cost

Exhaust cost spans a wide band because a single-hood cafe and a multi-station restaurant are different animals. These are indicative Klang Valley figures in the units this work is actually priced in — by kitchen size, per metre of duct, per point, and per cleaning visit (market estimate 2026, indicative Klang Valley):

Two honest notes on the numbers. First, the cheapest quote is often the one with no make-up air, undersized ducting and no access panels — it looks like a saving until the kitchen overheats, the smell complaints start, or the duct cannot be cleaned. Second, a full commercial kitchen also needs the fire-suppression system priced separately by the fire specialist; that is a real line in the budget, just not one on our invoice. Ask any installer to break the quote into hood, ducting, fan, intake and discharge so you can see what you are actually buying.

Grease-duct cleaning & maintenance

An exhaust system is not fit-and-forget — it is one of the highest-maintenance parts of an F&B outlet, and neglecting it is both a fire risk and a licence risk. There are three layers of upkeep. Daily/weekly: the kitchen team pulls and washes the baffle grease filters — the single most effective habit, because clean filters keep grease out of the duct in the first place. Periodic: the ducting, hood plenum and fan are professionally de-greased through the access panels, on a frequency that follows how hard and how greasy your kitchen runs — a heavy wok or fryer line needs it far more often than a light griddle kitchen. Ongoing: the fan is checked for grease loading and wear, and the discharge point kept clear. A kitchen that skips grease-duct cleaning is the classic candidate for a duct fire, and it is also the kitchen that fails a spot inspection. This is exactly the kind of recurring obligation that fits into a scheduled building-maintenance plan so it happens on a calendar rather than being remembered after a scare — and it pairs naturally with the wastewater side, the grease-trap cleaning your kitchen also needs on its own schedule. Keeping both the grease in your air and the grease in your water under control is simply part of running a compliant kitchen.

Home range-hood & cooker-hood ducting

The same physics scales down to the home kitchen, where the stakes are lower but the frustrations are familiar. A residential range hood or cooker hood only works well if it is ducted to the outside — and this is where a lot of Malaysian homes go wrong. Many hoods are installed in “recirculating” mode, where the air passes through a charcoal filter and blows straight back into the kitchen; for the oil-heavy, high-heat cooking common in local homes, that barely helps, and the grease and smell just settle around the kitchen. A proper ducted installation runs a pipe from the hood out through an external wall so the smoke, steam and grease actually leave the house. The things that matter are the same as the commercial version in miniature: keep the duct run short and with as few bends as possible so the hood does not lose its pull, make sure it terminates outside (not into the ceiling void or a roof space, where grease and moisture cause damage), and fit a backdraught flap so outside air, insects and smells do not come back in. If you are renovating and want the hood to genuinely clear the air, plan the duct route before the ceiling and cabinets go in — retrofitting a proper external duct afterwards is far more disruptive. For a home kitchen this usually sits within a wider home maintenance and improvement scope rather than being a standalone job.
