Commercial and industrial drainage done right — gratings and covers matched to the load and setting, channel and trench drains laid to a proper fall, plus desilting and re-levelling. One coordinated trade for the Klang Valley.
“Drain grating” sounds like a single product, but on a commercial or industrial site it is a whole discipline: the trench and channel drains that carry water off a floor, the removable gratings and drain covers that let people and vehicles pass over them safely, and the wider drainage works — perimeter drains, monsoon drains, gully traps and falls — that get rainwater and wash-down water away before it ponds or floods. ClickBina handles all of it as a coordinated trade for the Klang Valley: supply-only grating and covers when you just need the metalwork, full supply-and-install of channel and trench drains, custom fabrication for non-standard spans, and the drainage construction and clearing that surrounds them. Whether you run a car park, a factory floor, a warehouse loading bay, an F&B kitchen, a walkway or a strata compound, the job is the same in principle: move the water, carry the load, and keep the cover safe to walk and drive over.
A grating is one of those things nobody notices until it fails, and the ways it fails are all expensive. Get the material wrong and a cheap galvanised grating in a wet F&B kitchen rusts through in a year, staining the floor and shedding metal. Get the load class wrong and a pedestrian-rated cover dropped into a car-park entrance cracks the first time a lorry rolls over it — a genuine injury and liability risk, not just a repair bill. Get the drainage wrong and water ponds on the floor, floods a store during a downpour, or sits stagnant in a trap breeding smell, mosquitoes and pests. And a grating that rocks, lifts or has a gap wider than it should is a trip hazard your visitors and your own staff walk over every day. Specifying the right grating and drain for the setting is cheap; fixing the consequences of the wrong one — after a flood, a cracked cover or a slip — is not.
Most of the value in a drainage quote is matching the material to the environment, not shaving a few ringgit off the metal. The four common choices behave very differently:
| Material | Best for | Trade-offs |
|---|---|---|
| Galvanised mild steel | Walkways, back-of-house, general commercial channels | Affordable & strong; the zinc coating erodes over years in constant-wet or chemical areas |
| Stainless steel (e.g. grade 304/316) | F&B kitchens, wet rooms, hygiene & corrosion-critical areas | Corrosion-resistant and clean-looking; the priciest option per metre |
| Cast / ductile iron | Driveways, car-park entries, loading bays — vehicle loads | Very high load rating; heavy to lift and can surface-rust if the coating fails |
| FRP / fibreglass | Wash-down bays, chemical or coastal areas, non-slip walkways | Rust-proof, light and non-conductive; lower load range than iron |
A rule of thumb: galvanised for dry, general-traffic areas on a budget; stainless where water, food or hygiene are constant; cast or ductile iron wherever vehicles pass; and FRP where corrosion or slip is the main enemy. In an F&B setting the grating choice ties straight into your grease trap and kitchen drainage, where stainless and a good fall keep the whole run clean.
The single most important spec on a commercial grating is the load it is rated to carry. Gratings and covers are graded against recognised load standards, and the grade has to match the heaviest thing that will ever cross it — not the average. A cover is only as safe as its worst-case wheel load:
| Load class (general) | Typical setting | What it must carry |
|---|---|---|
| Pedestrian / light | Walkways, corridors, shopfronts, back-of-house | Foot traffic, trolleys, light carts |
| Light vehicle | Car-park bays, private driveways, forecourts | Cars, vans, the occasional light lorry |
| Medium / heavy | Loading bays, service yards, access ramps | Lorries, delivery trucks, sustained wheel loads |
| Heavy-duty / industrial | Factories, warehouses, forklift routes | Forklifts, plant and point loads — the highest rating |
The classic and dangerous mistake is buying a pretty, cheap grating for a spot where trucks or forklifts actually run. It looks fine on day one and cracks under the first heavy axle — sometimes with someone standing on it. When a car park, ramp or yard is involved, we specify to the vehicle, never to the price.

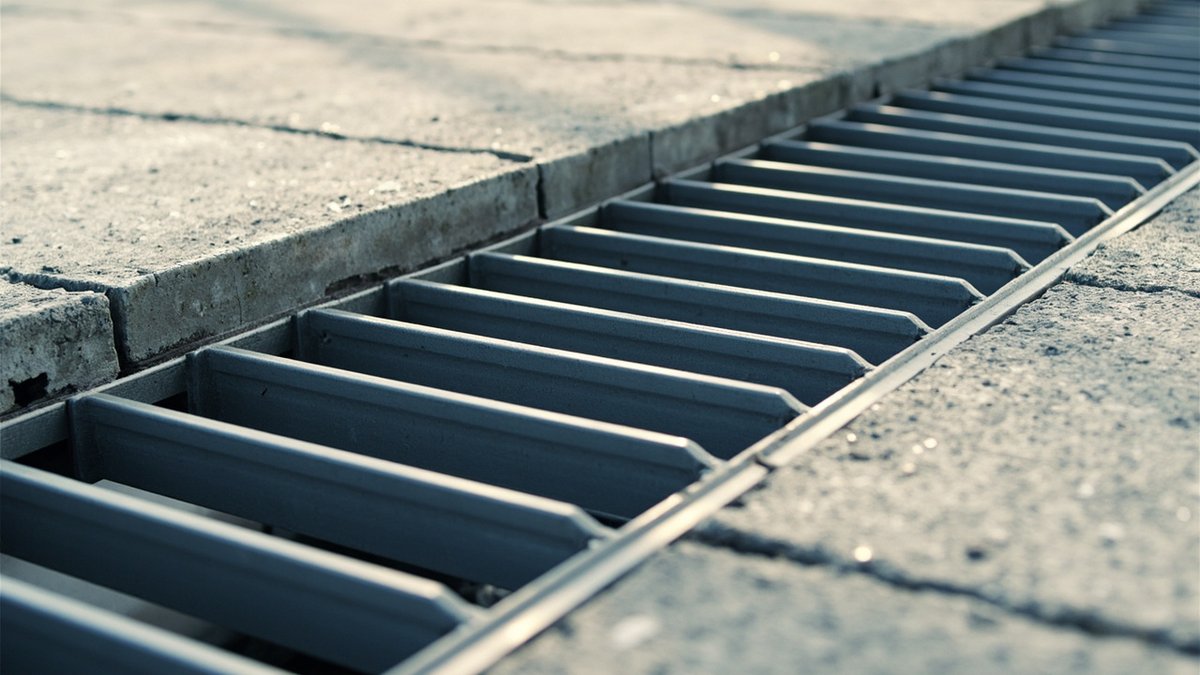

It helps to keep the parts straight, because people use the words loosely. A channel drain (or trench drain) is the long, narrow linear drain set into a floor or yard to catch surface water across a line — the standard solution for car-park aprons, wash bays, warehouse floors and F&B kitchens. Its grating is the removable top that lets you sweep, drive or walk across while water falls through the slots. A drain cover or manhole cover is the solid or slotted lid over an access point, gully or trap. Each comes in the four materials and the range of load classes above, in standard widths and depths — or custom-made where the opening or the load is non-standard. Getting the width, slot pattern and frame right is what stops a grating rocking, trapping heels, or letting debris straight through into the drain it is meant to protect.
Standard-size gratings and covers are cheaper, faster and easy to replace, and they suit most walkways, bays and channels — so we use them wherever they fit. But commercial sites throw up openings that no catalogue size covers: an odd-width trench, a heavy-duty span over a wide pit, a recessed “tray” cover you fill with matching tile so the lid disappears into the floor, or a bespoke frame to marry a new grating to an old drain. That is where fabrication earns its place — a grating cut, welded and load-rated to your actual drawing rather than forced to fit. Custom work is quoted per drawing because the span, the load class and the finish drive the cost. The honest guidance we give: take the standard size if it genuinely fits and carries the load; pay for fabrication only where the opening or the traffic really demands it.
Gratings sit on top of drains, and often the drain itself is the real job. ClickBina builds and repairs the surface drainage that keeps a commercial site dry: channel and trench drains cast into floors and yards; perimeter drains (the longkang) around a building that collect roof and ground water; monsoon drains and larger open channels sized for a Klang Valley downpour; and the gully traps and sumps that connect them. New drains are laid to a proper fall so water actually runs; existing ones are repaired, deepened, widened or re-graded where they have silted, cracked or been overwhelmed. This is straightforward for a landed commercial site; in a strata compound the shared drainage is common property, which folds into a wider building-maintenance plan rather than a one-off call. Where a blockage rather than the drain itself is the problem, our plumbing and drain-clearing service handles the clearing side.
Water that pools on a floor or apron instead of running to the drain is almost always a fall problem, not a grating problem. A drain and its channel have to slope steadily towards the outlet; if the floor was laid flat, has settled, or the drain invert is level or reversed, water sits and stagnates — the puddle by the car-park bay, the wet patch in the warehouse, the standing water in the kitchen that never quite dries. The fix is not a bigger grating; it is re-establishing the fall — screeding or re-levelling the surface towards the channel, or re-laying the drain invert so it runs. On an F&B or wash-down floor this matters doubly, because ponding water plus grease is a slip hazard and a smell source. We diagnose whether you have a fall problem, a blockage or an undersized drain before quoting, because the three have very different fixes and only one of them is “buy a new grating.”
A drain only works if it is clear, and commercial drains silt up fast — leaves and sand in a perimeter longkang, grease in a kitchen channel, cement wash during nearby renovation, general debris in a car-park trench. Left alone, a silted drain overflows in the next storm and floods exactly the area it was built to protect. Regular desilting and clearing — lifting the gratings, removing the silt and grease, flushing the run and checking the traps — keeps drainage doing its job, and it is far cheaper than a flood clean-up. For sites with a heavy kitchen, clearing the drain works hand in hand with servicing the grease trap so grease never reaches the channel in the first place. For a managed building or a portfolio, we schedule this into a routine maintenance plan rather than waiting for the first overflow to remind everyone the drains exist.
A drainage install that lasts is about the bits you cannot see once it is finished. A correct supply-and-install sets the channel to a true fall towards the outlet; beds and haunches it in concrete so it does not shift under load; sets the frame flush and level with the surrounding floor so the grating sits without rocking and there is no lip to trip on or catch a wheel; matches the grating’s load class to the real traffic; and leaves the run accessible so gratings lift out for cleaning. Cheap installs skip the concrete haunching, set the frame proud or low, or drop in an under-rated grating to save a few ringgit — and every one of those shows up within months as a rocking cover, a ponding puddle or a cracked grating. We treat it as civil work with a load spec and a fall, not a lid dropped over a trench, and we would rather quote it right than come back to redo it.
Drainage and grating span a wide band because “grating” runs from a light walkway cover to a heavy-duty industrial channel. These are indicative Klang Valley figures so you can sense-check a quote (market estimate 2026, indicative Klang Valley):
| Item / work | Indicative price | Notes & unit |
|---|---|---|
| Galvanised steel grating — supply | RM60 – RM220 per metre | Light foot traffic, walkways, back-of-house |
| Stainless-steel grating — supply | RM250 – RM750 per metre | F&B kitchens, wet & corrosion-critical areas |
| Cast / ductile-iron grating or cover — supply | RM150 – RM650 per piece | Driveways, car-park entries, vehicle loads |
| FRP / fibreglass grating panel | RM18 – RM55 per sq ft | Wash-down, chemical or non-slip areas |
| Channel / trench drain — supply & install | RM150 – RM500 per metre | Depth, width, load class & grating chosen |
| Drain desilting / clearing | from RM300 per visit | Perimeter longkang, gully traps; long runs priced per metre |
| Custom grating fabrication | quoted per drawing | Non-standard spans, widths or heavy-duty loads |
Prices move with the material, the load class, the drain depth and site access — a heavy-duty channel across a busy loading bay is a different animal from a light grating on a back walkway. For a fit-out where kitchens, wet areas and floor drainage are part of the build, drainage is one line in the wider commercial fit-out cost, and we scope it alongside the rest.
Different settings need different drainage, and we work across all of them. Car parks and driveways need vehicle-rated channel drains and cast-iron covers that will not crack under a lorry at the entrance. Factories and warehouses need heavy-duty, forklift-rated gratings and trench drains that survive point loads and constant plant traffic. F&B kitchens and food premises need stainless channel drains with a clean fall, paired with a serviced grease trap, so wash-down water and grease clear without ponding or smell — a hygiene and pest issue as much as a drainage one. Walkways, shopfronts and back-of-house need safe, level, trip-free covers over the everyday channels. And strata / JMB compounds need their shared perimeter and monsoon drains kept clear and their common covers safe, as part of routine building maintenance. One team, matched to the traffic and the setting each time.
ClickBina supplies, installs and maintains commercial and industrial drainage across Kuala Lumpur and Selangor — gratings and covers in galvanised steel, stainless, cast iron and FRP; channel, trench, perimeter and monsoon drains laid to a proper fall; custom fabrication for non-standard spans; and the desilting and re-levelling that keep it all working. We specify to the load and the setting, not to the cheapest metal, and we treat drainage as civil work with a fall and a load rating rather than a lid over a trench. It is one coordinated trade, folding neatly into a wider building-maintenance plan or a fit-out where drainage is part of the build. Send us a photo of the channel, the opening or the ponding — and tell us the traffic that crosses it — and we reply on WhatsApp within the hour with the right spec, or plan the budget first with our free cost tools.
