Outdoor unit running but no cold air? Before anyone condemns your compressor, here is how to tell a real compressor fault from the cheaper problems that mimic it — and when repair beats replacement.

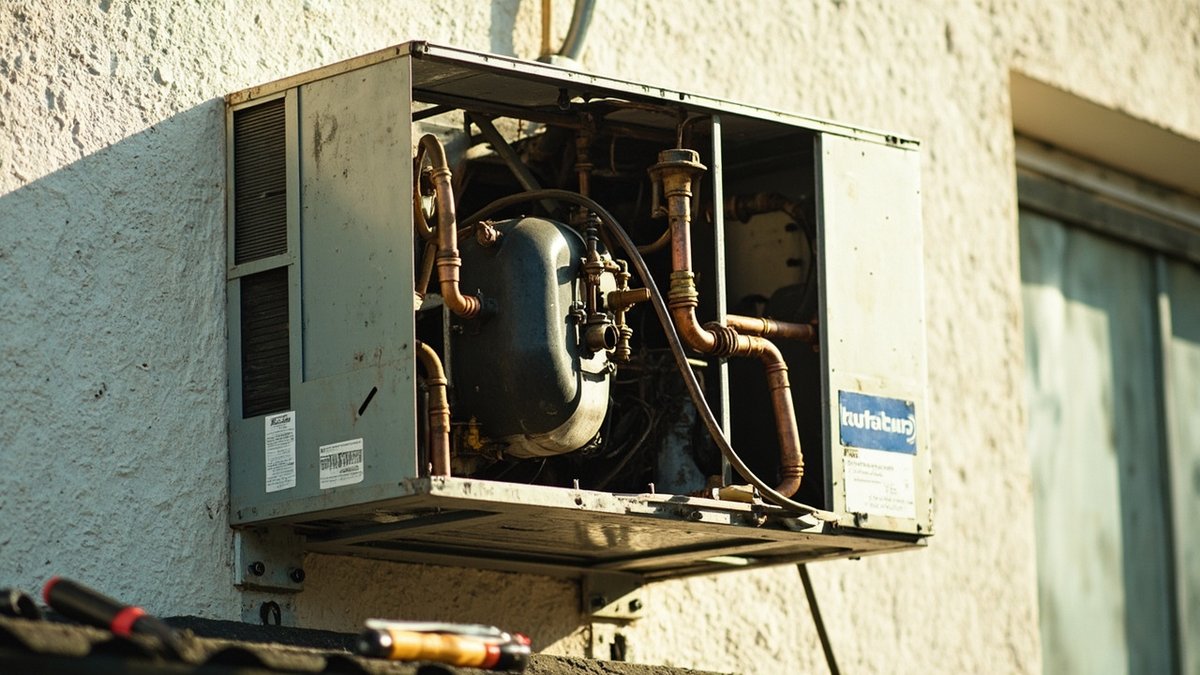

The compressor is the heart of your air conditioner — the motor-driven pump housed in the outdoor unit (the box on the wall outside or on the roof). Its job is to squeeze the refrigerant gas, pushing it round the sealed loop between the outdoor and indoor coils so heat is carried out of your room and dumped outside. When the compressor stops pumping, everything else can look fine — the fan turns, the remote beeps, the light is on — but no cold air comes out, because the one part that moves the heat has failed. It is also the single most expensive component in the system, which is exactly why it is the part unscrupulous technicians most like to blame, and the part you most want a straight diagnosis on before spending. Before you accept “the compressor is gone,” it pays to know what a real compressor fault looks like versus the cheaper problems that mimic it.
A compressor rarely dies silently. The usual warnings are the outdoor unit running but the room never getting cold; the compressor kicking in for a few minutes then cutting out on its overload protector; a loud humming or buzzing from the outdoor unit that does not settle into a normal running note; visibly more vibration or a metallic rattle from inside the outdoor box; the outdoor unit becoming very hot to stand beside; and, in the electrical cases, the breaker tripping the moment the aircon tries to start. One symptom on its own is not proof — “not cold” has a dozen causes, most of them cheaper — but the pattern of an outdoor unit that runs hot, hums hard and refuses to cool is the classic compressor picture. If your unit is simply blowing weak or warm air with no drama outside, the odds are strongly on a dirty coil or low gas, not the compressor at all — which is the next section.
This is the section the “just replace the whole unit” crowd skips, and it is where most of the overcharging lives. Several small, inexpensive faults produce almost exactly the symptoms of a failed compressor:
An honest technician rules these out first, with a clamp meter and a gauge, before ever quoting the big number. If someone declares “compressor rosak” in thirty seconds without testing the capacitor or the gas, be very wary.
When the compressor genuinely has failed, it is usually because of something that was avoidable. The big killers are electrical stress (a chronically weak capacitor, voltage spikes, or repeated hard starts) that eventually burns the motor windings out; running low on refrigerant for a long time, which starves the compressor of the gas that also cools and lubricates it, so it overheats; a blocked or filthy outdoor coil that traps heat and cooks the unit; poor airflow from a fan fault; and simple old age on a unit that has run daily for a decade. Notice how many of these trace straight back to neglected maintenance — a dirty coil, an un-serviced unit, a small gas leak left unfixed. A compressor that burns out at year four was almost always let down long before by something small and cheap that no one caught.
Match the symptom to the likely cause and you avoid paying compressor money for a capacitor problem:
| What you see | Likely cause | The right first step |
|---|---|---|
| Outdoor unit runs, room never cools | Low gas, dirty coil, or compressor not pumping | Gauge & coil check before anything drastic |
| Loud hum, then it stops — won’t start | Failed start/run capacitor (cheap) | Test & swap the capacitor first |
| Breaker trips the second it starts | Electrical fault, capacitor, or seized compressor | Electrical diagnosis, not a straight replace |
| Outdoor fan not spinning, unit very hot | Fan motor or its capacitor | Motor/capacitor repair |
| Cuts out after a few minutes, runs hot | Overheating — low gas, dirty coil, overload | Full diagnosis before condemning it |
| Loud metallic rattle from the compressor | Internal mechanical wear | Usually a genuine replace-or-renew call |
Only the last row — and a confirmed burnt motor winding — is truly a “the compressor is gone” verdict. Everything above it has a cheaper answer that a proper test will find.
Here is the decision that actually saves you money. A compressor is expensive enough that, on an older unit, replacing it can cost nearly what a brand-new aircon would — and the new unit comes with a fresh warranty and better efficiency. So the sensible call depends on the unit’s age, warranty status and what really failed:
| Situation | Usually the better choice | Why |
|---|---|---|
| Unit under ~5 years, compressor still under warranty | Repair (warranty claim) | The part is covered — you pay only labour & gas |
| It was never the compressor (capacitor / fan / gas) | Repair | A cheap fix was mis-sold as a dead compressor |
| Unit ~8+ years, compressor genuinely burnt out | Replace the whole unit | Compressor cost approaches a new unit; efficiency gain |
| Second compressor failure on the same unit | Replace the unit | An underlying fault keeps killing compressors |
If your unit is old and you are weighing a new one, it is worth reading up on inverter vs non-inverter aircon before you buy — the running-cost difference over the next decade usually outweighs the price gap. We would rather tell you a ten-year-old unit is not worth a new compressor than take the repair fee and watch it fail again next year.
Because “compressor problem” so often turns out to be a cheaper part, the real cost spans a wide band — which is exactly why an honest diagnosis first matters (market estimate 2026, indicative Klang Valley):
| Job | Indicative price | Notes |
|---|---|---|
| Diagnosis / call-out | RM80 – RM150 | Some waive it against the repair |
| Start/run capacitor replacement | RM120 – RM280 | The commonest “fake compressor” fix |
| Outdoor fan motor | RM250 – RM600 | Part & labour; varies by model |
| Compressor replacement (part + labour + regas) | RM900 – RM2,000 | 1.0–2.0HP; often near a new unit’s price |
| Replace the whole split unit (supply + install) | from RM1,500 | Frequently the better value on an old unit |
These are guide ranges, not a quote — horsepower, brand, part availability and whether the coil needs work all move the figure. What should never happen is a big compressor number quoted before the cheap faults have been ruled out with a meter and a gauge.
This is one of the most misdiagnosed complaints we get, so it earns its own section. A breaker that trips the instant the aircon starts is often not a dead compressor — it is frequently a failing capacitor drawing a huge inrush current, a short in the compressor or wiring, or an electrical-supply issue at the distribution board. Chasing it with a new compressor when the fault is a RM-hundred capacitor or a tired circuit is money thrown away. The correct order is: test the capacitor and the compressor’s electrical resistance, check the contactor and wiring, and confirm the circuit itself is healthy. If the aircon reliably trips the main and the wiring or board is the real weak point, that is an electrical job — see our house rewiring cost guide for how ageing circuits and undersized wiring are diagnosed and priced. Aircon and electrics overlap here, and the honest fix starts with finding out which one is actually at fault.
Modern inverter units and older fixed-speed (non-inverter) units fail differently, and the repair path is not the same. A conventional compressor is simpler: it is either running or not, and the common faults are the capacitor, the windings and mechanical wear. An inverter compressor is driven by a control board (PCB) that varies its speed — which is more efficient day to day, but adds an electronic failure point: an inverter unit that stops cooling may have a faulty PCB or inverter module rather than a bad compressor, and diagnosing that needs someone who understands the electronics, not just a gauge. It is also why a cheap outfit will sometimes wrongly condemn an inverter compressor when the board is the real culprit. If you are choosing your next unit and weighing that repair complexity against the running-cost savings, our inverter vs non-inverter guide lays out the trade-off in full.
Two things protect you on a big repair. First, check the warranty before you pay for a compressor — most manufacturers give the compressor a longer warranty than the rest of the unit (commonly several years), so a unit that is only a few years old may be entitled to a free replacement part, with you paying only the labour and gas. A technician who quotes a full compressor price without checking the warranty is not looking after you. Second, insist on a genuine, correctly matched compressor and a proper vacuum-and-regas afterwards; a mismatched or reconditioned part fitted without evacuating the system properly is a repair that fails again fast. Get the model, the part and the warranty position in writing before the work starts. This is the same honest-paperwork principle that runs through our whole aircon repair service.
Most compressor deaths are earned slowly and are largely preventable. Keep the outdoor coil clean and unobstructed so it can shed heat; service the unit on schedule and get a proper chemical wash when it is due, so a choked coil is never cooking the compressor; fix any refrigerant leak the moment cooling drops off rather than nursing a low unit for months; and replace a weak capacitor early, before its strain burns out the motor. If the breaker starts tripping or the outdoor unit runs unusually hot or loud, treat it as an early warning and get it checked while the fix is still cheap. A little maintenance is far cheaper than the most expensive part in the system — and it is the difference between a compressor that lasts a decade and one that burns out in year four.
