Concealed Aircon Piping
Planning Pre-Piping During a Renovation (2026)

What concealed (pre-piped) aircon piping is

Every split aircon joins its indoor and outdoor units with a bundle: two insulated copper refrigerant lines, a condensate drain hose and a control cable. In a normal install that bundle runs on the wall surface in PVC trunking. In a concealed install it is chased into the wall, laid in the ceiling void or boxed behind a false wall, so nothing shows except the unit itself.

“Pre-piping” is the same idea done in advance: the pipes and drain are laid during the renovation, capped and tested, and the aircon units are hung later, sometimes weeks after the painters have finished.

Concealed, trunking or ceiling void: how they compare

The installation guide sums it up: exposed piping in neat trunking is cheaper, faster and easier to service; concealed piping looks cleanest and is usually done during a renovation before tiling and painting.

When to decide: the renovation timeline

Concealed piping only works if it is decided before the walls are finished. In a typical renovation the order is:

1. Choose the unit positions and the outdoor unit location for each room.
2. Mark the pipe and drain routes on the drawings, including where the drain will discharge.

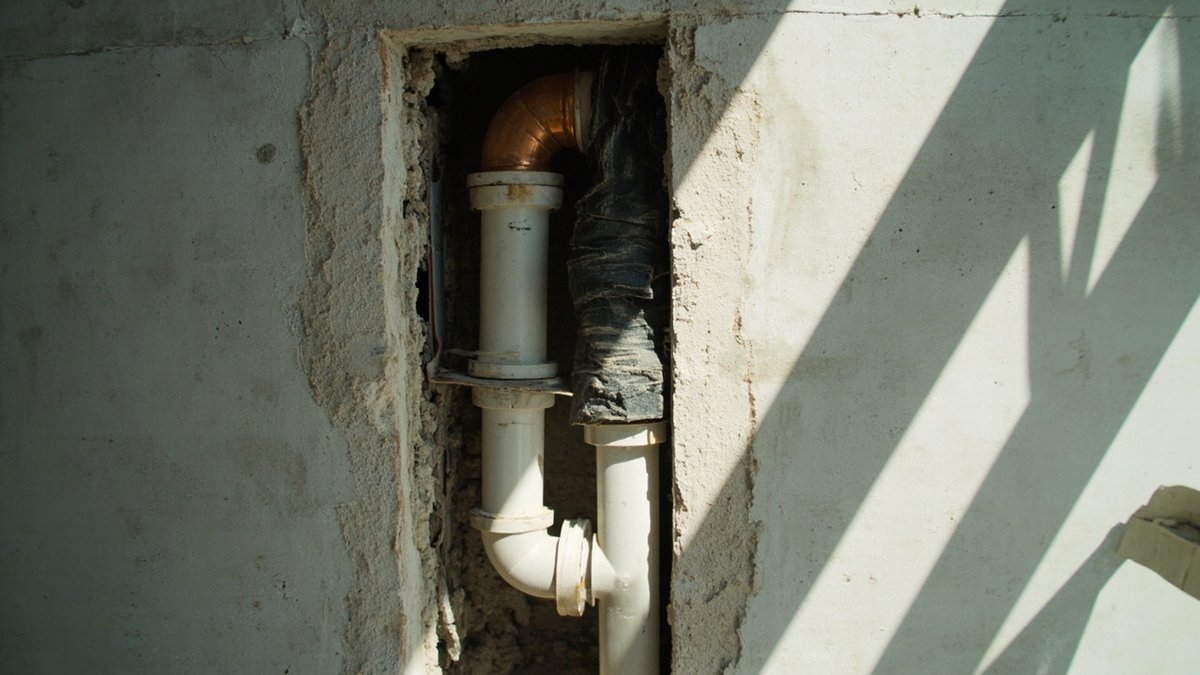

3. Chase or route the pipes and drain, insulate them and seal every wall penetration.
4. Pressure-test the copper lines and check the drain flows, then cap the ends.
5. Close up: plaster, ceiling boards, tiling and paint.
6. Hang the indoor and outdoor units, connect, vacuum and commission.

If the aircon contractor only arrives after the painters, it is too late to conceal anything without hacking finished work.

Planning the route

• Shortest sensible run: every extra length adds copper cost and a little efficiency loss.
• Avoid structural members: do not chase across beams, columns or a slab edge; go round or through the ceiling void instead.
• Keep away from water and power: do not bury the aircon bundle in the same chase as water pipes or run it against a DB board.
• Outdoor unit position first: the ledge or bracket decides where the pipes must exit the wall.
• Condo rules: the facade, the ledge and core drilling through external walls are often controlled by the management.

Our aircon ledge and outdoor unit placement guide explains why the outdoor position matters for cooling and noise as well as for the route.

The condensate drain: the part that fails most

Refrigerant lines rarely cause trouble inside a wall if they are joined and tested properly. The drain is another matter. The indoor unit produces water every hour it runs, and that water must fall continuously to where it is discharged, with no dips, flat sections or kinks. A drain buried with a sag holds water, grows slime, blocks, and ends up dripping from the indoor unit or leaking inside the wall.

• Plan a continuous fall from the unit to the outlet; if that is impossible, plan a condensate pump from the start.
• Use a rigid drain pipe in the wall rather than a flexible hose that can flatten under plaster.
• Discharge to a proper point: a floor trap, a drain or an external downpipe, not onto a neighbour's wall.
• Leave a cleaning point where the drain leaves the unit.

Our aircon leaking water guide explains why a blocked drain is the most common reason an indoor unit drips.

Insulation and wall penetrations

The suction line runs cold. If its foam insulation is cut short, torn, or badly taped at a joint, the pipe sweats inside the wall and leaves a damp patch that looks like a plumbing leak. Both copper lines should be insulated for their full length, joints wrapped, and the insulation protected where it passes through brick. Where the bundle leaves an external wall, the hole should fall towards the outside and be sealed, so rain runs out rather than into the room.

Testing before the wall is closed

Once the wall is plastered and tiled, a leaking flare or a crushed drain is expensive to reach. Before closing up, ask for:

• A pressure test of the copper lines, held long enough to show no drop, and the result written down.
• A water test of the drain from the unit position to the outlet, to show it flows freely.
• Pipe ends capped until the units are hung, so dust and moisture stay out.
• At commissioning, vacuuming the pipework before the gas is released, as ClickBina's installation guide describes.

Access points and records

Plan where a fault could be reached: a ceiling access panel near joints, a removable box-up panel, or a short exposed section at the outdoor end. Keep a marked-up drawing of every route with the pipe positions measured from a wall corner or floor level, so no one drills into a pipe when fixing a shelf or a TV bracket later.

Common problems with concealed piping

A proper diagnosis comes before any hacking. ClickBina's aircon repair guide lists an aircon diagnostic at RM120–RM400, and a separate leak detection visit is RM300 – RM800 where water inside a wall may not be from the aircon at all.

What concealed piping costs

Concealed piping is priced on top of the standard installation. These are the published lines on ClickBina's installation guide (market estimate 2026, Klang Valley):

Doing it during a renovation is cheaper than later, because the chasing and making good are part of work that is happening anyway. Our aircon installation cost guide prices the units and the standard install.

How ClickBina can help

If you are renovating, the aircon routes are best planned together with the plaster, ceiling, tiling and painting. ClickBina is an experienced KL & Selangor contractor that handles whole-house refurbishment and trade coordination; aircon piping itself is quoted case by case. WhatsApp us your job details for a quote: the rooms, the unit and outdoor positions, and where you are in the renovation. We reply within the hour, the price we agree is a flat price with no hidden charges, and a site visit is RM150, waived if you go ahead.

Sources & methodology

• ClickBina aircon installation cost guide — concealed vs exposed piping, vacuuming the pipework, and the hacking, copper, trunking and concealed-unit prices.
• ClickBina aircon wall penetration and leaking water guides — drain fall, insulation cut short at the wall face and hole fall.
• ClickBina aircon repair guide — diagnostic price; porch seepage guide — leak detection price; convenience store fit-out guide — site visit wording.

How we estimated prices: every RM figure on this page is quoted unchanged from the ClickBina guides named above. They are indicative Klang Valley ranges for 2026, not fixed rates.
