Pressure-Reducing Valve (PRV)
High Mains Pressure and High-Rise Zones (2026)

What a pressure-reducing valve does

A PRV is a spring-loaded valve with a diaphragm inside. Water arriving at high pressure pushes against the diaphragm, and the spring lets through only enough flow to hold the pressure downstream at a set level. When you open a tap it opens further; when everything is shut it closes. Most household PRVs can be adjusted with a screw on top, many have a port or a built-in gauge, and some include a strainer to keep grit out of the mechanism.

A PRV does not add pressure. If your problem is weak water at the top of the house, you need the opposite: a pump. Our booster pump guide covers low pressure.

Where high pressure happens in Malaysian homes

• Direct mains supply: a ground-floor tap or kitchen fed straight from the mains, rather than via a roof tank, sees whatever the mains delivers, which can be strong and changes through the day.
• High-rise pressure zones: tall buildings are split into zones so that pumped water does not arrive at the lowest floors of each zone at excessive pressure; the lowest units in a zone see the most.
• After a booster pump: a pump set too high, or a pressure switch that has drifted, can push more pressure than the fittings like.
• New developments on strong mains: homes near the supply main can see higher pressure than homes at the end of the line.

Many landed homes that are fed through a roof tank see only the pressure of the tank's height, which is rarely too high. Our roof water tank guide explains how tank-fed supply works.

Signs the pressure is too high

Our burst pipe guide notes that water hammer, the bang when a tap or washing-machine valve slams shut, stresses joints over years. A heater relief valve that drips is a safety device doing its job and should be checked by a plumber, not blocked.

Measure before you buy

Pressure is easy to measure. A plumber fits a pressure gauge to an outdoor tap or a test point, with all other taps closed, and ideally checks it at different times of day, because mains pressure often rises at night when demand falls. Compare the reading with the maximum working pressure printed on your fittings, hoses, water heater and appliances; their makers state it on the label or in the manual. If the reading sits well within those limits, a PRV is unlikely to solve your problem, and the cause is elsewhere.

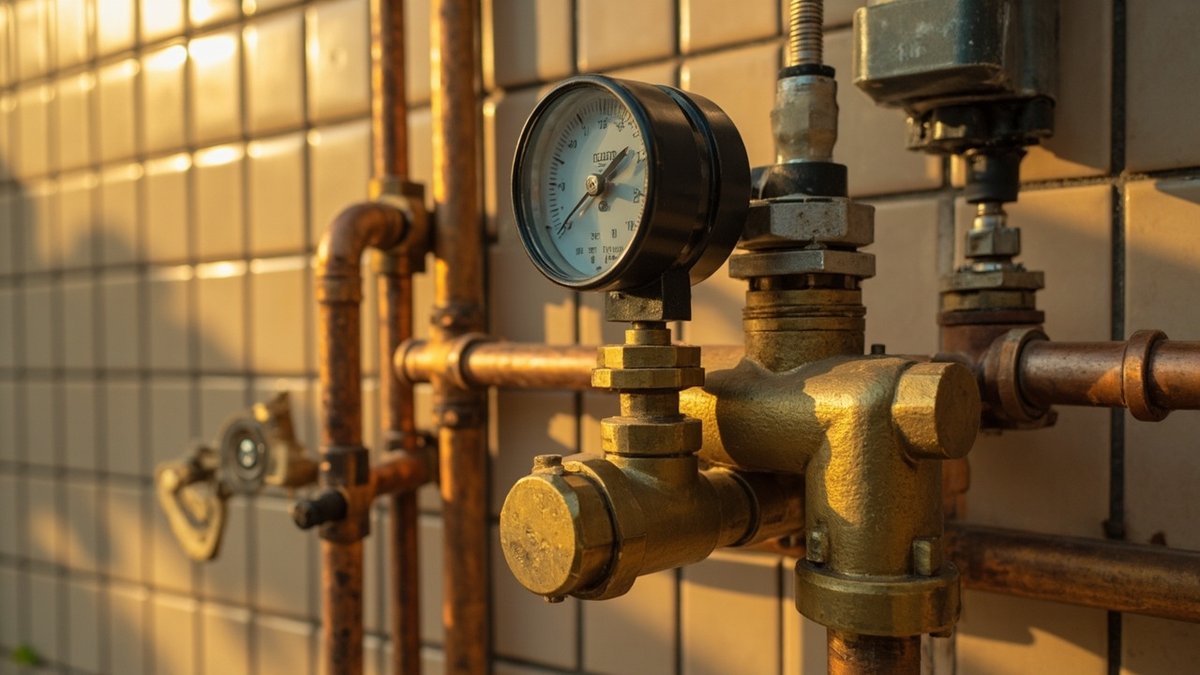

Where the valve goes

1. On the incoming supply, after the main valve and water meter, before the pipe branches to the house.
2. With an isolation valve on each side, so the PRV can be serviced without draining the whole system.
3. Where it can be reached, read and adjusted; not buried in a wall or under a slab.
4. With a strainer before it if the water carries sediment.
5. Set to a pressure that suits the most sensitive item in the house, then checked with a gauge.

In some homes only one branch needs protection, such as the line to a water heater or an outdoor tap used for washing, and a smaller PRV on that branch is enough.

Condos and high-rise buildings

In a high-rise, the risers, the zone pressure-reducing stations and the pump sets are usually common property run by the management. If several units on the same floors have banging pipes or bursting hoses, report it to the management, because the zone PRV or the pump controls may need attention. Our condo water pump guide explains how building supply systems work. A PRV inside your own unit, after your meter, is usually yours to fit, but ask the management before any work that needs the riser shut.

Other fixes for banging and bursting

• Water hammer arrestors: small cushions fitted near quick-closing valves, such as washing machines, absorb the shock when water stops suddenly.
• Pipe clips: loose pipes that rattle against walls or ceilings make hammer sound worse.
• Better hoses: replace old or cheap flexible hoses under sinks and toilets.
• Pump settings: if a booster pump feeds the house, its pressure setting may simply be too high.

Flexible hoses are a common failure point on their own; our angle valve and flexible hose guide covers them.

Looking after a PRV

A PRV is a mechanical valve with a spring and a diaphragm, so it wears. Check the downstream pressure with the gauge once or twice a year; if it creeps up over time, the seat or diaphragm may be failing and the valve may be passing full pressure. Clean the strainer if there is one. A hissing, chattering or humming valve also needs attention. Replacing the cartridge or the whole valve is usually a small job if isolation valves were fitted either side.

What it costs

The valve itself is priced by size and brand, so a PRV installation is quoted. These are the related published ranges on ClickBina guides (indicative 2026, Klang Valley):

If joints are weeping inside walls, a hidden leak may already have started; ClickBina leak detection is a separate paid visit at RM300 – RM800.

How ClickBina can help

Pressure problems are quoted case by case. WhatsApp us your job details for a quote: landed or condo, which floor, whether you have a roof tank or a booster pump, and what you notice (banging, spitting taps, burst hoses, a dripping heater valve). We reply within the hour, the price we agree is a flat price with no hidden charges, and a site visit is RM150, waived if you go ahead.

Sources & methodology

• ClickBina plumbing services guide — minor repair price.
• ClickBina burst pipe guide — water hammer stresses joints; burst repair and emergency prices.
• ClickBina angle valve and flexible hose guide — hose replacement price; pressure surges stress hoses.
• ClickBina booster pump guide — pump price for low-pressure homes.
• ClickBina porch seepage guide — leak detection price; convenience store fit-out guide — site visit wording.

How we estimated prices: every RM figure on this page is quoted unchanged from the ClickBina guides named above. They are indicative Klang Valley market ranges for 2026, not fixed rates. No pressure figure is given, because the right setting depends on the maker's rating for your fittings.
