Adding a New Water Point at Home
Routes, Drains & Cost (2026)

Why owners add a water point

Developers put taps where the standard layout needs them: the kitchen sink, the bathrooms and the yard. Life rarely matches the standard layout. Owners add water points for a wudhu corner, a balcony or yard tap for washing, a second sink in a wet kitchen, a kitchen island, a water filter, a fridge with an ice maker, a utility sink in a store room, or a tap at the car porch.

Most of these are simple if there is a pipe close by. They become bigger jobs when the new tap is far from any existing pipe, when the water also has to drain away, or when the new spot sits on a dry floor upstairs. This guide walks through those decisions so you can describe the job clearly and judge a quote.

Where the water comes from: mains line or tank line

Most Malaysian houses use an indirect system. The kitchen sink tap is usually fed straight from the mains, while bathrooms, showers, toilets and the water heater are fed from the roof tank. A new tap is teed off one of these two lines, and the choice matters.

For a tap you drink from, or a water filter, ask for the mains line. For washing, the tank line is normal. ClickBina's roof water tank guide explains the indirect system in more detail.

Surface pipe or concealed pipe

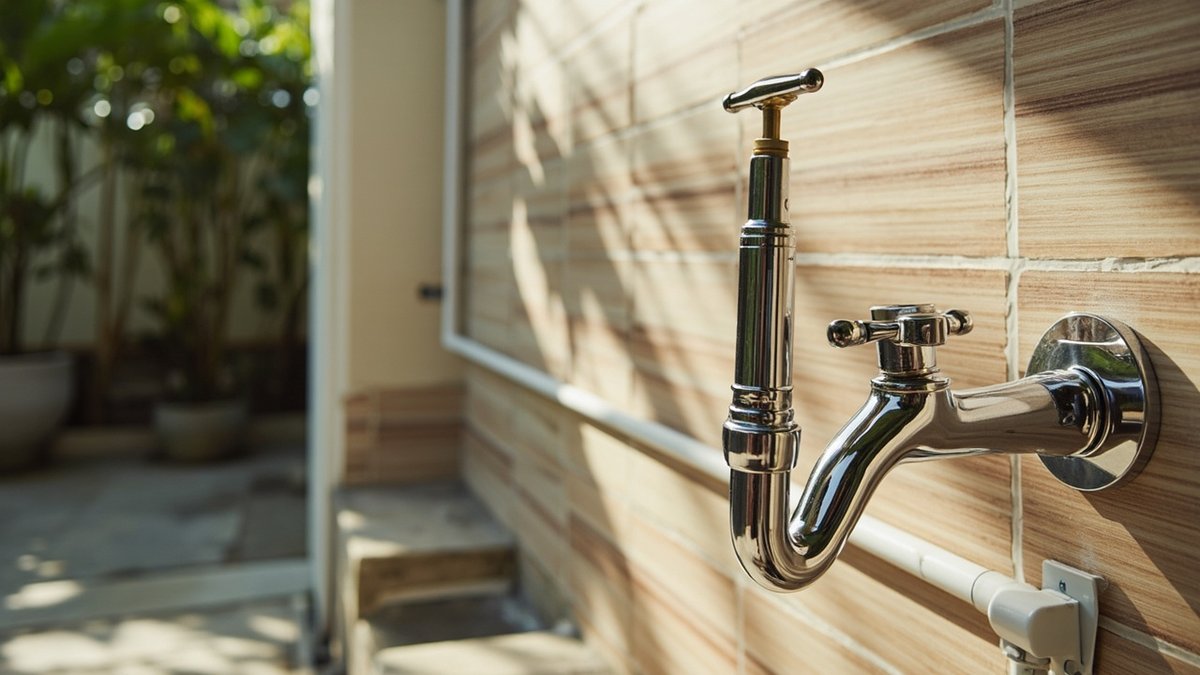

A surface-mounted pipe is clipped along the wall. It is quicker, cheaper and easy to reach for repairs, which is why it suits yards, store rooms, porches and the back of cabinets. A concealed pipe is chased into the wall, then plastered and tiled or painted over. It looks cleaner but the wall is cut, and any joint inside it is hard to reach later.

Chasing a wall makes dust and noise, and the patch needs plastering and repainting or retiling. ClickBina's wall chasing guide covers how chases are cut and patched. In a finished room, a neat surface run hidden behind a cabinet is often the sensible middle way.

Pipe material and joints

New domestic runs are commonly PPR, with heat-fused joints, or a material that matches the existing pipe. The transition from old pipe to new is the most likely leak point, so it should be made with the right fitting, not improvised. ClickBina's water pipe material guide compares the common pipe types, and the PPR joint guide explains why fusion joints fail and how they are pressure-tested before a wall is closed.

Does the new tap need a drain?

This is the question that most changes the price. A tap that fills a bucket or a filter jug may need no drain at all. A tap over a sink needs a waste pipe that falls to the drains, with a trap to stop smells. A tap used on the floor, such as a wudhu point or a yard washing tap, needs a floor that falls to a floor trap.

• No drain: filter taps, a fridge or ice-maker line, a tap over an existing floor trap.
• Sink waste: a new basin or sink; the waste must reach an existing drain with a proper fall.
• Floor trap: any tap where water lands on the floor; the floor must be waterproofed and fall to the trap.

ClickBina's washing machine point guide walks through the same water-in, water-out logic for a washer.

Wet floor or dry floor

A new tap in a yard, a wet kitchen or a bathroom sits on a floor that is already waterproofed and already falls to a trap. A new tap on a dry floor, such as a bedroom corner, a dry kitchen or an upstairs corridor, is different: if anything leaks or overflows, the water has nowhere to go.

For a tap used on the floor in a dry area, plan a small waterproofed wet corner with its own trap, the way a wudhu corner is usually built. For a tap over a sink in a dry area, the sink and its waste do the job, but put the stop valve where it can be reached.

Adding hot water to the new point

Hot water needs a second pipe from a heater. If the new point is next to a bathroom with a storage heater, a hot branch may be possible. Otherwise, the usual answer is a small point-of-use heater at the new tap, which needs its own electrical point. ClickBina's water heater installation guide covers wiring and installation costs.

Condos and upper floors

In a condo, the pipes inside the unit are usually the owner's, but the risers, the slab and the common drains are not. Hacking into the slab or tying into a shared stack needs the management's approval, and most buildings set rules for wet works. ClickBina's strata renovation rules guide explains the usual conditions.

Upstairs in a landed house, a leak from a new point runs into the ceiling below, so the joints, the stop valve and any wet-floor detailing matter more than downstairs.

What a new water point costs

These are ClickBina's published ranges (indicative 2026, Klang Valley). The total depends on the distance to the nearest pipe and drain, and on whether a wall or floor has to be opened.

A point-of-use heater adds the heater and its wiring; ClickBina's plumbing guide lists water heater installation from RM200 labour, with the unit extra. The closer the new tap is to an existing pipe and drain, the smaller the job.

What to send on WhatsApp for a quote

• Your area and whether the home is a condo, apartment or landed house.
• Where the new tap should go, and which room or wall is nearest to an existing tap.
• What the tap is for: drinking, washing, a sink, a filter, wudhu or the car porch.
• Whether the water needs to drain away, and whether the floor there is wet or dry.
• Whether you want the pipe concealed in the wall or a neat surface run.
• Whether hot water is needed at the new point.

How ClickBina can help

WhatsApp us your job details for a quote. ClickBina is an experienced KL & Selangor contractor for whole-house refurbishment and trade coordination, so a new water point can be planned together with the kitchen, yard or prayer-corner work around it. We reply within the hour, the price we agree is a flat price with no hidden charges, and a renovation site visit is free, and a repair inspection is RM180, deducted from the bill if you go ahead.
