The clean look of a wall-hung toilet depends on what is hidden behind the wall. Here is what to plan before tiling.

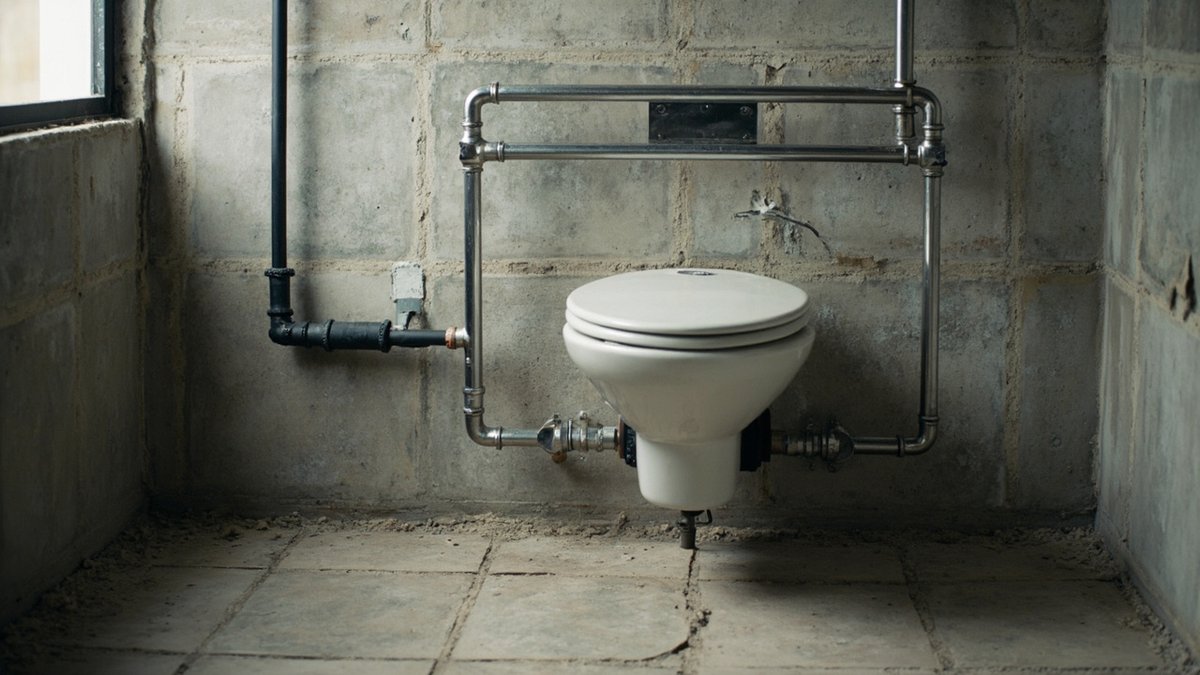

A wall-hung toilet hangs on a steel frame hidden inside a false wall, with the cistern in the frame and only the flush plate showing. Getting it right depends on three things decided before tiling: a frame fixed to a structure that can carry it, a drain and water supply lined up inside the frame, and a way to service the cistern through the flush-plate opening with spares available locally. ClickBina's toilet guide puts supply and install of a new WC at RM350 – RM1,200, noting that concealed cisterns cost more (indicative 2026, Klang Valley).
ClickBina's toilet bowl types guide describes the basic idea: the bowl has no foot on the floor, it is bolted to a steel frame fixed to the structure, and the cistern sits inside that frame behind a false wall. The floor underneath is clear, which makes mopping easy and a small bathroom look bigger.
Everything that matters is hidden once the wall is tiled: the frame, its fixings, the cistern, the water connection and the drain. That is why the planning happens before any tile goes up, not on the day the bowl arrives. Changing your mind after tiling means breaking tiles.
| Part | What it does | What to check |
|---|---|---|
| Steel frame | Carries the bowl and the person using it, and holds the cistern | Fixed to a wall or floor that can carry the load |
| Concealed cistern | Stores the flush water inside the frame | Which parts come out through the flush-plate opening |
| Flush plate | The buttons, and the service hatch for the cistern | Matches the cistern model; spares sold locally |
| Drain bend and connector | Joins the bowl to the drain | Lines up with the existing drain, or the drain must move |
| Water supply and isolating valve | Feeds the cistern | An isolating valve reachable from the flush-plate opening |
| False wall | Encloses the frame and carries the tiles | Built with boards suited to a wet area, and waterproofed |
The frame is the most important part. Frames are either fixed back to a solid wall, or stand on the floor and are fixed to it, for places where the wall behind is weak. A frame bolted only into a lightweight partition, a hollow block wall or a thin plaster skin is the classic failure: over time the bowl sags or moves when someone sits down.
Most Malaysian bathrooms were built for floor-standing toilets. The toilet guide explains the difference between a floor outlet and a wall outlet, and that most older terraces and many condos have floor outlets. A wall-hung frame has its own drain bend that must meet the existing drain. If it cannot, the drain has to move, and the guide puts core-drilling to relocate a toilet drain at RM2,000 – RM5,000 extra. In a condo that also needs management approval, because the drain passes through the slab into the unit below.
Plan the water supply at the same time: the cistern feed, an isolating valve inside the frame, and a separate point for a bidet spray if you want one. If you plan a smart seat, it needs a power point, which should be designed in, not added later. Mark every pipe and cable route on a sketch before the false wall is closed.
ClickBina's bathroom renovation step-by-step guide shows where this fits into the full bathroom sequence: plumbing rough-in, screed, waterproofing, tiling, then fit-out.
The toilet guide gives the key warning: before choosing a wall-hung toilet, ask how the concealed cistern is serviced, which parts come out through the flush-plate opening, and whether spares for that frame are sold in Malaysia. A frame without local spares turns a small repair into hacking tiles.
ClickBina's toilet repair guide notes that concealed and wall-hung cisterns sit at the top of the price bands for repairs, because the working parts are reached through the flush-plate opening rather than by lifting a lid.
| Symptom | Likely cause | What to do |
|---|---|---|
| Bowl moves or sags | Frame not fixed to a solid structure, or fixings loosened | Stop using it; the frame fixing must be checked |
| Cistern keeps running | Worn fill or flush valve | Service through the flush-plate opening |
| Water on the floor under the bowl | Leak at the bowl connector or drain bend | Check the connector seals |
| Damp on the false wall or ceiling below | Leak inside the frame, at the supply or drain | Isolate the water and find the leak before it spreads |
| Buttons stiff or not flushing | Flush plate linkage out of adjustment | Adjust or replace the plate |
These are ClickBina's published ranges (indicative 2026, Klang Valley). A wall-hung toilet in a bathroom renovation is priced with the false wall, waterproofing and tiling around it.
| Item | Indicative price | Source guide |
|---|---|---|
| Supply and install a new WC (concealed cisterns cost more) | RM350 – RM1,200 | Toilet bowl types guide |
| Toto or Kohler rimless model (item only) | RM1,500 – RM3,500 | Toilet bowl types guide |
| Moving the toilet drain (core-drilling) | RM2,000 – RM5,000 extra | Toilet bowl types guide |
| Replace flush valve or fill valve | RM120 – RM350 | Toilet repair guide |
| Leak detection visit, if a hidden leak is suspected | RM300 – RM800 | Popped floor tiles guide (separate service) |
WhatsApp us your job details for a quote — we reply within the hour.
💬 WhatsApp for a quoteWhatsApp us your job details for a quote: whether this is part of a bathroom renovation, where the current toilet drains, and which frame or bowl you have in mind. ClickBina is an experienced KL & Selangor contractor for whole-house refurbishment and trade coordination. We reply within the hour, and the price we agree is a flat price with no hidden charges. A site visit is RM150, waived if you go ahead.
How we estimated prices: every RM figure on this page is quoted unchanged from the ClickBina guides named above; they are indicative Klang Valley ranges for 2026.
