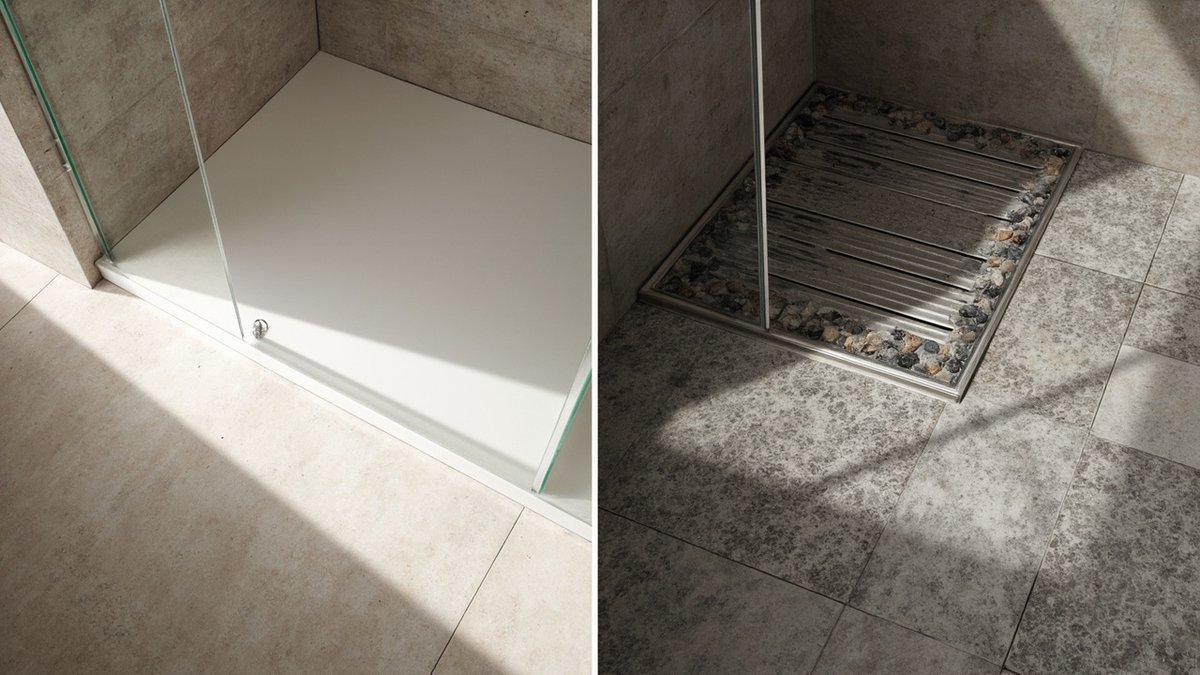

Two ways to build a shower floor

Every shower floor has the same three jobs: slope water to the drain, keep it out of the slab, and stay safe underfoot when wet. A shower tray does those jobs in one moulded piece that arrives finished. A tiled floor does them in layers built on site by different hands: the screed, the waterproofing, the drain and the tiles.

Most Malaysian homes, condos and landed alike, have tiled shower floors, often with a small kerb or step to hold water in. Trays are more common in hotels, serviced apartments and in renovations where a standard shower cubicle is being fitted. Neither is better in every bathroom; the right one depends on the shape of the space, the drain position and how the floor will be cleaned.

How a shower tray works

A tray is a shallow base with the slope moulded in and a waste outlet at a fixed point. The common types are acrylic, often reinforced underneath; stone resin, which is heavier and more rigid; and glazed ceramic. Low-profile trays sit close to the floor, while raised trays stand on legs or a plinth to leave room for the waste pipe.

• Bedding: the tray must be fully supported on a level bed, usually mortar or the maker's support system. A tray that rests on a few points flexes when stood on, which cracks it or breaks the seal at the walls.
• Waste: the outlet position is fixed by the tray, so the drain pipe must be brought to that point.
• Wall joint: the tiles finish down onto the tray edge or its upstand, and the joint is sealed with silicone. That joint is the tray's weak point and needs resealing over the years.

How a tiled shower floor works

A tiled floor is built up in layers. The screed is laid to falls so that water runs to the floor trap or linear drain. The waterproofing membrane goes over the screed, up the walls of the shower and tightly around the drain. After a ponding test proves the membrane, the tiles are laid and grouted.

ClickBina's bathroom renovation order of works shows where each layer sits in the programme. The drain choice matters too: the floor trap vs linear drain guide explains how a linear drain lets the floor slope one way, which suits large tiles and level walk-in showers.

Shower tray vs tiled floor at a glance

Where each one leaks

A tray itself rarely leaks; its body is a single moulding. Tray leaks are almost always at the edges: the silicone joint between tray and wall tiles fails, the tray flexes because it was not fully bedded and tears that joint, or the waste connection under the tray was not made tight. Because the area under a tray is hidden, a slow leak can soak the floor for months. Good practice keeps a membrane on the floor and up the walls behind a tray as well.

A tiled floor leaks where the membrane is broken or never sealed: at the drain, at the wall corners and at pipe penetrations. Cracked grout lets water under the tiles, and if the membrane below is sound it stays a nuisance rather than a leak. ClickBina's shower floor leak guide covers how those leaks are traced and fixed.

Sizes, steps and walk-in showers

Trays come in standard rectangles, squares and quadrants. If the shower space is an odd size, the tray will either leave a gap to be filled or need the walls adjusted, and a cut-to-size tray is not possible with every material. A tiled floor simply follows the room.

Trays also usually leave a small step, because the tray and its waste need depth. A step-free tray needs to be recessed into the floor, which means hacking into the screed. If a level, walk-in shower is the goal, a tiled floor with a linear drain is usually simpler; the walk-in shower guide covers removing an existing kerb.

Grip underfoot and cleaning

Grip matters more in a shower than anywhere else in the house. Many trays have a textured or anti-slip finish; a smooth glossy tray can be slippery with soap. On a tiled floor, the tile surface and the number of grout lines give grip: small mosaic tiles on a shower floor feel more secure underfoot than large smooth tiles. ClickBina's anti-slip tile guide explains the R ratings printed on tile boxes.

Cleaning is where trays win. There is no grout on the floor to hold soap scum and mould, just one surface to wipe. A tiled floor needs its grout cleaned and, in wet areas, sealed or replaced with epoxy grout over time.

Changing from one to the other in a renovation

Replacing a tiled shower floor with a tray, or the reverse, normally means hacking out the shower floor, checking the drain pipe, and rebuilding the waterproofing. A tray does not remove the need for a sound floor and membrane underneath; it changes the top layer. In a condo, check the management's renovation rules before hacking, and keep the ponding test in the programme whichever finish you choose.

If the shower is being created where a bathtub used to be, the drain position is usually where the tub waste was, which can decide the tray position or the floor falls.

What the shower floor work costs

ClickBina's published bathroom ranges below cover the layers either option sits on (indicative 2026, Klang Valley). Shower tray prices vary by material and size and are not on ClickBina's published price lists, so they are quoted per job.

When the whole bathroom floor is being redone at the same time, the published hack, re-waterproof and re-tile range is RM4,500 – RM9,000 for a standard bathroom.

Which one to choose

What to send on WhatsApp for a quote

• Your area and whether it is a condo, apartment or landed house.
• The rough size of the shower space and where the drain is now.
• Whether you want a step-free shower or are happy with a small step.
• What is there now: tiled floor, bathtub or an old tray.
• Whether the rest of the bathroom is being renovated at the same time.

How ClickBina can help

ClickBina is an experienced KL & Selangor contractor for bathroom renovation and whole-house refurbishment, and a shower floor brings together hacking, plumbing, screed, waterproofing and tiling or tray fitting in the right order. WhatsApp us your job details for a quote. We reply within the hour, the price we agree is a flat price with no hidden charges, and a site visit is free.

Sources & methodology

• ClickBina bathroom re-tiling cost guide — hacking, screed, membrane, tiling and tile prices.
• ClickBina walk-in shower guide — glass panel price and kerb removal.
• ClickBina floor trap vs linear drain, anti-slip tile and shower floor leak guides — drains, grip and leaks.

How we estimated prices: every RM figure on this page is quoted unchanged from the ClickBina guides named above; they are indicative Klang Valley ranges for 2026. No shower tray price is given because none is published on those guides.
