Bathtub in a Malaysian Bathroom
Types, Installation, Waterproofing & Cost (2026)

Built-in vs freestanding: the two families

Every bathtub in a Malaysian home falls into one of two families, and the choice decides most of the building work that follows.

The built-in tub is the space-saver and the one most older condos and terraces were handed over with, often with a shower over it. The freestanding tub is the showpiece of a larger master bathroom, which is why ClickBina's area guides only price it for bungalow and semi-D master suites.

Bathtub design ideas: 12 concept designs

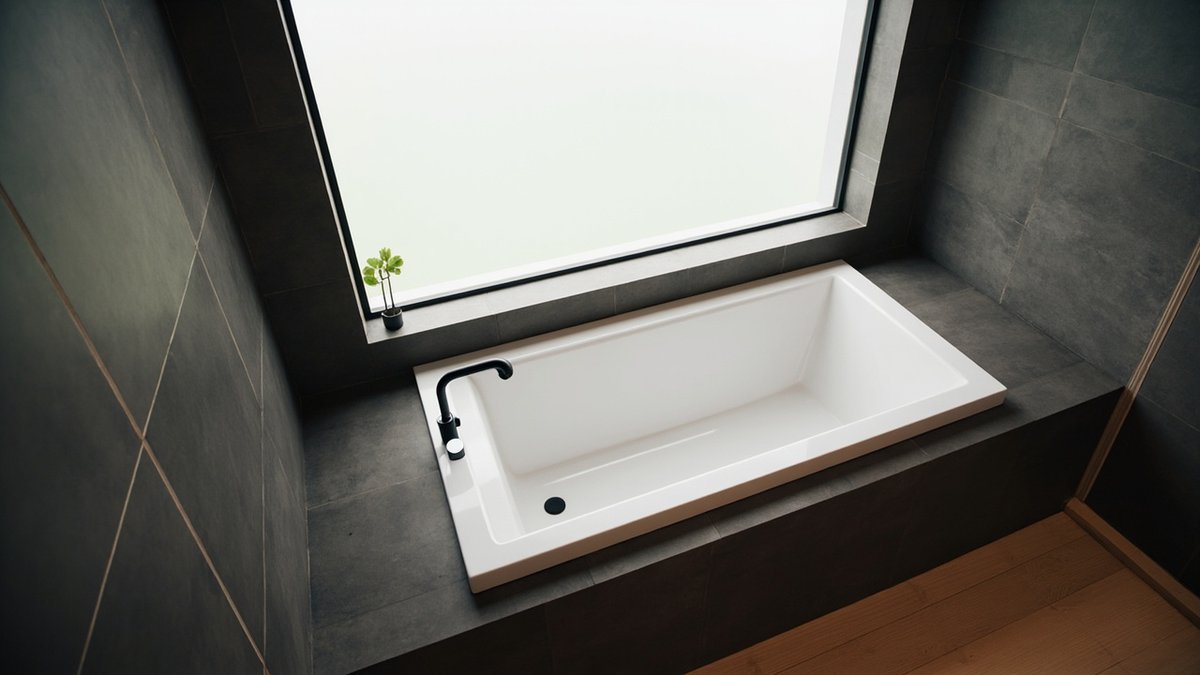

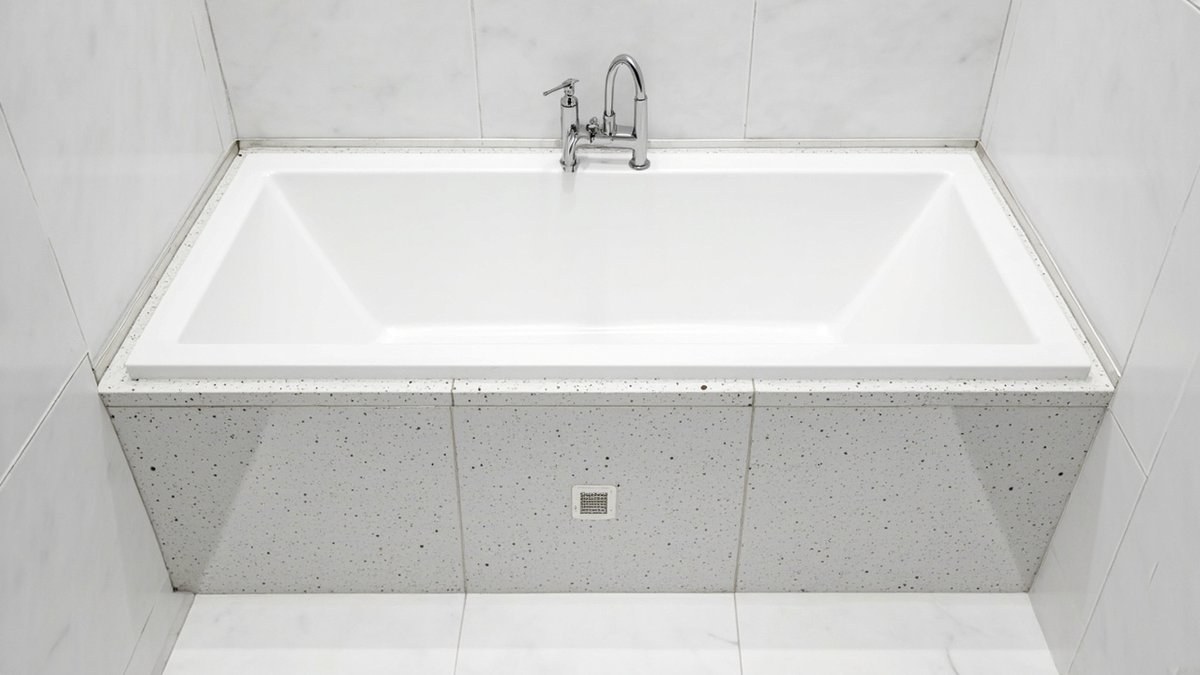

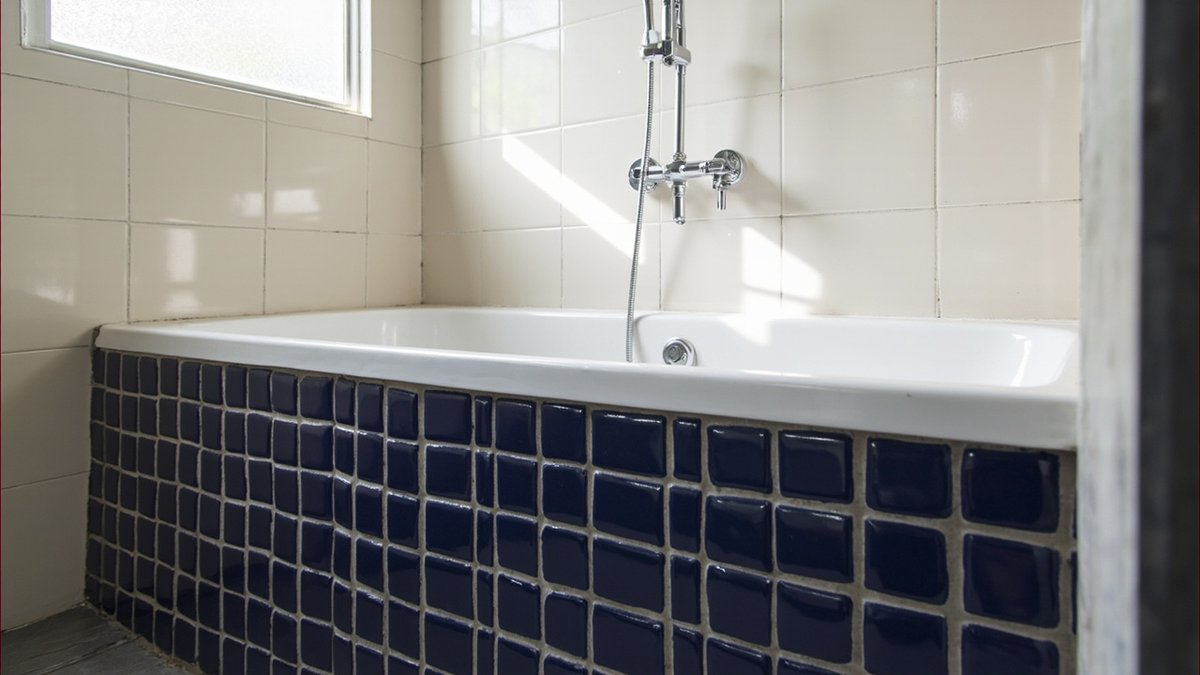

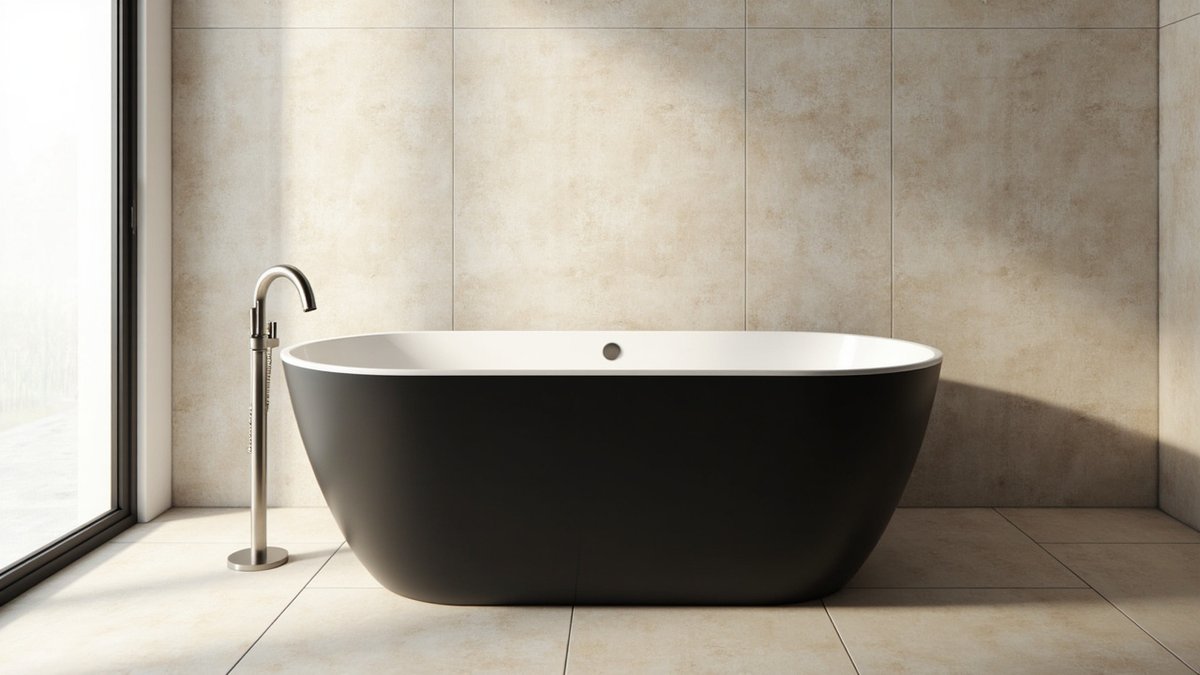

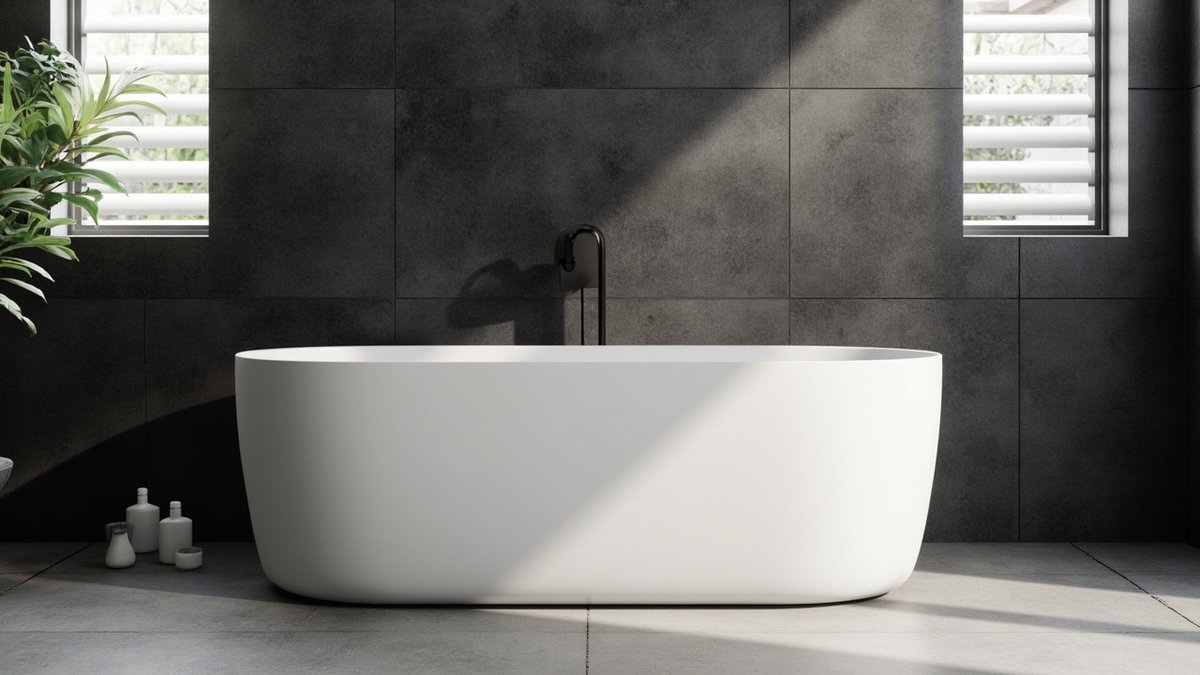

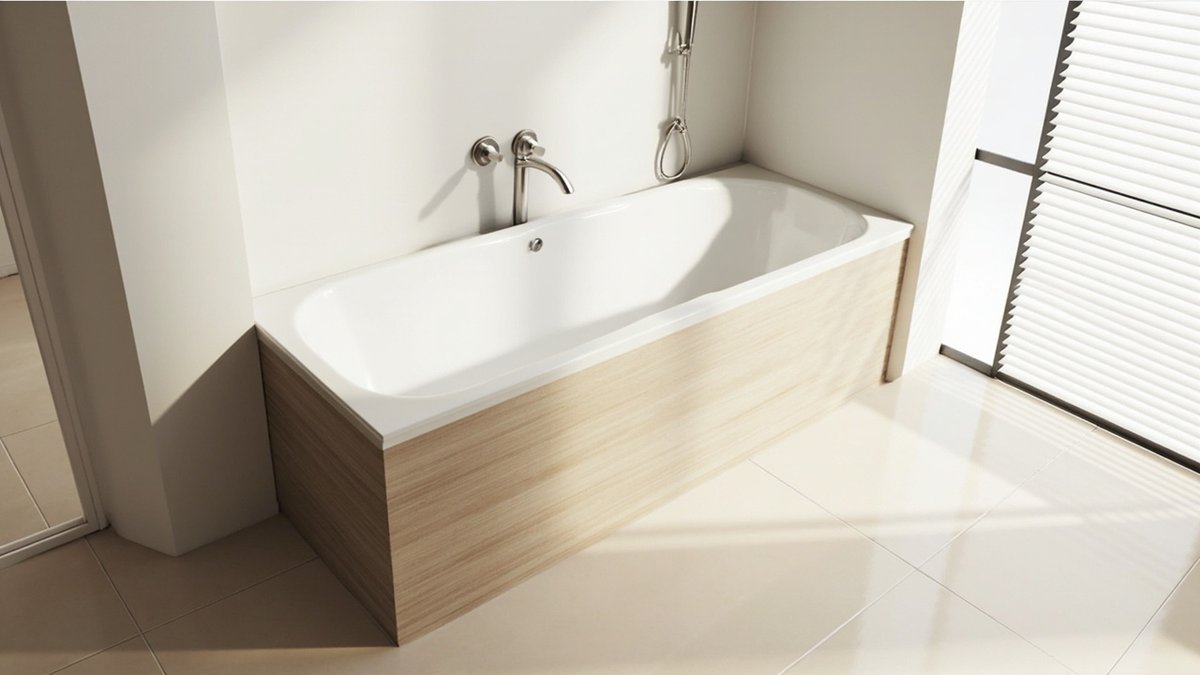

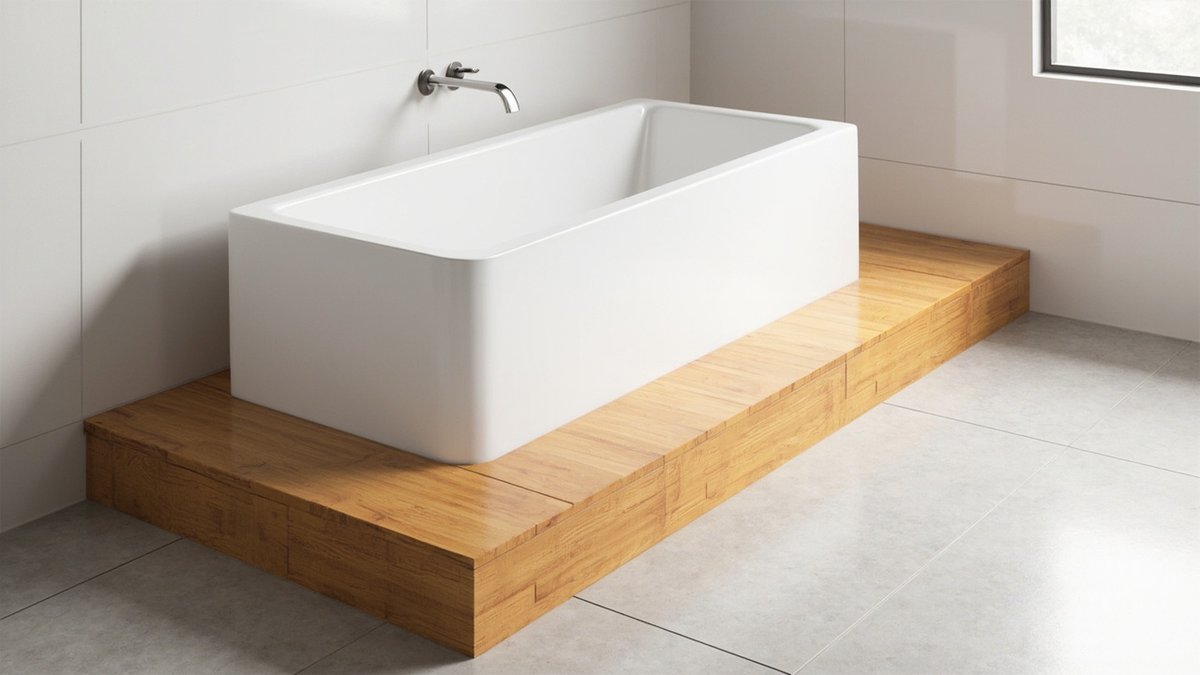

Twelve bathtub designs for Malaysian bathrooms: built-in alcove tubs, drop-in tubs on a tiled plinth and freestanding acrylic, stone resin and cast iron tubs, in condo, terrace, semi-D and bungalow bathrooms. Each card is an illustrative concept render; filter by type or by home, tap an image to enlarge it, and open the details for where it suits, the finish and what to watch.

StyleAllBuilt-inDrop-in on a plinthFreestanding

HomeAllCondoTerraceSemi-DBungalow

12 designs shown

These are illustrative concept designs created to show the options. They are not completed ClickBina projects. Prices shown are the supply-only figures for the tub alone from the cost table on this page; the waste, filler, waterproofing and tiling are priced separately, and cards without a price are quoted on the job. We supply and install bathtubs as part of our bathroom renovation work. WhatsApp us your job details (property type, the tub you like, and whether you are adding, replacing or removing one) for a quote.

More galleries: browse all design ideas by area of the house, from cabinets and kitchens to porches and grilles.

What tubs are made of

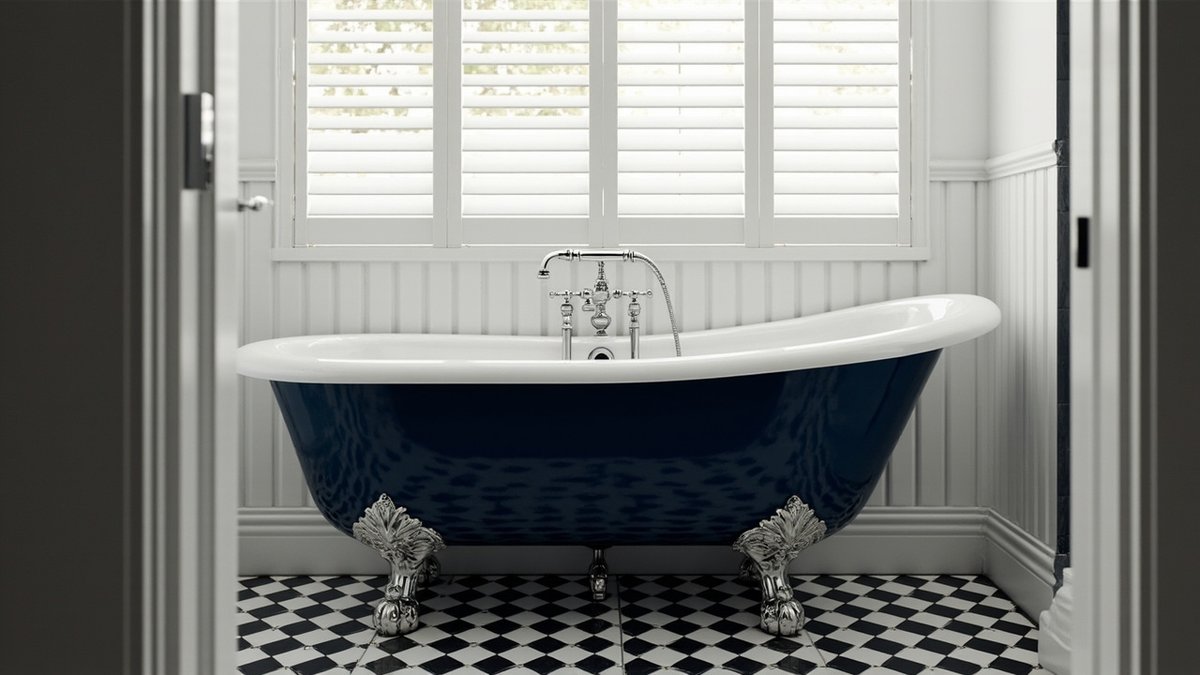

Most tubs sold here are acrylic: light, warm to the touch and easy to handle up a staircase or into a lift. Cast acrylic is the better grade and is what the Bangsar bathroom renovation guide describes as the most common freestanding specification. Stone resin (a cast mineral composite) looks and feels more solid, holds heat longer, and is much heavier. Enamelled steel and cast iron tubs still exist but are rare in Klang Valley homes because of their weight and the effort of getting them into a condo.

The Bangsar guide puts cast acrylic freestanding baths at RM3,000 – RM6,000 and stone resin models at RM8,000 – RM18,000+, and notes that stone resin needs a careful floor-loading assessment in older structures. Those are supply figures for the tub alone; the waste, filler, waterproofing and tiling around it are separate lines.

Do you have the room, and can the floor take it?

Before choosing a tub, check three things in the bathroom you actually have. First, the clear floor: a built-in tub needs a recess at least as long as the tub, and a freestanding one needs space around it or it will look squeezed and be impossible to clean behind. Second, the route in: a one-piece tub has to pass through the lift, the corridor, the staircase and the bathroom door. Third, the floor: a filled tub with a person in it is a heavy concentrated load.

The Shah Alam bathroom renovation guide is explicit that where a freestanding bathtub is planned, the floor structure must be assessed for load capacity and the waterproofing extended under the bath footprint. In a condo, the management may also want to know about a heavy tub and any change to the floor waste before you start.

Waterproofing under and around the tub

This is the part of a bathtub job that decides whether the ceiling below stays dry. The bathroom waterproofing guide explains why: a built-in tub creates a hidden wet zone that nobody can inspect, so the membrane must run across the full floor and up the walls before the tub is installed. Waterproofing added around an existing built-in tub is guesswork.

For a freestanding tub, the whole floor becomes the wetted zone, so a full-floor membrane with proper upstands does the work. Either way, ask for the ponding test to be written into the quote, so the membrane is proven before the screed and tiles cover it.

Taps, filler and the waste

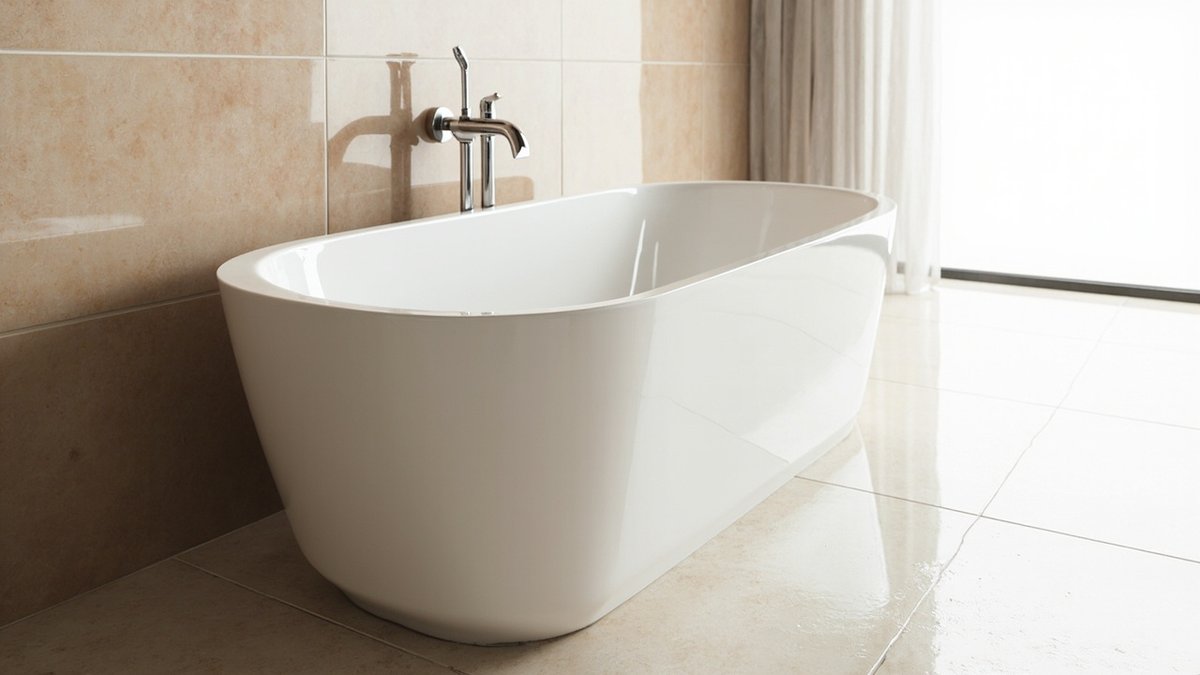

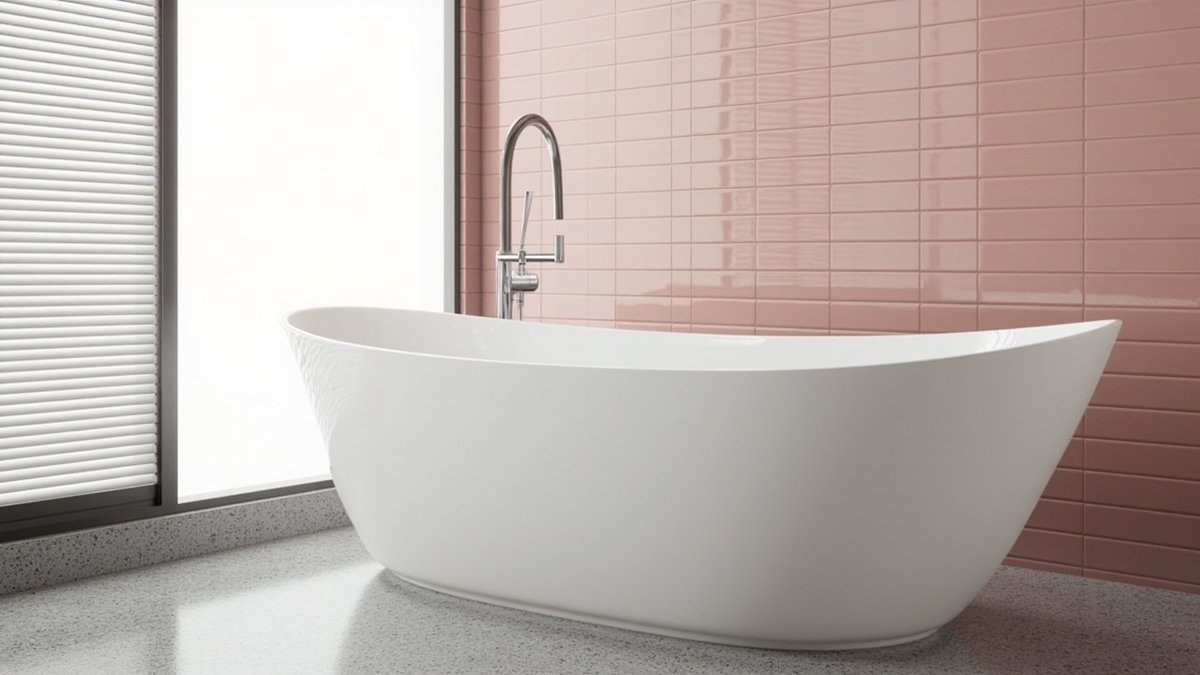

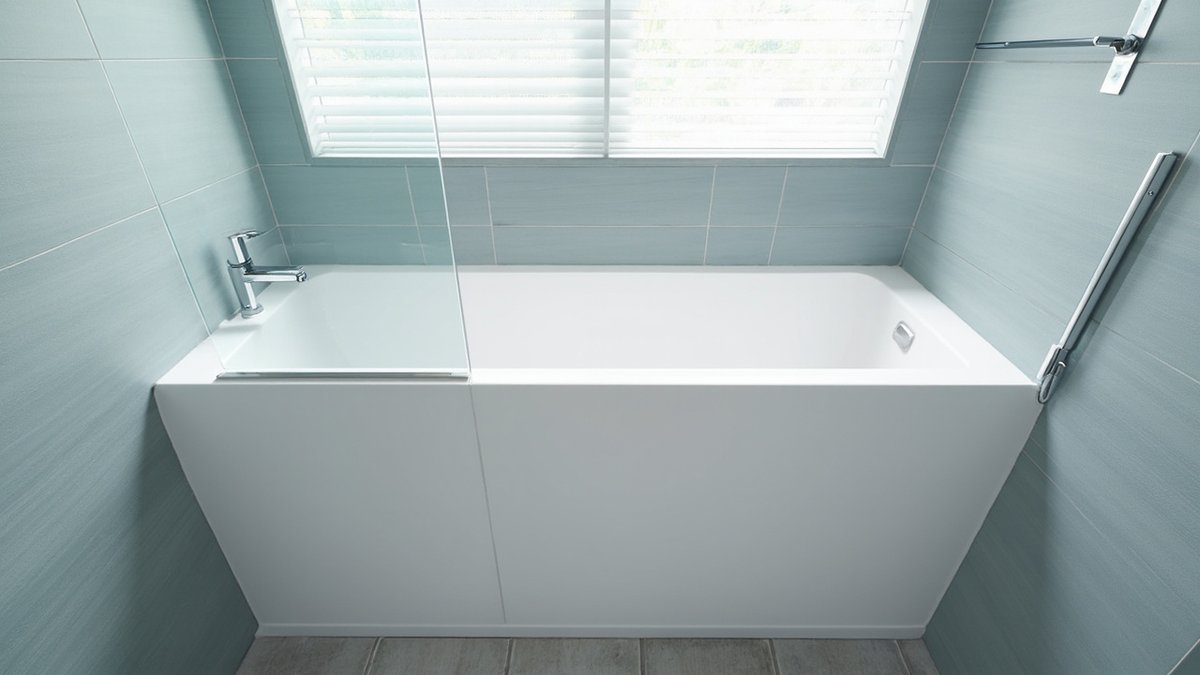

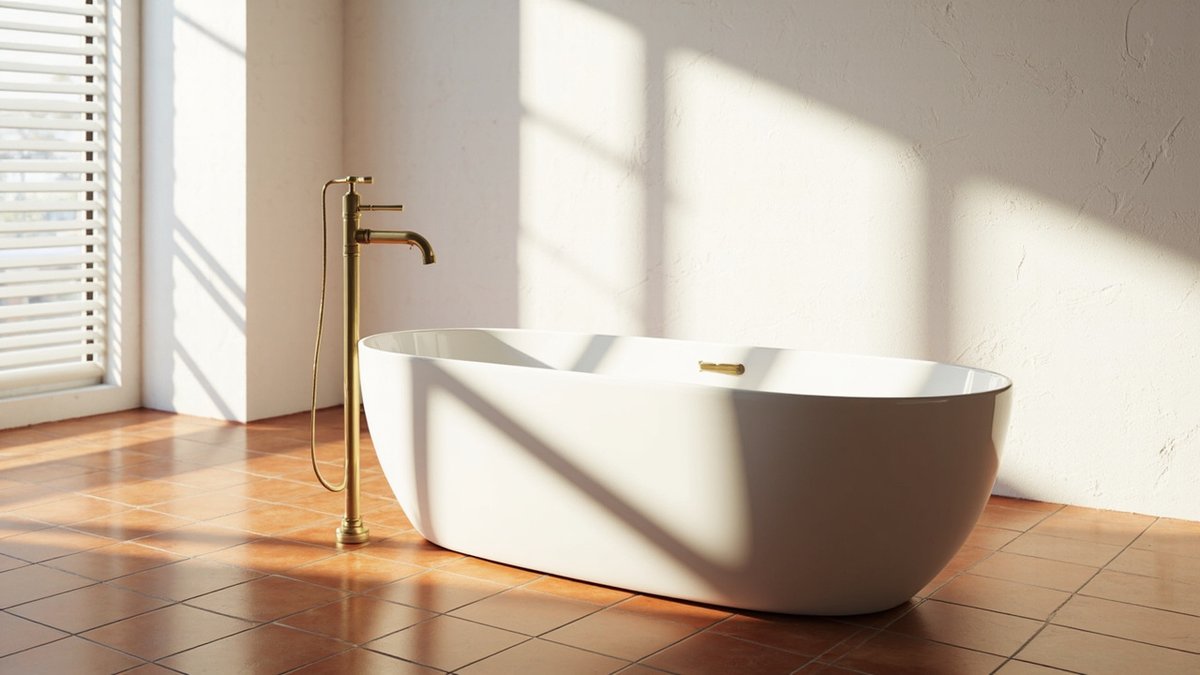

A built-in tub normally takes a wall-mounted spout with a mixer, often a bath-shower mixer with a diverter so the same valve feeds a hand shower. The shower mixer types guide explains exposed and concealed mixers and how the diverter works. A freestanding tub takes either a floor-standing filler, whose hot and cold pipes come up through the floor, or a wall-mounted spout if the tub sits against a wall.

Every tub needs its own waste with a trap, plus an overflow. The Bangsar guide notes that a freestanding bath requires a dedicated floor waste connection. Plan it at the same time as the membrane, because a waste that has to be moved later means breaking the new floor. A hot-water supply that already struggles to fill a rain shower will struggle to fill a tub, so check the heater before you buy.

Why tubs leak, and the small jobs that stop it

Most tub leaks start at the flexible joint where the rim meets the wall, and at the overflow and waste connections underneath. The waterproofing guide recommends resealing that rim-to-wall silicone every two to three years, and treating blackened, lifting silicone or hollow-sounding tiles around the tub as an early warning.

The silicone resealing guide publishes RM100 – RM250 for resealing a shower screen or bathtub perimeter. A dripping bath tap is the same job as any dripping mixer: a washer or cartridge, or a replacement tap.

Removing a bathtub for a walk-in shower

Many owners of older condos and terraces want the opposite: take out the built-in tub nobody uses and turn the space into a walk-in shower. It is one of the most common bathroom changes, and it is more than a demolition job.

1. Remove the tub and its apron, and cap or reroute the old tub waste.
2. Re-form the floor so it falls to a new floor drain inside the shower area.
3. Lay a new membrane across the old tub area, with upstands up the walls, and ponding-test it.
4. Re-tile the floor and the walls that were behind the tub, and fit the mixer and screen.

Because the floor and walls behind the old tub are opened, this is usually done as part of a bathroom renovation rather than on its own. The small bathroom layout guide covers how to split the new shower area into a wet and dry zone.

What a bathtub job costs

These are ClickBina's published indicative figures (2026, Klang Valley), each from the guide named beside it:

Whether the job is part of a full bathroom renovation matters more than the tub itself. The renovation services page explains how a whole bathroom is scoped, and the bathroom makeover guide shows what can change without breaking the floor.

Keep, add or remove? A quick decision table

How ClickBina can help

WhatsApp us your job details for a quote: whether you want to add, replace or remove a tub, the property type and the area. ClickBina is an experienced KL & Selangor contractor for whole-house refurbishment and trade coordination, so the demolition, waste, membrane, tiling, taps and screen are sequenced as one job. We reply within the hour, and the price agreed is a flat price with no hidden charges. A site visit is RM150, waived if you go ahead.

Sources & methodology

• ClickBina Bangsar bathroom renovation guide — freestanding bath prices, cast acrylic vs stone resin, floor waste.
• ClickBina Shah Alam bathroom renovation guide — floor load check and the extra waterproofing under a freestanding tub.
• ClickBina bathroom waterproofing guide — bathtub waterproofing, rim joint resealing, re-waterproofing cost.
• ClickBina silicone resealing and bathroom makeover guides — perimeter reseal and shower screen prices.

Methodology: prices are ClickBina indicative 2026 Klang Valley ranges from the guide named beside each; supply-only figures exclude installation unless stated.
