What the body, seal and grating do, how the main floor trap types compare, and which one suits each spot in the house.
📍 We serve KL, Selangor & Putrajaya.
Floor trap types in Malaysia differ in three parts: the body (usually PVC or another plastic cast into the slab), the seal that stops smells (a water seal, a mechanical flap or float, or a rubber insert), and the grating on top (plated metal, stainless steel or plastic). A PVC floor trap with a stainless grating is the everyday choice; top access traps let you lift out the trap insert from above to clear it; anti-odour and anti-cockroach inserts help rarely used drains; tile insert gratings hide the drain in the floor pattern. Changing only the cover is a small job (ClickBina's guides list a basic plumbing call-out or minor repair at RM80 – RM250); changing the body means hacking, re-waterproofing and retiling around it.
A floor trap looks like a grating in the tiles, but it is a small assembly. Knowing the parts makes every type easier to compare, because most products differ in only one of them.
Wikipedia's plumbing trap entry explains the principle: the trap keeps some water after each use, and that water forms an air seal that stops sewer gas passing back into the building. Every anti-smell feature you will see on a floor trap box is a way of keeping that seal, or replacing it when it dries out.
| Type | How it stops smell | Suits | Watch for |
|---|---|---|---|
| Standard PVC floor trap with plated grating | Water seal in the trap | Bathrooms and yards in everyday use | Thin plated gratings rust; the seal dries out if the drain is not used |
| PVC body with stainless steel grating | Water seal in the trap | Most bathrooms; the common upgrade | Grade and thickness of the steel |
| Top access floor trap | Removable trap insert, often with a rubber seal | Floors where you want to clear the trap from above | The insert must be lifted and cleaned now and then |
| Anti-odour (mechanical) trap or insert | Flap, float or spring valve closes when no water flows | Guest bathrooms, balconies, rarely used drains | Hair and soap can jam the mechanism |
| Anti-cockroach grating or insert | Small openings plus a closing flap | Drains where insects come up | Must still drain fast enough in a shower |
| Tile insert grating | Same as the trap below it | Floors where you want the drain to disappear | A tile piece must be cut to fit the tray |
Most of the choice is about the grating and the seal. The body is decided once, when the floor is built or rebuilt, so it is worth getting right during a bathroom renovation.
Most Malaysian homes have a PVC or other plastic floor trap body set into the slab under the tiles. Plastic does not rust, is light and is easy to join to the PVC waste pipe below. Wikipedia's floor drain entry notes that floor drains have gratings made of metal or plastic, and the body under a Malaysian bathroom grating is usually plastic for the same reasons.
A cheap PVC trap is not a bad trap. What fails first is usually the grating on top, or the joint between the body and the waterproofing membrane. If the body is sound, a new grating or insert can sit in it; the floor trap replacement guide explains when the body itself has to come out.

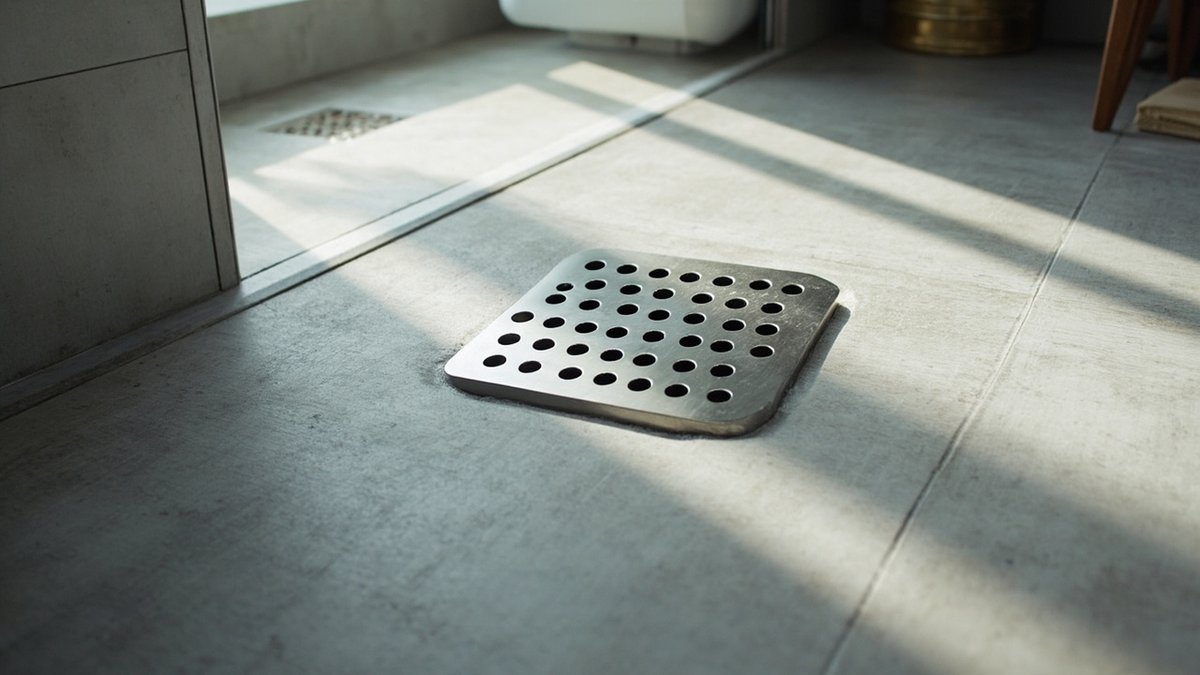

When people ask for a stainless steel floor trap they usually mean a stainless grating and collar on a plastic body. That is where the metal matters, because the grating is the part that sits in water, soap and cleaning chemicals every day.
A stainless grating does not change the seal underneath it. If the complaint is smell or insects, the grating alone will not cure it.
A top access floor trap is built so the trap insert can be lifted out from the bathroom floor. On an ordinary trap, a blockage deep in the bend has to be cleared through the grating opening or, in a condo, sometimes from the ceiling below. A top access design lets you take the insert out, clean it and put it back.
Brand names are examples, not a recommendation. The useful question for any top access trap is simple: can the insert be lifted out easily, and are spare inserts and seals sold for it?
A water seal works only while there is water in it. In a bathroom that is used every day, that is fine. In a guest bathroom, a balcony or a yard drain, the water evaporates and the smell and insects come up. Anti-odour floor traps solve that with a part that closes by itself when no water is flowing.
| Mechanism | How it works | Best for | Upkeep |
|---|---|---|---|
| Flap | A light flap opens under the weight of water and falls shut | Balconies, utility areas | Clean hair off the hinge |
| Float or ball | A float rises to close the opening when the trap is empty | Rarely used bathrooms | Rinse soap build-up |
| Spring valve | A spring holds the valve shut until water pushes it open | Drains with little flow | Can stick if neglected |
| Rubber seal insert | A soft seal closes the outlet between flows | Retrofitting an existing trap | Replace when the rubber hardens |
Anti-cockroach floor traps are usually the same idea with smaller grating openings. They help, but our guide to cockroaches from the floor trap also covers sealing gaps around the trap and baiting, because insects use more than one way in.
A tile insert floor trap has a tray instead of a slotted grating. A piece of the floor tile is cut and set into the tray, so the drain almost disappears and water enters through the narrow gap around the edge. Square slotted and patterned stainless gratings sit between the two: more visible, but they take water faster.
If the drain is the design feature of a walk-in shower, compare this with a linear drain; our floor trap vs linear drain guide sets out the trade-offs.
Wikipedia's floor drain entry notes that floor drains usually range from 2 to 12 inches, and most are 4 inches in diameter; they are usually round, but can also be square or rectangular. In practice the size that matters is the one already in your floor, because a new grating or insert has to fit the existing collar and body.
Sansico, for example, sells its stainless designs as 6” gratings with matching collars, which is why the collar matters as much as the grating when you shop for a replacement.
| Location | Sensible choice | Why |
|---|---|---|
| Main bathroom, daily use | PVC body, stainless grating, water seal | The seal stays topped up; stainless resists rust |
| Guest bathroom | Add an anti-odour insert | The water seal dries between visits |
| Shower area with a kerb | Standard or top access trap | Easy to clear hair from above |
| Balcony or yard | Anti-odour or anti-cockroach insert | Long dry spells; insects from the drain |
| Wet kitchen floor | Larger grating that is easy to lift | Food scraps and grease need regular clearing |
| Washing machine area | A trap that can take the drain flow | See the guide to water backing up from the floor trap |
Where a washing machine drains into the floor trap and water comes back up, the cause is usually flow or a blockage rather than the trap type; the washing machine backflow guide covers that case.
Changing the grating or adding an insert is a small repair. Changing the body is a floor job, because the tiles, screed and waterproofing around it must be opened and rebuilt. These are ClickBina's published figures (indicative 2026, Klang Valley).
| Item | Indicative price | Source guide |
|---|---|---|
| Basic plumbing call-out or minor repair (cover or insert swap) | RM80 – RM250 | Floor trap replacement guide |
| Clearing a sink, floor trap or shower | RM120 – RM350 | Floor trap replacement guide |
| Hacking and debris disposal, whole bathroom floor | RM900 – RM1,600 | Floor trap replacement guide |
| Re-screed with falls | RM500 – RM1,000 | Floor trap replacement guide |
| Waterproofing membrane | RM700 – RM1,300 | Floor trap replacement guide |
| Floor tiling, supply and lay | RM12 – RM30 per sq ft | Floor trap replacement guide |
WhatsApp us your job details for a quote — we reply within the hour. A site visit is free. We serve KL, Selangor & Putrajaya.
💬 WhatsApp for a quoteIf there is a stain on the ceiling below the trap, find the source first. ClickBina's leak detection and assessment is RM300 – RM800 per visit, charged separately; the floor trap leak guide explains the checks.
WhatsApp us your job details for a quote: your area, the property type, where the floor trap is, and what is wrong (smell, insects, rust, ponding or a leak below). ClickBina is an experienced KL & Selangor contractor that coordinates the trades in a bathroom job, including the hacking, waterproofing and retiling around a floor trap. We reply within the hour, and the price we agree is a flat price with no hidden charges.
How we estimated prices: every RM figure on this page is quoted unchanged from the ClickBina floor trap replacement guide; they are indicative Klang Valley ranges for 2026. Brand names are examples taken from the makers' own pages, not endorsements.
