Lukewarm water, a dripping valve or rusty hot water? Here is what each part of a storage heater does, the signs it is failing, and the safety rules that apply.
A storage water heater is a tank with a heating element, a thermostat that switches the element on and off, a safety cut-out that stops it overheating, a sacrificial anode rod that protects the tank from rust, and a pressure relief (safety) valve that lets water out if pressure builds up. Most problems trace to one of these parts: lukewarm water points to the element or thermostat, a constantly dripping valve to pressure or a worn valve, and rusty or smelly hot water to a used-up anode. Suruhanjaya Tenaga's wiring guideline says a storage heater must not be operated without its pressure relief valve and isolation barrier, and that the valve must never be blocked or locked shut. Part repairs are priced after the unit is inspected; a complete replacement is RM650 – RM1,250 for a 15 L heater and RM950 – RM1,800 for 30–50 L, installed (indicative Klang Valley ranges, 2026).
A storage (tank) heater keeps a volume of water hot so it is ready when you open the tap. Cold water enters at the bottom of the tank, an electric element heats it, and hot water leaves from the top. When the water reaches the set temperature the thermostat switches the element off; as hot water is drawn off or cools, it switches back on. That cycle, repeated every day for years, is what wears the parts out.
It is a different animal from the instant heater most Malaysian condos use, which heats water only as it flows through. Our water heater types guide compares the two. Storage heaters are common in older landed homes, in houses with several bathrooms, and wherever a family wants steady hot water at more than one point at once.
| Part | What it does | Typical sign it has a problem |
|---|---|---|
| Heating element | Heats the water inside the tank | Water stays cold or lukewarm; RCD trips when the heater switches on |
| Thermostat | Switches the element on and off at the set temperature | Water too hot, not hot enough, or temperature swings |
| Safety cut-out (thermal cut-out) | Cuts power if the water overheats, as a back-up to the thermostat | Heater stops heating until reset; keeps tripping |
| Anode rod | A sacrificial metal rod that corrodes instead of the tank | Rusty or discoloured hot water, a rotten-egg smell |
| Pressure relief (safety) valve | Opens to release water if pressure in the tank gets too high | Constant dripping, or a valve that never opens |
| Non-return valve | Stops hot water flowing back into the cold supply | Hot water appearing in cold taps; pressure problems |
| Isolation barrier, switch and wiring | Keeps the user separated from the electrical side and lets the heater be isolated | Tingling taps, burn marks, a switch that runs hot |
Some brands combine parts, for example a thermostat and cut-out in one housing, or a combined inlet valve that includes the non-return and relief functions. The manual for your model shows which parts it has.
If the water is cold or only lukewarm, the element and the thermostat are the first suspects. A failed element simply stops heating. A cracked element can let current leak to earth, which is why an RCD that trips every time the heater switches on is a warning sign, not a nuisance: our guide to a home electrical safety inspection explains what the RCD is protecting you from.
A thermostat that has drifted may leave the water barely warm, or let it get much hotter than the setting. Scale build-up on the element makes it work harder and heat more slowly, which is common where the water supply carries sediment. Our installation cost guide notes that annual flushing of storage tank sediment extends the heater's life.
The thermal cut-out is a second line of defence. If the thermostat sticks on, the cut-out breaks the circuit before the water can boil. Many cut-outs have to be reset by hand once they trip. A cut-out that trips once after a power cut may be nothing; one that trips again and again is telling you the thermostat or element is faulty, and resetting it repeatedly only hides the problem.
Inside most steel storage tanks is a metal rod, usually magnesium or aluminium, screwed into the top of the tank. It is there to corrode. Because it is more reactive than the tank, the corrosion attacks the rod first and leaves the tank lining alone. Once the rod has been eaten away, the tank itself starts to rust from the inside, and a rusted-through tank cannot be repaired.
Signs the anode is spent include rusty or brown-tinged hot water while the cold water is clear, and a rotten-egg smell from the hot tap. Neither proves it on its own, because old galvanised pipes also colour the water, so the rod has to be taken out and looked at. How often that should happen depends on the brand and your water, so follow the manual for your model.

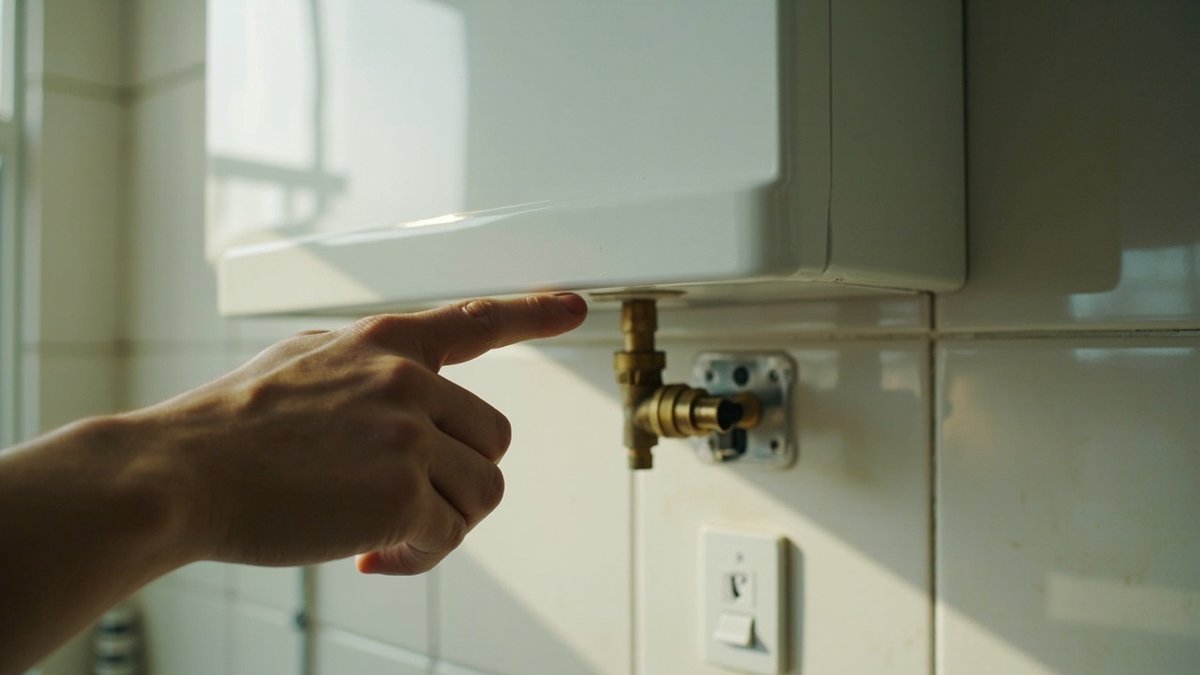

Heating water makes it expand. In a closed tank that expansion raises the pressure, and the pressure relief valve is what stops it building to a dangerous level: when the pressure passes its setting, the valve opens and lets a little water out through its drain line.
Suruhanjaya Tenaga's domestic wiring guideline (GP/ST/No.39/2024) is direct about it: an electric storage heater must not be operated without a pressure relief valve and an isolation barrier, and those devices must not be obstructed, locked or closed. The installation guide also lists a missing relief valve among the installation mistakes that can let pressure build until the tank ruptures.
A storage heater is a fixed appliance on its own circuit. Under Suruhanjaya Tenaga's guideline, a water heater circuit must be permanently connected to a 20 A or 32 A breaker or fuse, protected by an RCD of not more than 10 mA, and fitted with a double-pole switch or isolator so it can be isolated for maintenance or in an emergency. A plug and socket must not be used to connect it.
That is why any part repair starts by isolating the heater at its switch, and why electrical work on it belongs to a wireman registered with Suruhanjaya Tenaga. If your heater is plugged into a socket, shares a circuit with other appliances, or trips the RCD, fix the installation before worrying about the parts. The installation cost guide prices a new dedicated circuit at RM150 – RM350 where an older home needs one.
A part repair makes sense when the tank itself is sound. Once the tank is leaking or rusting through, the only fix is a new heater. These are the replacement prices from our installation cost guide (unit plus installation, indicative Klang Valley ranges for 2026):
| Heater | Installed price (unit + labour) | Notes |
|---|---|---|
| Storage water heater, 15 L | RM650 – RM1,250 | Suits one bathroom |
| Storage water heater, 30–50 L | RM950 – RM1,800 | Larger households, several outlets |
| New dedicated circuit, if needed | RM150 – RM350 | Older homes that share a circuit |
WhatsApp us your job details for a quote — we reply within the hour.
💬 WhatsApp for a quoteAge is the other factor. The same guide gives storage tanks a life of about 8–15 years depending on water quality and maintenance. A heater near the end of that range with a failed element and a spent anode is usually better replaced than repaired twice.
WhatsApp us your job details for a quote: the brand, the tank size, where it is mounted and what it is doing. We reply within the hour. Where the heater is part of a bathroom or whole-house job, we handle whole-house refurbishment and coordinate the trades, including the wireman the electrical side needs; a site visit is RM150, waived if you go ahead, and the price we agree is a flat price with no hidden charges. See our electrical and plumbing page for related work.
How we estimated prices: every RM figure is quoted unchanged from the ClickBina guide named above; they are typical Klang Valley market ranges for 2026, not fixed rates. Part repairs are not priced here because they depend on the brand and on what the inspection finds.
