Bathroom Mirror Cabinets
Surface vs Recessed, Lighting & Cost (2026)

Mirror cabinet costs at a glance

A mirror cabinet is usually quoted as its own line, separate from the vanity below. Width, the carcass material, the number of doors, and whether it carries lighting, a demister and a socket move the price far more than the mirror glass does.

Bathroom mirror cabinet design ideas: 11 concept designs

Eleven mirror cabinet options from this guide: surface-mounted and recessed cabinets, single, two and three doors, an open side shelf, aluminium, WPC and plywood carcasses, side and under lighting, and a mosaic niche under the cabinet. Each card is an illustrative concept render; filter by type or by home, tap an image to enlarge it, and open the details for where it suits, the finish and what to watch.

StyleAllSurface-mountedRecessedLit & demister

HomeAllCondoTerraceSemi-DBungalow

11 designs shown

These are illustrative concept designs created to show the options. They are not completed ClickBina projects. No prices are shown because the figures on this page are for a vanity and mirror cabinet together or for the vanity carcass, not for a mirror cabinet on its own. We build and install custom mirror cabinets. WhatsApp us your job details (the basin width, on the wall or set into it, and whether it needs lighting or a demister) for a quote.

More galleries: browse all design ideas by area of the house, from cabinets and kitchens to porches and grilles.

Why a mirror cabinet beats a plain mirror

Most bathrooms in Malaysian condos and terraces are small. A plain mirror uses the wall above the basin for nothing but reflection, so toothbrushes, razors, skincare and medicines end up on the basin ledge, where they collect splashes and soap scum. A mirror cabinet puts the same wall to work: everything goes behind the doors, the basin top stays clear, and cleaning takes a minute. The bathroom vanity guide calls the mirror cabinet the place where most daily storage actually goes.

The trade-off is depth. A cabinet that sticks out too far feels as if it leans over you while you wash; the vanity guide puts the comfortable limit at about 150 mm. Anything you need to store that is bigger than that belongs in the vanity or a tall unit, not above the basin.

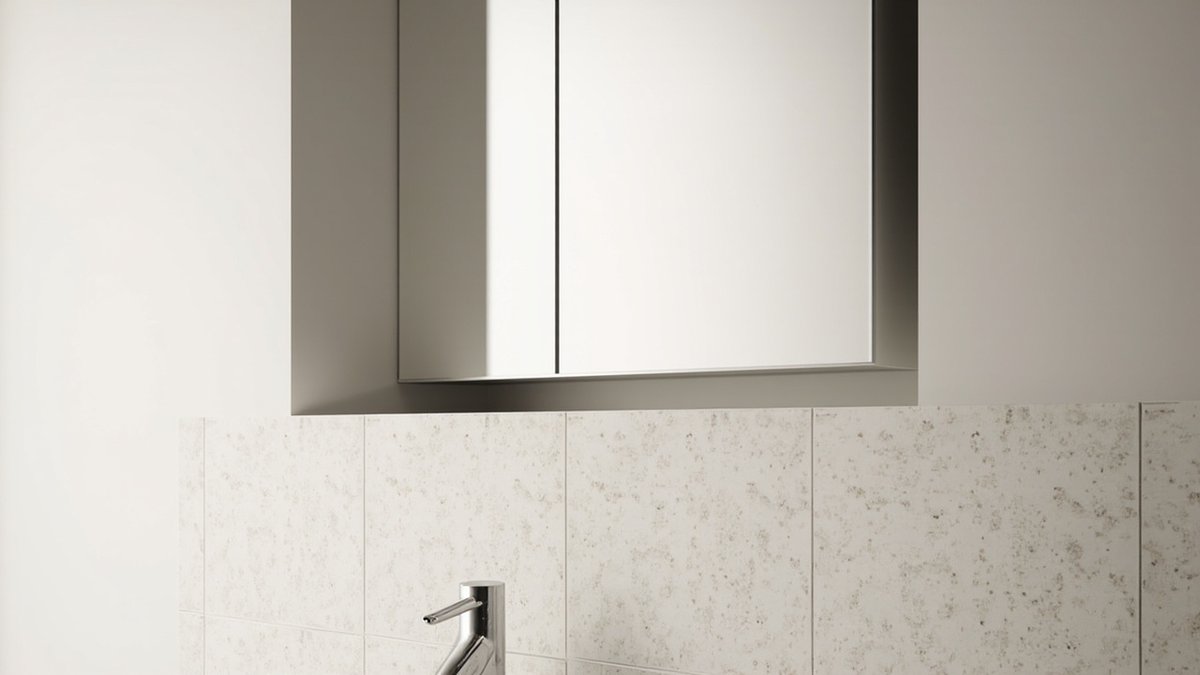

Surface-mounted vs recessed

Surface-mounted is the default in most homes because it can go up after the bathroom is finished. Recessed is neater, but it depends entirely on what is inside the wall.

Which walls can take a recessed cabinet

Before planning a recess, find out what the wall is and what runs through it. In many condos the walls around a bathroom are reinforced concrete and part of the structure; cutting them is not a renovation choice, and the guide to unauthorised hacking explains what happens when it is done without approval. Brick and block partition walls can usually be opened, but concealed water pipes, the basin waste and electrical conduits often run exactly where the cabinet would go.

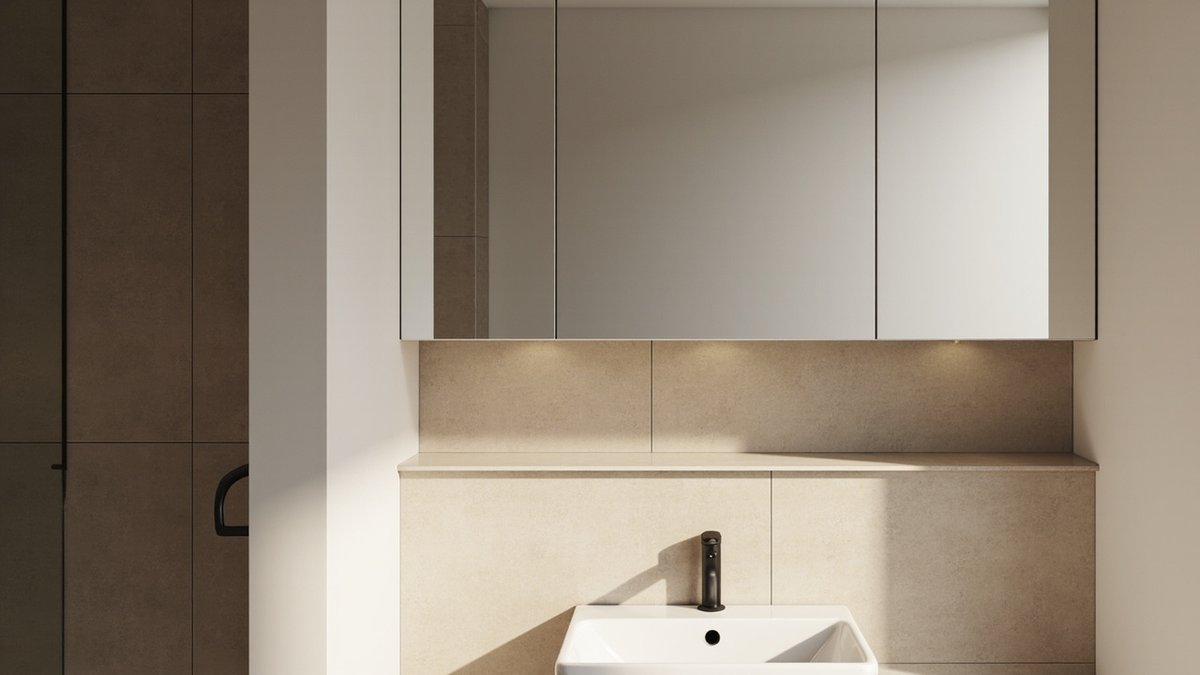

Where the wall cannot be opened, the usual answer is a shallow false wall built out over the existing one, with the cabinet recessed into the new layer. That is a bigger job: the false wall has to be waterproofed and tiled like any other bathroom wall. The shower niche guide explains the same approach for a niche in the shower, including how it is waterproofed.

Materials that survive a steamy bathroom

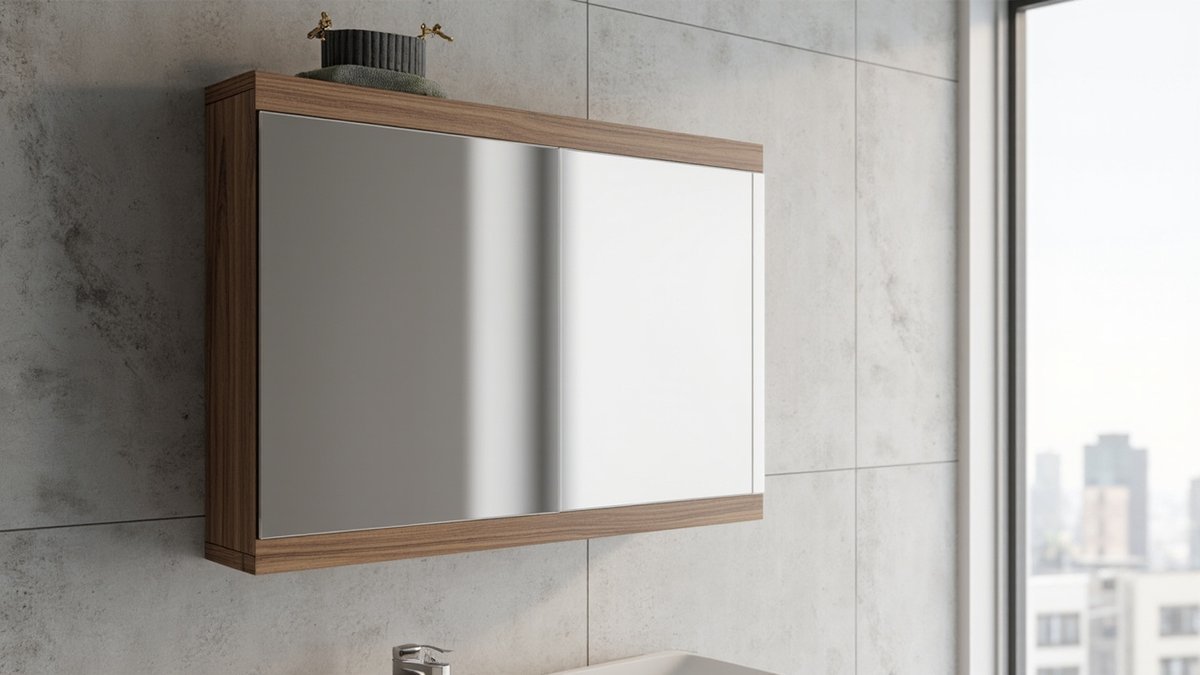

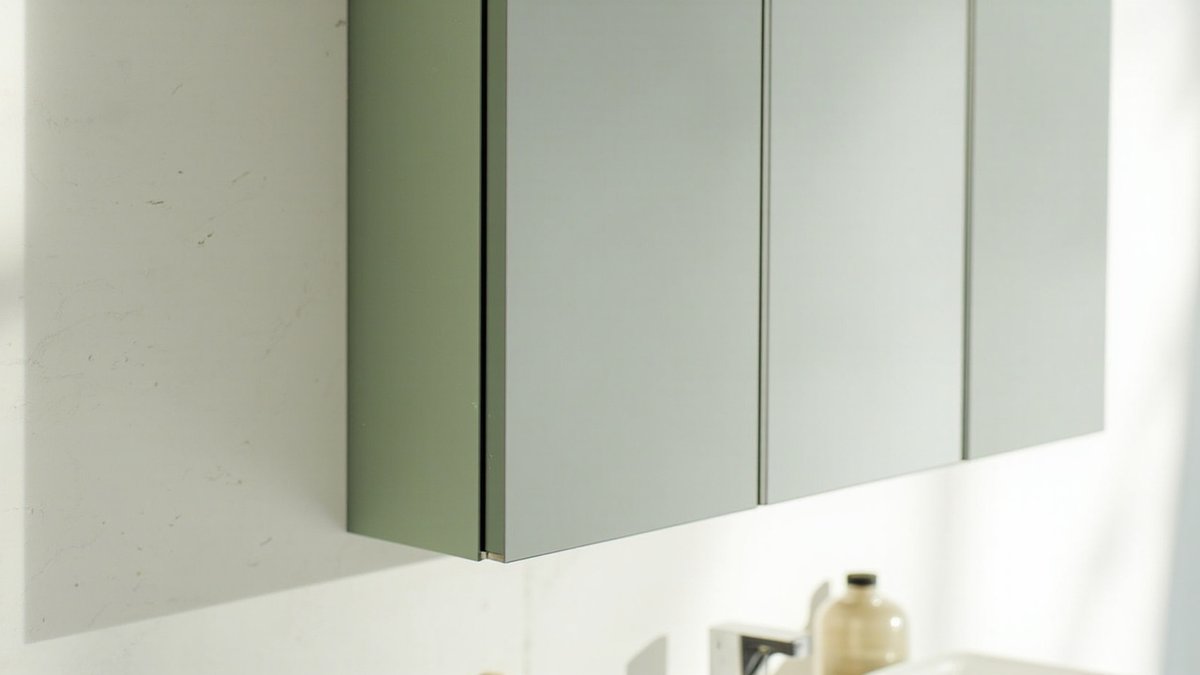

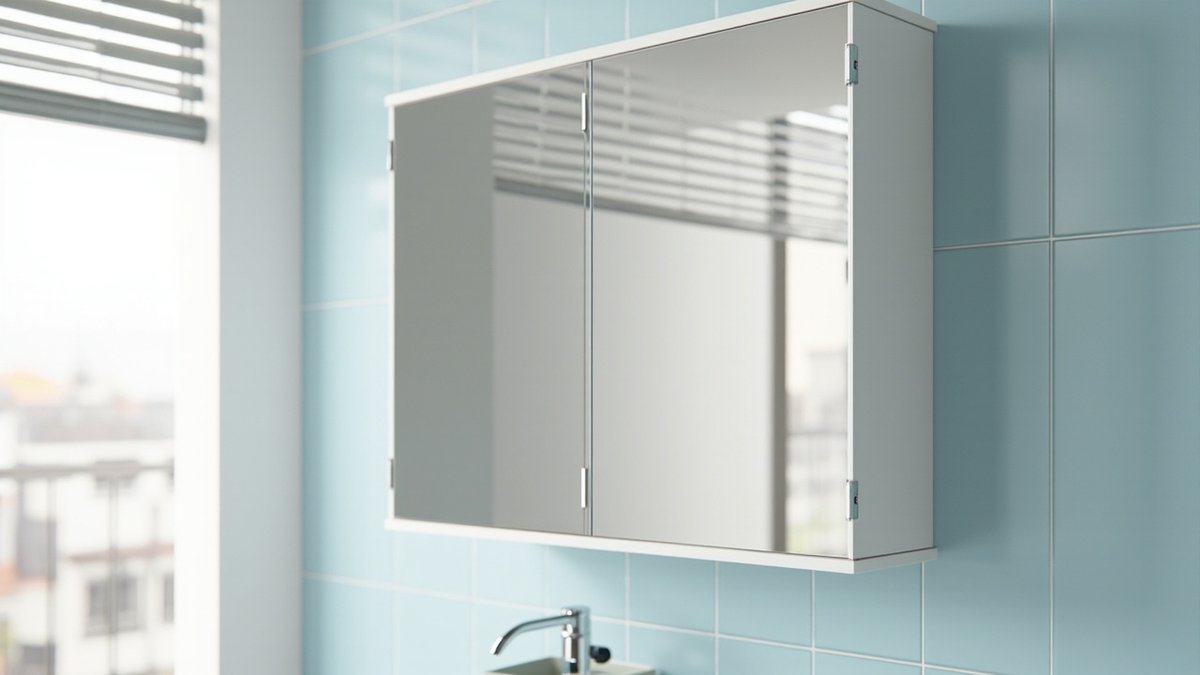

The top of a mirror cabinet collects shower steam and its bottom edge catches splashes from the basin. Build it to the same wet-room standard as the vanity below it. The usual carcass choices, from the vanity guide, are moisture-resistant plywood with a laminate finish, PVC or WPC board that does not swell, and powder-coated aluminium, which is fully waterproof. Plain particleboard swells at the edges within a few years of daily steam.

• Edges — every cut edge must be sealed with edge banding; an open edge is where swelling starts.
• Hinges — use stainless or corrosion-resistant hinges, as basic hinges rust in a bathroom.
• Mirror backing — ask for moisture-resistant mirror glass, and keep the bottom edge sealed or clear of standing water, because mirror silvering can blacken from the edge in damp conditions.
• Shelves — glass or sealed shelves wipe clean; open particleboard shelves stain.

The WPC and PVC foam board cabinet guide compares the waterproof board options in more detail.

Lighting, demister pads and sockets

A mirror cabinet can carry LED lighting around or under it, a demister pad behind the mirror that keeps it clear after a hot shower, and an internal socket for a shaver or toothbrush charger. All three need a power point inside or behind the cabinet, planned before the wall is tiled; adding one later means opening a finished wall. A bathroom fitting must suit a damp room, stay clear of the shower spray and sit on a circuit protected by an RCD, as the wall light guide sets out. That electrical work is for a qualified electrician, not the cabinet fitter.

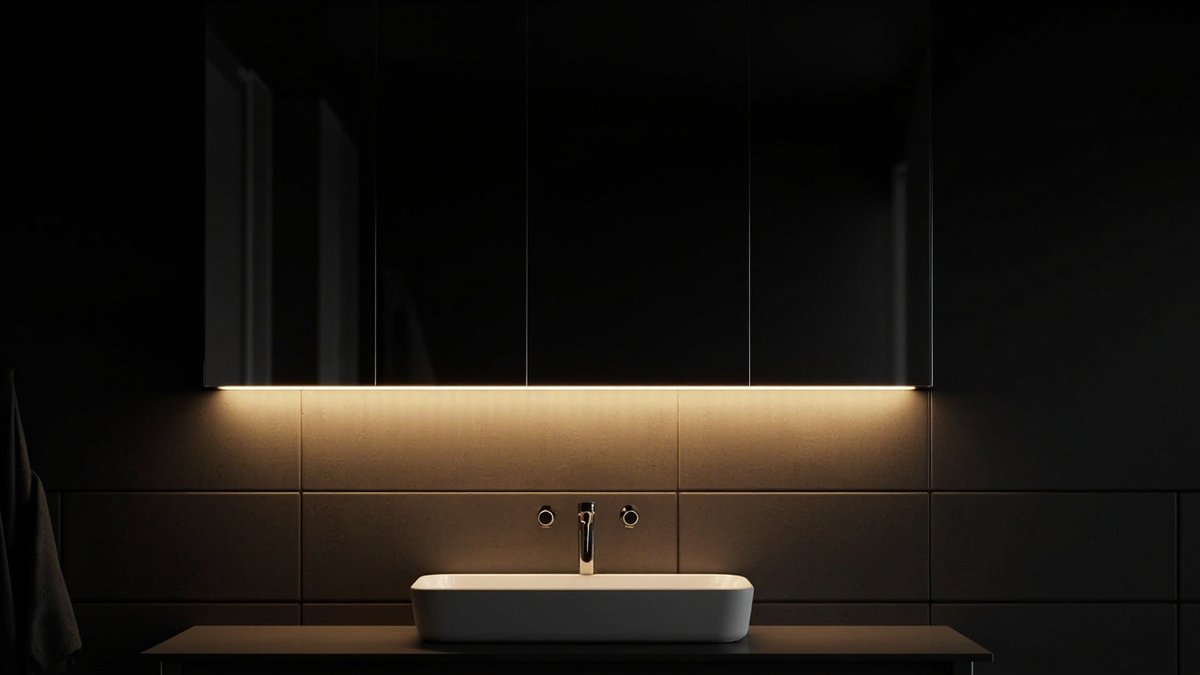

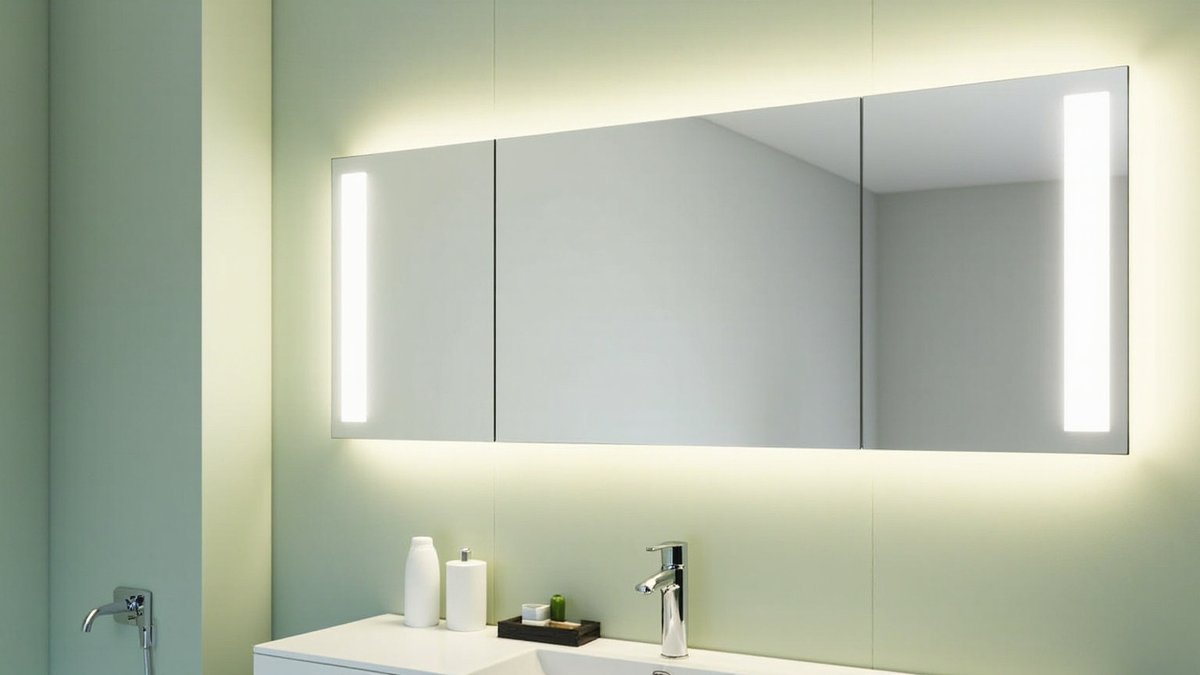

Light from the sides of the mirror, at face height, lights a face far better than a single downlight overhead, which casts shadows under the eyes. An under-cabinet strip doubles as a night light over the basin.

Doors, hinges and layout

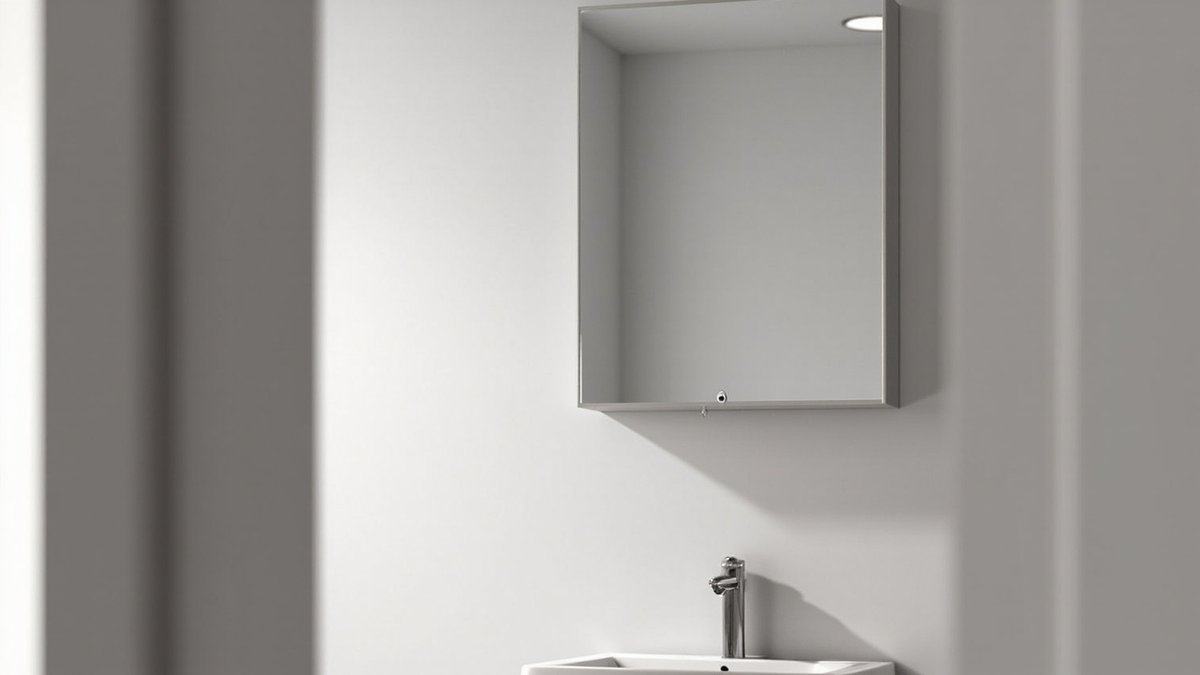

• Single door — for a narrow basin; choose the hinge side so the door does not hit a wall or window when open.

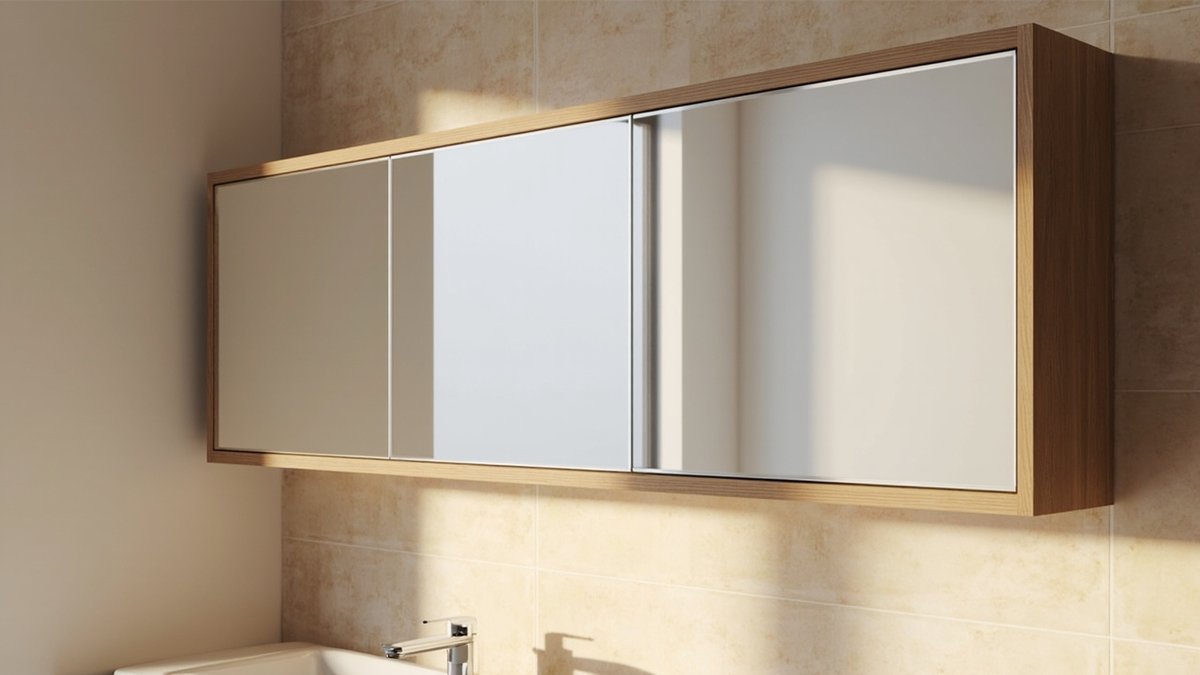

• Two or three doors — for wider vanities; the middle section is often a fixed mirror or open shelf.
• Mirror on both sides of the door — lets you check the back of your head with the door open.

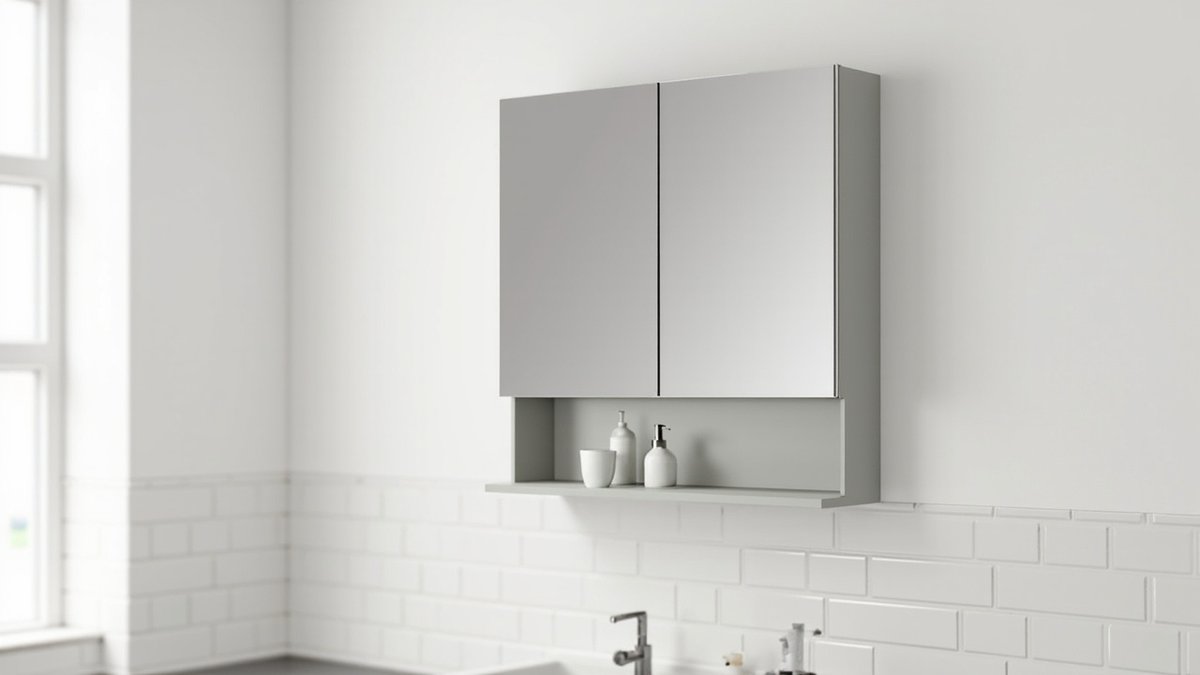

• Open side shelf — a small open shelf at one end for items used every day.
• Soft-close hinges — stop the mirrored door from banging, which matters more on glass than wood; the soft-close hinge guide explains the options.

Hang the cabinet so the centre of the mirror is near the eye level of the people who use it, and keep the bottom clear of the tap so the doors open over a running tap.

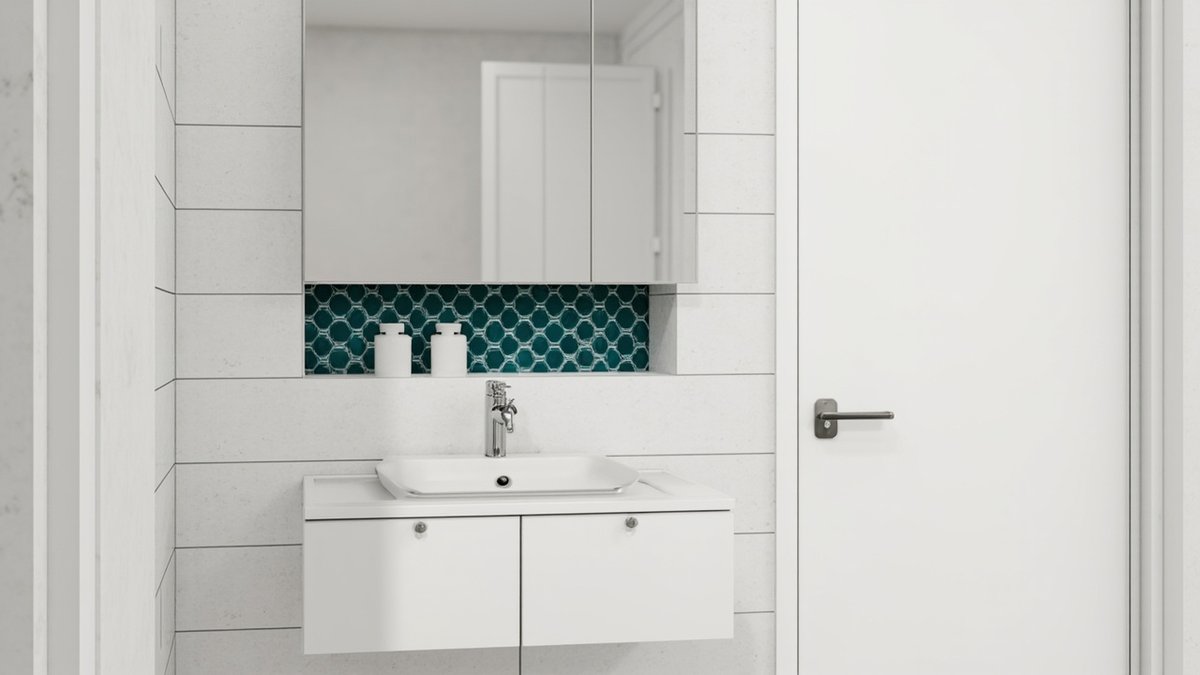

Recessed niches as an alternative

Some bathrooms use a tiled niche beside or above the basin instead of a cabinet. A niche has no doors to clean and nothing to rust, but everything in it is on display and it collects splashes. On ClickBina's niche guide, mosaic niche work is RM20 – RM45 per sq ft, and a built-in false wall with a niche is RM4,000 – RM10,000+. A mirror cabinet is usually the simpler way to add closed storage above a basin; a niche suits the shower itself, where a cabinet would not survive.

Common mistakes

• No power planned — the lit, demisting cabinet bought after tiling has nothing to plug into.
• Too deep — a cabinet that juts out over the basin and catches heads.
• Particleboard carcass — swollen edges and peeling laminate after a few humid years.
• Fixed into board alone — a heavy cabinet needs fixings into solid wall, a backing panel or the frame behind a false wall.
• Recess cut over hidden pipes — check what runs in the wall before cutting.
• Door that clashes — hinge side chosen without checking the window, light switch or shower screen.

What the quotation should say

• Overall width, height and depth, and the number of doors.
• Surface-mounted or recessed, and if recessed, who opens and makes good the wall.
• Carcass material and edge banding, and the hinge type.
• Whether lighting, a demister and a socket are included, and who provides the electrical point.
• How it is fixed to the wall.

Comparing two quotes is only fair when both list the same carcass, the same doors and the same electrical items. A cheaper cabinet in particleboard with no lighting is a different product.

How ClickBina can help

WhatsApp us your job details for a quote: the basin width, whether you want the cabinet on the wall or set into it, and whether it should have lighting or a demister. ClickBina makes custom cabinets and handles whole-house refurbishment and trade coordination, so the cabinet, the electrical point and the tiling can be planned as one job. We reply within the hour, and the price agreed is a flat price with no hidden charges. A site visit is RM150, waived if you go ahead. See also custom cabinets.

Sources & methodology

• ClickBina bathroom vanity cost guide — mirror cabinet depth, vanity and carcass prices, demister and socket planning.
• ClickBina bathroom renovation guides for Kajang and Shah Alam — semi-custom vanity with mirror cabinet bands.
• ClickBina wall mirror guide — price for hanging a plain mirror.
• ClickBina shower niche guide — niche and false wall prices.
• ClickBina wall light guide — damp-room fittings and RCD protection.

Methodology: prices are ClickBina indicative 2026 Klang Valley ranges from the guide named beside each; the area bands are for a vanity and mirror cabinet together, not a cabinet alone.
