Floor Trap Replacement
Hacking Out & Resetting a Broken or Rusty Trap (2026)

What a floor trap does, and why it fails

A floor trap is the round or square drain in a bathroom, yard or wet kitchen floor. It does two jobs: it takes water off the floor, and it holds a small pool of water, the water seal, that stops sewer gas and insects coming back up. It is also the point where the floor's waterproofing has to seal tightly around a pipe, which makes it one of the most leak-prone details in any wet area.

Traps fail in a few predictable ways. Cheap chrome-plated or thin metal gratings rust. Plastic bodies crack when someone stands a heavy item on them or when the screed under them settles. Old cast traps corrode. And many traps were simply set too high or too low by the original builder, so the floor never drains properly.

Signs the floor trap needs attention

Not every smell needs a new trap. ClickBina's drain smell guide explains that a dry trap is the commonest cause, and cockroaches coming up the drain have their own fixes in the floor trap cockroach guide.

Cover swap: the small job

If the body of the trap is sound and only the visible top is rusty, broken or missing, the fix is a replacement grating or top ring that fits the existing body. Take the old cover with you, or measure it, because trap sizes and fittings vary. A stainless or solid brass cover lasts far longer than a thin plated one in a wet bathroom.

An anti-odour insert or a trap with a built-in seal can be added at the same time if smells or insects are a problem. None of this involves breaking tiles, so it stays in the small-repair range.

Full reset: when the trap body must come out

A cracked or corroded trap body, a trap that has come loose from the waste pipe, or a trap set at the wrong level cannot be fixed from the top. The trap is embedded in the screed, and the waterproofing membrane is lapped onto it. Replacing it means opening the floor around it.

1. Check first. If there is any sign of a leak below, have the source confirmed before breaking tiles.
2. Hack around the trap. Break out the tiles and screed in a neat square around the trap, keeping the waste pipe intact.
3. Remove the old trap. Cut it free from the waste pipe and clean the pipe end.
4. Set the new trap. Fit it to the pipe at a level that suits the floor falls, so water runs to it.
5. Rebuild the waterproofing. Prime, then form a membrane collar around the trap, lapped onto the existing membrane.
6. Ponding test. Plug the trap, flood the area and leave it before any tile goes back.

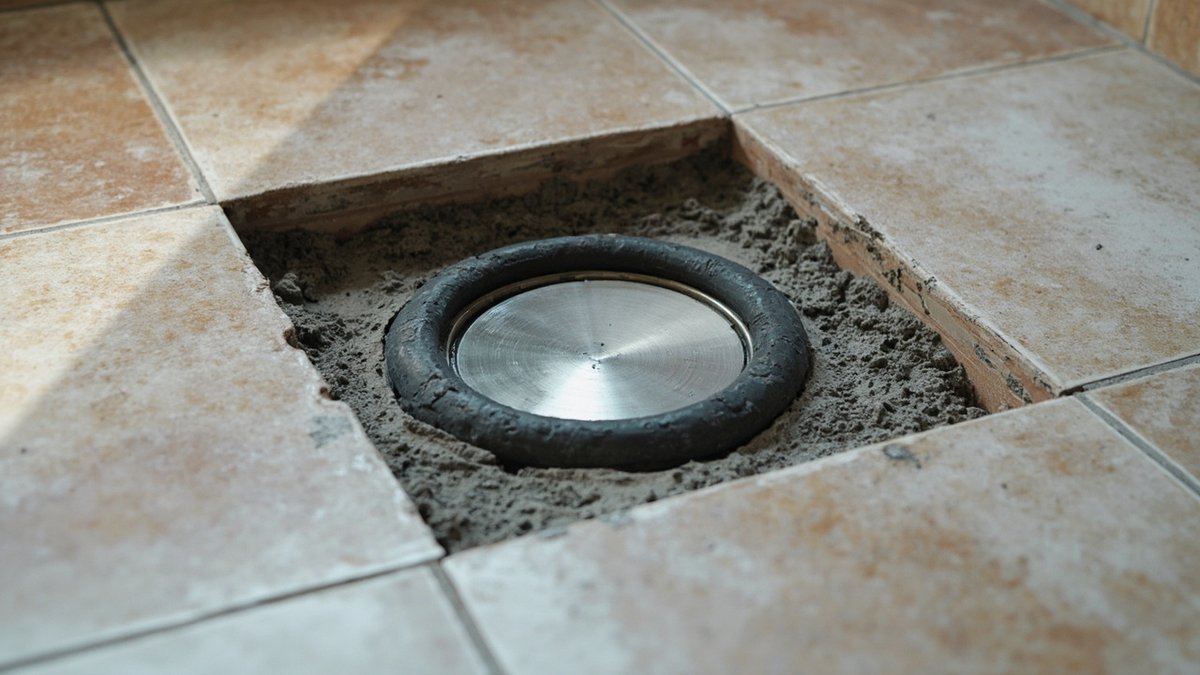

7. Screed and tile. Re-screed to falls, then tile and grout around the trap.

The membrane collar: the detail that decides the job

Most floor trap leaks are not the trap itself but the joint between the membrane and the trap. When the old trap is hacked out, the old membrane around it is broken too. The new membrane has to be sealed to the new trap, usually with a reinforcing band or collar, and overlapped onto the surviving membrane so there is no gap for water to run under the tiles.

ClickBina's floor trap leak guide explains how water travels along a badly sealed trap to the slab and the unit below. If your trap is being replaced because of a ceiling stain downstairs, that collar is the part to ask about.

Ponding test before tiling

A ponding test means blocking the drain, flooding the floor and leaving it, then checking the ceiling below or the slab for damp. It is the only cheap moment to find a fault. Once tiles are down, the next sign of a problem is usually a stain downstairs. ClickBina's bathroom waterproofing requirements guide explains what a proper test looks like.

Getting the level and falls right

A new trap is a chance to fix ponding. If water has always pooled away from the trap, the trap is probably too high or the floor falls the wrong way. Setting the new trap a little lower helps only if the screed around it is also reshaped. Where the whole floor falls wrongly, a local reset will not cure it; the floor needs re-screeding. ClickBina's ponding floor guide covers that larger job, and the floor trap vs linear drain guide covers switching drain types.

Matching the tiles around the trap

Hacking around a trap breaks a small square of tiles. Matching old tiles is the hardest part of the job to get right: the original range may be discontinued, and even the same tile can differ in shade. Ask whether spare tiles were left from the original job, often stored in the house. If not, owners sometimes choose a contrasting square of tiles around the trap on purpose, or retile the shower area.

In a condo, check the management's renovation rules before hacking; even a small patch involves noise and debris.

What a floor trap repair costs

These are ClickBina's published ranges (indicative 2026, Klang Valley). A cover swap sits in the small-repair range; a reset is priced on the hacking, membrane and tiling it needs.

If the trap is only one symptom of a floor that ponds, cracks or leaks across the whole bathroom, a full hack-and-redo including retiling is published at RM4,500 – RM9,000 for a standard bathroom.

What to send on WhatsApp for a quote

• Your area and whether it is a condo, apartment or landed house.
• Which room: bathroom, yard, wet kitchen or balcony, and which floor of the house.
• What is wrong: rusted cover, cracked body, smell, ponding or a stain below.
• The size and shape of the trap cover, if you can measure it.
• Whether spare tiles from the original job are available.

How ClickBina can help

ClickBina is an experienced KL & Selangor contractor for bathroom renovation, whole-house refurbishment and trade coordination, and a floor trap reset brings together hacking, plumbing, waterproofing and tiling. WhatsApp us your job details for a quote. We reply within the hour, the price we agree is a flat price with no hidden charges, and a renovation site visit is free, and a repair inspection is RM180, deducted from the bill if you go ahead.
