Crack in a Concrete Beam or Column
When to Call an Engineer (2026)

Why a crack in a beam or column is different

Most Malaysian houses and condos are a concrete frame: columns carry the load down to the foundations, beams carry the floors and roof across to the columns, and brick walls simply fill the gaps. That makes the beam and the column the parts of the house that actually hold it up. A crack in plaster on a brick wall is usually a finish problem. A crack in the frame can be a sign that the member is carrying more than it was designed for, that the ground under it has moved, or that the steel inside is rusting.

ClickBina's guide to cracks in a new house sorts cracks into three families, shrinkage, settlement and structural, and puts any crack in a beam, column or slab in the last group: engineer first, do not simply patch. This page explains how to read what you are seeing, what the engineer will do, and what the repair usually involves.

Is the crack in the beam, or just beside it?

Before worrying, check exactly where the line runs. The most common crack in Malaysian homes is the straight line along the joint where a brick wall meets a column, or along the top of a wall under a beam. That one is two materials moving differently, and ClickBina's guide to the crack between a brick wall and a column explains the mesh repair for it.

• Beside the member: a neat line exactly on the edge of the column or under the beam, parallel to it, often on both sides of the same wall.
• In the member: a line that crosses the beam or column, runs along its underside, or opens on the column face away from any wall joint.
• Through the plaster only: fine map-like hairlines on the render over a column, with no rust and no growth, are often surface shrinkage.

If you cannot tell which it is, treat it as a crack in the member and have it looked at. The cost of an assessment is small next to the cost of patching over the wrong kind of crack.

Reading the crack pattern

Engineers read a crack by its direction, its position along the member and what comes with it. The epoxy injection guide on this site lists the same patterns. This table is a guide to what each pattern usually suggests, not a diagnosis.

A crack can also start as a shrinkage line in the cover and later become a rust crack if water keeps getting in. That is why the history of the crack matters as much as how it looks today.

Warning signs: call an engineer now

Some signs mean you should not wait for a few weeks of monitoring. Keep people away from the area and arrange an engineer as soon as you can if you see any of these:

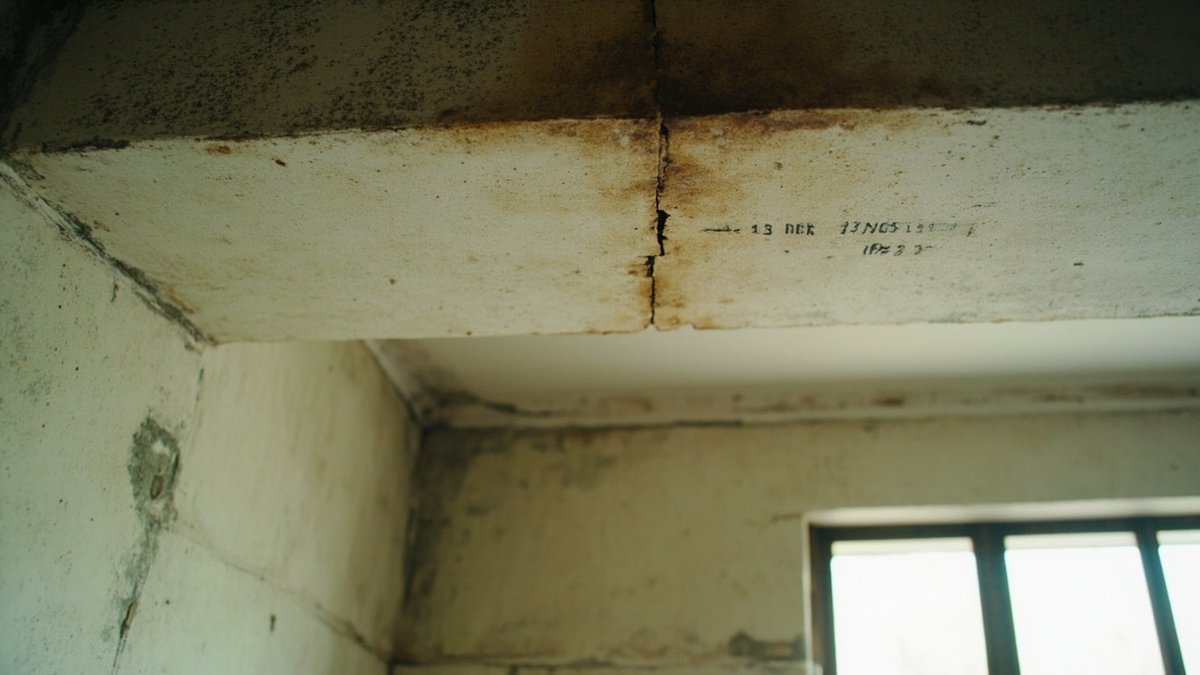

• Concrete falling off a beam or column, or bars visible inside.
• A crack that has widened noticeably in days rather than months.
• A beam that looks bent or a floor above that has started to sag or bounce.
• Doors and windows nearby that suddenly jam, together with new cracks.
• Cracking after a renovation in which a wall was hacked, a floor was added or heavy items were placed on a slab.
• Cracking after a nearby excavation, piling works or a landslip.

What usually causes beam and column cracks

Concrete is strong when squeezed and weak when pulled, so the steel bars inside do the pulling. ClickBina's guide to cement, mortar and concrete explains that this steel is protected by the concrete around it; when water and air reach it, it rusts, swells and pushes the concrete off. The common causes of cracking in the frame are:

• Rusting reinforcement from long-term water entry: leaking roofs, failed bathroom membranes above, or thin concrete cover in older buildings.
• Overload: water tanks, extra floors, heavy planters, stored goods or a new structure resting on a slab or beam not designed for it.
• Settlement: the ground under one column or footing moving more than the rest.
• Renovation damage: hacking into a beam or column to run pipes or conduits, or removing a wall that was carrying load.
• Early-age cracking: concrete that dried too fast or was loaded too early while it was still gaining strength.

Record it properly while you wait

A clear history is what the engineer, a developer, a management body or an insurer will want to see. Use the simple method from the crack guide: mark both ends of the crack in pencil with the date, note its length, and check it again every few weeks. For a better record, glue a plastic crack monitor across the line; it shows whether the two sides are moving apart over time.

Write down where the crack is (which room, which beam or column), whether it is inside or outside, whether there are rust stains or damp, and anything that changed recently, such as renovation works, a leak above or a new heavy load. Do not fill or paint over the crack before it has been seen.

What the structural engineer does

Only a professional engineer can say whether a structure is safe and specify the repair. Ask for a professional engineer with structural experience, and ask for the findings in writing. A typical assessment includes:

1. A site inspection of the cracked member and the structure around it, including the floor or roof it supports.
2. Measuring and mapping the cracks, and checking for rust staining, hollow-sounding cover and deflection.
3. Looking for the cause: load changes, water entry, settlement or past renovation work.
4. Where needed, simple tests such as exposing a small area of steel, or recommending further investigation.
5. A written report that says whether the member is sound, what repair is needed and in what order.

The engineer's report is also the document a contractor should price the repair against. A repair quoted without it is a guess.

Repair options after the assessment

The repair depends on the cause the engineer finds. Injection on its own does not fix rusting steel or a beam that is still overloaded.

ClickBina's epoxy injection guide explains the difference between the two injection methods: epoxy bonds, PU seals. For rust cracks and falling concrete, the spalling concrete repair guide sets out the hack-back and steel treatment sequence.

What the assessment and repair cost

These are the ranges already published in ClickBina's crack and injection guides (indicative 2026, Klang Valley). Painting, access and any foundation work the engineer specifies are priced separately.

The engineer's fee is separate from the contractor's price. Put both in your budget before you decide anything else, such as a repaint or a renovation in the same area.

Mistakes that make it worse

• Filling and painting over the crack so nobody can see how it develops.
• Hacking into a beam or column to run a pipe or conduit. ClickBina's wall hacking guide explains why structural members are never cut without an engineer.
• Adding load, such as a water tank, a new room or heavy storage, onto a cracked slab or beam.
• Injecting a crack that is still moving; the repair simply cracks again beside it.
• Ignoring the water that is feeding a rust crack, so the steel keeps corroding behind a neat patch.

New house, condo or rented home

In a new house bought from a developer, defects that appear within the Defect Liability Period, which is 24 months from vacant possession for landed houses, should be reported to the developer in writing. Do not break out or repair a crack you intend to claim until it has been recorded.

In a condo or apartment, the beams and columns are part of the building structure, which the management body looks after. Report the crack to the JMB or MC in writing and keep a copy. In a rented home, tell the landlord in writing and do not arrange structural repairs yourself.

How ClickBina can help

WhatsApp us your job details for a quote. Tell us your area, the property type (terrace, semi-D, condo, shop), where the crack is (beam, column or slab, and which room), roughly how long it is, whether it is growing and whether there are rust stains or damp. Where a crack looks structural, the first step is an engineer, and we will say so; the repair is then carried out to the engineer's scope.

ClickBina is an experienced KL & Selangor contractor for whole-house refurbishment and trade coordination, including the hack-back, injection, plastering and repainting that follow an engineer's report. We reply within the hour, and the price we agree is a flat price with no hidden charges.

Sources & methodology

• ClickBina cracks in a new house guide — crack families, the 3 mm engineer threshold, monitoring and crack repair prices.
• ClickBina epoxy injection guide — crack patterns in beams, epoxy versus PU, and the cracked-beam job range.
• ClickBina spalling concrete guide — rust cracking and the hack-back repair sequence.
• ClickBina car porch and apron sinking guide — the Defect Liability Period for landed houses.

How we estimated prices: every RM figure on this page is quoted unchanged from the ClickBina guides named above; they are indicative Klang Valley ranges for 2026, not fixed rates. Crack patterns are general guidance; only a professional engineer can assess a structural crack.
