Master Bedroom with En-Suite
Layout & Renovation Guide (2026)

Plan the suite in three zones

A good master suite is a sequence, not three separate rooms. Think about the route you walk every morning and every night.

Layouts that work

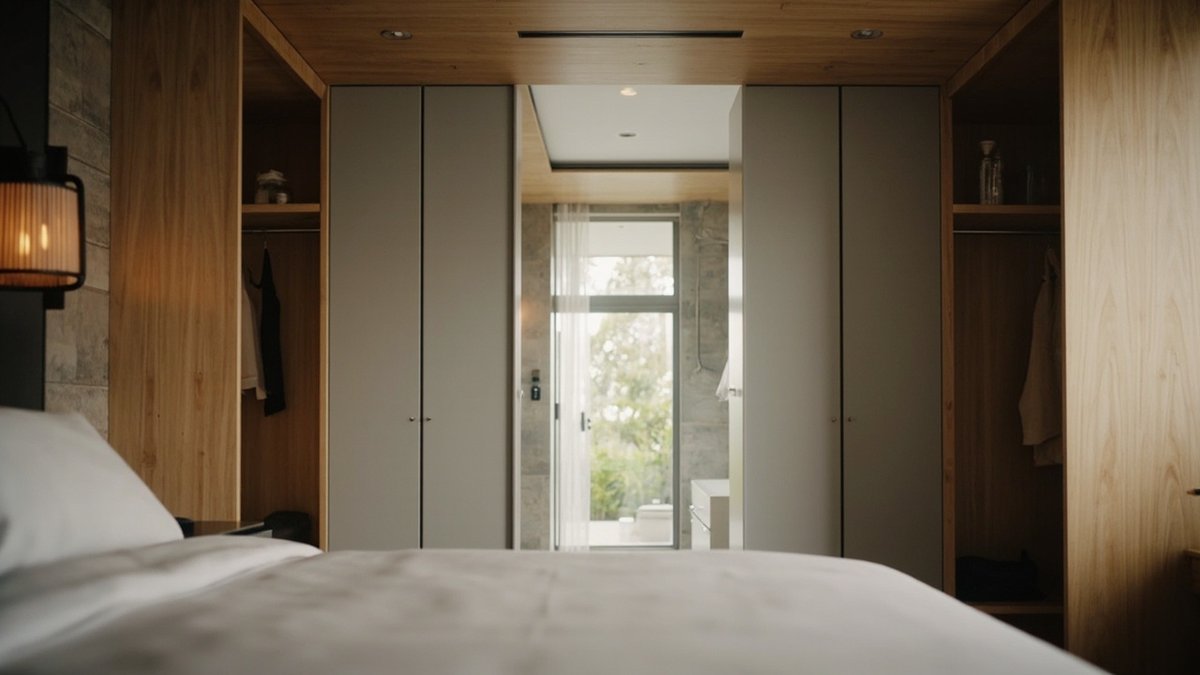

• Walk-through wardrobe: the wardrobe lines a short passage from the bedroom to the bathroom. It buffers steam and noise and keeps dressing near the shower.
• Bathroom behind the bed wall: a headboard wall with the bathroom on the other side; keep plumbing off the bed wall if you can, to avoid flushing noise at night.
• Bathroom on the outside wall: a window for daylight and ventilation, and a shorter route for the drain to the soil stack.
• Dressing corner: in a smaller room, a mirrored wardrobe wall and a dressing table at the bathroom end do the same job as a walk-in.

Our walk-in wardrobe guide covers the space a walk-in needs, and the wardrobe door types guide helps decide between hinged and sliding doors when the bed is close.

Renovating an existing en-suite

Most master bathrooms in older Klang Valley homes are small and have ageing tiles, fittings and waterproofing. When you renovate the suite, decide early whether the bathroom is a refresh (new fittings, vanity and lighting on the existing tiles) or a full redo (hack out, new waterproofing, new tiles). A full redo is the time to add wet and dry separation, a shower screen, a niche and better ventilation. Our small bathroom wet-dry layout guide shows how to fit these into a tight room.

Adding an en-suite where there was none

Turning part of the master bedroom, or an adjoining small room, into a bathroom is a common upgrade in older terraces. What decides whether it works:

• The drain route: a toilet and floor trap need a drain that falls to the soil stack. If the stack is far away, the floor may need to be raised to get the fall, which adds a step.
• The floor below: upstairs, the new bathroom slab sits above a room; it must be waterproofed properly or it will stain the ceiling below.
• Water supply and hot water: a new branch from the existing supply and a water heater point.
• Ventilation: an exhaust fan ducted to outside if there is no window.
• Approvals: in strata buildings, new wet areas and plumbing changes need management approval; in landed homes, structural or extension work may need council approval.

Keep steam, smell and noise out of the bedroom

An en-suite shares air with the room you sleep in. A properly sized exhaust fan that runs during and after a shower, a door that seals well, and a floor trap that holds water stop steam, mould and drain smells from reaching the bedroom. Wardrobes that back onto the bathroom wall need moisture-resistant carcasses and a small gap for air. Our bathroom door types guide compares doors that cope with humidity.

Wardrobes and storage

The wardrobe is usually the biggest single item in a master bedroom budget. Full-height built-ins use the space best; a walk-in or walk-through suits a larger room. Plan internal fittings (drawers, hanging heights, shoe racks) around what you actually own, and light the inside of deep wardrobes.

Where the budget is limited, spend in this order: the bathroom's waterproofing and plumbing, because they are expensive to redo later; then the wardrobe, which you use every day; then lighting and the ceiling; and finally decorative items such as a feature wall, which can be added at any time without disturbing the rest. Keep the wardrobe carcass off the floor of a room that is mopped often, choose door finishes that do not show fingerprints, and allow for an aircon and power point inside a walk-in if it has no window, so it does not become a warm, stale cupboard.

Bedroom finishes: walls, ceiling, floor and lighting

• Feature wall: a panelled or upholstered headboard wall adds warmth and some sound absorption.
• Ceiling: a plaster ceiling with a cove or recessed lighting; plan the aircon and its drain at the same time.
• Floor: vinyl, laminate or timber in the bedroom, with a clean threshold where it meets the bathroom tiles.
• Lighting: ambient, bedside reading lights and a soft night light towards the bathroom, with switches at the door and by the bed.

Our bedroom wall panel ideas guide covers headboard walls, and the bedroom design guide covers colours and styles.

Order of work

1. Agree the layout and get any approvals.
2. Demolition and hacking, then plumbing, drainage and electrical first fix.
3. Bathroom waterproofing, water test, screed and tiling.
4. Ceiling, aircon piping and plaster, then painting.
5. Bedroom flooring, carpentry and wardrobes.
6. Bathroom fittings, lighting, final fix and cleaning.

What a master suite renovation costs

Price the suite as its parts. These are the published lines on ClickBina guides (indicative 2026, Klang Valley).

Adding a new en-suite costs more than renovating an existing one, because of the new drain, raised floor, waterproofing and ventilation. A site visit is the only way to see where the drain can go.
