Why a kitchen ceiling is different

Every other room asks the ceiling to look good. A kitchen asks it to cope: steam from the rice cooker and the wok, grease that drifts past the hood, heat above the hob, and a cooker hood duct and water pipes that need a route. A ceiling that ignores those loads sags, stains or turns yellow within a few years. The good news is that a practical kitchen ceiling is usually simpler and cheaper than a living room design, not more expensive.

ClickBina's plaster ceiling design guide sums up the kitchen in one line: a flat moisture-resistant board, a bulkhead over the cabinets with task downlights, and no light channels that collect grease. This page explains each of those choices.

Kitchen ceiling design ideas: 11 concept designs

Eleven kitchen ceilings built around what a kitchen asks of a ceiling: steam and grease in the wet kitchen, a seamless look in the dry kitchen, a route for the hood duct, access to pipes and light on the worktop. Each card is an illustrative concept render; filter by design or home type and tap an image to enlarge it.

StyleAllWet kitchenDry & open kitchenHood, pipes & storageKitchen lighting

HomeAllCondoTerraceSemi-DBungalow

11 designs shown

These are illustrative concept designs created to show the options. They are not completed ClickBina projects. We design and install kitchen ceilings. Board prices differ between our guides, so the cards carry no price; WhatsApp us your job details (wet or dry kitchen, size, hood type and any pipes or stains above) for a quote.

More galleries: browse all design ideas by area of the house, from cabinets and kitchens to porches and grilles.

Wet kitchen and dry kitchen ceilings

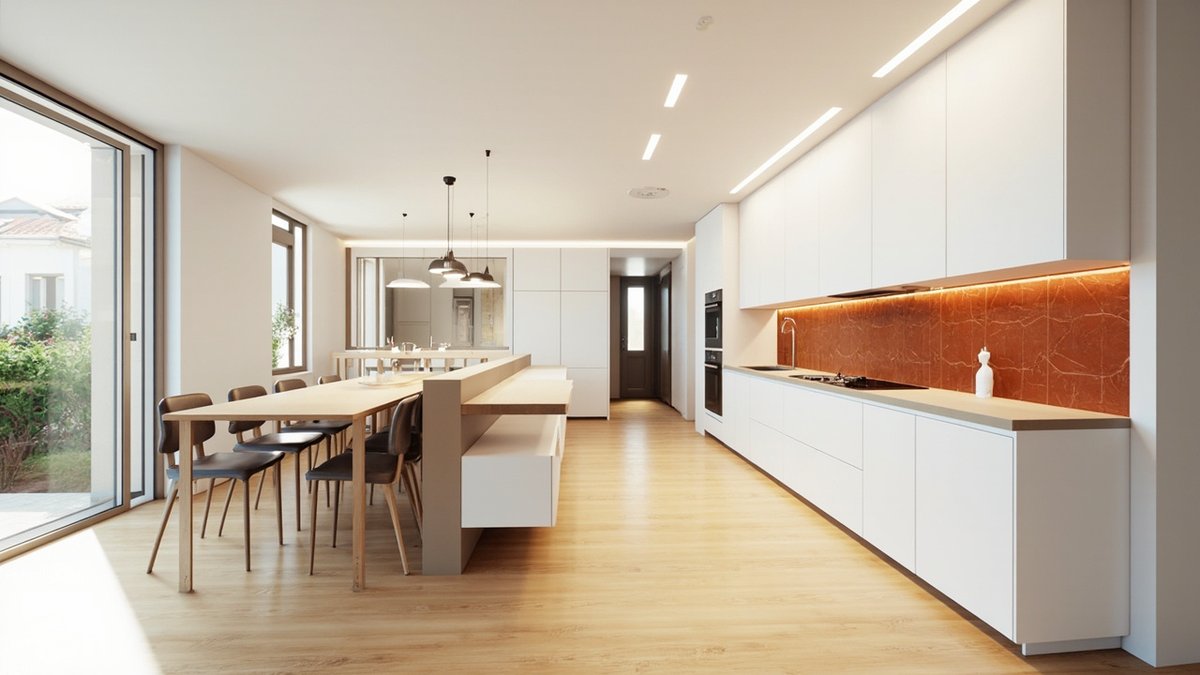

Many Malaysian homes split cooking into a wet kitchen for heavy frying and a dry kitchen that opens to the dining area. They need different ceilings. The wet kitchen gets the steam and grease, so it wants a board that tolerates moisture and a surface that can be wiped. The dry kitchen behaves more like the dining room and can follow the ceiling design of the living hall, as long as the hood is working. ClickBina's wet and dry kitchen guide explains the split itself.

Which board: moisture-resistant, calcium silicate or PVC

ClickBina's bathroom ceiling board guide explains that ordinary gypsum board is vulnerable to moisture and that moisture-resistant or cement-based boards are used where humidity is high, including kitchens. The three usual choices compare like this:

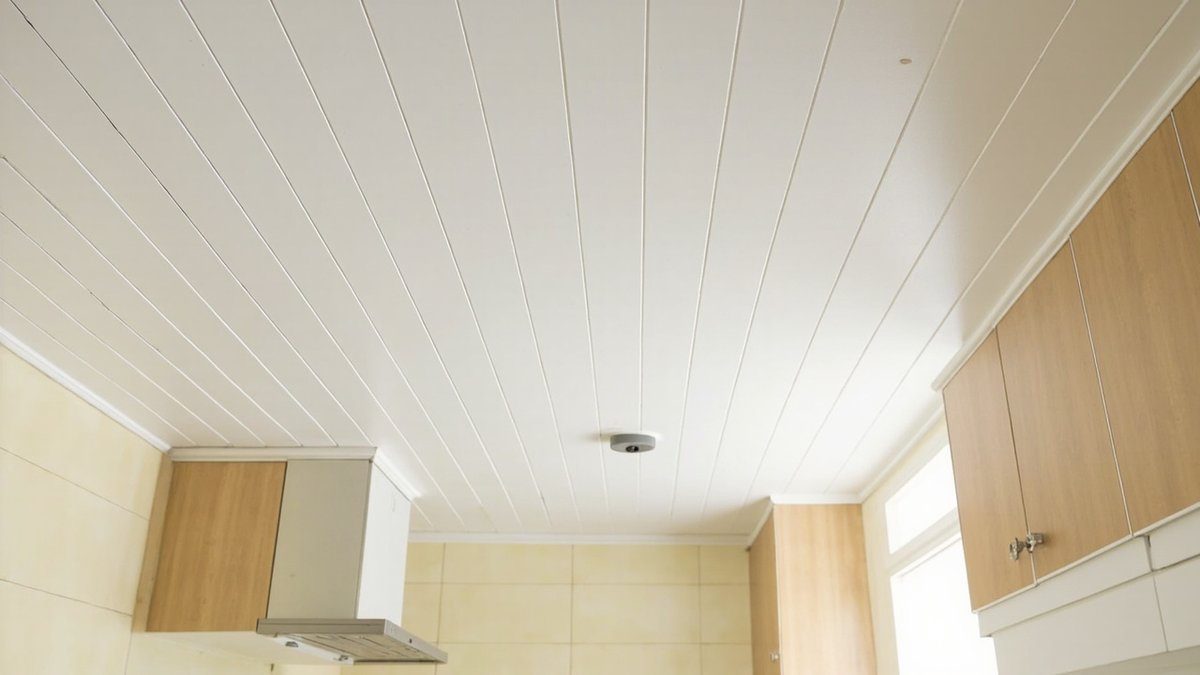

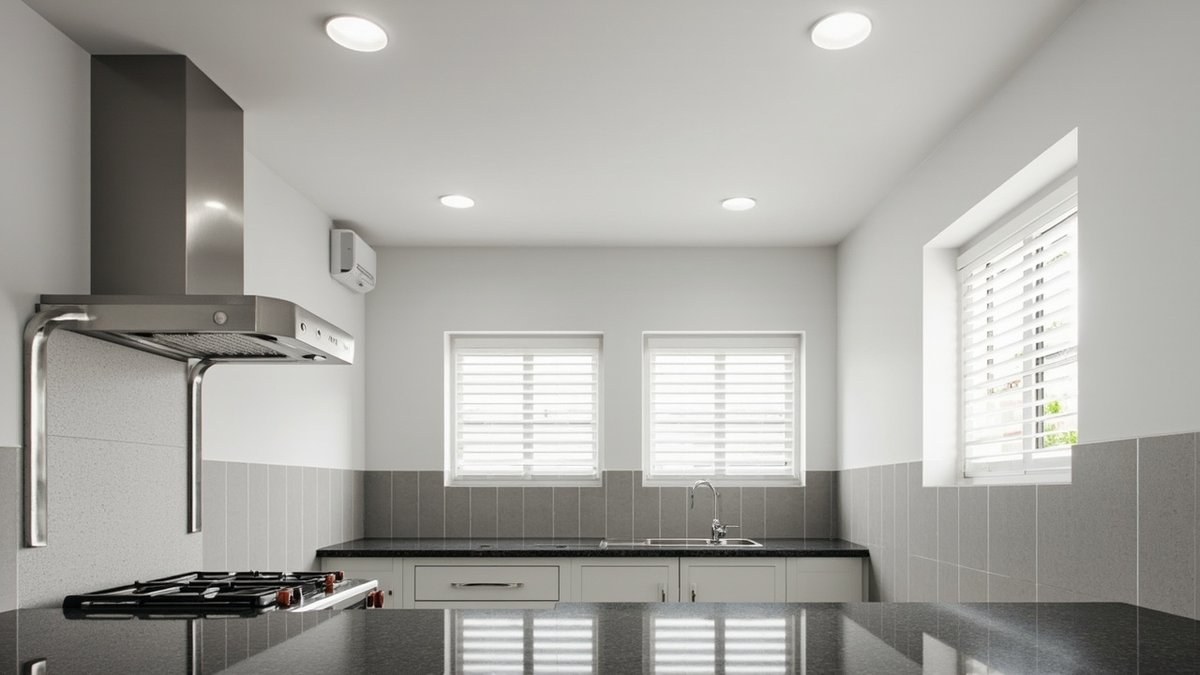

For a wet kitchen with heavy cooking, calcium silicate or PVC is the safer choice; for a dry kitchen open to the dining room, moisture-resistant gypsum gives the same seamless look as the hall.

The cooker hood, the duct and the ceiling

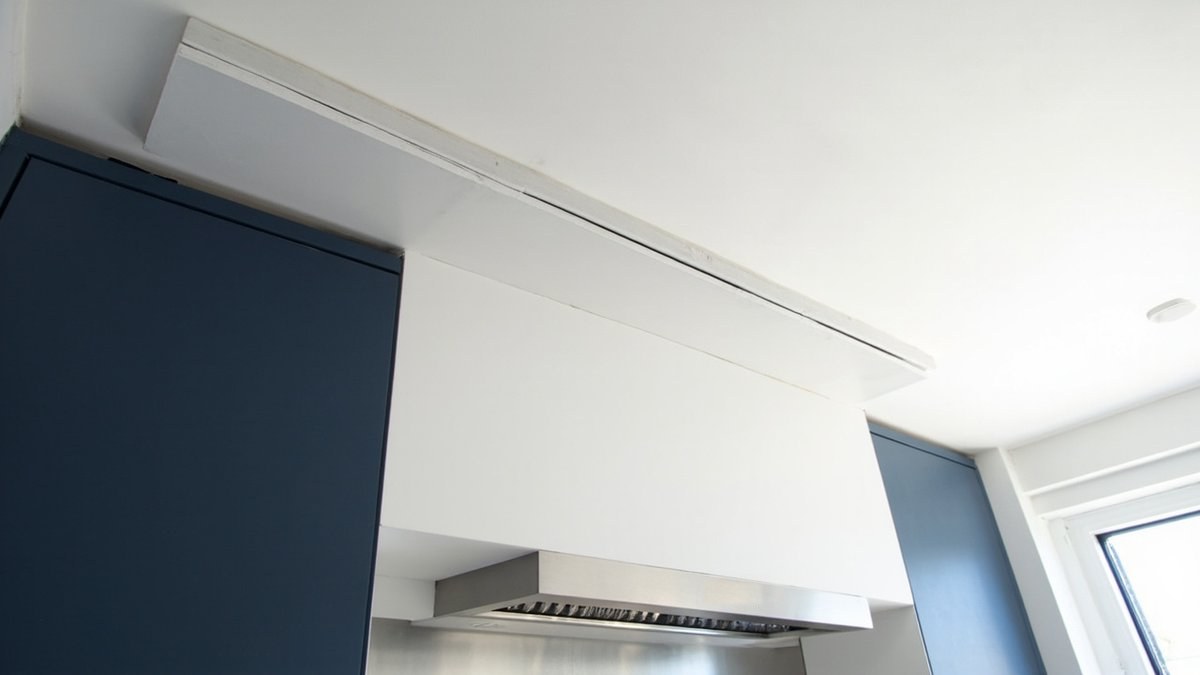

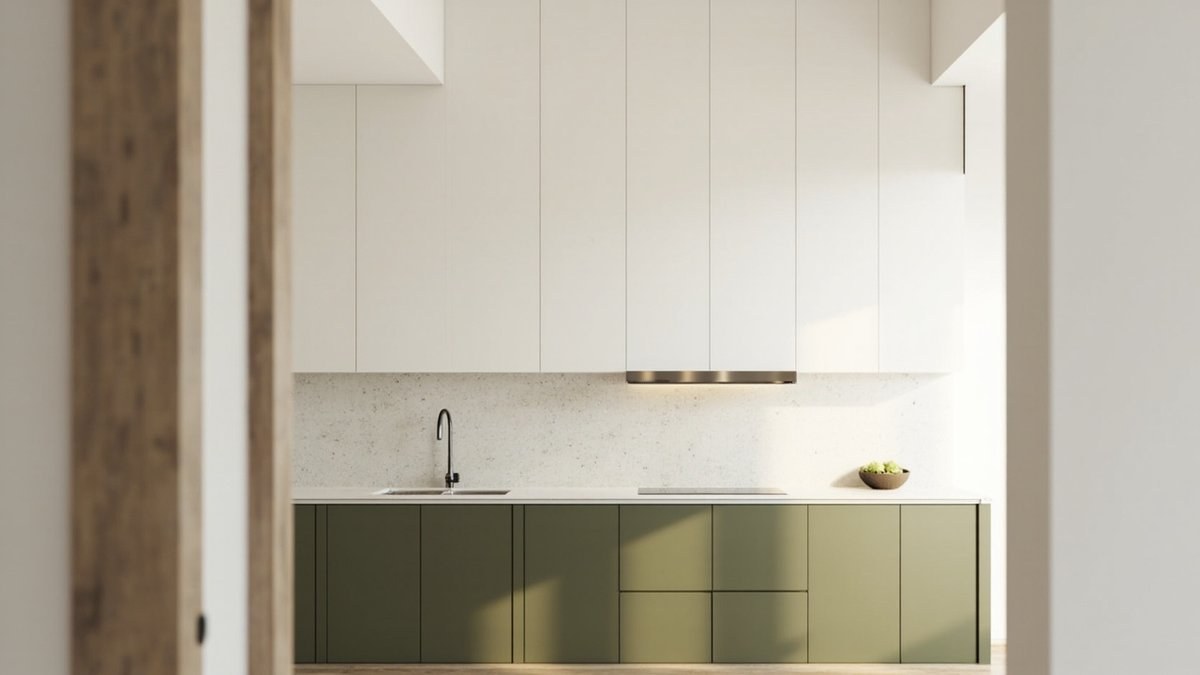

A ducted cooker hood pushes grease-laden air outside through a duct that usually runs above the ceiling or inside a bulkhead to an external wall. Decide the hood position and the duct route before the ceiling is framed, keep the run short with few bends, and leave access to the duct joints. Recirculating hoods need no duct but return the heat and smell to the room. ClickBina's hood and hob guide compares hood types, and the home cooker-hood section of ClickBina's kitchen exhaust ducting guide covers the duct.

Bulkheads over the cabinets

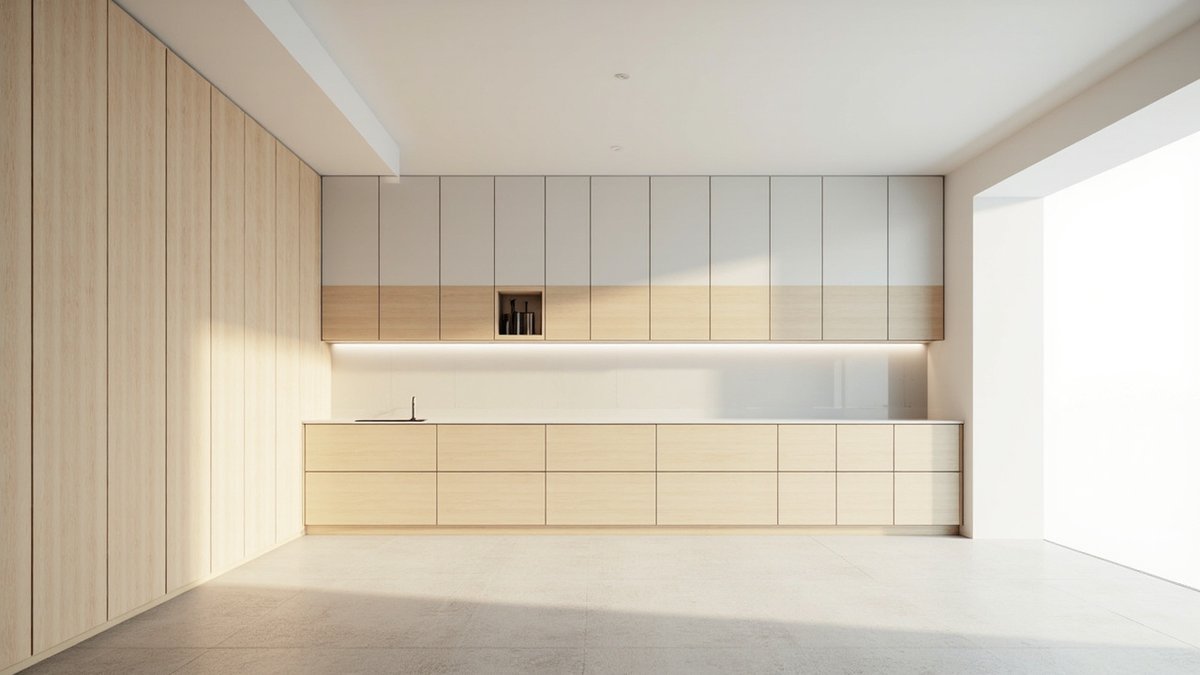

The gap between the top of the wall cabinets and the ceiling collects dust and grease. The neat answer is a bulkhead that drops the ceiling to meet the top of the cabinets, or tall cabinets that run to the ceiling. A bulkhead also hides the hood duct and gives a clean line for downlights along the counter. Agree the cabinet height with the carpenter before the ceiling is built, or the two will not line up.

Kitchen lighting in the ceiling

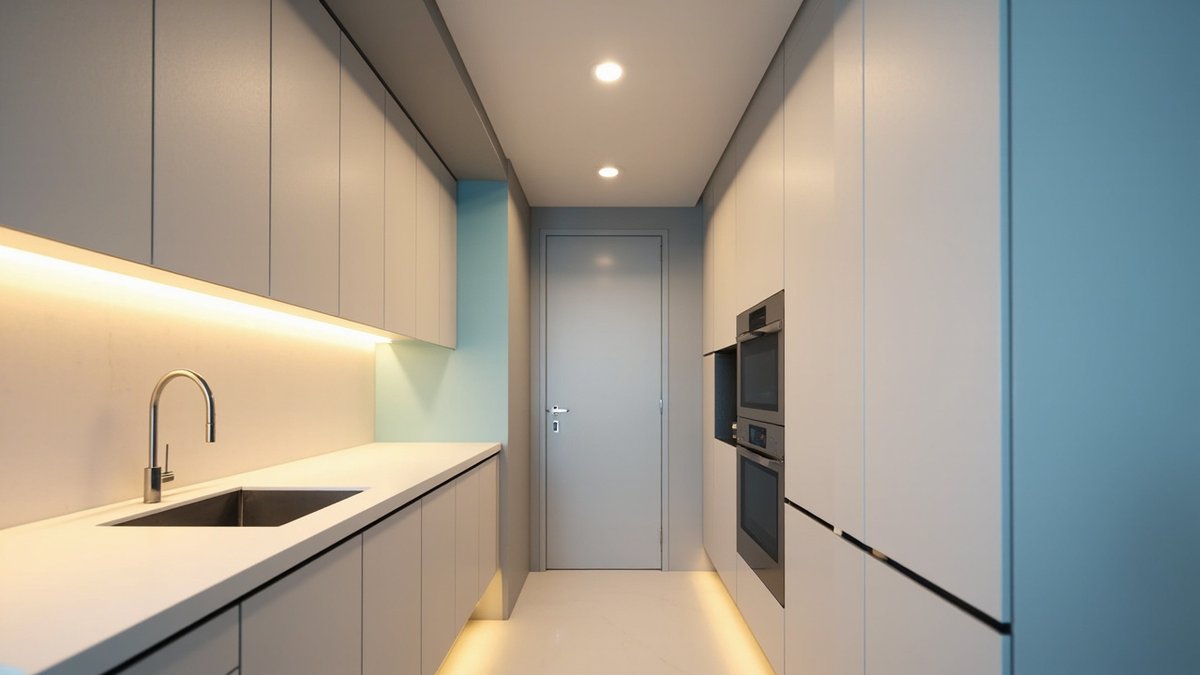

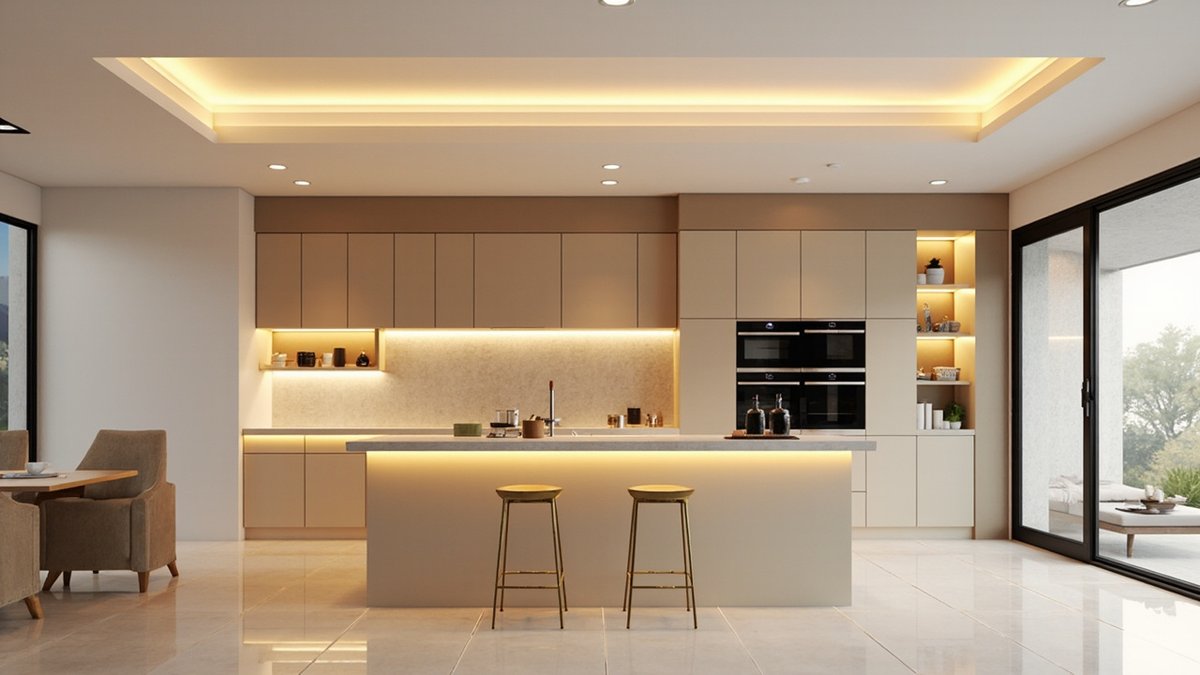

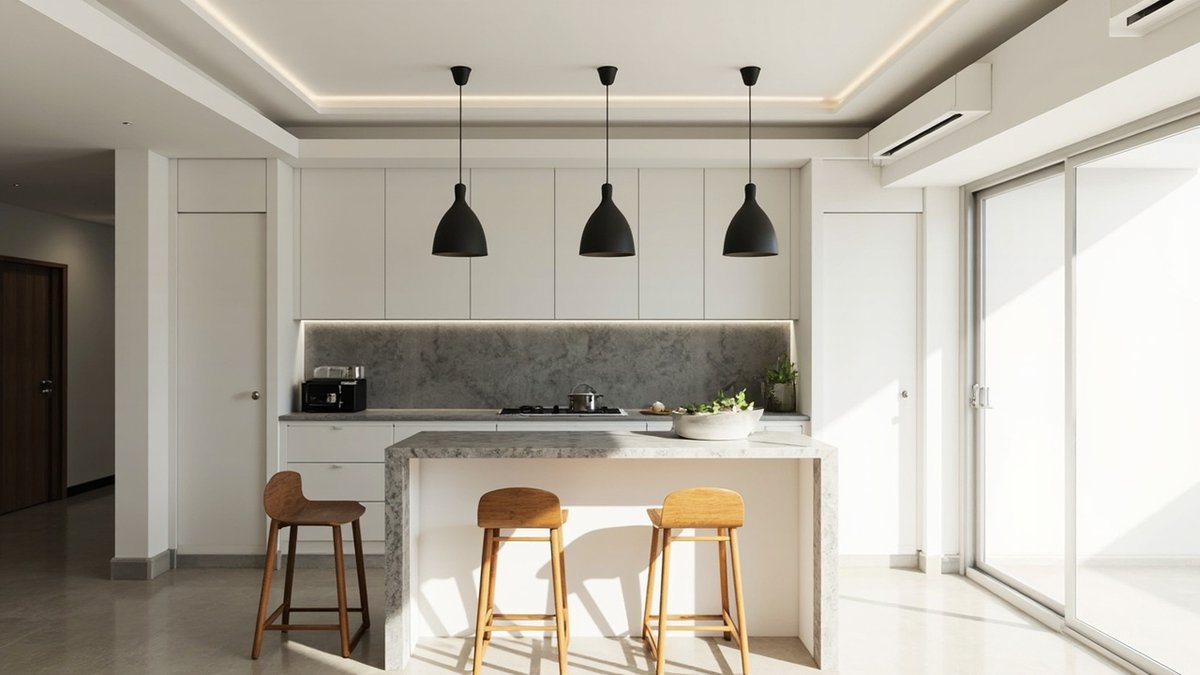

A kitchen needs brighter, more even light than a living room, aimed at the worktops rather than the middle of the floor. Place downlights in a line above the front edge of the counter so you are not cooking in your own shadow, add under-cabinet strips for the worktop, and keep open light channels and decorative coves out of the wet kitchen, where grease settles in them. If the dry kitchen joins the dining area, a pendant over the island or table can match the hall.

Pipes, the unit above and access panels

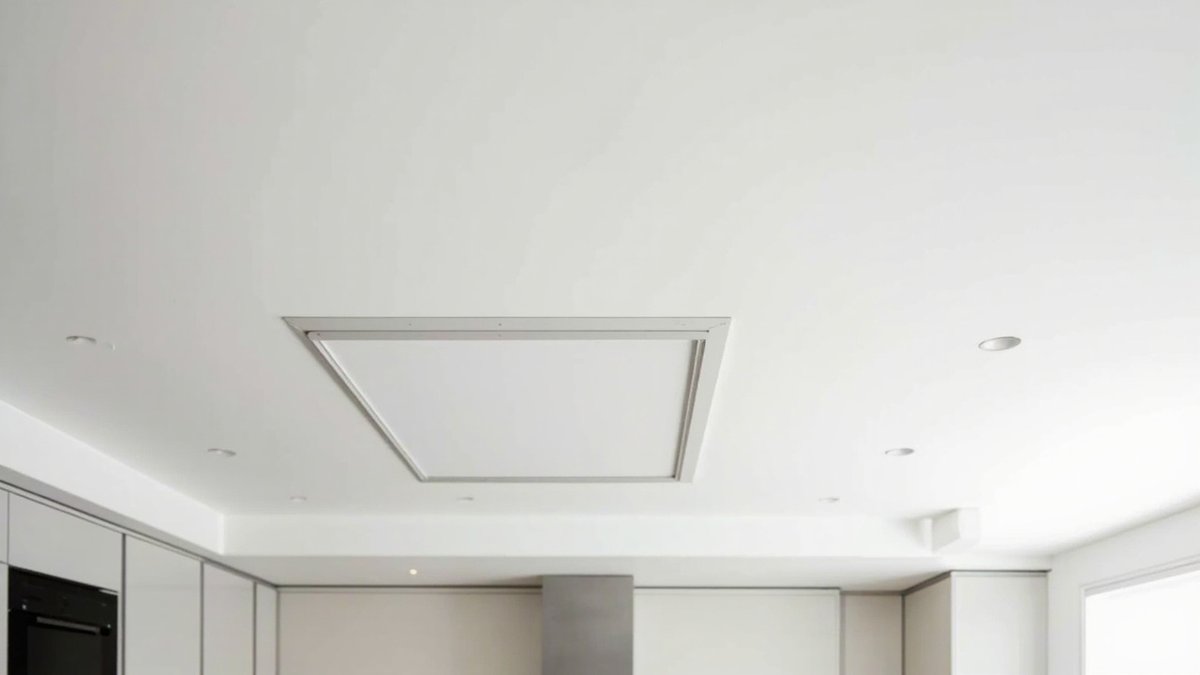

In condos and double-storey houses, the kitchen ceiling often hides water and waste pipes from the floor above as well as your own supply pipes. Fit an access panel under valves and joints so a plumber can reach them without cutting the ceiling. If the ceiling already shows water stains, find and fix the leak first; a new board over a wet slab will stain again.

Height, open kitchens and the hall

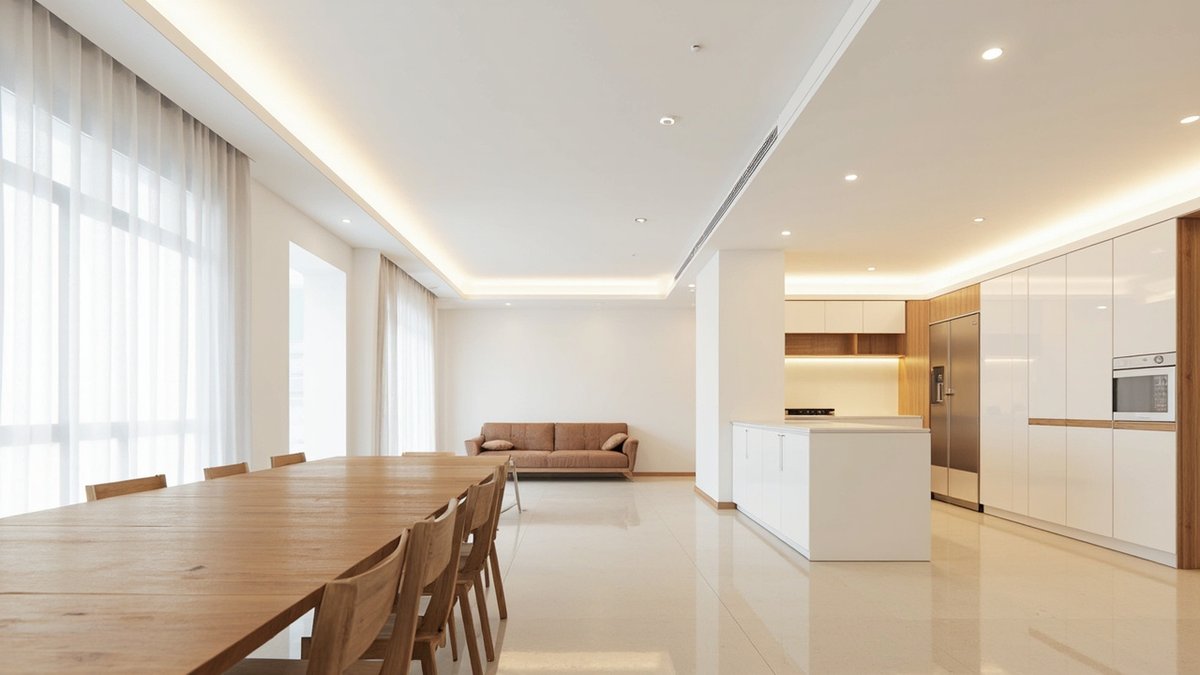

ClickBina's low-ceiling guide records the by-law minimum room height of 2.25 m for kitchens, so a deep bulkhead in a low kitchen needs checking. In an open kitchen, run the same ceiling height and edge detail into the dining area so the two read as one space, and change the board, not the look, where the wet zone begins. For the hall itself, see ClickBina's living room ceiling design guide.

What a kitchen ceiling costs

These are published ClickBina indicative ranges for kitchen ceilings:

Figures are indicative 2026 Klang Valley ranges. Hood ducting, electrical points and painting are separate lines. The full kitchen budget is covered in ClickBina's kitchen renovation cost guide.

Kitchen ceiling mistakes to avoid

• Standard gypsum board over a wet kitchen with heavy frying.
• Cove light channels where grease settles.
• Downlights in the middle of the room, leaving the worktop in shadow.
• Framing the ceiling before the hood position and duct route are fixed.
• No access panel under the valves and pipe joints.
• A dust gap between the wall cabinets and the ceiling.

What to send for a quote

• Home type and whether it is a wet kitchen, a dry kitchen or both.
• The kitchen size and the rough slab height.
• The hood type and where it is, and whether it is ducted.
• The cabinet layout and height, and the lighting you want.
• Any water stains or pipes you know about above the ceiling.

How ClickBina can help

ClickBina is an experienced KL & Selangor contractor that takes on whole-house refurbishment and coordinates the trades, so a kitchen ceiling can be planned together with the cabinets, the hood duct, the lighting and the plumbing above it. WhatsApp us your job details for a quote. We reply within the hour, the price we agree is a flat price with no hidden charges, and a site visit is RM150, waived if you go ahead. ClickBina is registered with SSM.
