Swap an old fuse box or overloaded DB for a modern consumer unit with real RCCB earth-leakage protection and per-circuit MCBs — safer, and no more whole-house blackouts from one small fault.
The distribution board — the DB box, consumer unit, or what many people still call the fuse box or kotak fius — is the grey panel on your wall where the incoming supply is split into the separate circuits that feed your lights, sockets, aircons and water heater. It does two jobs at once: it divides the power sensibly, and, far more importantly, it houses the protective devices that cut the power the instant something goes wrong. A modern board trips a single circuit when that circuit faults, and trips within milliseconds when electricity leaks to earth — the difference between a minor inconvenience and an electrocution. An old or badly set-up board does neither well, which is why upgrading it is usually the highest-value safety spend in the house.
These four acronyms cause endless confusion, and getting them straight is the whole point of this page. They do genuinely different jobs:
| Device | What it protects against | In plain terms |
|---|---|---|
| MCB (Miniature Circuit Breaker) | Over-current — overload or short circuit | Trips when a circuit draws too much current; the modern replacement for a rewireable fuse. Protects the wiring from overheating. |
| RCCB (Residual Current Circuit Breaker) | Earth leakage — current escaping to earth | Trips within milliseconds when it senses current leaking (typically around 30 mA), which is what protects a person from a fatal shock. |
| ELCB (Earth Leakage Circuit Breaker) | Earth leakage (older term / older technology) | The name older boards use for earth-leakage protection. Modern practice fits an RCCB instead; older voltage-operated ELCBs are considered outdated. |
| RCBO (Residual Current Breaker with Over-current) | Both earth leakage and over-current | An RCCB and an MCB combined into one device for a single circuit — so a fault on that circuit trips only that circuit. |
The short version: an MCB protects the wiring; an RCCB protects the person. “ELCB” is the older word for what an RCCB now does. A well-designed board uses both kinds of protection together — and if you have heard your installation only has fuses, or a single old ELCB, that is exactly the gap an upgrade closes.
A distribution board rarely fails dramatically; it just quietly stops being safe. The signs it is due:
If your home still has a rewireable fuse box, an upgrade is worth taking seriously. The old fuse works by melting a wire when the current gets too high — crude, slow, and easy to defeat, because a rushed hand will sometimes replace a blown fuse with thicker wire or even foil to “stop it blowing.” That completely removes the protection and lets the wiring overheat behind the wall — a real fire risk. A modern board swaps that for MCBs that trip cleanly and reset with a flick, and adds the RCCB earth-leakage protection an old fuse box never had. On top of the safety, it is simply more livable: a labelled board where one tripped circuit does not black out the house is far easier to live with and to fault-find in an emergency.
Here is a subtle but common issue even in homes that already have earth-leakage protection. If a single RCCB (or ELCB) sits at the top of the board protecting every circuit, then the moment any one appliance anywhere develops a small earth leak — a damp water heater element, a tired aircon — that one device trips and the entire house goes dark. It is safe, but maddening, and it makes finding the culprit slow. The fix is circuit balancing: splitting the load across two or more RCCBs (a “split-load” or dual-RCCB board), or using per-circuit RCBOs, so a fault on one group trips only that group and the rest of the house stays on. Distributing the circuits sensibly also stops one RCCB from being overloaded by too many appliances. This is often the real fix behind “my power keeps tripping” — not more capacity, just a better-organised board.
Upgrade the board when there is a genuine safety gap or a real limitation: no earth-leakage protection, old rewireable fuses, a scorched or failing board, or no room to add the circuit you need. Those are worth doing promptly. What you should not do is let someone talk you into a full new board when a smaller intervention solves your actual problem — if a single faulty appliance is tripping the house, the honest first step is to find and fix that fault, not to reflexively replace hardware. Equally, a board that is genuinely old and unprotected should not be nursed along just to save a modest sum, because the thing it is failing to protect against is a fire or a shock. A trustworthy electrician will tell you which of the two situations you are in.

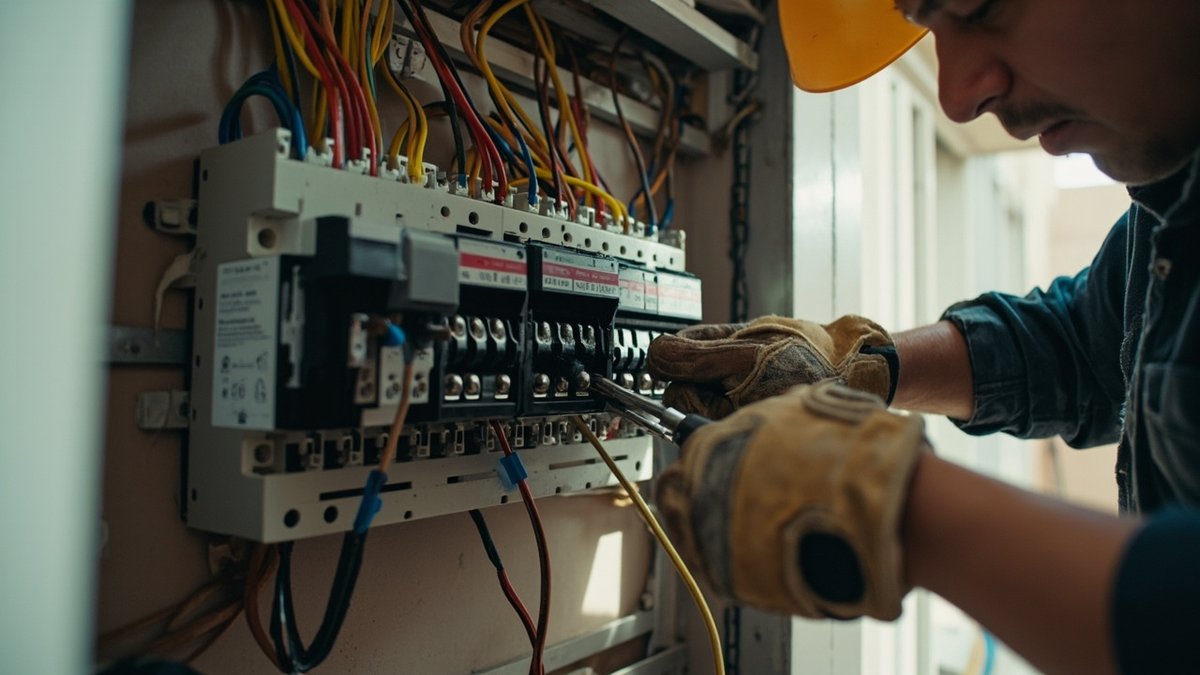

Replacing a consumer unit is precise work, and it follows a clear sequence. The electrician isolates the supply, records and re-terminates every circuit into the new board, fits the RCCB(s) and MCBs (or RCBOs) with the load balanced across them, and connects the earthing and bonding correctly — the part that makes the earth-leakage protection actually work. Every circuit is then tested (continuity, insulation resistance, and that each protective device trips as it should), the board is clearly labelled, and the work is certified. On most homes it is a same-day job with the power off for a good part of it. Because it is live-supply work behind a panel, none of it is a DIY task — opening a distribution board is precisely the boundary where a job stops being a homeowner’s and becomes a registered electrician’s.
What should changing a DB box honestly cost? As a market estimate for the Klang Valley in 2026 (the final figure depends on the number of circuits, the board type and access):
| Work | Indicative cost | Notes |
|---|---|---|
| Standard single-phase consumer unit upgrade | RM1,500 – RM3,500 | New board, RCCB, MCBs, re-termination, testing & certification |
| Split-load / dual-RCCB board (better balancing) | RM2,000 – RM4,000 | Circuits split across two RCCBs so one fault does not black out the house |
| Three-phase distribution board | RM3,500 – RM8,000+ | Larger board, more circuits; part of a three-phase upgrade |
| Add or replace a single RCCB / MCB / RCBO | RM250 – RM600 | Smaller job where the board itself is sound |
These sit deliberately in line with the consumer-unit figures in our house rewiring cost guide — a DB upgrade is the same job whether it comes as part of a rewire or on its own. Be wary of a quote far below the range that skimps on a proper certified board, and of one far above it that is padding a simple swap. Ask for the board type and the earth-leakage arrangement in writing.
The protective devices are not the place to save money on a no-name bargain. A certified board and breakers from an established manufacturer trip reliably and predictably, which is the entire point of the device; a cheap uncertified RCCB that fails to trip when it matters is worse than useless because it gives false confidence. You do not need the most expensive brand on the market, but you do want genuine, certified components correctly rated for your circuits. A good electrician will specify a reputable board, size each MCB to protect its circuit’s cable, and set the RCCB arrangement to balance safety with liveability — and will happily tell you what is going in and why.
Sometimes, mid-assessment, the board upgrade reveals a bigger question. If your circuits are already balanced and protected but the total demand still outgrows the supply — several aircons, an induction kitchen and a fast EV charger all wanting to run at once — then a new single-phase board alone will not create capacity that the supply does not have. That is the point at which a three-phase power upgrade genuinely enters the conversation. It is the exception, not the rule: for the large majority of homes a well-designed single-phase board is the right and sufficient answer. The value of an honest assessment is knowing which of the two you actually need before you spend on either.
Changing a distribution board is licensed electrical work. It must be carried out by a competent person registered with Suruhanjaya Tenaga (the Energy Commission), who can test the installation and issue the certification confirming it is safe. Unlicensed board work is illegal, can void your home insurance, and — most importantly — a board wired or earthed incorrectly can leave live metal or a protection device that does not trip, which defeats the entire reason you upgraded. This is not a job for a general handyman or a DIY weekend. It is exactly the kind of work our electrician services exist to do properly and sign off.
