Single-phase to three-phase, done right — load assessment, the TNB application, a proper DB and earthing upgrade, and the meter change, all by a registered electrician across the Klang Valley.
📍 We serve KL, Selangor & Putrajaya.
Almost every landed home and condo in Malaysia is supplied with single-phase power — one live conductor and a neutral, at roughly 230 volts. It runs lights, fans, sockets, a water heater and a couple of air-conditioners without complaint. Three-phase power brings three live conductors (plus neutral) into the house at around 400 volts between phases, so the total load is spread across three supplies instead of one. The practical difference is headroom: a three-phase supply can carry far more simultaneous demand, and it lets you run equipment — such as an 11 kW or 22 kW EV charger, or a large motor — that a single-phase supply simply cannot feed. It is not “stronger” electricity or a fix for weak appliances; it is more capacity, and only some homes genuinely need it.
This is the section a salesman skips, and it is the most important one. Most Klang Valley terrace and semi-D homes live perfectly well on single-phase for their whole life. You start to genuinely outgrow it only when your total simultaneous demand climbs past what one phase can safely carry, or when a specific appliance is three-phase by design. If your main breaker trips when the aircon, the water heater and the kettle all run at once, that can point to a capacity limit — but far more often it points to an old, undersized or badly balanced distribution board that a much cheaper upgrade will fix. A registered electrician should measure your actual maximum demand before anyone quotes a conversion. Paying for three-phase you do not need is one of the more expensive mistakes in home electrics.
Three-phase is not automatically required for home solar panels or an EV charger. Rooftop solar is not among the usual three-phase triggers, and SEDA's NEM FAQ set separate thresholds for single-phase and three-phase systems. For EV charging, only the faster 11 kW and 22 kW AC chargers are three-phase by design; a slower single-phase charger does not need the upgrade. A registered electrician's load assessment of your maximum demand should settle it before anyone quotes a conversion.
The honest driver behind most genuine three-phase upgrades in 2026 is a small set of high-load additions arriving at once:
| Trigger | Why it strains a single-phase supply |
|---|---|
| Home EV charger (11 kW / 22 kW) | The faster AC chargers are three-phase by design; a single-phase supply caps you at a slower charge — see our EV charger installation guide |
| Induction hob / large oven | A full induction cooktop can draw as much as several rooms combined |
| Multiple air-conditioners running together | Three or four units plus everything else can push the main breaker to its limit — especially older, un-serviced units drawing high current (aircon servicing) |
| A major renovation or extension | New wet kitchen, extra bathrooms and a home office add circuits and load at once |
| Home workshop or heavy equipment | Some machinery is only available in a three-phase version |
WhatsApp us your job details — we reply within the hour with a free quote.
💬 Get Your Free QuoteIf you tick several of these at the same time — classically, adding a fast EV charger to a home that already runs multiple aircons — a three-phase upgrade may be the right long-term move. If you tick only one, ask whether a dedicated circuit or a smarter DB gets you there for far less.
Before you spend on TNB and three-phase, rule out the cheaper cure. A great many “my main keeps tripping” complaints come down to a tired distribution board: an old fuse box, a single earth-leakage device carrying the whole house, too few circuits, or poor load balancing. Upgrading to a modern consumer unit with the load split sensibly across circuits often solves the tripping outright — at a fraction of a conversion. Sometimes the answer is simply a dedicated, correctly sized circuit for the one heavy appliance. A three-phase conversion is the right call when your total demand genuinely exceeds single-phase capacity, or when the appliance you want only exists in three-phase — not as a default response to a nuisance trip. An honest electrician will tell you which camp you are in.
Because it changes the supply coming into your home, a single-to-three-phase upgrade is a coordinated job between your registered electrical contractor and TNB. The shape of it is consistent, even though the exact fees and timing vary:
The two steps outside your contractor’s hands — TNB’s review and the meter change — are usually what set the timeline, so build a little patience into your plan.
Owners often hear their electrician mention the “Form G” and “Form H” and the myTNB application. In practice your registered electrical contractor prepares and submits these — the TNB supply-alteration application and the electrical test-and-certification documents — as part of the process above; you do not fill them in yourself. What matters for you is simply that a properly registered contractor is handling the submission, because TNB will not energise a new supply without the correct certified paperwork behind it. The exact form names, the documents required, and every fee change from time to time, so treat any specific figure you read online as indicative only and confirm the current forms, requirements and charges directly with TNB or your contractor before you budget. We would rather tell you to verify than quote you a number that has since moved.
Any charge labelled as TNB's on a three-phase quote should be backed by TNB's own paperwork. Connection, deposit and meter-change charges are set by TNB, not the contractor, so ask for TNB's quote or bill and check the amount directly with TNB. A fee for preparing and submitting the application is the contractor's own charge, and an honest quote lists it on a separate line from the internal works and the TNB charges.
The load assessment is the technical heart of the job. The competent person adds up your connected and simultaneous loads — aircons, water heaters, cooking, EV charging, the lot — to work out your true maximum demand, which decides both whether three-phase is warranted and how the new board is sized. All of this must be done by a person registered with Suruhanjaya Tenaga (the Energy Commission) under the Electricity Supply Act 1990; supply-level electrical work by an unregistered person is illegal in Malaysia and will not pass TNB. This is also why a phone quote for a three-phase upgrade, sight unseen, is meaningless — the number depends entirely on a load assessment nobody has done yet.

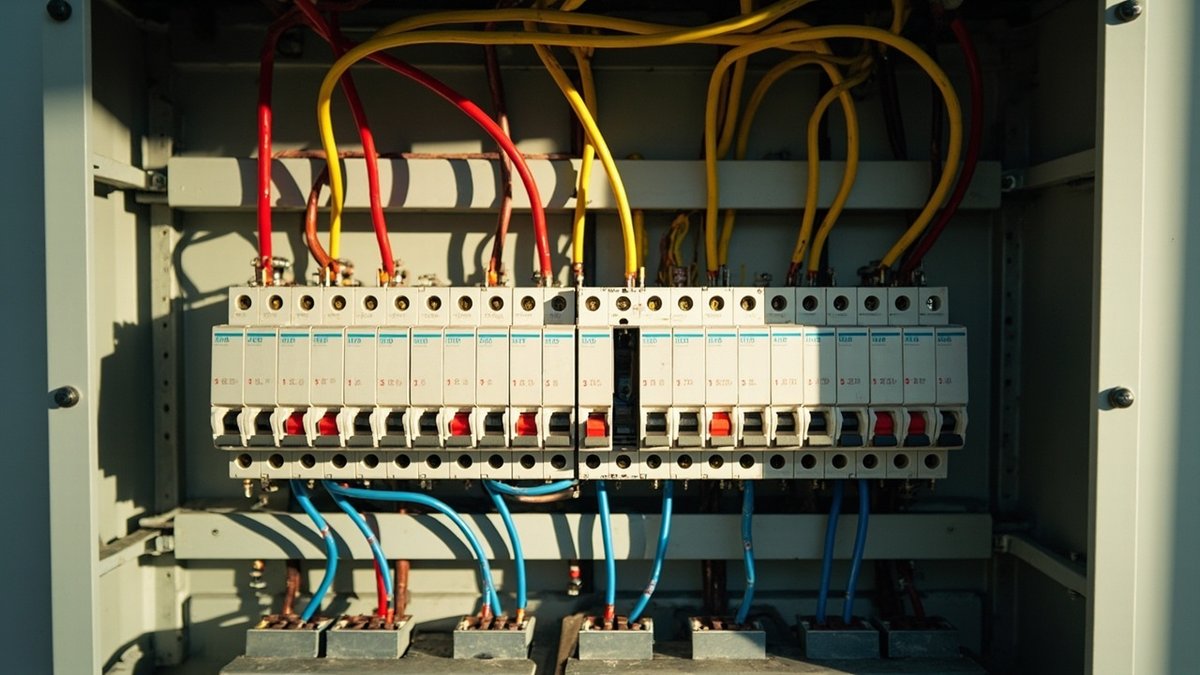

On the internal side, the upgrade typically means a new three-phase distribution board and main switch, with circuits distributed and balanced across the three phases so no single phase is overloaded; correct earthing and bonding, which is safety-critical on any supply change; and, where the existing service cable is too small, an upgraded incoming cable. Your high-load circuits — the EV charger, for instance — are then run properly from the new board. TNB completes the picture by replacing your single-phase meter with a three-phase meter. Done well, you should not notice anything day to day except that the tripping stops and the heavy equipment finally runs; done badly, an unbalanced board or poor earthing is dangerous, which is the whole reason this is licensed work.
A trip on one circuit need not black out a three-phase house; the result depends on how the board is laid out. A three-phase board spreads and balances the circuits across the three phases, and a fault on a circuit with its own MCB or RCBO trips only that circuit. If one RCCB at the top of the board guards every circuit, though, an earth leak anywhere trips it and the whole house goes dark.
There is no single sticker price, because the job splits into internal works (which your contractor controls) and TNB’s own charges (which you must confirm with TNB). As an honest guide (market estimate, indicative Klang Valley 2026):
| Item | Indicative cost | Notes |
|---|---|---|
| Internal works — 3-phase DB, main switch, earthing, labour & certification | RM3,000 – RM8,000+ | Scale depends on board size, circuits and incoming-cable upgrade |
| Upgrading the incoming service cable | Varies with run & access | Only where the existing cable is undersized |
| TNB connection / deposit charges | Confirm current fee with TNB | Set by TNB, not your contractor — do not rely on old figures |
| TNB meter change (single → three-phase) | Confirm current fee with TNB | Charged and scheduled by TNB |
Anyone who quotes you a single all-in three-phase price over the phone, without a load assessment and without pointing you to TNB for the utility-side charges, is guessing. A proper quote separates the internal works from the TNB charges so you can see both clearly.
When a three-phase upgrade comes in over budget, split the bill into its two halves first. Internal works by the contractor (three-phase DB, main switch, earthing, labour and certification) run roughly RM3,000–RM8,000+ in the Klang Valley (market estimate 2026), while connection, deposit and meter-change charges are set by TNB alone. Ask which items pushed the figure up, such as an undersized incoming cable or a network upgrade TNB requires, and confirm TNB's amounts directly with TNB.
The internal electrical works themselves are usually a short job — often a day or two of on-site work once materials are ready. The overall calendar, however, is set by the parts you do not control: TNB’s review of whether the network can supply three-phase to your address, any network upgrade they require, their charges, and scheduling the meter change. Those timelines genuinely vary from case to case, so we will not pretend a fixed number applies to every home — confirm the current expected timeline with TNB or your contractor for your specific address. Plan the upgrade ahead of when you actually need the capacity (for example, before your EV arrives) rather than in a rush.
A supply upgrade is exactly the kind of work Malaysia licenses for a reason. It must be carried out by a competent person registered with Suruhanjaya Tenaga; using an unregistered handyman is illegal, will fail TNB, can void your home insurance if a fault causes a fire, and leaves you personally liable if it injures someone. Only a registered contractor can issue the electrical certification TNB needs to energise the new supply. This is not a corner to cut for a cheaper quote — on a job that changes the incoming power to your home, the qualification is the safety. It is the same principle behind any serious electrical work, from a full house rewire to a new consumer unit.
PW4 is the Energy Commission's label for a three-phase wireman who also holds the testing endorsement. ST grades wireman certificates PW1 to PW4 under regulation 50 of the Electricity Regulations 1994: PW1 and PW2 cover single-phase work, PW3 and PW4 three-phase work, and the testing endorsement sits on PW2 and PW4. Work on a three-phase supply must be supervised by a wireman with a Three Phase Restriction, then tested by someone authorised to test.
ClickBina arranges single-to-three-phase power upgrades across Kuala Lumpur and Selangor with registered electricians — starting with an honest load assessment that tells you whether you truly need three-phase or whether a smarter distribution board solves it for far less. We handle the TNB application, the DB and earthing works and the certification, and point you to TNB for the utility-side charges rather than inventing a number. It is one team for all your electrical and plumbing work, from general electrician services to EV-ready circuits, and you can scope the wider budget with our free cost tools. Tell us what you are trying to run — an EV charger, an induction kitchen, more aircons — on WhatsApp, and we will tell you honestly what your supply needs.
WhatsApp us your job details for a free quote — we reply within the hour.
💬 Get a Free QuoteThis guide refers to the laws, regulators, official bodies and references below. Rules, fees and procedures change — always confirm the current position with the source:
How we estimated prices: where this guide gives renovation or service price ranges, those RM figures are typical Klang Valley market ranges for 2026, compiled from contractor quotations and supplier price lists. They are not official or fixed rates — the final price depends on your site, so confirm it on site before you commit. Statutory fees, fines, tax rates and tribunal limits come from the law or official body concerned, not from market quotes.
