DB Box Size: How Many Ways?
Circuits, Spares, Metal vs PVC & Cost (2026)

What the "ways" on a DB box mean

A DB box (distribution board, or consumer unit) is a row of slots on a DIN rail. Each slot is a "way", and an 8-way, 12-way or 24-way board simply has that many single-width slots. A single-pole MCB for one circuit takes one way. Wider devices take more: the main switch, the RCCBs that give earth-leakage protection, a surge protection device and any double-pole breaker each use more than one slot. So a "12-way" board does not mean 12 circuits once the main switch and two RCCBs are in.

The DB box upgrade guide explains what MCBs, RCCBs and RCBOs do and when a board should be replaced. This page is about choosing the size and type of the board itself.

Counting the circuits a home needs

Start from the circuits, not the box. The example layouts in the Suruhanjaya Tenaga (ST) domestic wiring guideline show a main switch, then separate groups for lighting and fans, socket circuits, and dedicated circuits for air-conditioners and the water heater, each on its own breaker:

Count every aircon and heater separately, add the socket and lighting circuits by floor or zone, then add the slots taken by the main switch, the RCCBs and a surge device if you have one. That total, plus spares, is the board size.

Why spare ways matter

The ST example schematics leave ways marked "simpanan" — reserved — on the board. That is the cheapest insurance in the whole electrical installation. Most Malaysian homes add circuits over the years: another aircon, a second water heater, a new kitchen with an oven and induction hob, an outdoor socket, a home office, or an EV charger. With spare ways, each addition is one new breaker and one new cable. Without them, it means a bigger board, a second box beside the first, or a re-arrangement of circuits that nobody wants to pay for.

When the board is already full

A full board shows itself in a few ways: no empty slots, two cables squeezed into one breaker, a small extra box screwed on beside the main one, or a contractor saying a new aircon "cannot be added". The options are:

• Tidy and re-use: occasionally two lightly loaded lighting circuits can be combined, freeing a way. This is a judgement for the wireman, not a DIY decision.
• A sub-board: a small board fed from the main one, often for a kitchen, an extension or an outdoor area.
• A bigger board: replace the enclosure with one that has room, moving every circuit across and adding spares. This is usually done together with a DB upgrade.

Adding a single RCCB, MCB or RCBO where the board has room is listed at RM250 – RM600; a dedicated appliance circuit for an aircon, heater or oven starts from RM400 in the power points guide.

Single-phase or three-phase board

The board has to match the supply. The ST guideline sets a nominal 230 V single-phase supply for loads up to 12 kVA, and a 400 V three-phase supply above 12 kVA up to 100 kVA. A three-phase board is larger, with three phase busbars and breakers spread across them so the load is balanced. Most terraces and condos are single-phase; a home adding several aircons, a large induction hob and an EV charger may need to move to three-phase. The three-phase upgrade guide explains the TNB process and when a bigger single-phase board is enough.

RCCB groups, split load and RCBOs

The size of the board also depends on how the earth-leakage protection is arranged. The ST example puts socket circuits under a 30 mA RCCB and lighting, fan and aircon circuits under a 100 mA RCCB, with the water heater on an RCD of not more than 10 mA. A split-load board with two or more RCCBs, or one with RCBOs on individual circuits, stops one leaking appliance from blacking out the whole house — but every extra RCCB or RCBO takes slots, which is another reason to buy a board with room.

Metal or PVC enclosure

Both metal and plastic (PVC or polycarbonate) enclosures are sold in Malaysia. The difference that matters is fire: a loose connection in a board can overheat, and a metal enclosure contains it where plastic may not. In the UK, the Wikipedia entry on the distribution board notes that modern consumer units are now required to be metal (non-combustible). Malaysian practice varies, but a metal enclosure is the safer default for a home, provided it is properly earthed.

Do not mix brands inside one board

The DIN rail is standard, but the busbars that connect the breakers are not. The Wikipedia entry notes that mixing different brands of devices is against the manufacturers' requirements and should generally be avoided. In practice, when a board is extended or a breaker replaced, it should be with the same make and range, or the board should be replaced as a whole. Genuine, certified devices matter more than the badge: a breaker or RCCB that fails to trip is worse than none.

Where the DB box should be

• Inside the home, reachable without a ladder, so anyone can reset a trip or switch off in an emergency.
• Not inside a bathroom or wet kitchen, and not above a sink or a water heater.

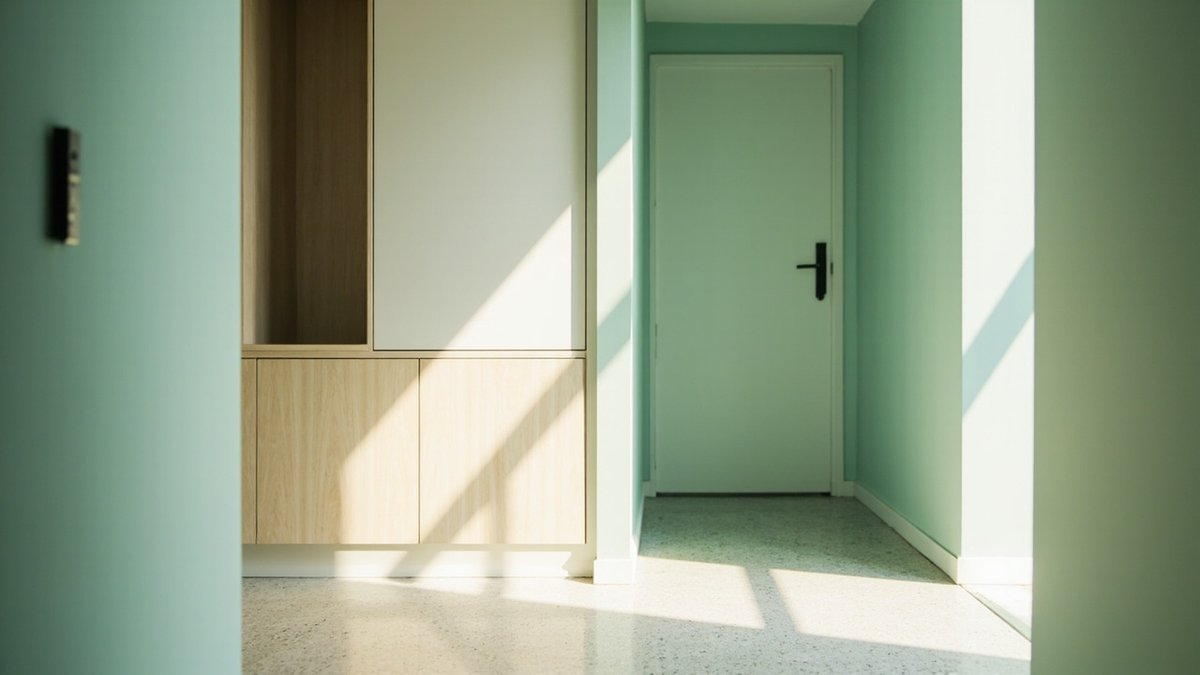

• Not locked inside a wardrobe or boxed behind carpentry with no door; built-in cabinets need an opening door with clear access.
• Labelled: every way marked with the circuit it feeds, including the spares.

Moving a DB box during a renovation means extending the incoming cable and every outgoing circuit, so it is planned at first fix, not at the end. The electrician services guide explains who is allowed to do board work and what should be tested and signed off by a registered wireman.

What DB box work costs

These are the published ClickBina indicative ranges (2026, Klang Valley):

A board upgrade price normally includes the new board, breakers, re-termination, testing and certification. Moving the board, a sub-board, or extending the incoming cable are quoted case by case.

How ClickBina can help

WhatsApp us your job details for a quote: the property type, single or three phase, how many aircons and heaters you have, and what you want to add. ClickBina is an experienced KL & Selangor contractor for whole-house refurbishment and trade coordination, which matters when a board is moved or enlarged during a renovation and the walls, carpentry and paint around it have to be made good. We reply within the hour, and the price agreed is a flat price with no hidden charges. A site visit is RM150, waived if you go ahead.

Sources & methodology

• Suruhanjaya Tenaga: Garis Panduan Pendawaian Elektrik Pepasangan Domestik — example board layouts, RCD sensitivities, water heater circuits, supply voltage by load.
• Wikipedia: Distribution board — metal consumer units (UK), busbars and brand mixing.
• ClickBina DB box upgrade and power points guides — board and circuit prices.

Methodology: prices are ClickBina indicative 2026 Klang Valley ranges from the guide named beside each; technical rules follow the ST guideline, with the UK rule marked as a reference.
