Dialysis Centre Fit-Out
Water Treatment Room, Power & Layout (2026)

Why a dialysis centre is different from a clinic

A GP clinic is mostly rooms, furniture and a few sinks. A haemodialysis centre is closer to a small plant room with a treatment floor attached. Wikipedia's haemodialysis entry explains why: dialysis patients are exposed to vast quantities of water, which is mixed with concentrate to form the dialysate, so even trace contaminants can reach the patient's blood. For that reason the water used is carefully purified before use.

That single fact drives the fit-out. The building has to host a water treatment room, carry purified water to every chair, drain every machine, keep the power on through a session, and let a small nursing team watch every patient. Everything else, from finishes to the waiting room, follows from those needs.

The water treatment room

The water treatment system is supplied and commissioned by a specialist, but the room it sits in is part of the fit-out. The haemodialysis entry describes a common purification train: pre-treatment to remove particles and chlorine or chloramines, then reverse osmosis, in which water is forced through a membrane that holds back even very small solutes, with further polishing in some systems.

Get the supplier's room layout and service requirements before the floor plan is fixed. Moving a plant room after the partitions are up is one of the most expensive changes on a dialysis fit-out.

Piping to every station, and a drain at every chair

Purified water travels from the treatment room to each dialysis station along a dedicated loop, and each machine needs a drain close by. The piping route, materials and access points are set by the water treatment supplier, because the loop has to be kept clean and disinfected. The fit-out has to give that loop a route through walls and ceilings, keep it accessible, and provide a drain point at every station without making the floor a trip hazard.

Think about maintenance from the start. Panels that open, ceiling access along the loop, and drains that can be cleared without closing the treatment floor all save disruption later. ClickBina's commercial plumbing maintenance guide covers how shared drainage in commercial premises is kept running.

Power continuity

A dialysis session runs for hours, and the machines, the water plant and the lighting all depend on power. Ask the medical team and the equipment suppliers what must keep running in a power cut and for how long, then design the supply around it: dedicated circuits for the stations and the plant, and a backup arrangement if the service requires it. ClickBina's generator installation guide explains how standby power is tied in safely. Fixed electrical work is done by a registered electrical contractor. ClickBina coordinates that work with the rest of the fit-out.

Treatment floor layout and sightlines

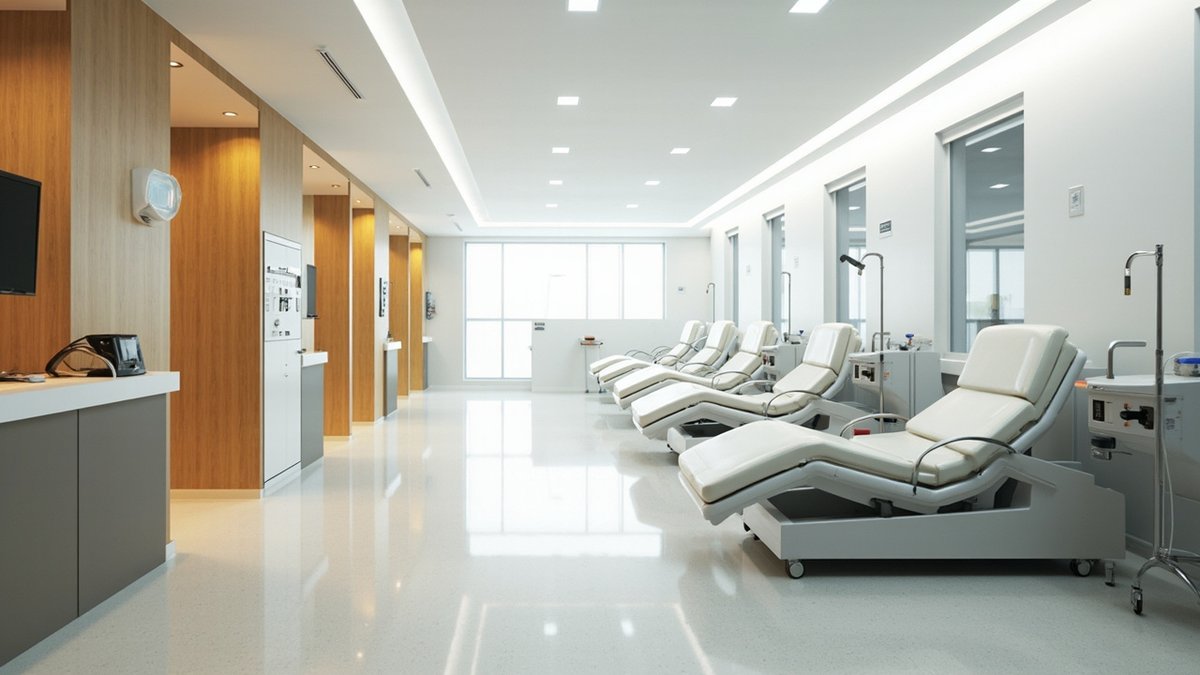

Nurses need to see every patient from the station. Most centres arrange the chairs or beds in open rows or an arc facing the nurse station, with space around each chair for the machine, staff access, and a trolley.

• Nurse station placed with a clear view of every chair.
• Enough space around each station for the machine, the nurse and emergency access.
• Hand-wash points on the treatment floor, as the clinical team specifies.
• Separate clean and dirty utility rooms, and a route for clinical waste that does not cross the waiting area.
• Patient toilets close to the treatment floor, accessible for patients who use wheelchairs or walking aids.
• A waiting area and reception away from the treatment floor, plus staff rest and changing rooms.

If the clinical team or the authority requires patients with certain conditions to be treated separately, that area is designed in from the start; confirm this with the medical director early.

Finishes and infection control

Surfaces on a treatment floor are wiped down many times a day and meet water, disinfectants and spills. ClickBina's clinic interior design guide describes the principle for clinics: clinical layout follows patient and hygiene flow, keeping clean and contaminated paths apart. For finishes that means seamless, washable floors turned up at the wall, wipeable wall surfaces around the stations, ceilings that can be cleaned, and joinery that does not trap dirt.

KKM, council and building approvals

The clinic guide explains that clinics are regulated by the Ministry of Health (KKM) under the Private Healthcare Facilities and Services Act, and that the design must satisfy KKM standards before the premises can be registered and operate, with floor plans showing each room's function, sterilisation and clean/dirty separation, ventilation, electrical and plumbing plans, accessibility and fire safety. Confirm with KKM how your dialysis centre is classified and what it must show; the medical director or a healthcare planner usually leads that submission.

Council building approval, Bomba fire-safety sign-off and the landlord's consent apply as for any commercial fit-out; ClickBina's commercial renovation permit guide explains each one.

Process and timeline

For commercial works in general, ClickBina's commercial fit-out process guide gives about 2 – 6 weeks for approvals and 4 – 10 weeks on site. A dialysis centre adds the water system's commissioning and the healthcare registration on top.

What drives the cost

ClickBina publishes no dialysis-specific price. For comparison, these are the clinic lines in ClickBina's clinic interior design guide (indicative 2026, Klang Valley):

A dialysis centre's building cost is driven by the plant room and its structural check, the piping loop and a water and drain point at every station, dedicated power and any backup arrangement, washable clinical finishes, and the number of wet rooms. The water treatment system and the dialysis machines are specialist supply items quoted separately.

What to send us for a quote

WhatsApp us your job details for a quote:

• Premises type and location: shoplot, office block, standalone building; which floor.
• Floor area and the number of dialysis stations planned.
• Scope: partitions, plant room, wet areas, flooring, ceilings, reception and staff areas.
• The water treatment supplier's room layout, if you already have one.
• Your target opening date and whether any part of the premises is operating.

ClickBina handles commercial renovation and fit-out works and coordinates the trades, working to the layout set by your medical team and the requirements of the water treatment and equipment suppliers. ClickBina is an experienced KL & Selangor contractor. We reply within the hour, the price we agree is a flat price with no hidden charges, and a site visit is RM150, waived if you go ahead.

Sources & methodology

• Wikipedia, Hemodialysis — why dialysis water is purified; the pre-treatment and reverse osmosis sequence.
• ClickBina clinic interior design guide — KKM regulation under the Private Healthcare Facilities and Services Act; clinic layout principles; comparison prices.
• ClickBina commercial renovation permit and fit-out process guides — council, Bomba and landlord approvals; approval and on-site durations.
• ClickBina generator and commercial plumbing guides — standby power tie-in; commercial drainage.

Methodology: every RM figure and duration on this page is quoted unchanged from the ClickBina guides named above and is shown for comparison only. No water-quality limits, station spacings, flows or electrical ratings are given; those come from KKM, the medical team and the suppliers.
