Office, Warehouse & Factory CCTV
Zones, Long Runs, Poles, Privacy & Cost (2026)

How office and industrial CCTV differs from a home system

A home system is a handful of cameras around one house. A business system covers more doors, more people and longer distances: an office floor with reception, meeting rooms and a server room; a warehouse with loading bays, racking and a yard; a factory with production lines, stores and a fence line. It also has more owners of the footage — security, HR, the landlord — and it records staff as well as visitors, which brings privacy duties a household does not have. The retail shop CCTV and alarm guide covers shop floors; this guide covers offices, warehouses and factories.

Start from the zones, then count the cameras

The CCTV installation cost guide makes the point that brand and sensor move a system's price more than adding a couple of cameras, and that cabling is the biggest swing on any quote. On a business site that is even more true, which is why the zone list comes before the camera count.

Long runs: copper, fibre and switches

On an office floor most runs are short. On a warehouse or factory they are not. The IP vs analog CCTV guide explains that copper data cabling is specified to 100 metres per run, and that beyond that the design places a network switch part-way, runs fibre for the long leg, or uses HD-over-coax, which reaches further unaided. For a gatehouse or a far corner of the yard, fibre is often the clean answer: a fibre carries no current, so it also breaks the electrical path between two buildings that lightning would otherwise follow. The same guide warns that cheap copper-clad aluminium cable can make a far camera drop out at night when its infrared switches on, so the cable grade belongs on the quote.

Poles, perimeter and outdoor cameras

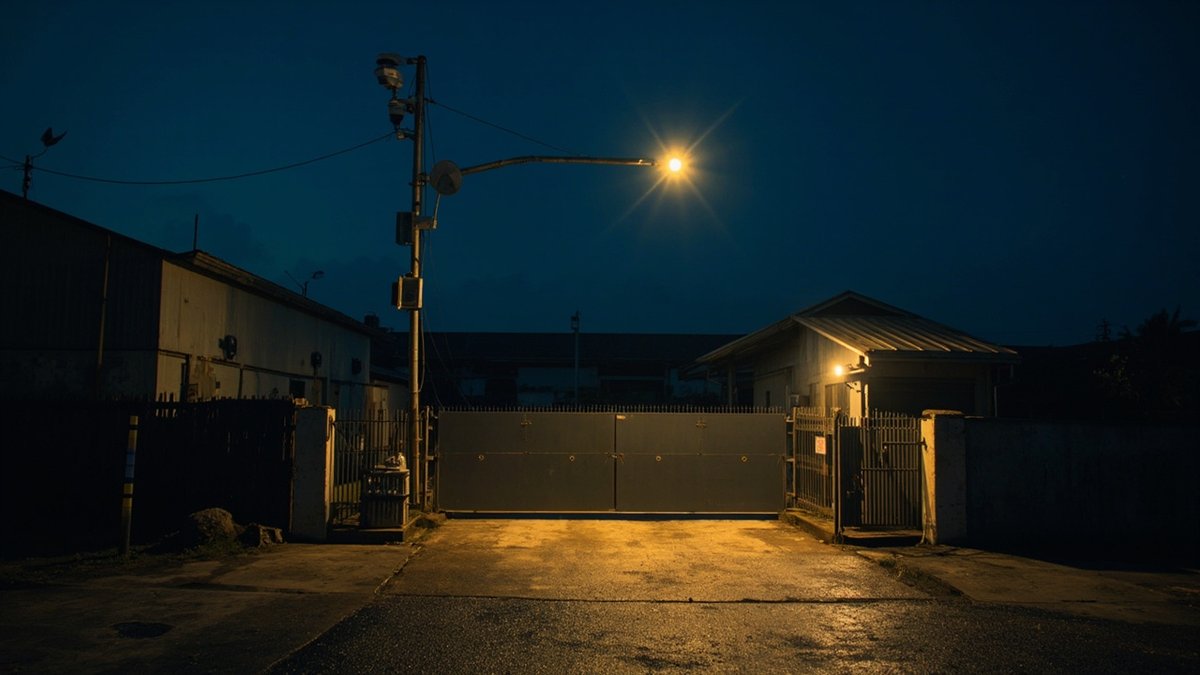

Fence lines, gates and car parks usually need cameras on poles or on the building's outer walls. A pole needs a proper base, a lockable box for power and connections, and a cable route from the building, often underground. Outdoor cameras on poles and roofs are the ones most exposed to lightning; the CCTV lightning and surge protection guide explains the earthing and surge protection that stop one strike from killing the recorder. Plan the night image as well as the day image: a yard that is dark at night needs cameras with good low-light performance or added lighting.

Recorder, storage and the network

Put the recorder in a locked room on protected power, not on a shelf in the open office. A recorder with PoE ports or a dedicated PoE switch powers the cameras down their data cables and keeps camera traffic on its own network, separate from the office computers. Storage is sized from how long footage must be kept; the CCTV hard disk guide shows how cameras, bitrate and motion recording decide the number of days a drive holds. Decide who can view and export footage, and change passwords when staff leave.

Warehouses and factories: height, racking and light

High bays and tall racking change the camera plan. Cameras mounted high see over the racking but lose faces; cameras at the end of each aisle see movement along it but need more units. Forklift routes, dock doors and the dispatch area usually matter most. Factory production areas bring dust, heat, vibration and sometimes washdown, which decide the housing. Test the live view with the racking loaded and at the hours the site actually works, including the night shift.

Offices: reception, doors and access control

In an office the cameras usually work with the door access system: a camera at each controlled door means an access log can be matched to an image. The office door access guide covers readers, locks and escape doors. Keep cameras out of places where staff reasonably expect privacy, such as toilets and changing areas, and think about whether a camera over desks is really needed.

Staff, visitors and the PDPA

A business running cameras is processing personal data. The PDPA, CCTV and biometrics guide explains the notice at the door, how long to keep footage, securing the recorder, and what to do when someone asks to see footage of themselves. Put up the notices, write down the purpose and the retention period, and limit who can export clips.

What the main items cost

These are the market ranges published on ClickBina's guides (indicative 2026, Klang Valley). A business site is priced after a site look, because cable routes and mounting heights decide most of it.

Long fibre runs, poles, trenching and lightning protection sit outside those package ranges and are priced from the site. Ask for them as separate lines so two quotes can be compared fairly.

Build it into the fit-out

CCTV is cheapest and neatest when it goes in with the fit-out: cable containment above the new ceiling, power and data points at each camera position, a place in the comms room for the recorder, and conduits laid before the yard is paved. Added after the ceiling closes, the same cameras need surface trunking or opened ceilings. ClickBina's office renovation and fit-out service plans the cable routes and points with the ceilings and partitions and sequences the CCTV installer into the programme.

How ClickBina can help

ClickBina handles commercial renovation and fit-out works and coordinates the trades. CCTV is specialist work, so ClickBina coordinates the licensed specialist CCTV installer and prepares the routes, points and ceilings around it. WhatsApp us your job details for a quote: the premises type and size, roughly how many cameras, and whether a fit-out is under way. ClickBina is an experienced KL & Selangor contractor; we reply within the hour, the price we agree is a flat price with no hidden charges, and a site visit is RM150, waived if you go ahead.

Sources & methodology

• ClickBina CCTV installation cost guide — 8- and 16-camera system market ranges; what moves a quote.
• ClickBina retail shop CCTV and alarm guide — cabling per point and add-camera ranges.
• ClickBina IP vs analog CCTV guide — the 100-metre copper run, fibre and coax options, recorder shelf prices, cable grade.
• ClickBina PDPA and CCTV guide, door access guide, lightning protection guide and hard disk guide.

Methodology: prices are the indicative 2026 Klang Valley market ranges published on the guide named beside each line; long runs, poles and trenching are priced from the site.
