Wall Plugs & Anchors Explained
Hanging Heavy Items on Drywall, AAC or Brick (2026)

The four walls you will meet in a Malaysian home

Many homes have several of these in one room. A condo living room can have a concrete column, an AAC block wall and a plasterboard bulkhead within a few steps of each other, so check the exact spot you are drilling, not just “the wall”.

What a wall plug actually does

A plug or anchor turns a screw into a grip on the wall. In solid materials, an expanding plug presses against the sides of the hole. In hollow or weak materials, a cavity anchor opens up behind the board or spreads its grip over a larger area. The screw only holds as well as the thing it is gripping, which is why the wall comes first.

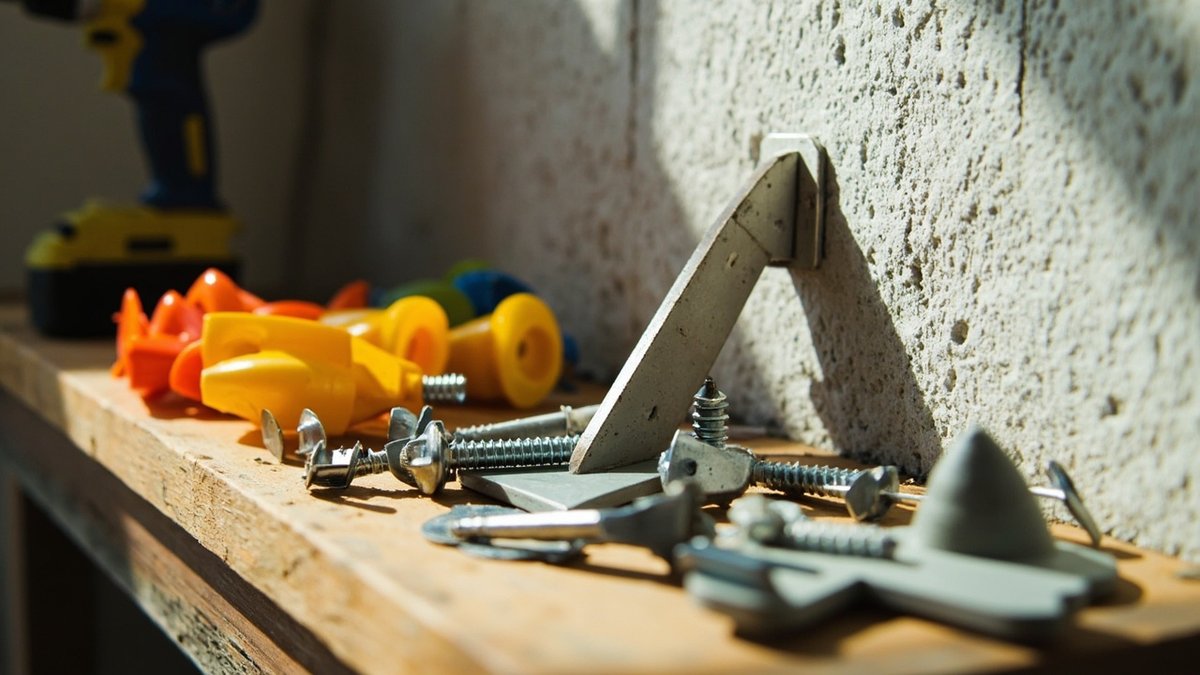

• Plain plastic plugs: fine for light items in solid brick and concrete.
• Universal nylon plugs: expand in solid walls and knot or fold in hollow ones; the load they carry still depends on the wall.
• AAC anchors: long, coarse-threaded or spiral designs that grip soft aerated block.
• Plasterboard fixings: spring or gravity toggles, metal cavity anchors and screw-in board plugs that spread the load behind the board.
• Metal sleeve and wedge anchors: for heavy loads in concrete, such as brackets and steelwork.
• Chemical (resin) anchors: resin bonds a threaded rod into the hole; used for heavy or critical fixings, and in weak or crumbly masonry.

What the manufacturer’s figures say

Our TV cabinet cost guide quotes fischer’s published recommended loads for one universal anchor per base material. The figures are per single anchor, specific to that product, and span the anchor sizes from small to large, but the spread between walls tells the story:

The same guide notes that the maker’s recommended load already includes the required safety factors, and that its dedicated plasterboard fixing is rated at a maximum of 8 kg in 12.5 mm plasterboard and 7 kg in 9.5 mm, with a maker’s application list of light items such as lighting and accessories. In practice: a mirror or a small shelf, yes; a TV, a loaded cabinet or a heavy mirror, no, unless it goes into the structure behind.

TV mounts

A TV bracket puts a lever on the wall, and more so when it is a swing arm pulled out from the wall. The TV cabinet guide quotes Vogel’s installation manual: the fixings supplied with a TV wall mount are intended for solid brick, solid concrete or solid wood columns only, and hollow brick, wood panel or plasterboard walls require specialist advice.

• On concrete or solid brick: use the bracket’s fixings or better, into sound material, not into plaster alone.
• On AAC block: use anchors made for aerated concrete, spread the fixings, and prefer a fixed bracket to a long swing arm.
• On plasterboard: fix through into studs or a plywood or steel backing anchored to the structure, or move the TV.

Mirrors, artwork, frames and shelves

Most everyday hanging is well within what a correct plug holds, provided it is in the right wall. Large mirrors are heavier than they look and are glass, so a failure is dangerous: use two or more fixings with mirror clips or a cleat, not a single hook. Heavy artwork and framed prints are best hung on two points so they stay level.

Shelves are where people get caught out, because the load grows over time as books and ornaments pile up, and a deep shelf acts as a lever on its top fixings. Our guide to floating shelves and bookcases explains how span and depth change what the wall has to carry.

Wall cabinets and heavy fixtures

Wall-hung kitchen and bathroom cabinets, a loaded wall-hung shoe cabinet or a floating console carry a lot and stay loaded for years. Carpenters usually hang them from a rail fixed into the structure, and on a weak wall the workable answers are to stand the unit on the floor, fix through the partition into the structure behind, or install a continuous backing rail anchored into structure. Ask for the fixing method to be written on the quote.

Some fixtures are specialist jobs with their own rules, such as water heaters, aircon brackets and anything on an external wall at height. Those belong to the trade that installs them, not a general hanging job.

Drilling safely: cables, pipes and tiles

1. Find the cables. Concealed wiring usually runs straight up or down from sockets and switches. Avoid those lines and use a detector; if in doubt, switch off the circuit.
2. Find the pipes. In kitchens and bathrooms, water pipes run in the wall to taps, heaters and cisterns. A drilled pipe is a leak inside the wall.
3. Tiles: use a tile or diamond bit, start without hammer action, and tape the spot so the bit does not wander.
4. Right bit, right depth: the hole should match the plug and be a little deeper than it, and be cleaned of dust.

Common mistakes

• Using the plastic plug that came in the box in a wall it was never meant for.
• Drilling into a mortar joint between bricks, where the plug has nothing firm to grip.
• Fixing only into tile or plaster instead of the solid wall behind.
• Over-tightening the screw until the plug spins or the board crushes.
• Using one big fixing instead of several spread along the load.
• Hanging heavy items on plasterboard because the fixing “felt tight” on the day.

In a condo, check the building’s renovation rules before drilling: many restrict noisy work to set hours, and some external or party walls should not be drilled at all.

What hanging and mounting jobs cost

These are indicative Klang Valley ranges for 2026 from our handyman services guide; hardware is excluded unless stated.

Several small hanging jobs are cheaper done in one visit than one at a time, because the callout is shared.

How ClickBina helps

Hanging and mounting are often part of a bigger move-in or refurbishment job, and ClickBina handles whole-house refurbishment and coordinates the trades, so carpentry, electrical points and fixings are planned together. WhatsApp us what you want to hang, roughly how heavy it is, and what the wall sounds like when you knock on it. We reply within the hour. A site visit is RM150, waived if you go ahead, and the price we agree is a flat price with no hidden charges. See our renovation page.

Sources & methodology

• ClickBina TV cabinet cost guide — the fischer anchor load table, the plasterboard fixing rating and the Vogel’s installation manual statement, as quoted there from the makers’ published documents.
• ClickBina handyman services guide — the price rows in the cost table.

How we estimated prices: every RM figure is quoted unchanged from the ClickBina handyman services guide; they are typical Klang Valley market ranges for 2026, not fixed rates. Load figures are one maker’s published values for its own products, not a generic rating for any wall plug.
