PU Sandwich Roof Panels
Cores, Where They Suit, Leaks & Cost (2026)

What a sandwich roof panel is

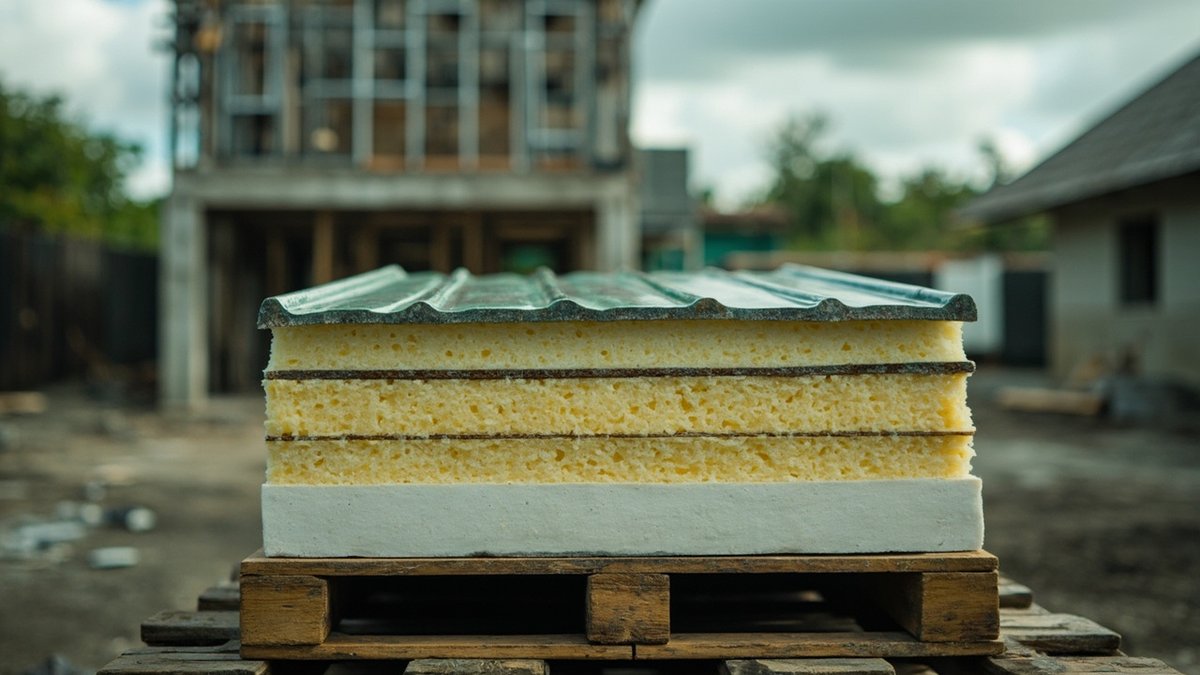

Wikipedia's entry on the sandwich panel describes it as any structure made of three layers: a low-density core and a thin skin bonded to each side, used where high rigidity and low weight are needed at the same time. On a roof, the top skin is a profiled, coated steel sheet that sheds rain like an ordinary metal deck. The bottom skin is a thinner, flatter sheet that becomes the ceiling you see from below. The core in between is usually polyurethane (PU) or polyisocyanurate (PIR) foam, sometimes expanded polystyrene (EPS) or rockwool.

In Malaysia the panels are sold as PU roof panels, insulated roof panels or sandwich roofing, and in India-derived catalogues as PUF panels. They are the same family of products as the sandwich panel partitions used for cold rooms and factory offices, but made with a weather-shedding top profile.

Why people choose them

• Heat. A bare metal sheet heats up in the afternoon sun and radiates it straight into the room below. The foam core slows that heat down.
• Rain noise. The core damps the drumming that makes a bare metal roof loud in a storm.
• Condensation. The warm, humid room air never touches the cold top sheet, so the underside does not sweat and drip.
• A finished ceiling. The underside skin is often left exposed, so there may be no separate ceiling to build.
• Speed. Large panels go up quickly on steel or timber purlins.

The noisy metal roof guide lists insulated sandwich panels among the ways to quieten a metal roof, and the metal roof condensation guide explains why an uninsulated sheet drips on humid nights.

PU, PIR, EPS or rockwool core

Wikipedia lists PIR, mineral wool and XPS as typical low-density cores, and in its section on aluminium composite panels warns that polyethylene and polyurethane cores do not have good fire-resistant properties unless specially treated. For a home extension or porch the fire question is usually modest, but for a kitchen, a shop or a factory ask for the core's fire classification in writing.

Where sandwich roof panels fit, and where they do not

They work best on simple, single-slope or gently pitched roofs with long straight runs: a back-kitchen extension, a car porch, a covered yard, a factory or warehouse. They are less suitable where the roof has many hips, valleys and odd angles, because every cut exposes the core and every junction needs a site-made flashing. On an existing tiled house roof, replacing the tiles with panels is a structural change; the metal vs tile roof guide explains the batten and flashing work involved in any switch to metal.

Check the structure too. The panels are light, but they are long and stiff and need purlins at the spacing the manufacturer specifies. Reusing old timber purlins that sag or have termite damage will show up as a wavy roof and open laps.

Joints, fixings and cut edges: where they leak

A sandwich roof leaks in the same places as any metal roof: the screw lines, the side laps, the ridge and the wall flashing. The metal roof leak repair guide explains why rusted screws and perished washers are the usual cause. With sandwich panels, also watch these points:

• End laps. Where two panels meet along the slope, the top skin must overlap with the core cut back, sealed, and fixed through the crowns of the profile.
• Cut edges. Exposed foam at the eaves and ridge must be closed with a trim or foam filler; open edges let in water, insects and nesting birds.
• Fixings. Long screws with bonded washers go through the full panel into the purlin; over-tightening crushes the core and dimples the skin, which then ponds water.
• Fall. The roof needs enough slope for the profile chosen; near-flat panels hold water at every lap.

The alternative: metal deck plus separate insulation

The same goals can be met by laying an ordinary metal deck and adding insulation underneath: reflective foil or sarking on the purlins, rockwool above a ceiling, or PU spray foam on the underside of the sheet. The roof insulation guide compares these options. The separate route lets you choose each layer and repair the sheet without disturbing the insulation; the panel route is faster and gives a cleaner underside in one step.

What it costs: the published lines

ClickBina does not publish a price for sandwich roof panels, because the core, thickness, skin coating and panel length vary widely between suppliers. These are the related published lines for a metal roof and its insulation (indicative 2026, Klang Valley):

A sandwich panel roof is quoted from the panel specification, the roof area and length of the runs, the flashings and trims, the structure it sits on, and the access. Ask for each of those as a separate line.

What to check in a quotation

• Core type (PU, PIR, EPS or rockwool) and panel thickness, with the product's data sheet.
• Top skin coating and profile, and the colour of the underside.
• Purlin spacing, and whether the existing structure is reused or renewed.
• Ridge, wall and eave flashings, end laps and edge trims, listed as separate items.
• Screw type and washers, and who seals the laps.
• Removal of the old roof and any asbestos-cement sheets, handled as its own item.

How ClickBina can help

WhatsApp us your job details for a quote: where the roof is, the rough area, and whether it is new or replacing an old roof. Roof sheeting is a specialist trade; ClickBina is an experienced KL & Selangor contractor for whole-house refurbishment and trade coordination, so on an extension or back-kitchen job the roof, gutters, ceiling, lighting and plastering can be planned as one job, as described on the home renovation page. If an existing roof is leaking, leak detection is a separate paid visit at RM300–RM800. We reply within the hour, and the price agreed is a flat price with no hidden charges. A site visit is RM150, waived if you go ahead.

Sources & methodology

• Wikipedia: Sandwich panel — three-layer construction, typical cores, building uses, fire caution on polyethylene and polyurethane cores.
• ClickBina metal vs tile roof, metal roof leak repair, metal roof condensation and roof insulation guides — published prices.

Methodology: prices are ClickBina indicative 2026 Klang Valley ranges from the guide named beside each; sandwich roof panels themselves are not priced here.
