Plywood Kitchen Cabinets
WBP, Marine & MR Grades in Malaysia (2026)

Why the carcass matters more than the door

When a Malaysian kitchen cabinet dies, it almost never dies at the door. It dies at the box — the carcass — usually in the base unit under the sink, where a slow tap drip or a weeping trap has been quietly soaking the bottom panel for months. The door still looks fine while the shelf sags, the back panel goes soft, and the whole unit starts to smell. That is why the carcass specification is the single most consequential line in a cabinet quotation, and why plywood kitchen cabinets are worth understanding properly.

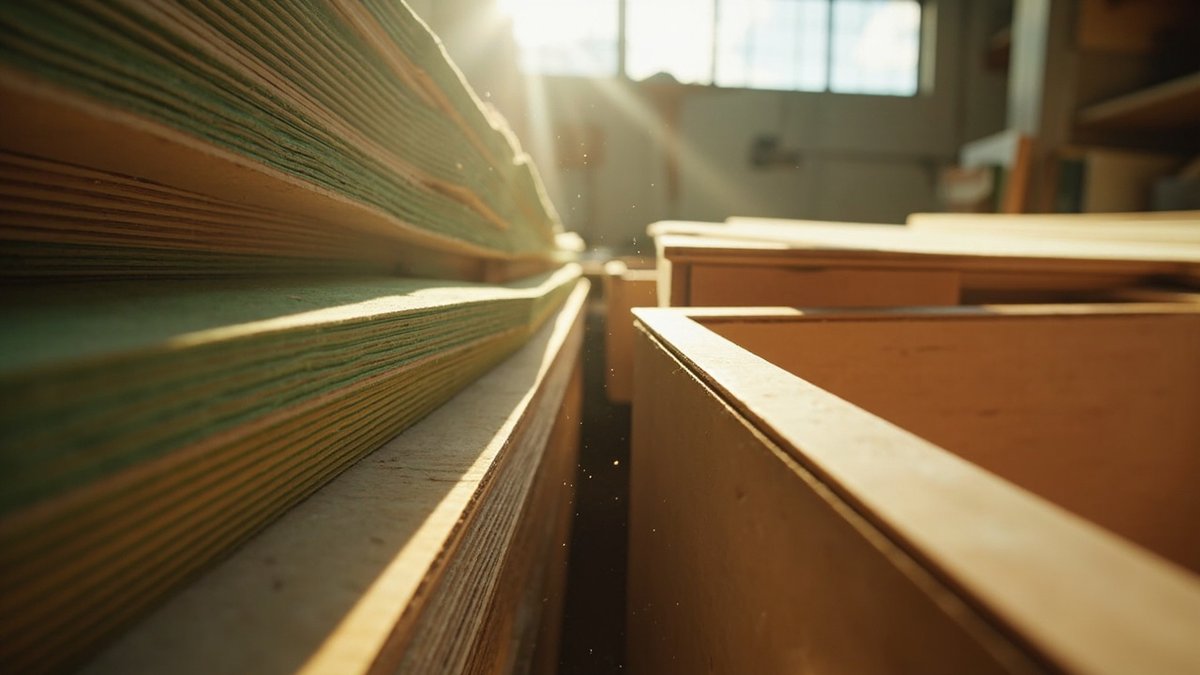

Plywood is made by peeling timber into thin veneers and gluing them together in odd-numbered layers with the grain of each layer crossed at ninety degrees to the last. That cross-graining is the entire point: it makes the panel dimensionally stable, resistant to splitting, and far better at holding a screw than any pressed board, because there is real continuous timber running in both directions instead of glued-together particles. A cabinet is a box under load with screws in its edges — plywood is simply the right material for that job.

Plywood grades: MR, HMR, WBP and marine

Grade in plywood is mostly a statement about the adhesive holding the veneers together, plus the quality of the veneers themselves. These are the grades you will actually be offered in the Klang Valley:

Note what is missing from that table: not one of these grades says the wood cannot get wet. They describe how well the glue and, in marine grade, the veneer quality hold up. That distinction is where most of the confusion in the market comes from, and it is worth its own section.

Why “waterproof plywood” is a misnomer

“Waterproof plywood” is one of the highest-volume searches in this category, and it describes a product that does not exist. WBP and marine grades guarantee that the glue lines will not fail when soaked or boiled — the sheet will not delaminate into its layers. They guarantee nothing about the timber itself. Wood is an organic material: left permanently wet, veneers still absorb water, swell, lose strength, and eventually host fungal rot regardless of what is holding them together. A marine-grade panel sitting in a puddle for a year is a marine-grade panel that has rotted.

The practical translation is simple. Buy the best glue line you can justify, because delamination is a real and common failure. Then seal every cut edge, every drilled hole and every screw penetration, because that is where water actually enters — and treat any standing water in a base unit as a plumbing fault to be fixed today, not a durability question. If a supplier tells you their plywood is waterproof and needs no sealing, that is a claim to test, not a specification. If your cabinets are already swelling, the diagnosis and repair options are in the cabinet swelling and water damage guide.

18mm vs 16mm: what carcass thickness buys

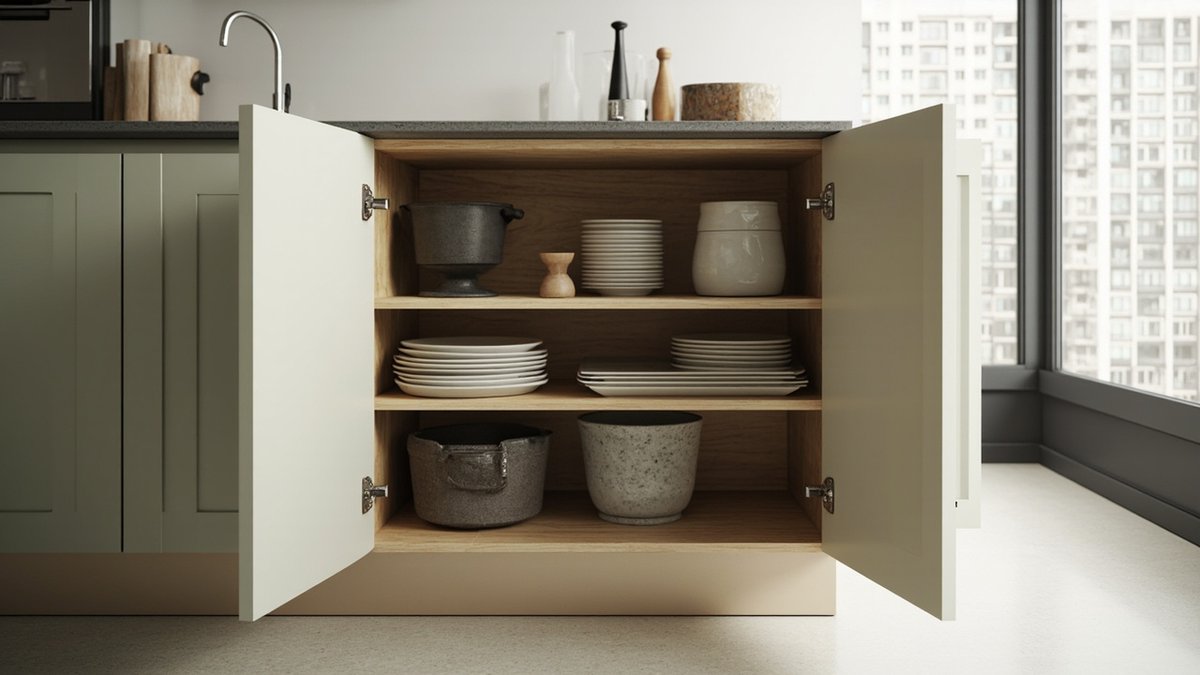

Sixteen millimetres is the bare minimum for a kitchen carcass and eighteen is the standard worth paying for. The two millimetres sound trivial and are not. Screws driven into the edge of an 18 mm panel get meaningfully more material to bite into, so hinge plates, shelf pins and drawer runners stay put under load. Shelves in 18 mm deflect noticeably less across a wide span — the sag you see in an old kitchen full of crockery is usually a thin shelf, not a heavy one. And a thicker panel resists the racking that pulls a tall unit out of square over a decade.

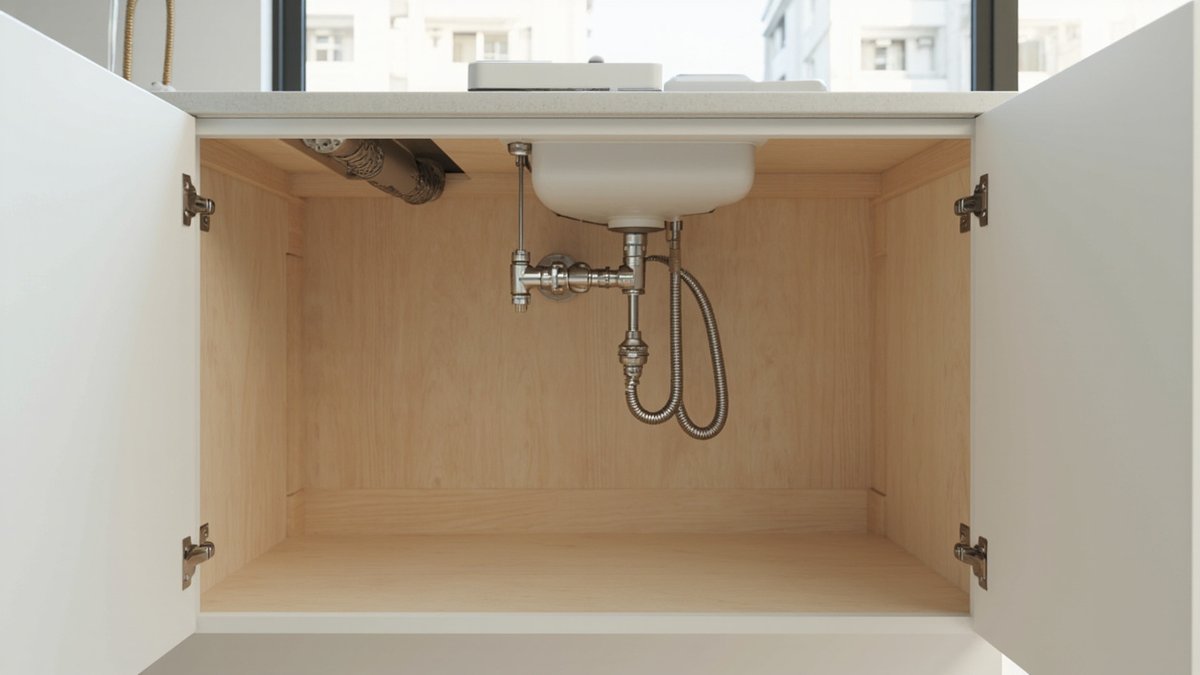

Ask specifically about the back panel too. Many quotations that promise an 18 mm carcass quietly use a thin 3–5 mm back slotted into a groove, which is fine structurally but is the first thing to go soft if water gets behind the unit. On a base cabinet under a sink, a full-thickness back and a raised, sealed bottom panel are worth asking for by name. And check whether the plinth — the recessed strip at floor level — is plywood at all: in a wet kitchen it should be PVC or aluminium, because that is the part that meets mop water every week.

Termites and chemically treated boards

Termites do not care that a board has been glued and pressed. Plywood is timber, and subterranean termites will tunnel through it exactly as they will through a solid frame, particularly in ground-floor landed homes and anywhere joinery meets a wall that touches soil. The classic discovery is a kitchen base unit that sounds hollow when tapped and collapses when opened, with the doors still looking untouched from the outside.

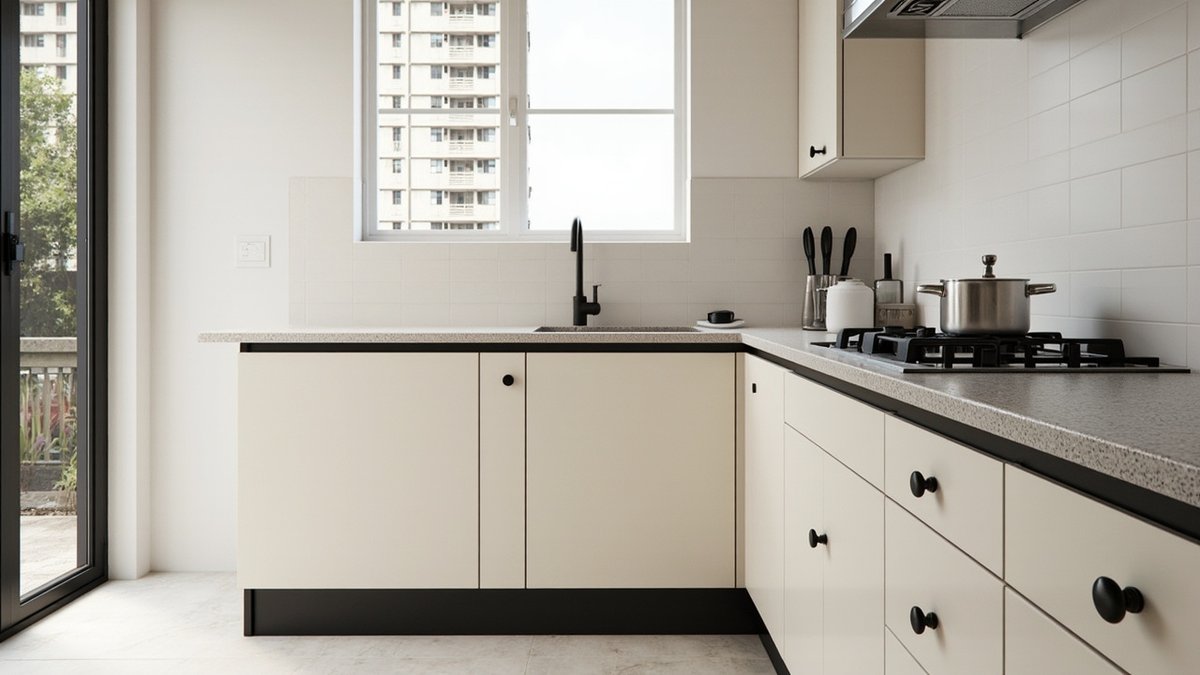

Two defences are worth specifying. First, chemically treated plywood — boards treated at manufacture against fungal decay and insect attack — costs a little more and is a reasonable insurance premium on ground-floor base units. Second, keep timber out of the highest-risk positions entirely: a PVC or aluminium plinth, a rigid PVC or metal carcass for the sink base, and no direct timber-to-masonry contact. Neither replaces an actual pest programme, so if you have seen mud tubes anywhere in the house, deal with the colony before you install new joinery — see the termite control and treatment guide, and consider solid wood only with the same precautions in place.

What a plywood carcass costs

Per foot run of cabinet, installed, countertop excluded (market estimate 2026, indicative Klang Valley):

The last row is the number most people want. Upgrading the carcass from particleboard to moisture-resistant plywood typically adds RM30–RM60 per foot run — on a fifteen-foot kitchen that is a few hundred ringgit against the cost of replacing a swollen base unit run, which is not a close call in a wet kitchen. A complete laminate-on-MR-plywood specification lands at RM350–RM600 per foot run. Set that against the whole-kitchen picture in the kitchen cabinet cost guide.

Plywood vs MDF vs particleboard, briefly

The short version: particleboard is wood chips pressed with resin — cheapest, weakest at the screw, and the fastest to swell once wet. MDF is finer wood fibre pressed into a very uniform board — excellent for routed and sprayed doors because it machines cleanly and has no grain, but heavy and equally vulnerable to water at an unsealed edge. Plywood is real cross-laminated timber — the strongest at the screw, the lightest for its strength, and the most forgiving of an occasional soaking.

That is deliberately brief because the full board-by-board comparison, including blockboard and the door-finish options that run over each, already lives on the cabinet material guide. The one thing worth repeating here is that the sensible Malaysian kitchen mixes them: MDF doors where a sprayed or routed profile is wanted, plywood carcasses where water and load live, and particleboard only where neither applies.

How to check what you are actually getting

Do this before fabrication starts, not on installation day. The most reliable single move is asking for an offcut of the actual board and photographing the edge and the stamp — a supplier confident in the specification hands one over immediately, and the photograph is what you refer back to if a different board turns up.

Where plywood belongs — and where it does not

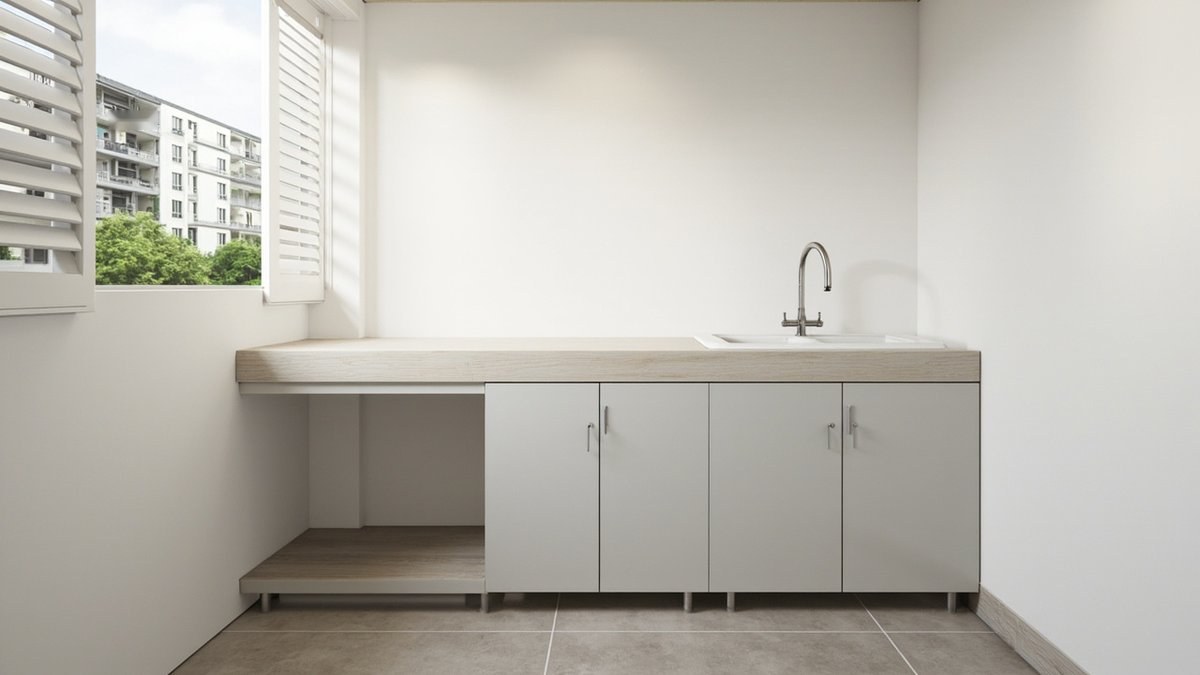

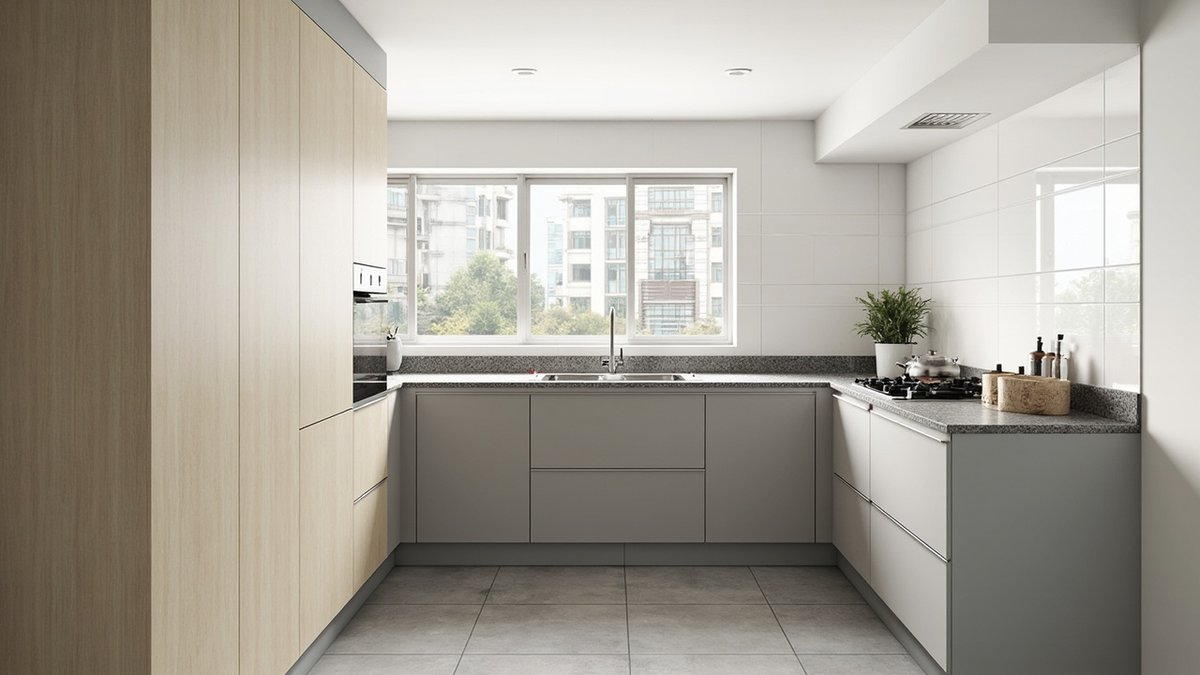

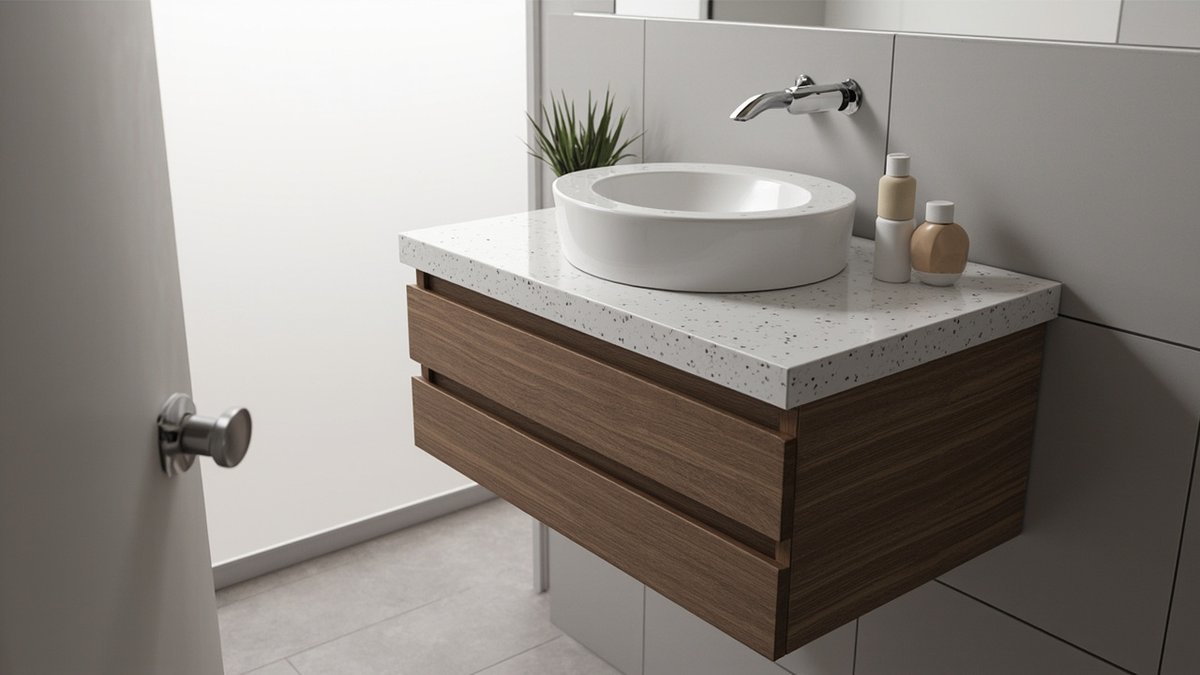

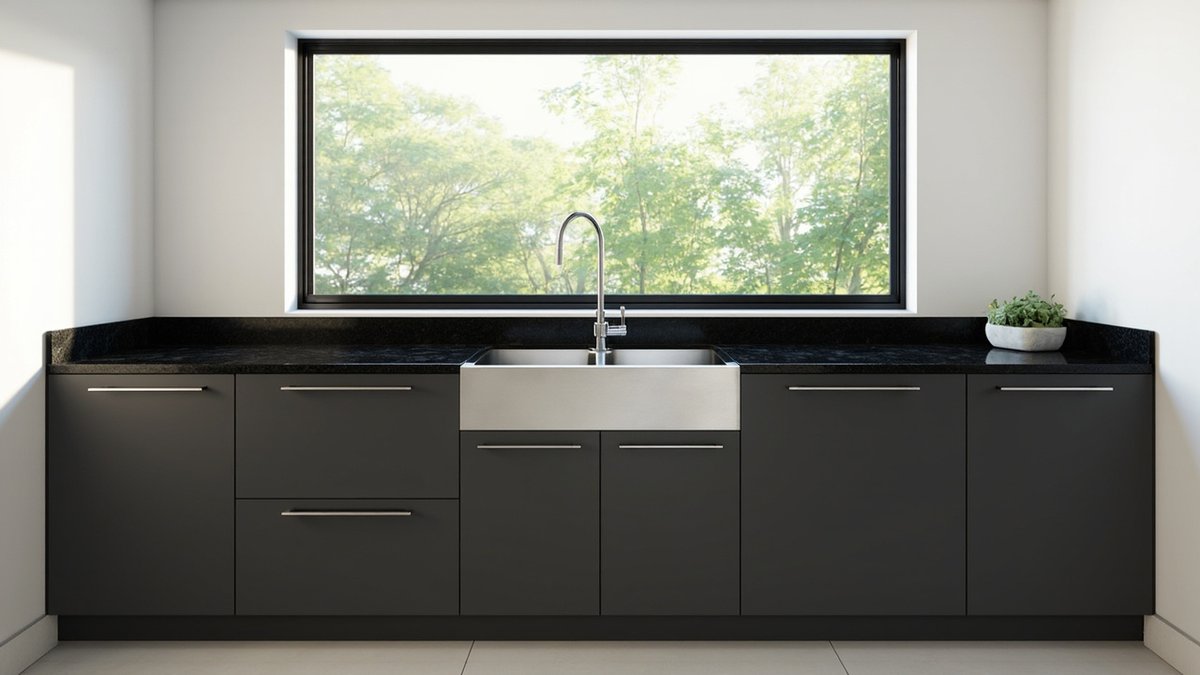

Plywood earns its premium in the base units, under the sink, in the wet kitchen, in a bathroom vanity and anywhere a heavy undermount sink or a stone top needs a box that will not sag. It is also the right call for tall pantry units, where the load of a full larder over two metres of height is exactly the kind of racking a pressed board handles badly.

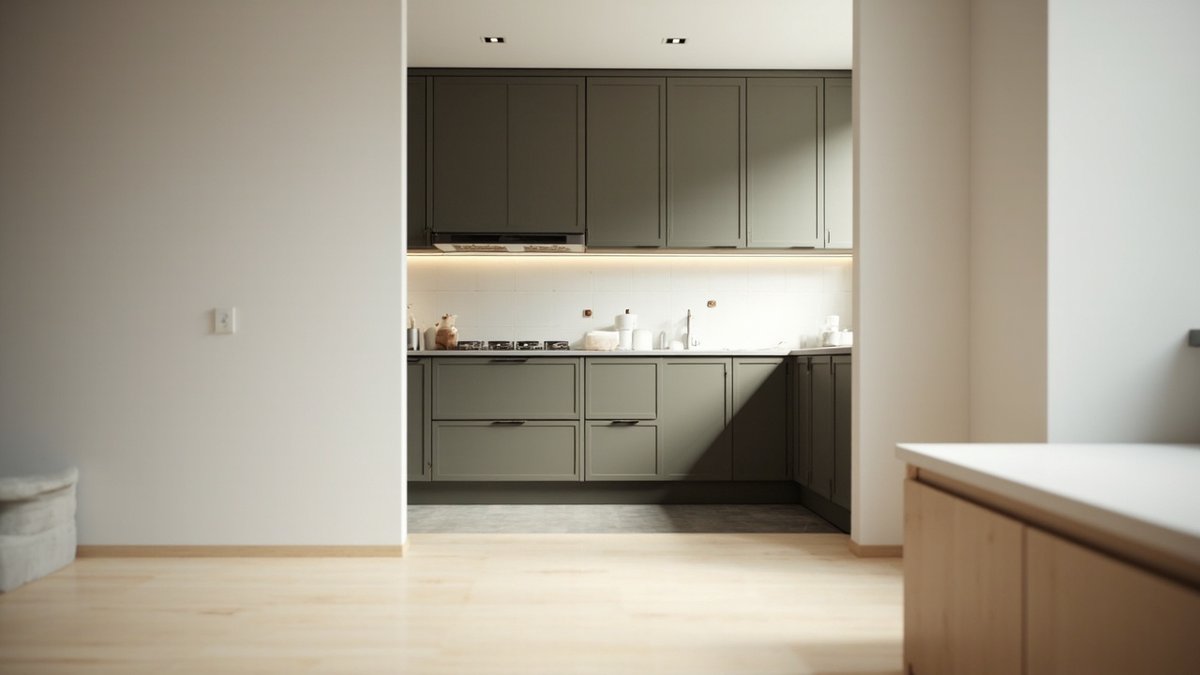

It is over-specified in a dry-kitchen upper run holding cups, in a wardrobe, in a study or in a TV console — melamine on particleboard does that job for years at a fraction of the price, which is why built-in wardrobes are rarely plywood. And it is the wrong material entirely for genuinely permanent standing water or outdoor exposure, where aluminium, stainless or rigid PVC are the honest answers. Splitting the specification zone by zone — plywood where water and load are, cheaper board where they are not — is how a wet and dry kitchen budget actually works.

Joinery, fixings and the details that fail first

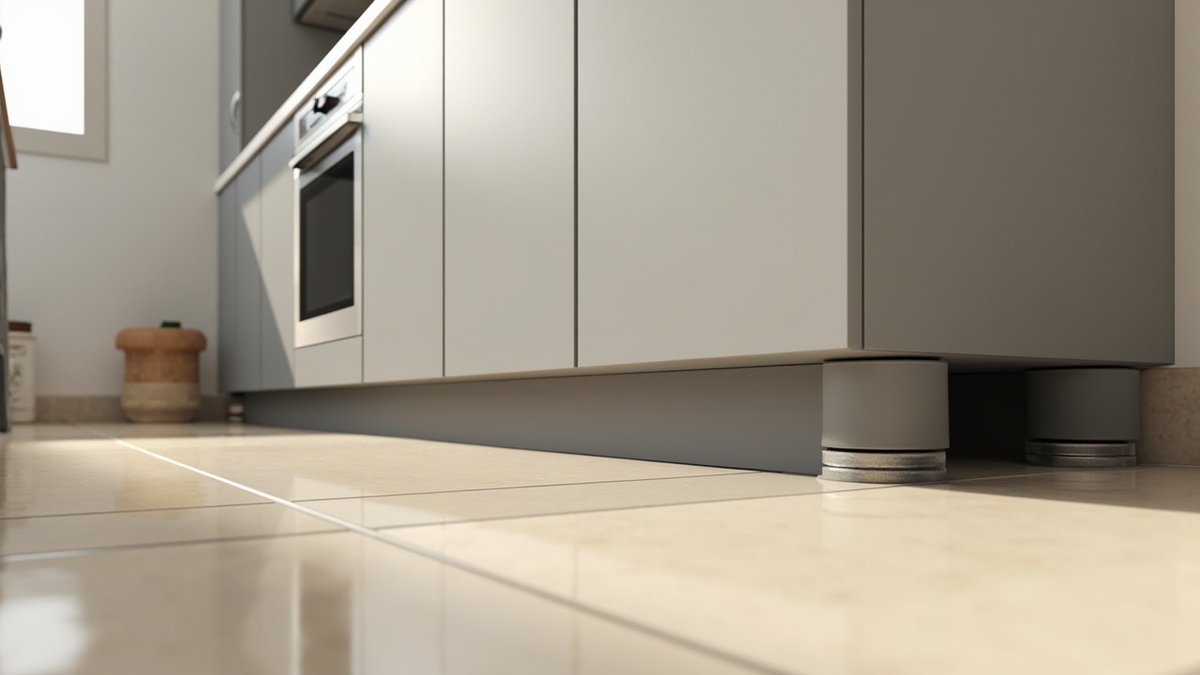

A good board assembled badly still fails. The details that decide a plywood kitchen’s lifespan are the unglamorous ones: every cut edge banded, including the top and back edges nobody sees; sealed drill holes; a raised bottom panel in the sink base so a drip lands on the floor of the cabinet rather than soaking into an edge; adjustable legs rather than a timber base sitting flat on a wet floor; and a plinth in PVC or aluminium.

Fixings matter as much. Cabinets should be mechanically fixed back to the wall, not just to each other, and hinge plates should land in solid material rather than in a thin panel edge. If the kitchen is going onto a wall that has ever leaked, deal with the wall first — a cabinet screwed to damp plaster will pull out, and the kitchen waterproofing guide covers what should happen before the joinery arrives.

Keeping a plywood kitchen dry

Nothing on this page matters if the sink base is wet for six months. Check under the sink every few months with a torch and a dry hand: look for a dark ring on the bottom panel, a soft patch at a corner, or a musty smell, and trace any drip at the trap, the tap tail or the hose clip. Most cabinet water damage in Malaysian homes is a slow leak that ran unnoticed, not a dramatic flood.

Beyond that, the habits are small: wipe standing water off the counter edge rather than letting it run down the door face, keep the extractor running so steam leaves the room instead of condensing on the underside of a wall unit, and re-seal any edge that has been drilled or trimmed on site. A plywood carcass that stays dry will outlast the doors on it — which is exactly why it is worth the upgrade.

What to write into the quotation

Six lines turn a vague plywood promise into something enforceable: the plywood grade (MR, HMR, WBP or marine), the carcass thickness (16 mm or 18 mm), the back-panel thickness, whether the boards are chemically treated against termites and fungus, the edge-band thickness and adhesive, and the plinth material. Add a seventh if you can: that a sample offcut of the actual board will be provided before fabrication.

Then check the same quotation for the things that are not the board at all — soft-close hinges, drawer runners, end panels, cut-outs and transport are the items that most often sit outside a headline per-foot rate. Compare quotes on the specification, not the rate, and see the door-finish options over your plywood in the melamine vs laminate guide.
