Fridge, Dishwasher & Microwave Cabinets
Building Kitchen Cabinets Around Appliances (2026)

Appliance first, cabinet second

Most appliance-cabinet problems start with the order of decisions. A kitchen is measured, drawn and sent to the factory, and the fridge, dishwasher and microwave are bought later, on sale, in whatever size fits the budget that week. Then installation day arrives and the new fridge is wider than the gap, the dishwasher has no water point, or the microwave door hits the wall unit next to it.

The fix is simple and costs nothing: pick the models, or at least commit to them, before the cabinet drawing is signed off. Every built-in or semi-built-in appliance ships with an installation sheet that gives the opening size and the clearances it needs, and those figures change from model to model. ClickBina's office pantry guide gives the classic example: a pantry redesigned around a fridge that arrives 60mm wider than assumed is an avoidable and expensive conversation. The same is true at home.

This guide covers the three appliances that most often decide the shape of a Malaysian kitchen run: the fridge, the dishwasher and the microwave. Built-in ovens follow the same rule, built to the model's sheet, and are usually housed in the same tall unit as the microwave.

The fridge surround: what the cabinet must leave open

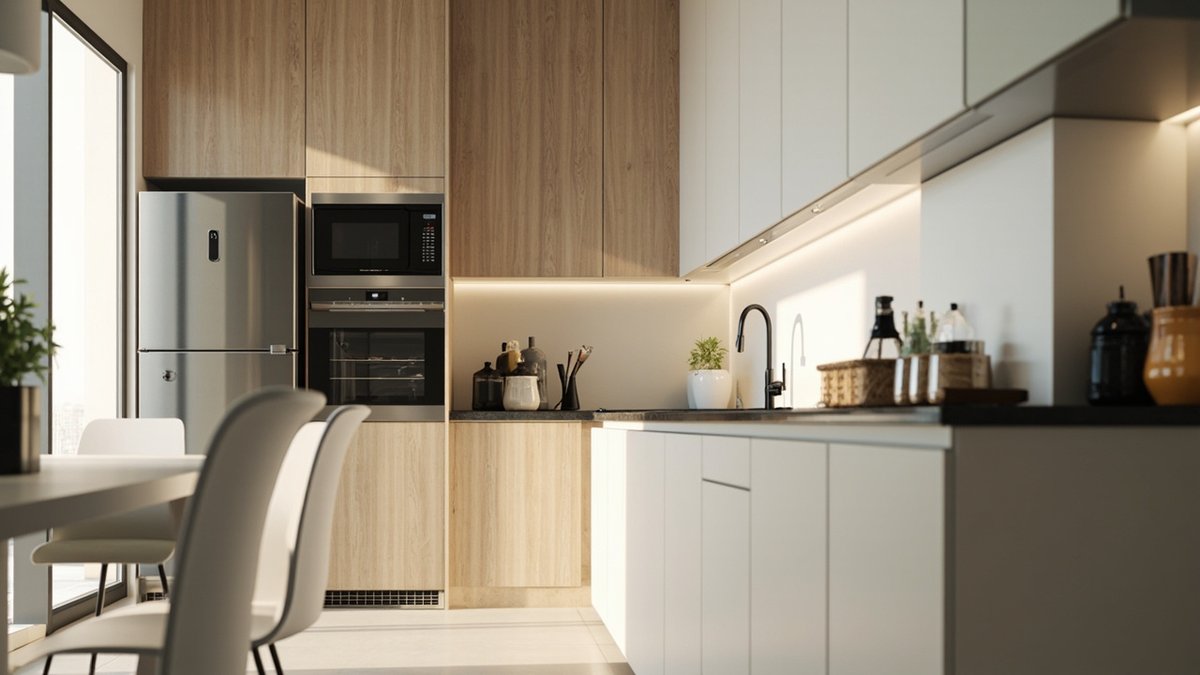

Most Malaysian kitchens use a freestanding fridge. A fridge surround is the carpentry around it: usually a tall side panel or tall unit on one or both sides and a short cabinet above. Done well, it makes the fridge look built in and gives you storage above it. Done badly, it traps the heat the fridge has to get rid of.

A fridge works by pushing heat out through its back and sides. If the surround closes that air in, the compressor runs longer, the box gets warm and power use goes up. Bosch's fridge-freezer instructions put it plainly: the air heated on the rear side of the appliance must be allowed to escape unhindered, and the ventilation openings must never be covered. The same instructions ship with spacers that hold the fridge away from the wall.

So a surround is not a box. It is three panels and a top with planned gaps: room behind for the spacers and the plug, a gap at each side, and space under the cabinet above so warm air can rise and leave.

Fridge clearances from a manufacturer's sheet

Clearances vary by brand and model, so treat these as an example of what an installation sheet asks for, not as a universal rule. They come from Bosch's installation instructions for its fridge-freezers:

The door is the clearance people forget. A fridge pushed tight against a wall or a tall panel on its hinge side often cannot open far enough to pull the crisper drawers out. A filler strip between the fridge and the tall unit solves it, and it should be drawn on the quotation.

Climate class matters in a Malaysian wet kitchen or a yard with no aircon. A class T appliance is rated for a room up to 43 °C; a lower class may struggle inside a tight surround in a hot back kitchen.

Integrated fridge or freestanding fridge in a surround

An integrated fridge is a different product. It is built to sit inside a tall cabinet with a cabinet door fixed to its own door, so the kitchen reads as one run of doors. Its installation sheet specifies the inside size of the cabinet and the ventilation in square centimetres, not just a gap.

Fisher & Paykel's installation guide for one integrated model, for example, gives a minimum inlet vent area of 200 cm² and a minimum outlet vent area of 280 cm², and says the top of the cabinet must be vented into the room. In carpentry terms that means a ventilated plinth grille at the bottom and an open or slotted top, both sized to the sheet.

For most homes a freestanding fridge in a well-ventilated surround is the practical choice: it is easier to replace when it fails, and fridges fail. ClickBina's fridge repair guide notes that an integrated fridge has to be drawn out and refitted for some repairs, which adds carpentry time.

Fitting a dishwasher into the base run

A built-in dishwasher replaces one base cabinet. A full-size one sits in a 600 mm wide gap, which is also the standard depth of a Malaysian base cabinet. Bosch's specification sheet for one fully integrated 60 cm model asks for a niche of 815–875 mm high, 600 mm wide and 550 mm deep, with a cabinet door panel fixed to the dishwasher door.

• Put it next to the sink. It needs the water feed and the waste, and a short run is the reliable one.
• Check the height under the top. The niche height range has to fit between the floor and the underside of the worktop, so the plinth and worktop thickness matter.
• Leave room to open the door. With the door open at 90 degrees, the same Bosch sheet gives a depth of 1150 mm, so nothing should face it across a narrow galley.
• Keep the side panels moisture resistant. The cabinets either side see steam every time the door opens.

If you are not buying a dishwasher yet, a 600 mm base cabinet with a removable shelf can be built in the slot now and taken out later. Agree that with the cabinet maker so the water and power points go in during the renovation, not after it.

Water, waste and power behind the dishwasher

The dishwasher depends on three points that are not carpentry: a water feed, a waste connection into the sink waste or its own trap, and a socket. All three are fixed before the cabinets go in, and the socket should sit in the next cabinet, not hidden behind the machine, so it can be switched off and reached.

ClickBina's power points guide prices an extra power point at RM120 – RM400 per point, and a dedicated appliance circuit from RM400 (market estimate 2026, Klang Valley). The socket placement guide explains how far a socket should sit from the sink.

Water under a dishwasher is the other risk. A slow drip from a hose or the trap sits unseen under the cabinets for weeks. Check the connections at handover, and read the guide to leaks under the kitchen sink for the usual suspects.

Microwave: wall unit, tall housing or countertop

A microwave can live in three places. Each has a different cabinet requirement:

Built-in models give exact figures. Bosch's specification sheet for one built-in microwave gives a niche 362–365 mm high, 560–568 mm wide and 300 mm deep, for installation into a 60 cm wide wall unit or a tall housing, and refers the fitter to the installation manual for ventilation. A freestanding microwave put into a cabinet is the risky case: it was not designed for an enclosure, and the office pantry advice applies at home too: clearances vary by model, so never box it in tight.

What appliance cabinets cost

Appliance housings are tall-unit carpentry, and tall units are not quoted at the base rate. ClickBina's pantry cabinet guide applies a multiplier of roughly 1.6 to 2.2 times the base rate, and notes that a typical single tall unit is 2 to 3 feet wide. Its working numbers (market estimate 2026, indicative Klang Valley):

Add the points behind the appliances: an extra power point at RM120 – RM400 each, or from RM400 for a dedicated appliance circuit. A dishwasher slot is priced as part of the base run, and a short cabinet over a fridge as part of the wall run.

Mistakes that force a re-cut on installation day

• Building the fridge gap to the old fridge, then buying a wider one.
• Closing the top of a fridge surround with a full cabinet and no air gap.
• No filler on the hinge side, so the fridge door cannot open fully.
• A dishwasher slot with no water feed, waste or socket behind it.
• Putting a freestanding microwave into a tight cabinet niche.
• Hiding sockets behind appliances that are hard to pull out.

Every item on that list is cheaper to fix on the drawing than on site. ClickBina's on-site installation checklist covers the cut-outs and fixings to check while the carpenters are still there.

What to hand your cabinet maker

1. The make and model of the fridge, dishwasher, microwave and oven, or the ones you have shortlisted.
2. The installation sheet for each built-in model.
3. Which side the fridge door hinges on, and whether you want an integrated or freestanding fridge.
4. Where the sink, water feed and waste will be, so the dishwasher sits beside them.
5. Where each socket goes, agreed with the electrician before the cabinets are made.

A fridge set into the cabinet line rather than standing out into the passage also frees floor space. ClickBina's KL kitchen guide notes that an integrated fridge alcove reclaims 2–3 ft of aisle in a compact kitchen.

How ClickBina builds appliance cabinets

ClickBina designs, builds and installs kitchen cabinets, including fridge surrounds, dishwasher slots and microwave housings, as part of a custom cabinet job. We draw the kitchen around the models you choose, and coordinate the electrical and plumbing points with the cabinet drawing so they are in place before installation. WhatsApp us your job details for a quote: the kitchen size, the appliances and their models. We reply within the hour, the price we agree is a flat price with no hidden charges, and a site visit is RM150, waived if you go ahead.

Sources & methodology

• Bosch fridge-freezer installation instructions — heat escape, 30 mm gap above, 25 mm beside another fridge, 3 cm from a cooker, climate classes.
• Bosch fridge-freezer instructions for use — door must open to 90 degrees.
• Fisher & Paykel integrated fridge installation guide — inlet and outlet vent areas.
• Bosch fully integrated dishwasher specification sheet — niche size and open-door depth.
• Bosch built-in microwave specification sheet — niche size and wall-unit installation.
• ClickBina pantry cabinet, power points, office pantry and KL kitchen guides — prices and planning figures.

How we estimated prices: every RM figure on this page is quoted unchanged from the ClickBina guides named above (indicative Klang Valley ranges for 2026). Appliance figures are examples from one manufacturer's document each; always build to the sheet for your own model.
