Browse 12 bathroom looks for a double-storey terrace, from the guest toilet under the stairs to the common bathroom upstairs over the kitchen, then see what each one involves.
📍 We serve KL, Selangor & Putrajaya.
A double-storey terrace usually has three kinds of bathroom: a small guest toilet downstairs, often under the staircase; an upstairs common bathroom, often sitting over the kitchen or dining area; and a narrow master en-suite along the side wall. Windows open only to the back or an air well. The design rules follow: waterproofing first upstairs, because a leak shows in the ceiling below; compact fittings in tight rooms; and daylight from a louvre, a skylight or a glass screen. These 12 concept designs show terrace bathrooms upstairs and downstairs in modern, Japandi and practical styles.
Each design below is an illustrative concept render of a bathroom in a terrace house. Filter them by style, by upstairs or by ground floor. Tap any image to enlarge it. Every card links to the ClickBina guide that covers the work behind that look.
12 designs shown
Illustrative concept design · Modern · Terrace

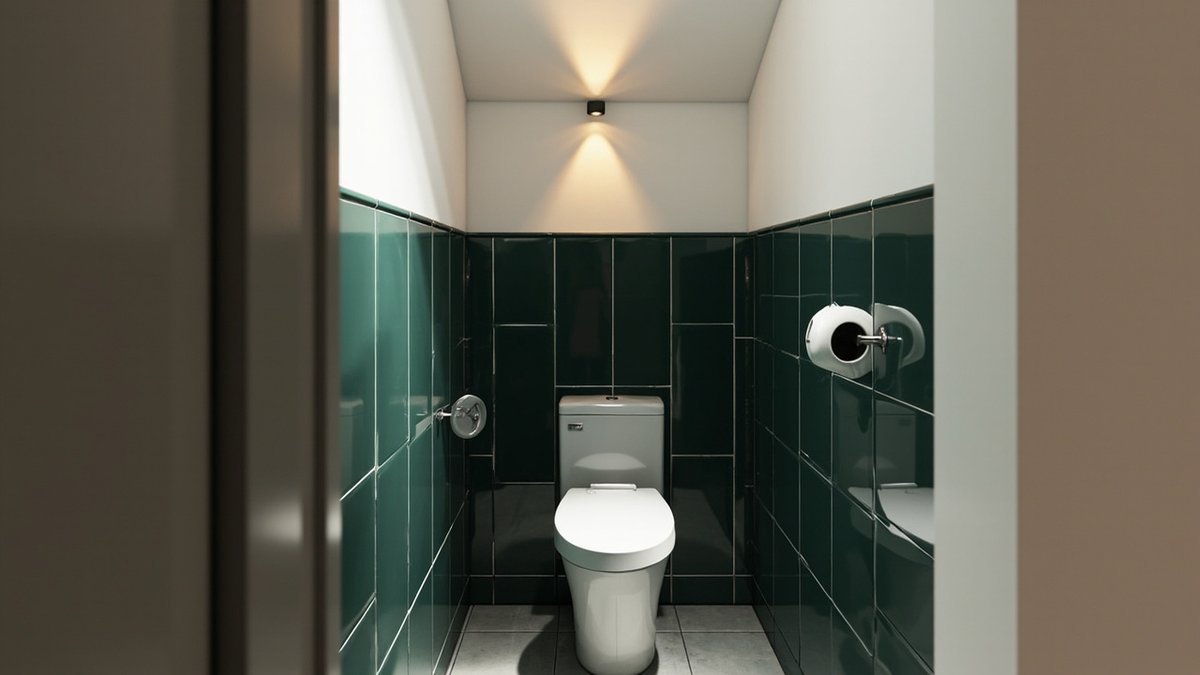

A narrow powder room with dark green glazed tiles to dado height, a toilet and a warm wall light.
💬 WhatsApp us about this design
guest toilet renovation →Illustrative concept design · Modern · Terrace

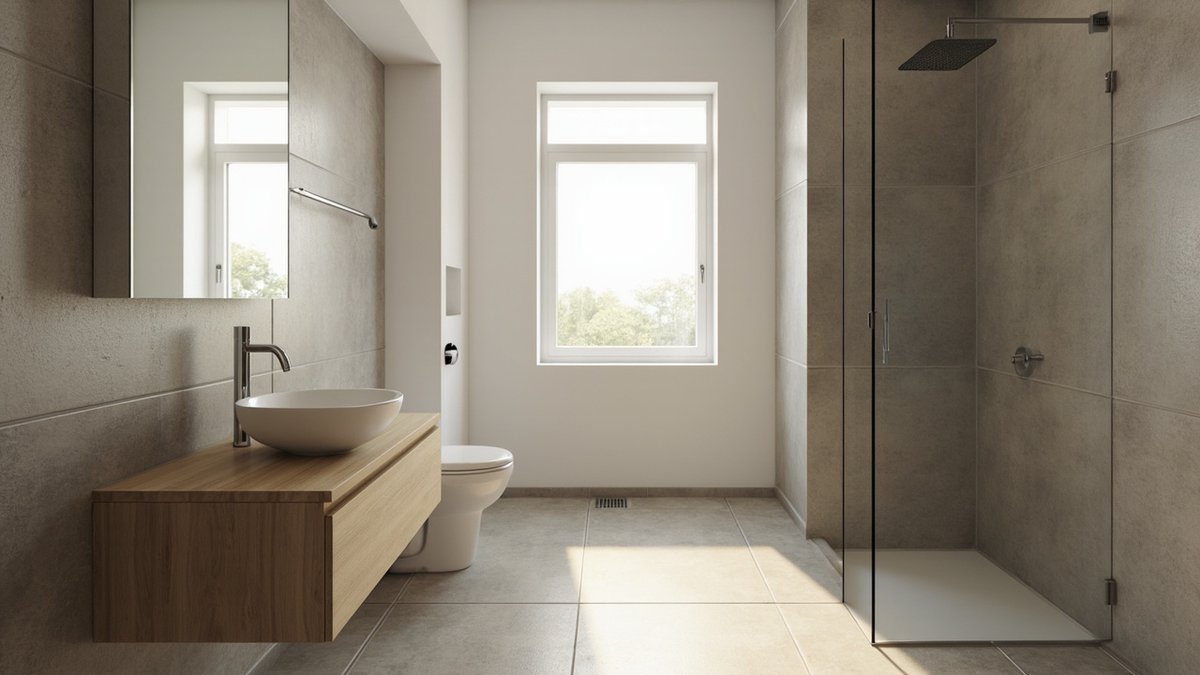

A warm grey tiled en-suite with a floating oak vanity and vessel basin, a toilet and a glass walk-in shower by the window at the end.
💬 WhatsApp us about this design
master bedroom and en-suite renovation →Illustrative concept design · Japandi & Scandi · Terrace
A beige tiled bathroom with a full-height glass shower screen, two oak vanities and a window with blinds.
💬 WhatsApp us about this design
shower screen types →Illustrative concept design · Japandi & Scandi · Terrace
A rain shower under a skylight, with daylight on beige stone-look tiles and a glass panel.
💬 WhatsApp us about this design
skylight costs →Illustrative concept design · Practical · Terrace
Two side-by-side doors off a small lobby: a WC compartment on the left and a shower room with a vanity on the right.
💬 WhatsApp us about this design
moving bathroom fittings →Illustrative concept design · Modern · Terrace

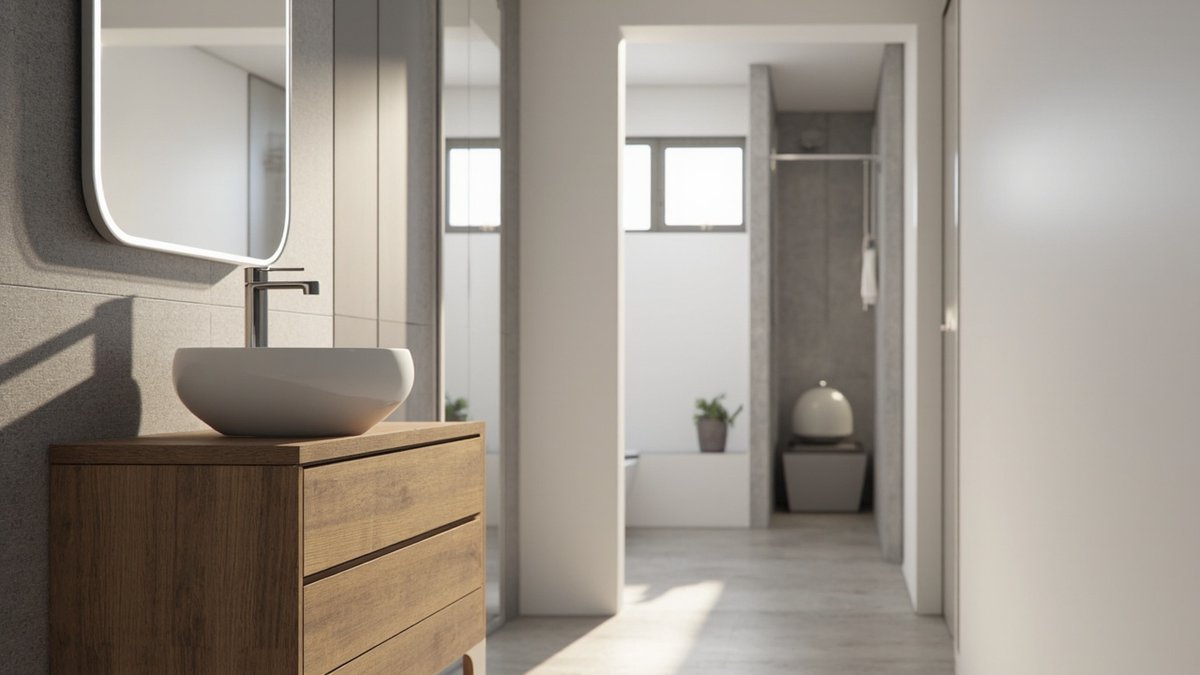

An oak vanity with a vessel basin and mirror in the corridor outside an open bathroom.
💬 WhatsApp us about this design
bathroom vanity cabinet designs →Illustrative concept design · Modern · Terrace
A white walk-in shower with a glass panel, a wall niche and a tall window, the basin in the foreground.
💬 WhatsApp us about this design
bathtub to shower conversion →Illustrative concept design · Practical · Terrace

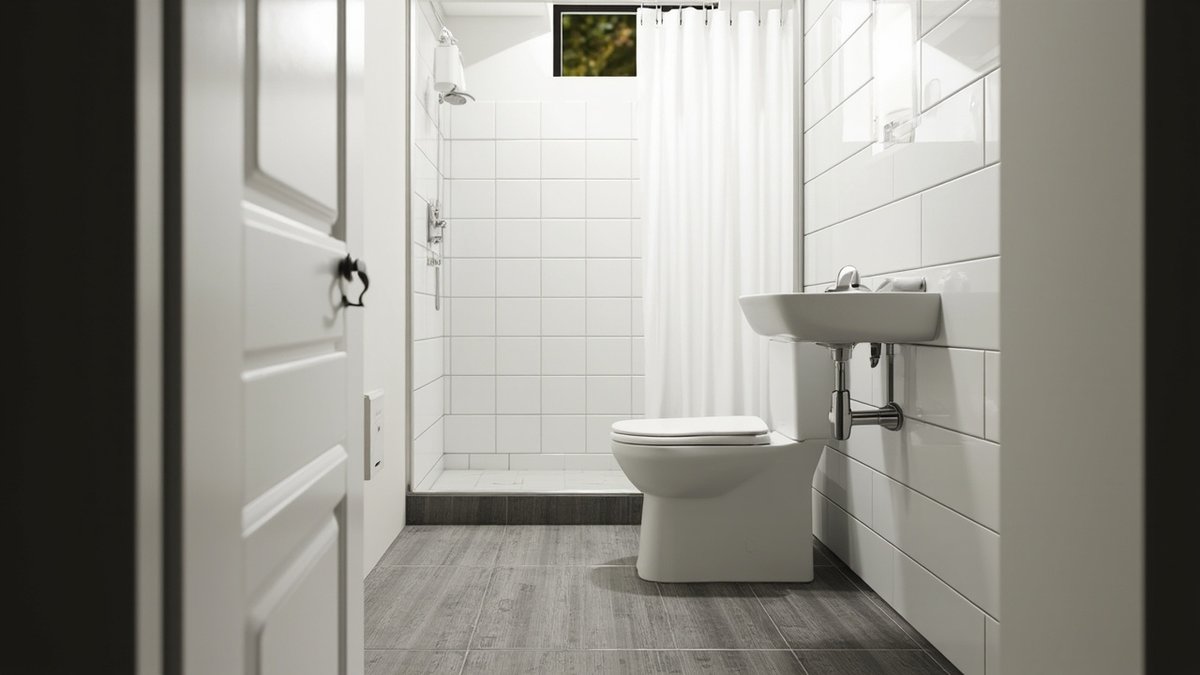

A simple white-tiled bathroom with a grey floor, a toilet, a wall-hung basin and a curtained shower on a raised base.
💬 WhatsApp us about this design
bathroom designs →Illustrative concept design · Japandi & Scandi · Terrace

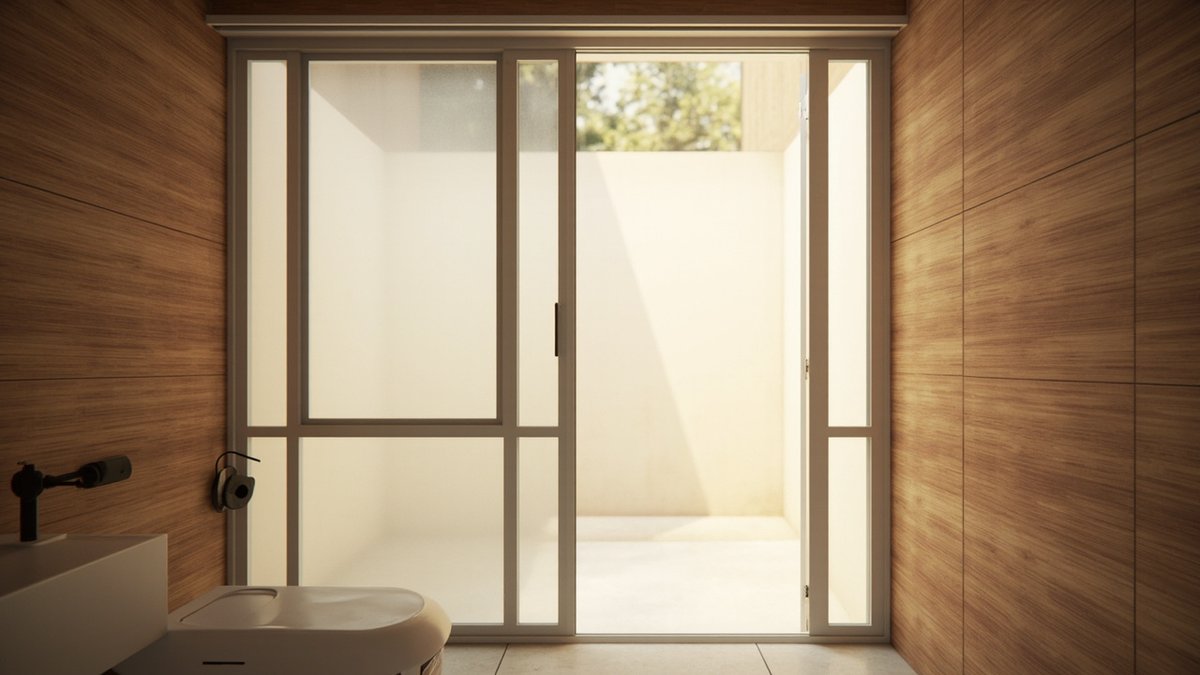

A timber-look tiled bathroom facing frosted glass panels and a door to an open air well.
💬 WhatsApp us about this design
louvre window replacement →Illustrative concept design · Practical · Terrace
A narrow white-tiled bathroom with one low tiled step up to a raised floor area under the window and a small wall basin.
💬 WhatsApp us about this design
upstairs bathroom leaks →Illustrative concept design · Modern · Terrace

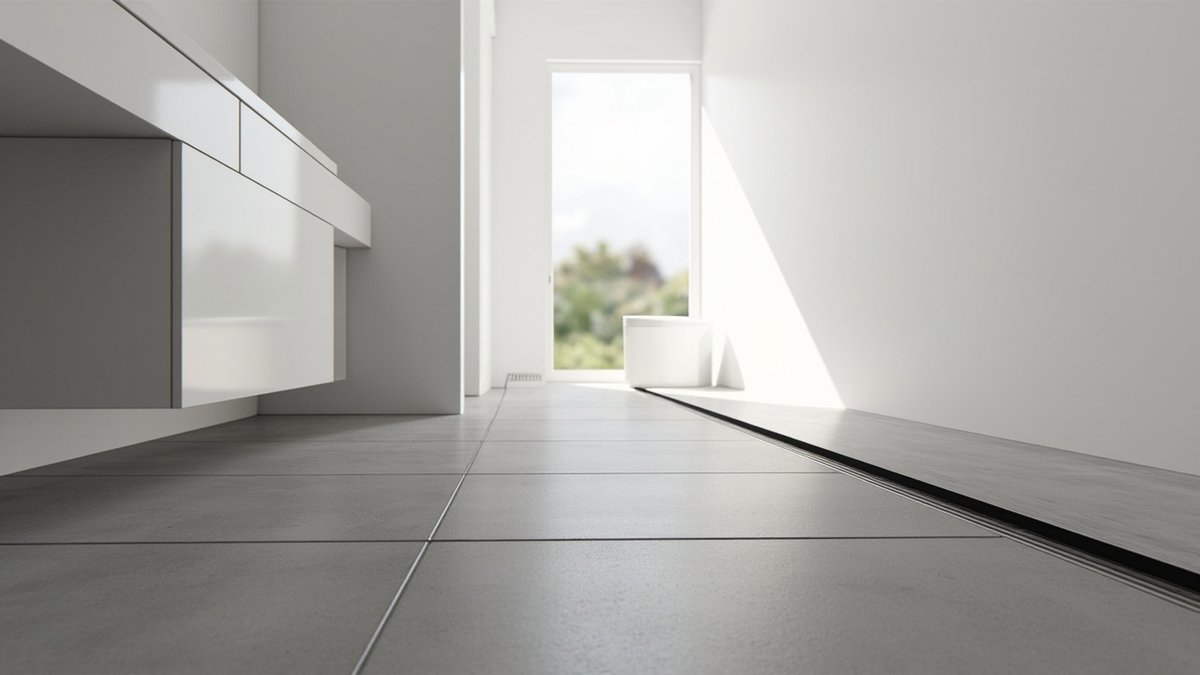

A low view along a grey tiled floor to a long linear drain against the wall and a tall window.
💬 WhatsApp us about this design
floor traps and linear drains →Illustrative concept design · Modern · Terrace

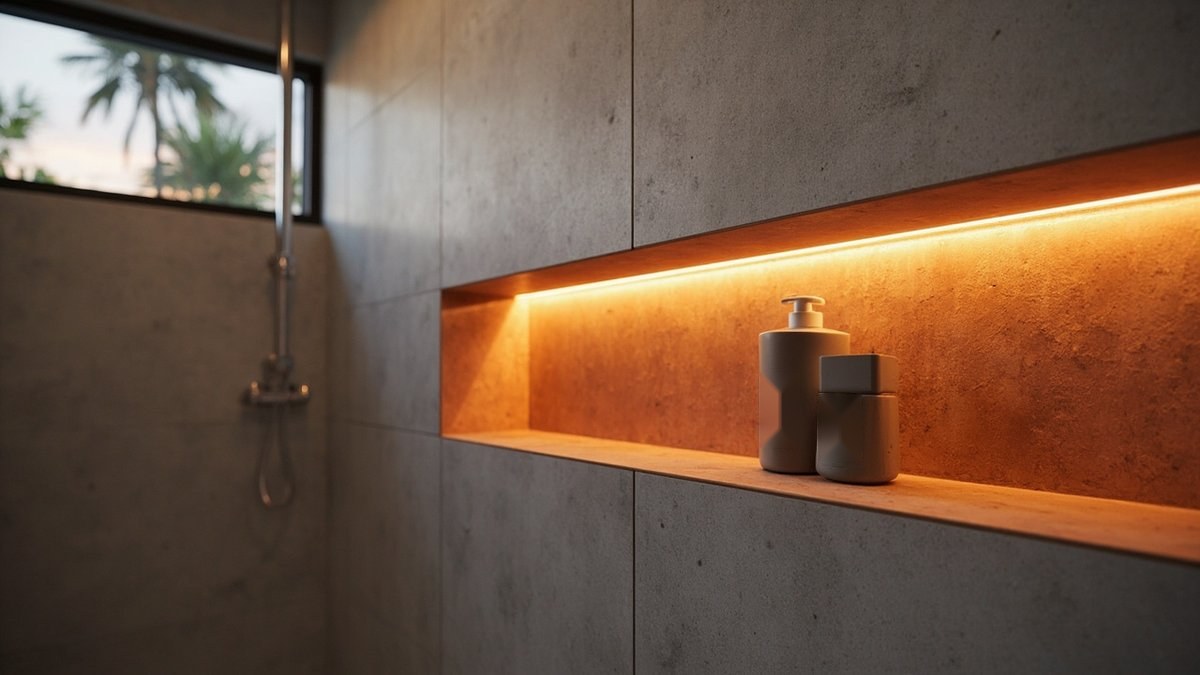

A long lit niche lined in terracotta tones in a grey shower wall, holding two plain bottles.
💬 WhatsApp us about this design
shower niches →These are illustrative concept designs created to show terrace bathroom options. They are not completed ClickBina projects. We renovate terrace bathrooms, from waterproofing and retiling to fittings and screens, and your bathroom is assessed and quoted to its own size, pipes and floor.
More galleries: browse all design ideas by area of the house, from cabinets and kitchens to porches and grilles.
A double-storey terrace usually has two or three bathrooms in fixed places. The guest toilet sits downstairs, often under the staircase or near the back. The common bathroom upstairs often sits over the kitchen or dining area, which is why a leak there shows up as a stain in the ceiling below. The master en-suite is usually a narrow strip along the party wall. Windows face the back or an air well, so daylight is limited.
For bathroom styles across every home type, see the bathroom design gallery.
| Bathroom | Usual position | Ideas that work | Watch for |
|---|---|---|---|
| Guest toilet | Under the stair or at the back | Wall-hung WC, corner basin, dark feature tiles | Headroom, exhaust fan |
| Common bathroom | Upstairs over the kitchen | Full-height glass screen, split WC and shower | Leaks into the ceiling below |
| Master en-suite | Narrow strip by the party wall | Walk-in shower at the far end, floating vanity | Door swing, ventilation |
| Helper or yard bathroom | Ground floor by the wet kitchen | Anti-slip tiles, simple fittings | Floor falls to the trap |
| Top-floor bathroom | Under the roof | Skylight over the shower | Flashing and steam |
| Problem | Usually works | Hand-off |
|---|---|---|
| Stain in the ceiling below | Full re-waterproofing, a raised floor for new pipes | Upstairs bathroom leak guide |
| Unused bathtub | A walk-in shower in the old alcove | Tub to shower conversion guide |
| Morning queue | A split WC and shower, a basin outside | Moving fittings guide |
| Dark, stuffy bathroom | A louvre to the air well or a skylight | Louvre window guide |
Because the upstairs common bathroom often sits over the kitchen, waterproofing matters more than any tile or fitting. The bathroom waterproofing guide explains where leaks start, and the upstairs bathroom leak guide covers how a leak into the room below is traced and fixed. If you want a level-floor shower, the walk-in shower guide explains why removing a kerb means redoing the falls and the membrane.
The double-storey vs single-storey terrace guide notes the same point from the other side: on a double-storey terrace a failed bathroom floor leaks through the ceiling of the room underneath.
ClickBina's bathroom design gallery quotes the bathroom renovation cost guide at RM6,000 – RM10,000 for a basic job and RM12,000 – RM18,000 for a mid-range one. A full hack-and-redo including retiling is RM4,500 – RM9,000 for a standard bathroom in the walk-in shower guide.
For fittings, the guest toilet guide lists a new WC at RM350 – RM1,200 and a counter-top basin with a PVC cabinet at RM600 – RM1,200, the shower screen guide puts a frameless hinged screen at RM1,200 – RM3,000, and relocating a toilet drain adds RM2,000 – RM5,000. These are indicative Klang Valley figures for 2026.
We renovate terrace bathrooms, from waterproofing and retiling to fittings, screens and vanities. WhatsApp us your job details for a quote: which bathroom, upstairs or down, whether there is a stain in the ceiling below, and the looks from this page you like. ClickBina is an experienced KL & Selangor contractor, and we reply within the hour with next steps. The price we agree is a flat price with no hidden charges.
About the images: every image on this page is an illustrative concept design generated to show a terrace bathroom option. Captions describe what each render shows. RM figures are quoted unchanged from the ClickBina guides named above, indicative Klang Valley ranges for 2026.
